KUN15L-PRMDHW3 (2006)
Toyota Hilux
Production
Oct 2006
-
Oct 2008
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

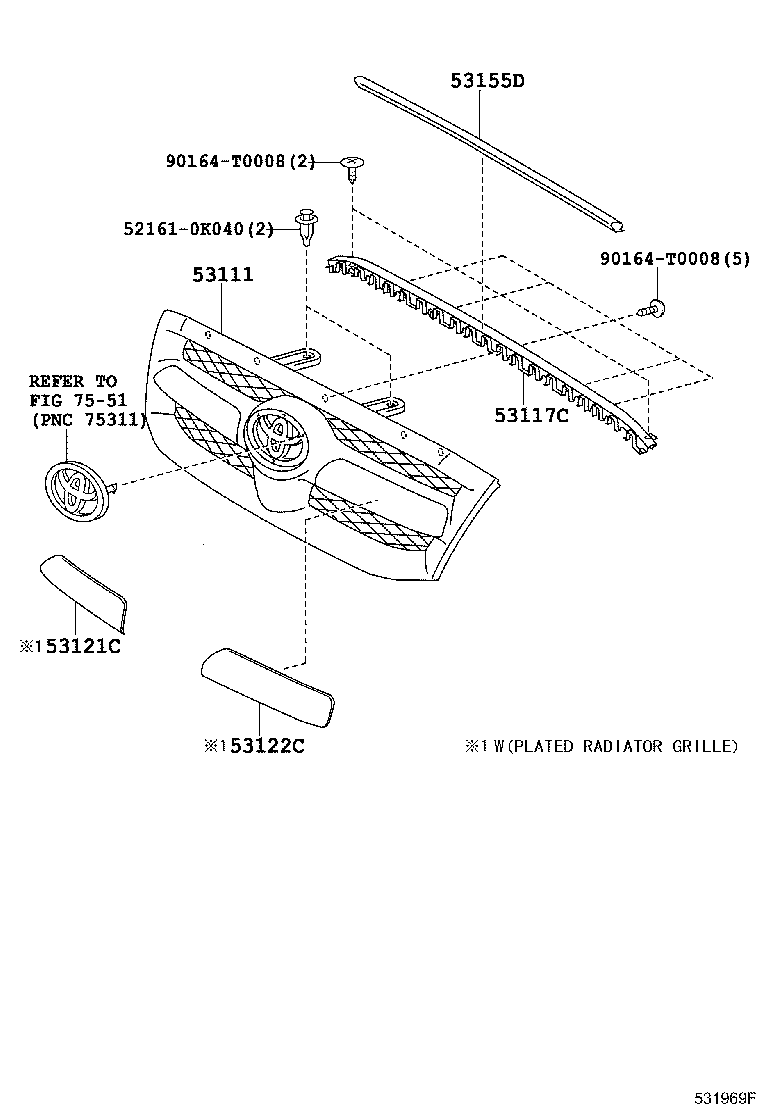

(0507-0808)THDCB,THSCB,XTR ; (0507-0810)DCB,SCB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-0K090 |
KUN15,2#..DCB,SCB NO PAINT REQ. |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 53117-0K020 |
KUN15,2#..DCB,SCB |
1 | ||
| 53155D - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53397-0K030 |
KUN15,2#..4FC,5F |
1 | ||
| Common parts | ||||
| 52161-0K040 | ||||
| 90164-T0008 | ||||
| Linked diagrams | ||||
| 7551 | ||||

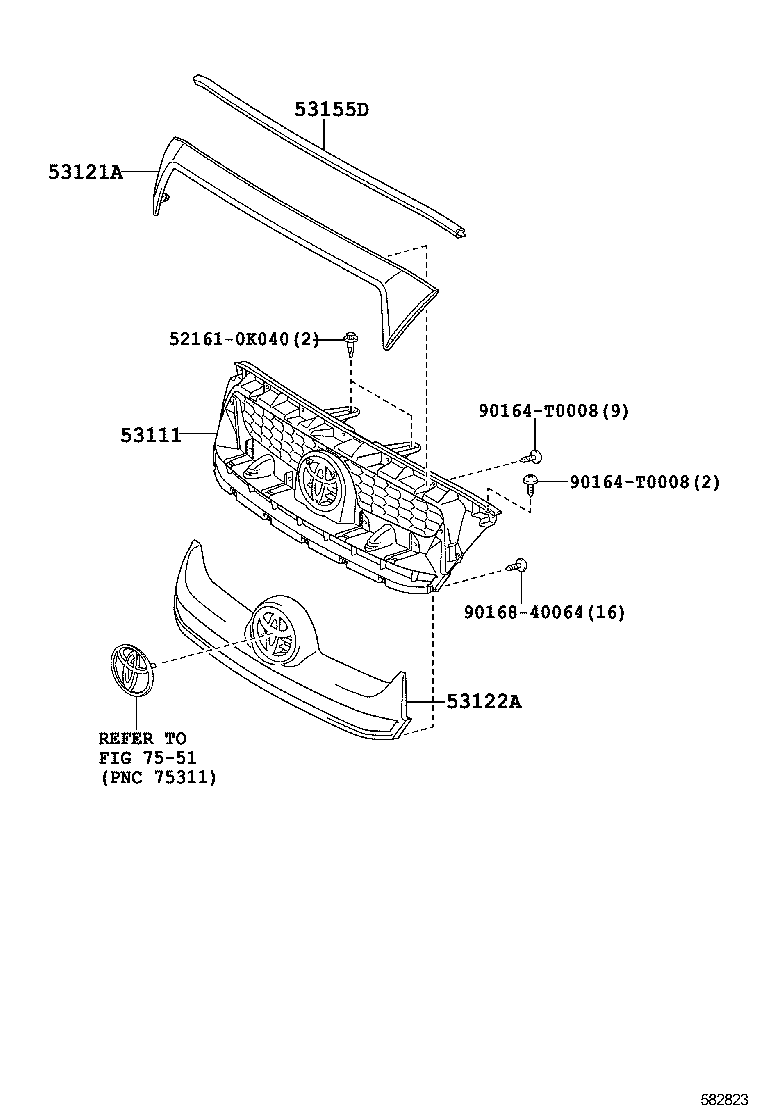

(0808- )THDCB,THSCB,XTR ; (0810- )DCB,SCB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-0K090 |
KUN15,2#..DCB,SCB NO PAINT REQ. |
1 | ||
| 53155D - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53397-0K030 |
KUN15,2#..4FC,5F |
1 | ||
| Common parts | ||||
| 52161-0K040 | ||||
| 90164-T0008 | ||||
| 90168-40064 | ||||
| Linked diagrams | ||||
| 7551 | ||||
