KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )THDCB,THSCB,XTR ; (0810- )DCB,SCB

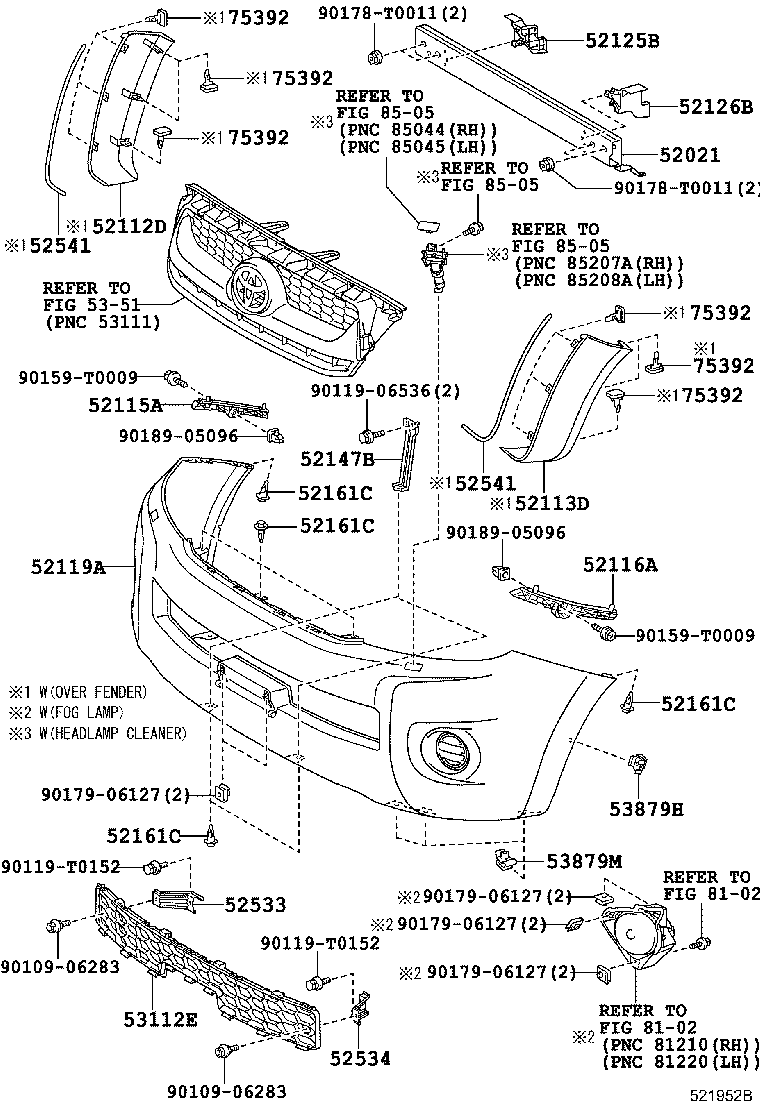

Click highlighted areas on diagram

diagram 52021 52112D 52113D 52115A 52116A 52119A 52125B 52126B 52147B 52161C 52161C 52161C 52161C 52533 52534 52541 52541 53112E 5351 53879H 53879M 75392 75392 75392 75392 75392 75392 8102 8102 8505 8505 8505 9010906283 9010906283 9011906536 90119T0152 90119T0152 90159T0009 90159T0009 90178T0011 90178T0011 9017906127 9017906127 9017906127 9017906127 9018905096 9018905096
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0K030

KUN15

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0K050

KUN15,25..DCB,SCB

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0K050

KUN15,25..DCB,SCB

 1
52119A - COVER, FRONT BUMPER
52119-0K010

KUN15..DCB;KUN25..DCB..DLX

NO PAINT REQ.

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-0K010

KUN15,2#..4FC,5F

 2
52161C - PIECE, FRONT BUMPER
52161-0K040

KUN15..XTR..DCR;KUN15,25..DCB,SCB

 9
52161C - PIECE, FRONT BUMPER
52161-0K040

KUN15..XTR..DCR;KUN15,25..DCB,SCB

 9
52161C - PIECE, FRONT BUMPER
52161-0K040

KUN15..XTR..DCR;KUN15,25..DCB,SCB

 9
52161C - PIECE, FRONT BUMPER
52161-0K040

KUN15..XTR..DCR;KUN15,25..DCB,SCB

 9
53879H - RETAINER, FRONT FENDER LINER
53879-0K010

KUN15,2#..4FC,5F

 1
Common parts
90109-06283
90119-06536
90119-T0152
90159-T0009
90178-T0011
90179-06127
90189-05096
Linked diagrams
5351
8102
8505
