KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )KUN26..THDCB ; (0810- )KUN26..DCB; (1008- )KUN25..THDCB..SR ; (10

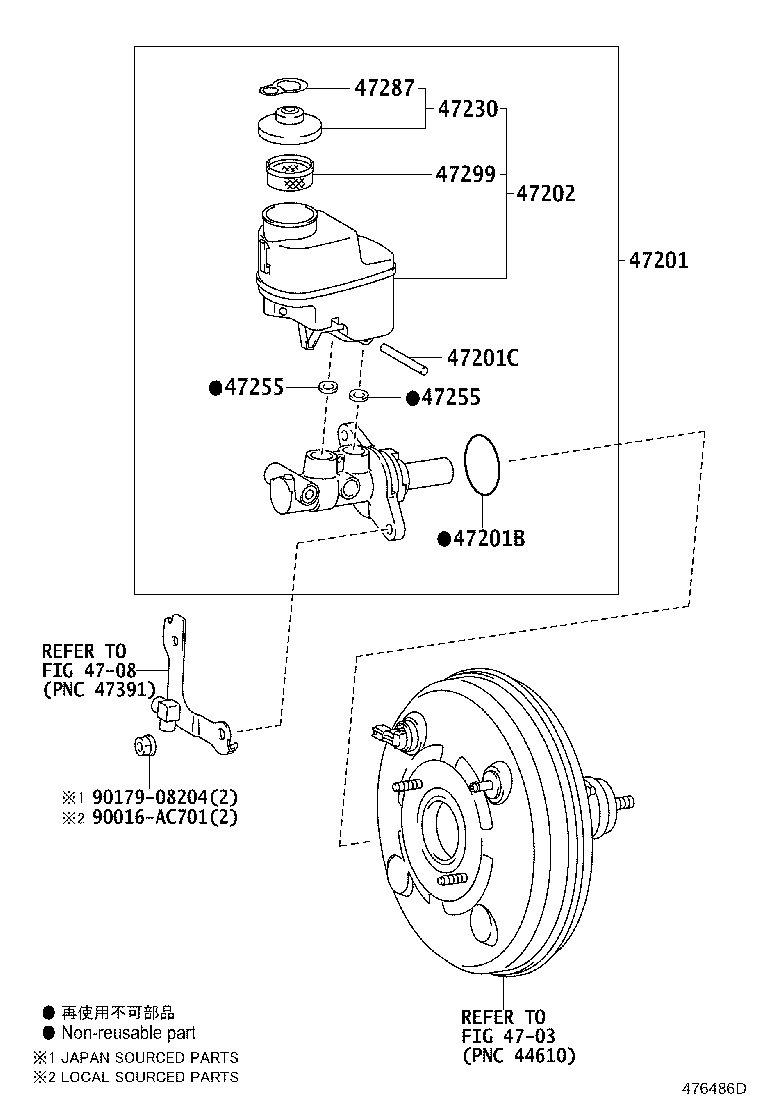

Click highlighted areas on diagram

W(VSC)

diagram 4703 4708 47201 47201B 47201C 47202 47230 47255 47255 47287 47299 90016AC701 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09210

KUN15,2#..LHD..(DCB,SCB)..5F

 1
47201-09210

KUN15,2#..LHD..(DCB,SCB)..5F

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-09080

KUN15,2#..(DCB,SCB)..5F

 1
47220-09080

KUN15,2#..(DCB,SCB)..5F

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-0K010

KUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)

 1
47230-0K010

KUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

KUN15,2#..4FC,5F

 2
47255-16010

KUN15,2#..4FC,5F

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

KUN15,2#..4FC,5F

 2
47255-16010

KUN15,2#..4FC,5F

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

KUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)

 1
47287-20010

KUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-0K010

KUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)

 1
47299-0K010

KUN15,25;KUN26..DCB..5F;KUN26..LHD..DCB..4FC;KUN26..THDCB..(4FC,5F)

 1
Common parts
90016-AC701
90179-08204
Linked diagrams
4703
4708
