KUN15L-PRMDHW3 (2006)
Toyota Hilux
Production
Oct 2006
-
Oct 2008
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0808- )KUN26..THDCB ; (0810- )KUN26..DCB; (1008- )KUN25..THDCB..SR ; (10

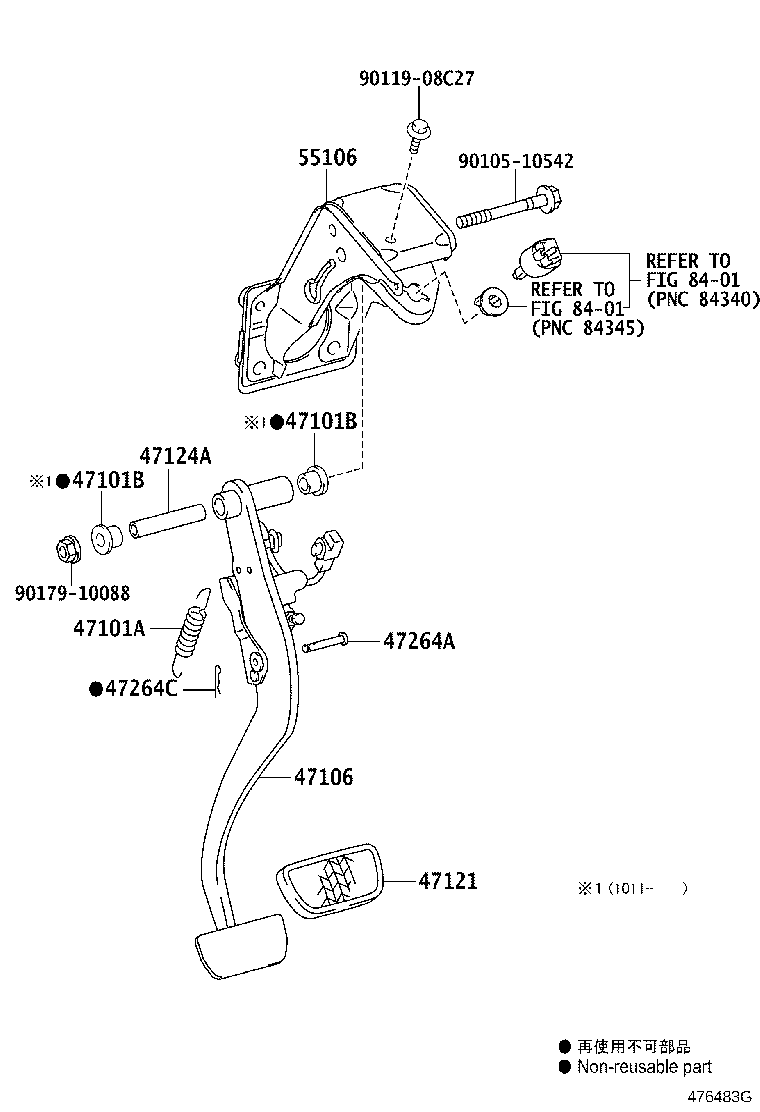

Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-T0002 |
KUN15,2#..4FC,5F |
1 | ||
| 90507-T0002 |
KUN15,2#..4FC,5F |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
KUN15,2#..4FC,5F |
2 | ||
| 90386-13015 |
KUN15,2#..4FC,5F |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
KUN15,2#..4FC,5F |
2 | ||
| 90386-13015 |
KUN15,2#..4FC,5F |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
KUN15,2#..5F |
1 | ||
| 31321-52010 |
KUN15,2#..5F |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
KUN15,2#..4FC,5F |
1 | ||
| 90387-10003 |
KUN15,2#..4FC,5F |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-35010 |
KUN15,2#..4FC,5F |
1 | ||
| 47148-35010 |
KUN15,2#..4FC,5F |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90468-16012 |
KUN15,2#..4FC,5F |
1 | ||
| 90468-16012 |
KUN15,2#..4FC,5F |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| 55106-0K010 |
KUN15,2#..4FC,5F |
1 | ||
| Common parts | ||||
| 90105-10542 | ||||
| 90119-08C27 | ||||
| 90179-10088 | ||||
| Linked diagrams | ||||
| 8401 | ||||
