KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0808)KUN2#..5F ; (0507-0808)KUN15..DLX..HDCR

Click highlighted areas on diagram

R151

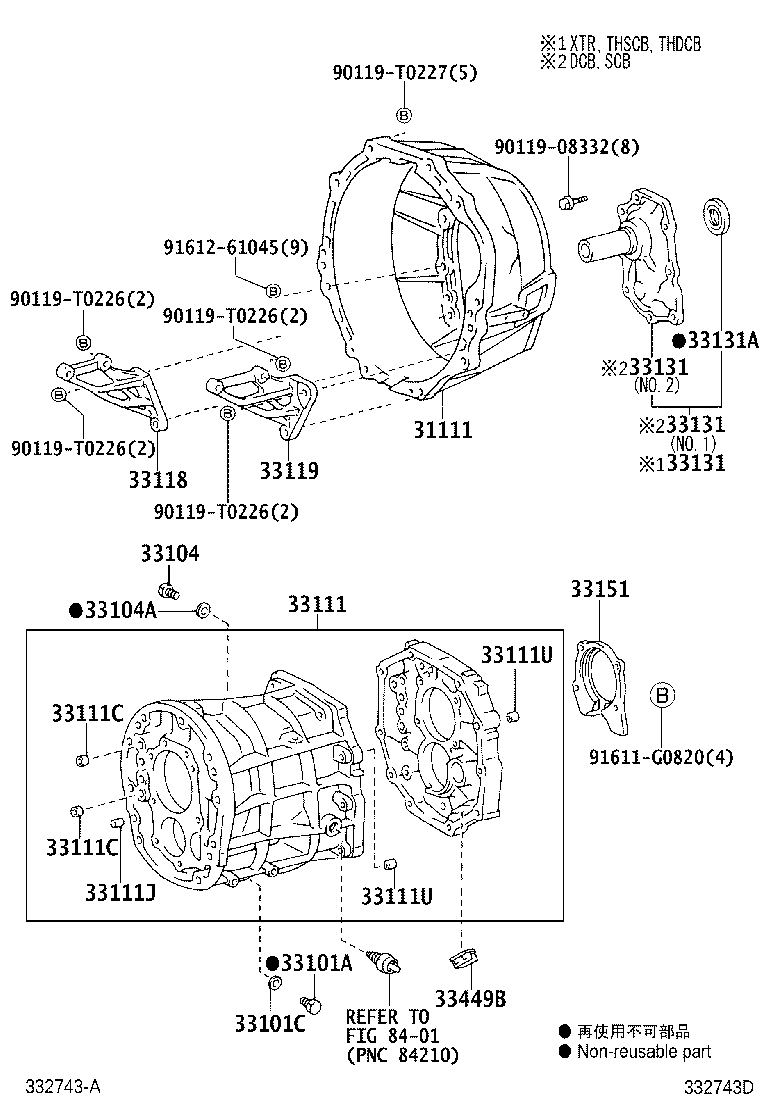

diagram 31111 33101A 33101C 33104 33104A 33111 33111C 33111C 33111J 33111U 33111U 33118 33119 33131 33131 33131 33131A 33151 33449B 8401 9011908332 90119T0226 90119T0226 90119T0226 90119T0226 90119T0227 91611G0820 9161261045
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-0K010

KUN15..DCB,SCB

 1
31111-25050

KUN15..(DCB,SCB)..DCR

 1
31111-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

 1
90341-18006

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
90430-18008

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

KUN15..DCR

 1
90341-18006

KUN15..DCB,SCB

 1
90341-18006

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
90430-18008

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

 1
33111 - CASE, MANUAL TRANSMISSION
33101-35051

KUN15..(DCB,SCB)..DCR

 1
33101-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33101-0K010

KUN15..DCB,SCB

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

KUN15..DCR

OD=14

 4
96411-41800

KUN15..DCB,SCB

OD=18,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 3
96411-41800

KUN15..DCB,SCB

OD=18

 3
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

KUN15..DCR

OD=14

 4
96411-41800

KUN15..DCB,SCB

OD=18,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 3
96411-41800

KUN15..DCB,SCB

OD=18

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

KUN15..DCB,SCB

L=16,OD=12,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 2
90250-12002

KUN15..DCR

L=16,OD=12

 4
90250-12002

KUN15..DCB,SCB

L=16,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

KUN15..DCB,SCB

L=14,OD=15,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 4
90253-15001

KUN15..DCB,SCB

L=14,OD=15

 4
90253-15001

KUN15..DCR

L=14,OD=15

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

KUN15..DCB,SCB

L=14,OD=15,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 4
90253-15001

KUN15..DCB,SCB

L=14,OD=15

 4
90253-15001

KUN15..DCR

L=14,OD=15

 2
33118 - PLATE, STIFFENER, RH(MTM)
33118-04020

KUN15,2#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-0K020

KUN15,2#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.1

 1
33131-26020

KUN15..(DCB,SCB)..DCR

 1
33018-0K010

KUN15..DCB,SCB

NO.1

 1
33131-0K010

KUN15..DCB,SCB

NO.2

 1
33131-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.2

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.1

 1
33131-26020

KUN15..(DCB,SCB)..DCR

 1
33018-0K010

KUN15..DCB,SCB

NO.1

 1
33131-0K010

KUN15..DCB,SCB

NO.2

 1
33131-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.2

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.1

 1
33131-26020

KUN15..(DCB,SCB)..DCR

 1
33018-0K010

KUN15..DCB,SCB

NO.1

 1
33131-0K010

KUN15..DCB,SCB

NO.2

 1
33131-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.2

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

KUN15..(DCB,SCB)..DCR

 1
90311-T0017

KUN15..DCB,SCB

 1
90311-T0017

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030

KUN15..(DCB,SCB)..DCR

 1
33151-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33151-0K010

KUN15..DCB,SCB

 1
33449B - MAGNET, TRANSMISSION
33449-26010

KUN15..DCR

 1
33449-35030

KUN15..DCB,SCB

 1
33449-35030

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
Common parts
90119-08332
90119-T0226
90119-T0227
91611-G0820
91612-61045
Linked diagrams
8401

(0808- )5F

Click highlighted areas on diagram

R151,R151F

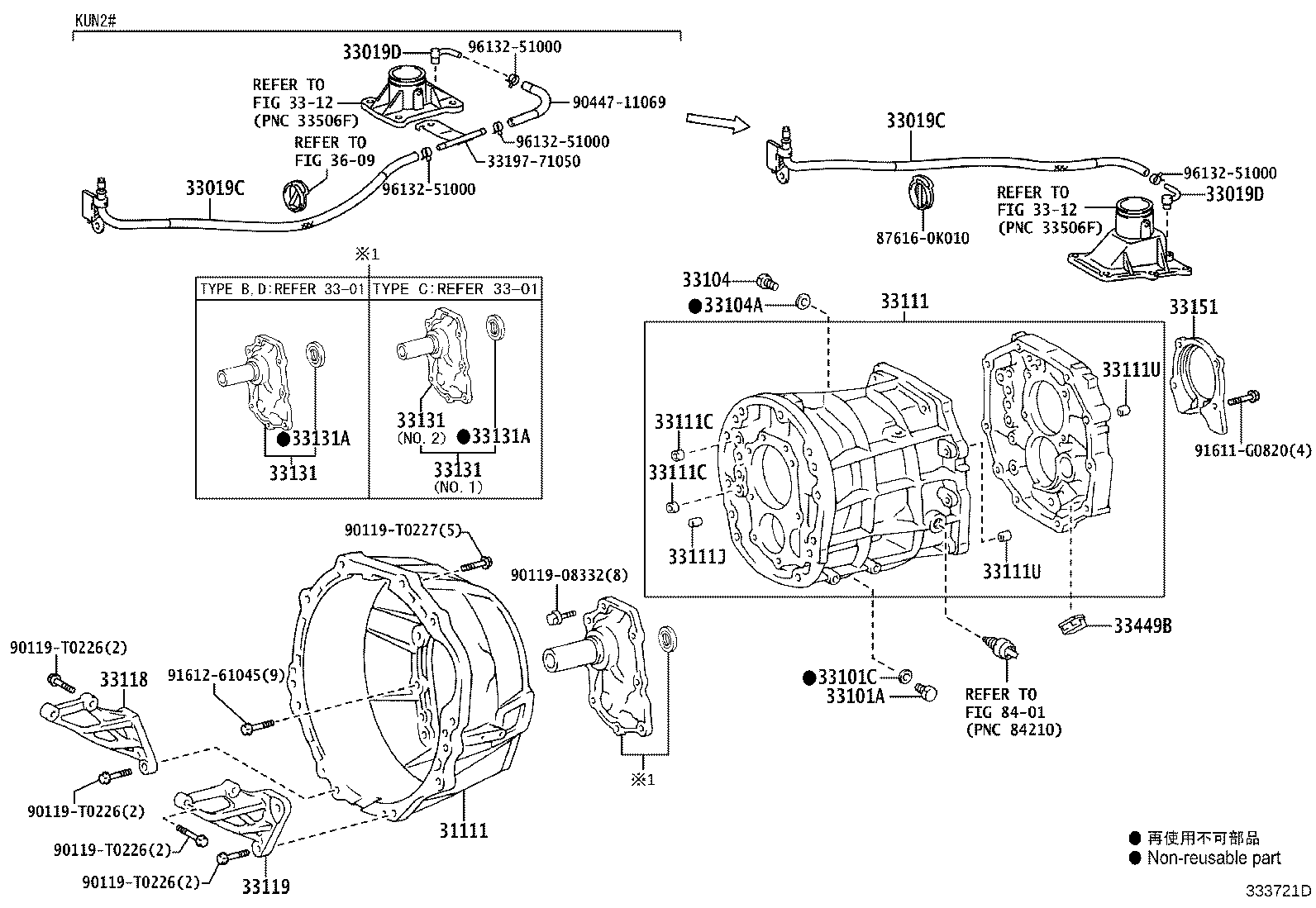

diagram 31111 33019C 33019C 33019D 33019D 33101A 33101C 33104 33104A 33111 33111C 33111C 33111J 33111U 33111U 33118 33119 3312 3312 33131 33131 33131 33131A 33131A 33151 3319771050 33449B 3609 8401 876160K010 9011908332 90119T0226 90119T0226 90119T0226 90119T0226 90119T0227 9044711069 91611G0820 9161261045 9613251000 9613251000 9613251000 9613251000
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-0K010

KUN15..DCB,SCB

 1
31111-25050

KUN15..(DCB,SCB)..DCR

 1
31111-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-71020

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ

 1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-71020

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ

 1
33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE)
36149-60070

KUN15..DCB,SCB

 1
33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE)
36149-60070

KUN15..DCB,SCB

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

 1
90341-18006

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
90430-18008

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

KUN15..DCR

 1
90341-18006

KUN15..DCB,SCB

 1
90341-18006

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
90430-18008

KUN15..XTR..DCR;KUN15..(DCB,SCB)..DLX

 1
33111 - CASE, MANUAL TRANSMISSION
33101-35051

KUN15..(DCB,SCB)..DCR

 1
33101-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33101-0K010

KUN15..DCB,SCB

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

KUN15..DCR

OD=14

 4
96411-41800

KUN15..DCB,SCB

OD=18,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 3
96411-41800

KUN15..DCB,SCB

OD=18

 3
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

KUN15..DCR

OD=14

 4
96411-41800

KUN15..DCB,SCB

OD=18,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 3
96411-41800

KUN15..DCB,SCB

OD=18

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

KUN15..DCB,SCB

L=16,OD=12,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 2
90250-12002

KUN15..DCR

L=16,OD=12

 4
90250-12002

KUN15..DCB,SCB

L=16,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

KUN15..DCB,SCB

L=14,OD=15,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 4
90253-15001

KUN15..DCB,SCB

L=14,OD=15

 4
90253-15001

KUN15..DCR

L=14,OD=15

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

KUN15..DCB,SCB

L=14,OD=15,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 4
90253-15001

KUN15..DCB,SCB

L=14,OD=15

 4
90253-15001

KUN15..DCR

L=14,OD=15

 2
33118 - PLATE, STIFFENER, RH(MTM)
33118-04020

KUN15,2#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-0K020

KUN15,2#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.1

 1
33131-26020

KUN15..(DCB,SCB)..DCR

 1
33018-0K010

KUN15..DCB,SCB

NO.1

 1
33131-0K010

KUN15..DCB,SCB

NO.2

 1
33131-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.2

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.1

 1
33131-26020

KUN15..(DCB,SCB)..DCR

 1
33018-0K010

KUN15..DCB,SCB

NO.1

 1
33131-0K010

KUN15..DCB,SCB

NO.2

 1
33131-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.2

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.1

 1
33131-26020

KUN15..(DCB,SCB)..DCR

 1
33018-0K010

KUN15..DCB,SCB

NO.1

 1
33131-0K010

KUN15..DCB,SCB

NO.2

 1
33131-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,T/P C:SEE 33-01,NO.2

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

KUN15..(DCB,SCB)..DCR

 1
90311-T0017

KUN15..DCB,SCB

 1
90311-T0017

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

KUN15..(DCB,SCB)..DCR

 1
90311-T0017

KUN15..DCB,SCB

 1
90311-T0017

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030

KUN15..(DCB,SCB)..DCR

 1
33151-0K010

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
33151-0K010

KUN15..DCB,SCB

 1
33449B - MAGNET, TRANSMISSION
33449-26010

KUN15..DCR

 1
33449-35030

KUN15..DCB,SCB

 1
33449-35030

KUN15..DCB,SCB

TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE C:REFER 33-01

 1
Common parts
33197-71050
87616-0K010
90119-08332
90119-T0226
90119-T0227
90447-11069
91611-G0820
91612-61045
96132-51000
Linked diagrams
3312
3609
8401
