KUN15L-PRMDHW3 (2006)
Toyota Hilux

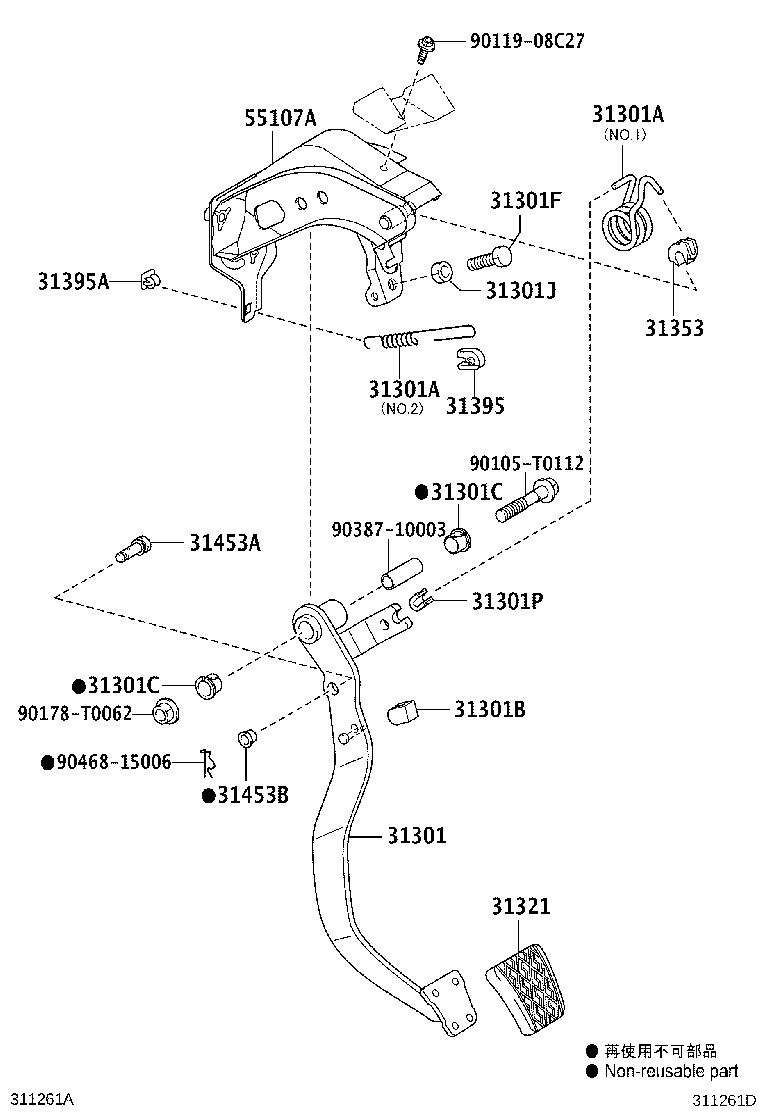

ILLUST NO. 1 OF 2(0507-0810)KUN26..DCB..5F ; (0507-1008)THDCB,THSCB,XTR..HDCR ; (0507-1010)DCB,SCB..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K070 |
KUN15..LHD..(DCB,SCB)..DCR |
1 | ||
| 31301-0K080 |
KUN26..LHD..DCB..5F;KUN15,25..LHD..(DCB,SCB)..5F..HDCR |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-T3001 |
KUN2#..5F;KUN15..DLX..HDCR NO.1 |
1 | ||
| 90507-T0001 |
KUN15..DCR |
1 | ||
| 90905-06079 |
KUN2#..5F;KUN15..DLX..HDCR NO.2 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-T3001 |
KUN2#..5F;KUN15..DLX..HDCR NO.1 |
1 | ||
| 90507-T0001 |
KUN15..DCR |
1 | ||
| 90905-06079 |
KUN2#..5F;KUN15..DLX..HDCR NO.2 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-T0005 |
KUN15,2#..LHD..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN15,2#..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN15,2#..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KUN15,2#..5F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
KUN15,2#..5F |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
KUN2#..5F;KUN15..DLX..HDCR |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KUN15,2#..5F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN2#..5F;KUN15..DLX..HDCR |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
KUN2#..5F;KUN15..DLX..HDCR |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
KUN2#..5F;KUN15..DLX..HDCR |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
KUN15,2#..5F L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KUN15,2#..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K010 |
KUN2#..5F;KUN15..DLX..HDCR |
1 | ||
| 55107-0K020 |
KUN15..DCR |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||

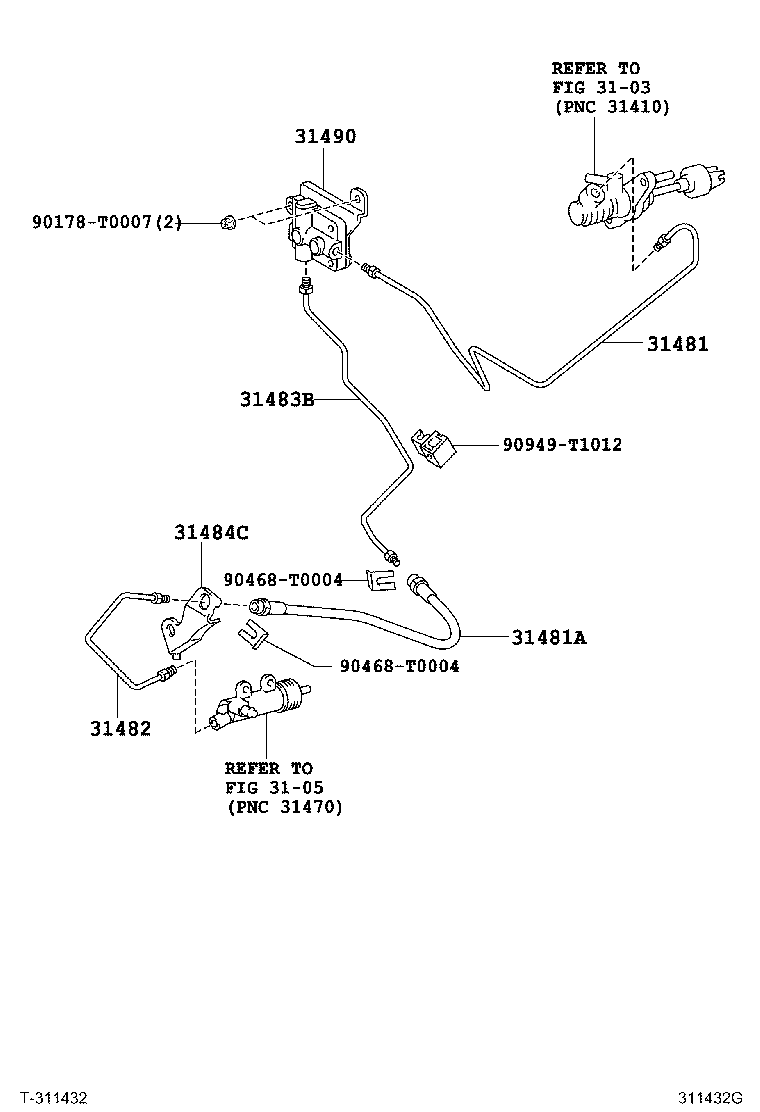

ILLUST NO. 2 OF 2(0507-0808)LHD..5F ; (0808-0810)LHD..DCB,SCB..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-0K040 |
KUN15,2#..LHD..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-T2008 |
KUN15,2#..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-0K040 |
KUN15,2#..5F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-0K010 |
KUN15,2#..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-0K020 |
KUN15,2#..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-0K010 |
KUN15,2#..5F |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90468-T0004 | ||||
| 90949-T1012 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||

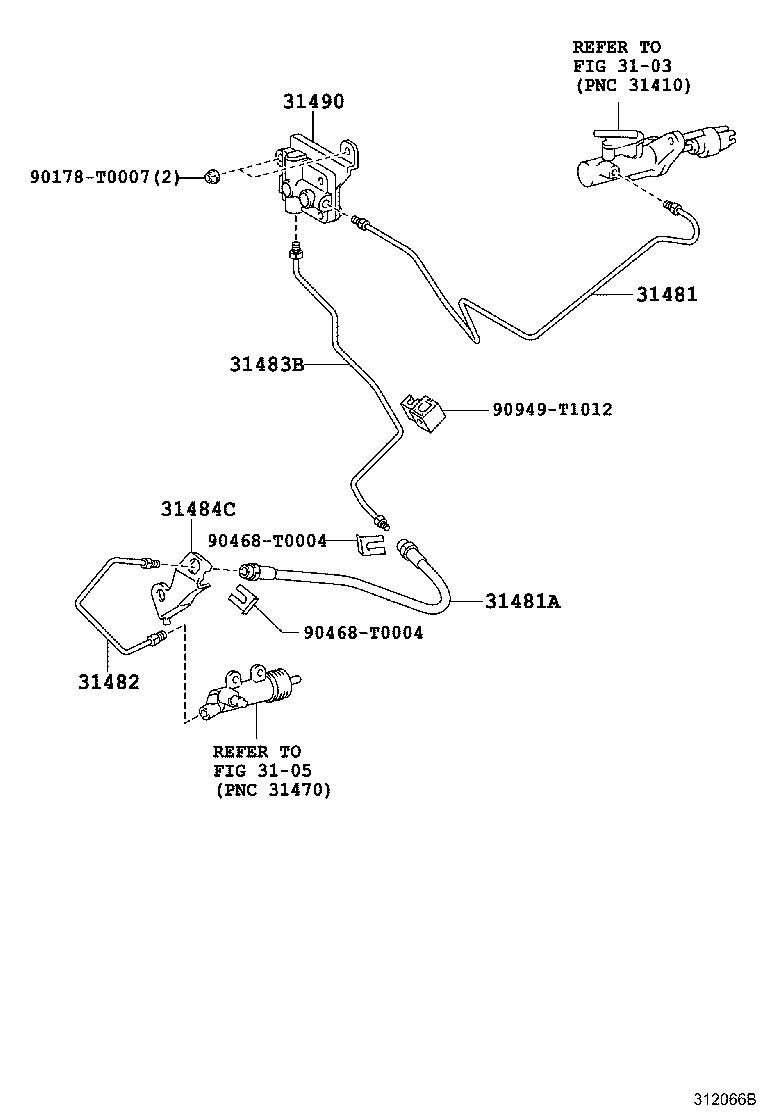

ILLUST NO. 2 OF 2(0808- )LHD..THDCB,THSCB,XTR..5F ; (0810-)LHD..DCB,SCB..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-0K040 |
KUN15,2#..LHD..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-T2008 |
KUN15,2#..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-0K040 |
KUN15,2#..5F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-0K010 |
KUN15,2#..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-0K020 |
KUN15,2#..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-0K010 |
KUN15,2#..5F |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90468-T0004 | ||||
| 90949-T1012 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
