KUN15L-PRMDHW3 (2006)
Toyota Hilux
(0705- )2KDFTV

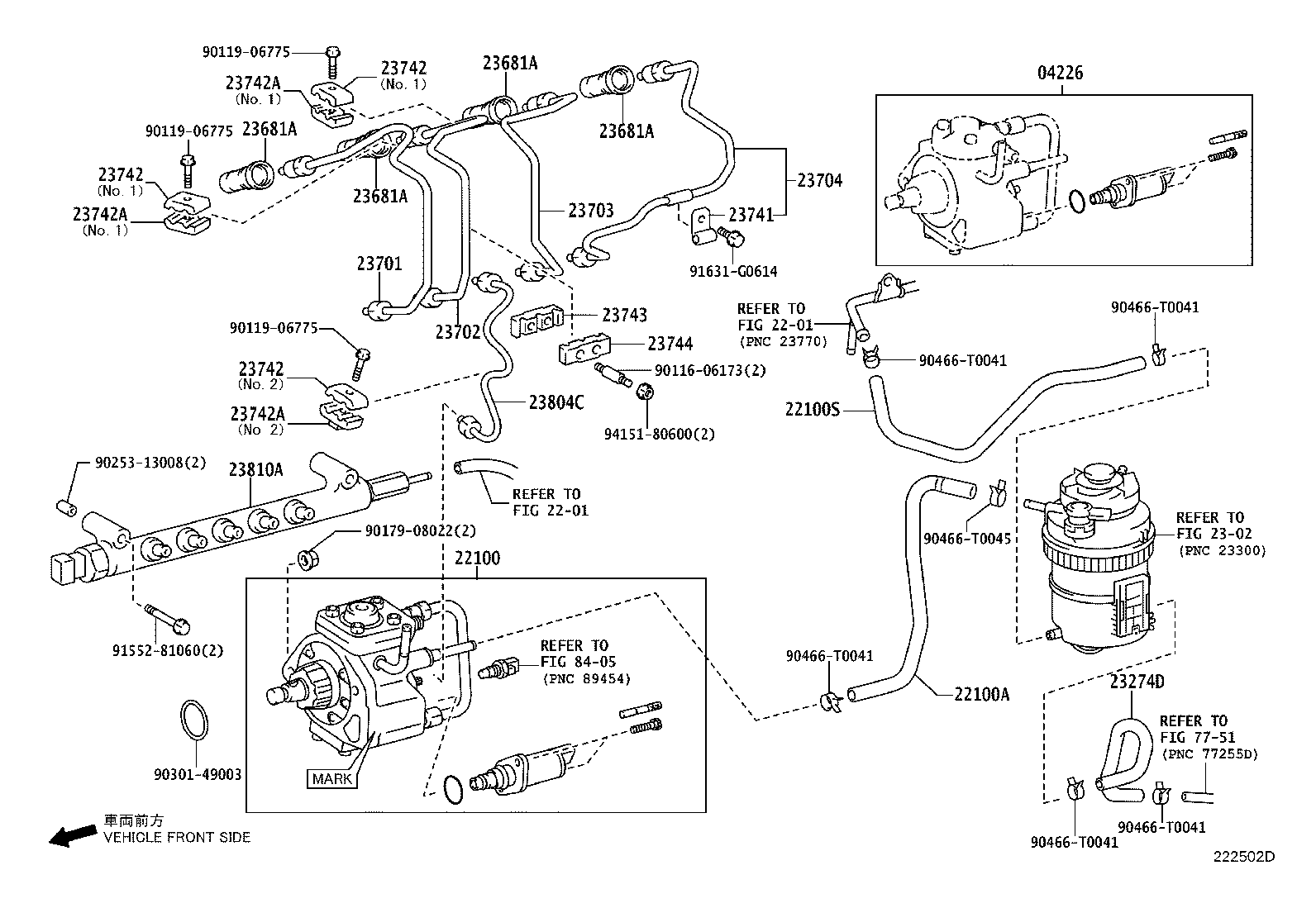

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-0L010 |
2KDFTV..KUN15..DCB,SCB;2KDFTV..KUN15..XTR..DCR *163 OR *184 |
1 | ||
| 04226-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 04226-30020 |
2KDFTV..KUN15,25 *163 OR *184 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0L020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 22100-0L020 |
2KDFTV..KUN15..DCB,SCB;2KDFTV..KUN15..XTR..DCR *163 OR *184 |
1 | ||
| 22100-30100 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F *163 OR *184 |
1 | ||
| 22100-30090 |
2KDFTV..KUN15,25 *163 OR *184 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-30180 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23273-30170 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-30040 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 23681-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 23681-30010 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 23681-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 23681-30010 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 23681-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 23681-30010 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 23681A - SEAL, NOZZLE HOLDER | ||||
| 23681-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
4 | ||
| 23681-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
4 | ||
| 23681-30010 |
1KDFTV,2KDFTV..KUN15,2#..5F,5FC |
4 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-30050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23701-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23702-30050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-30050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23703-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-09015 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB |
1 | ||
| 23704-39055 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-0L020 |
2KDFTV..KUN15,25..DCB,SCB |
2 | ||
| 23741-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-0L030 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.1 |
1 | ||
| 23742-0L070 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.2 |
1 | ||
| 23742-27010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.1 |
1 | ||
| 23742-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.2 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-0L030 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.1 |
1 | ||
| 23742-0L070 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.2 |
1 | ||
| 23742-27010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.1 |
1 | ||
| 23742-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.2 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-0L030 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.1 |
1 | ||
| 23742-0L070 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.2 |
1 | ||
| 23742-27010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.1 |
1 | ||
| 23742-30010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.2 |
1 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-0L080 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.2 |
1 | ||
| 23742-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.2 |
1 | ||
| 23742-0L040 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.1 |
1 | ||
| 23742-58020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.1 |
1 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-0L080 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.2 |
1 | ||
| 23742-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.2 |
1 | ||
| 23742-0L040 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.1 |
1 | ||
| 23742-58020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.1 |
1 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-0L080 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.2 |
1 | ||
| 23742-30020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.2 |
1 | ||
| 23742-0L040 |
2KDFTV..KUN15,25..DCB,SCB *130,NO.1 |
1 | ||
| 23742-58020 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184,NO.1 |
1 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23743-30011 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23743-0L030 |
2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23743-0L030 |
2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23743-30011 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-0L010 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *130 |
1 | ||
| 23804-30050 |
2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB *163 OR *184 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0L010 |
2KDFTV..KUN15,25..(DCB,SCB)..5F..HDCR |
1 | ||
| 23810-0L010 |
2KDFTV..KUN15..DCB,SCB |
1 | ||
| Common parts | ||||
| 90116-06173 | ||||
| 90119-06775 | ||||
| 90179-08022 | ||||
| 90253-13008 | ||||
| 90301-49003 | ||||
| 90466-T0041 | ||||
| 90466-T0045 | ||||
| 91552-81060 | ||||
| 91631-G0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
| 8405 | ||||
