KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

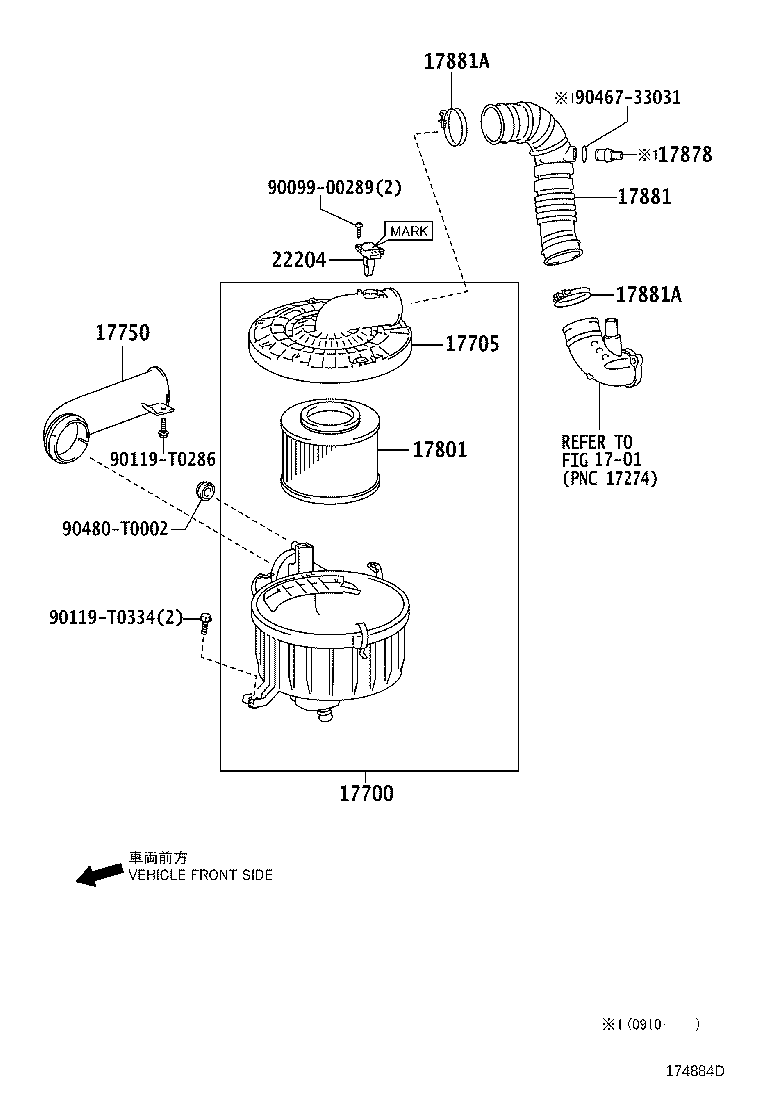

ILLUST NO. 1 OF 2(0610-0810)1KDFTV,2KDFTV..DCB,SCB ; (0810- )1KDFTV..DCB ; (0910- )2KDFTV..KUN

Click highlighted areas on diagram

diagram 1701 17700 17705 17750 17801 17878 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 9046733031 90480T0002
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0L170

2KDFTV..KUN15,25..DCB,SCB

 1
17700-0L140

2KDFTV..KUN15,25..DCB,SCB

 1
17700-0L171

2KDFTV..KUN15,25..DCB,SCB

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L110

2KDFTV..KUN15,25..DCB,SCB

 1
17705-0L140

2KDFTV..KUN15,25..DCB,SCB

 1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L030

1KDFTV,2KDFTV..KUN15,2#..DCB,SCB

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-0L010

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L080

2KDFTV..KUN15,25

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

NO.2

 1
90460-T0004

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

NO.2

 1
90460-T0004

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

NO.1

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0N010

1KDFTV,2KDFTV..KUN15,2#..DCB,SCB

 1
Common parts
90099-00289
90119-T0286
90119-T0334
90467-33031
90480-T0002
Linked diagrams
1701

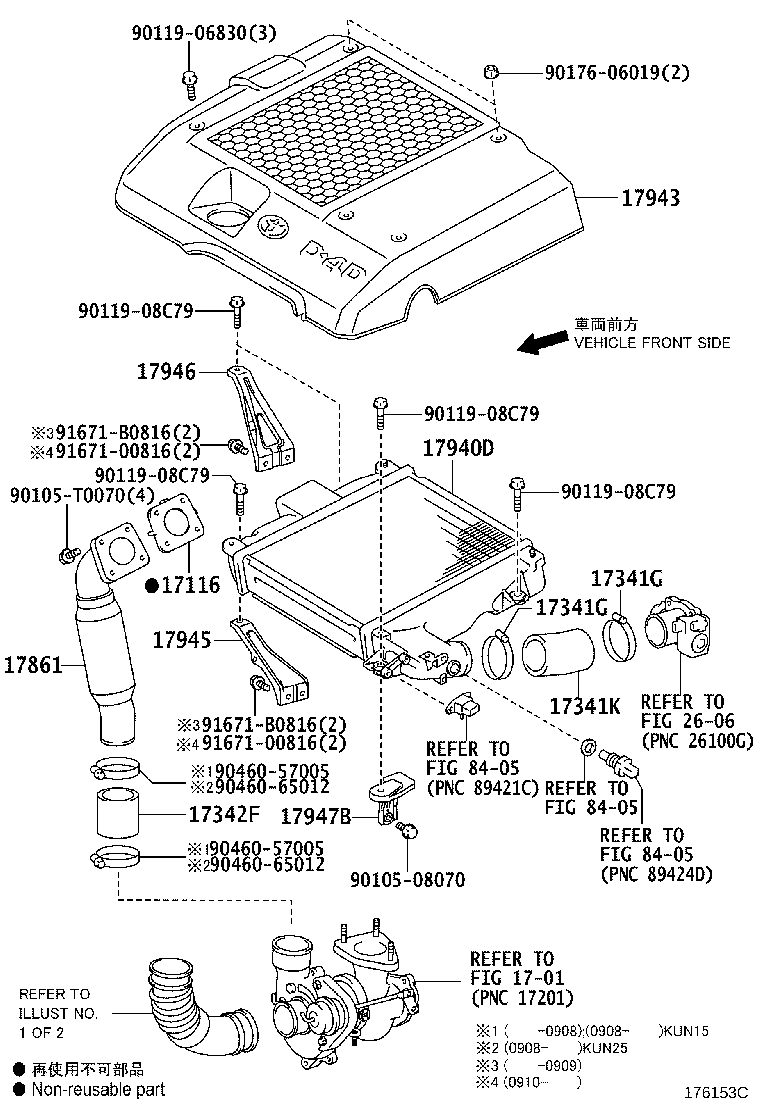

ILLUST NO. 2 OF 2(0809- )2KDFTV..THDCB,THSCB,XTR ; (0810- )2KDFTV..DCB,SCB

Click highlighted areas on diagram

diagram 1701 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 17947B 2606 8405 8405 8405 9010508070 90105T0070 9011906830 9011908C79 9011908C79 9011908C79 9011908C79 9017606019 9046057005 9046057005 9046065012 9046065012 9167100816 9167100816 91671B0816 91671B0816
Part # Description Qty Price
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

 2
Common parts
90105-08070
90105-T0070
90119-06830
90119-08C79
90176-06019
90460-57005
90460-65012
91671-00816
91671-B0816
Linked diagrams
1701
2606
8405
