KUN15L-PRMDHW3 (2006)
Toyota Hilux

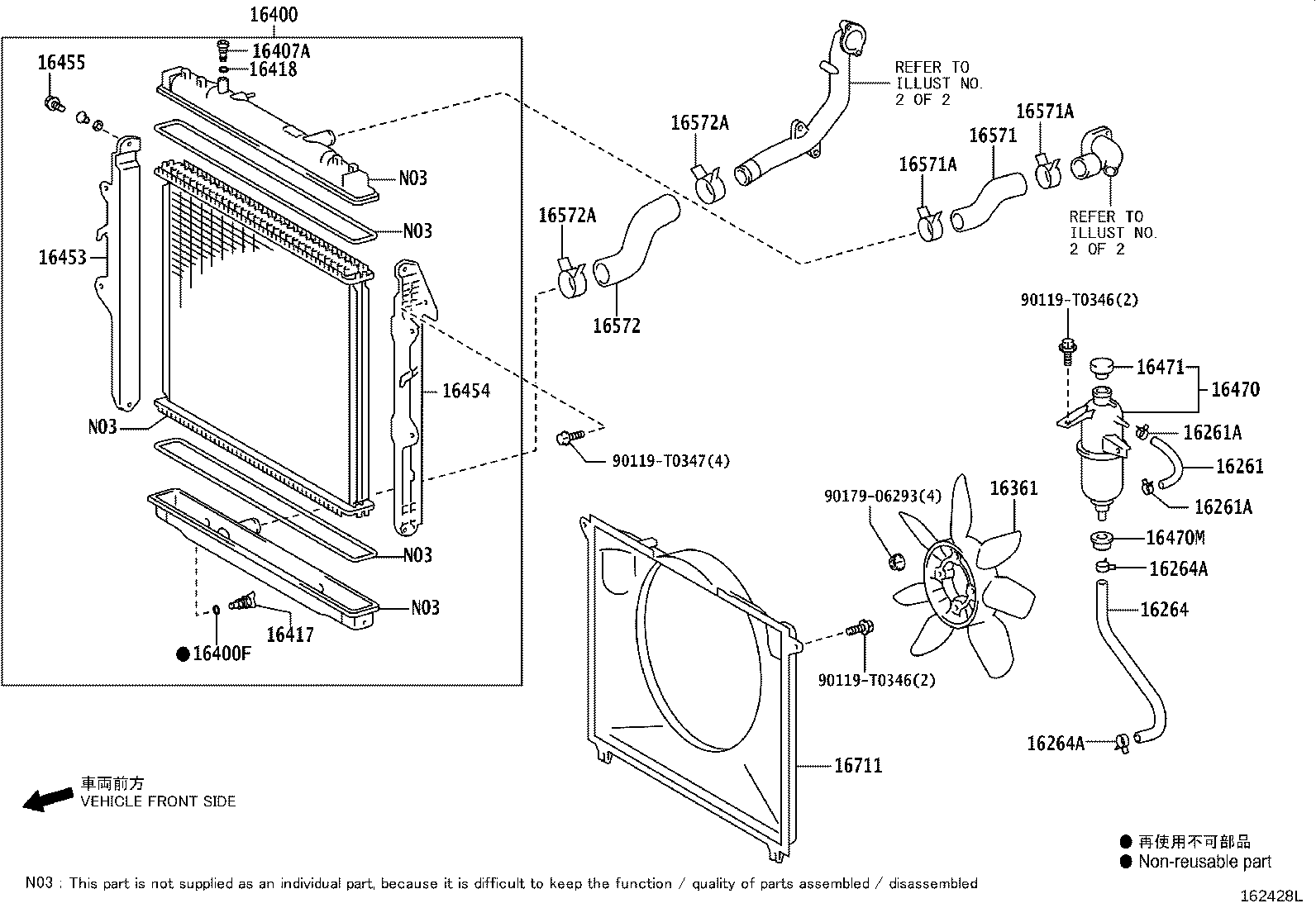

ILLUST NO. 1 OF 2(0507-0808) ; (0808-0810)1KDFTV,2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16361 - FAN | ||||
| 16361-0L020 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0L160 |
1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16417 - COCK | ||||
| 16417-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16418 - PACKING | ||||
| 16418-0D310 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0004 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-30010 |
1KDFTV,2KDFTV..KUN15,2# |
1 | ||
| 16401-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0L070 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| Common parts | ||||
| 90119-T0346 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||

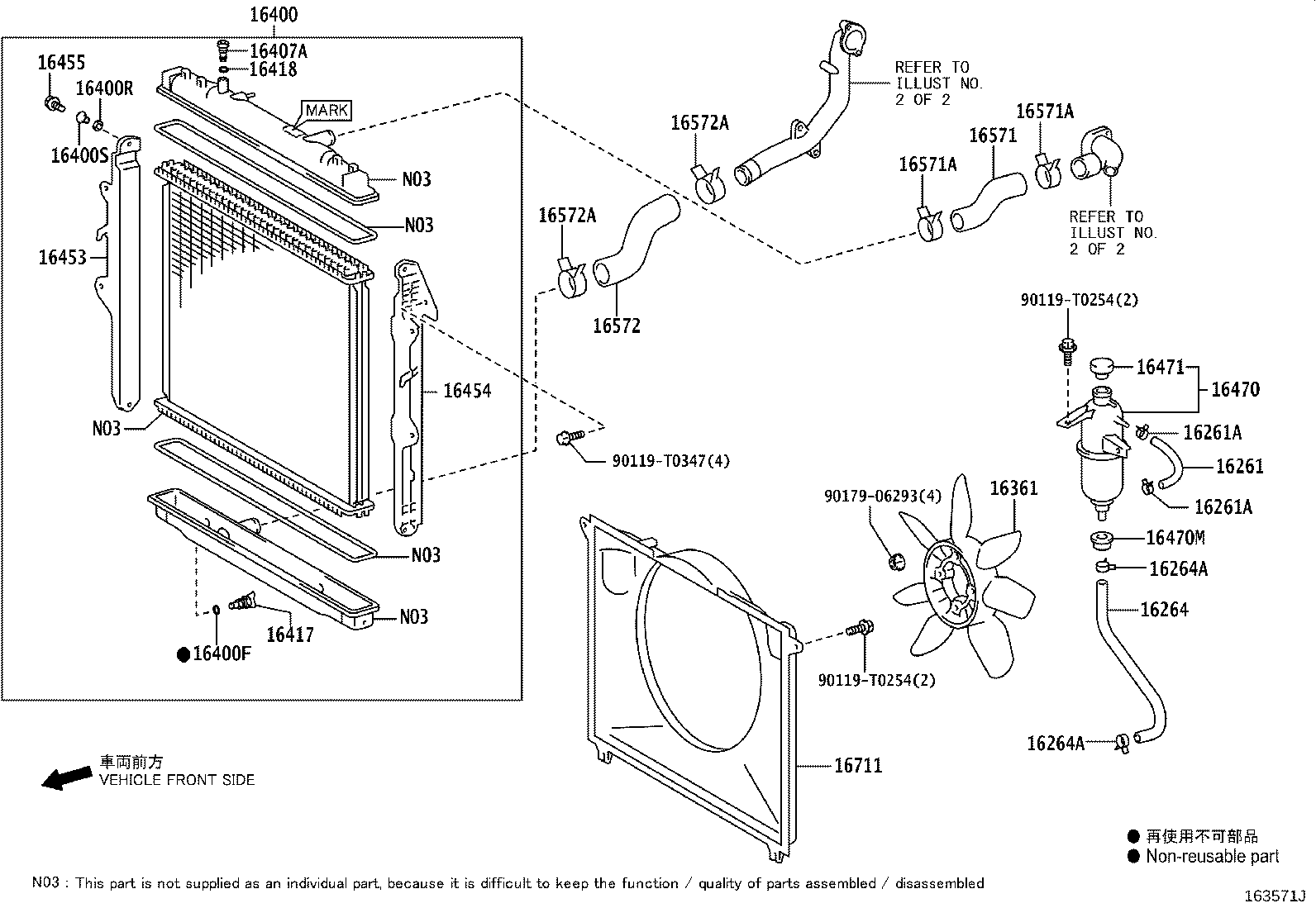

ILLUST NO. 1 OF 2(0808- )1KDFTV,2KDFTV..THDCB,THSCB,XTR ; (0810- )1KDFTV,2KDFTV..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16361 - FAN | ||||
| 16361-0L020 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0L160 |
1KDFTV,2KDFTV..KUN15,2#..(DCB,SCB)..5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16417 - COCK | ||||
| 16417-0D430 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16418 - PACKING | ||||
| 16418-0D310 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0L010 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0004 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-30010 |
1KDFTV,2KDFTV..KUN15,2# |
1 | ||
| 16401-30011 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0L030 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
1KDFTV,2KDFTV..KUN15,2#..4FC,5F |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0L070 |
1KDFTV,2KDFTV..KUN15,2#..DCB,SCB |
1 | ||
| Common parts | ||||
| 90119-T0254 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||
