KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )2KDFTV..THDCB,THSCB,XTR ; (0810- )2KDFTV..DCB,SCB ; (0908- )1KDFTV

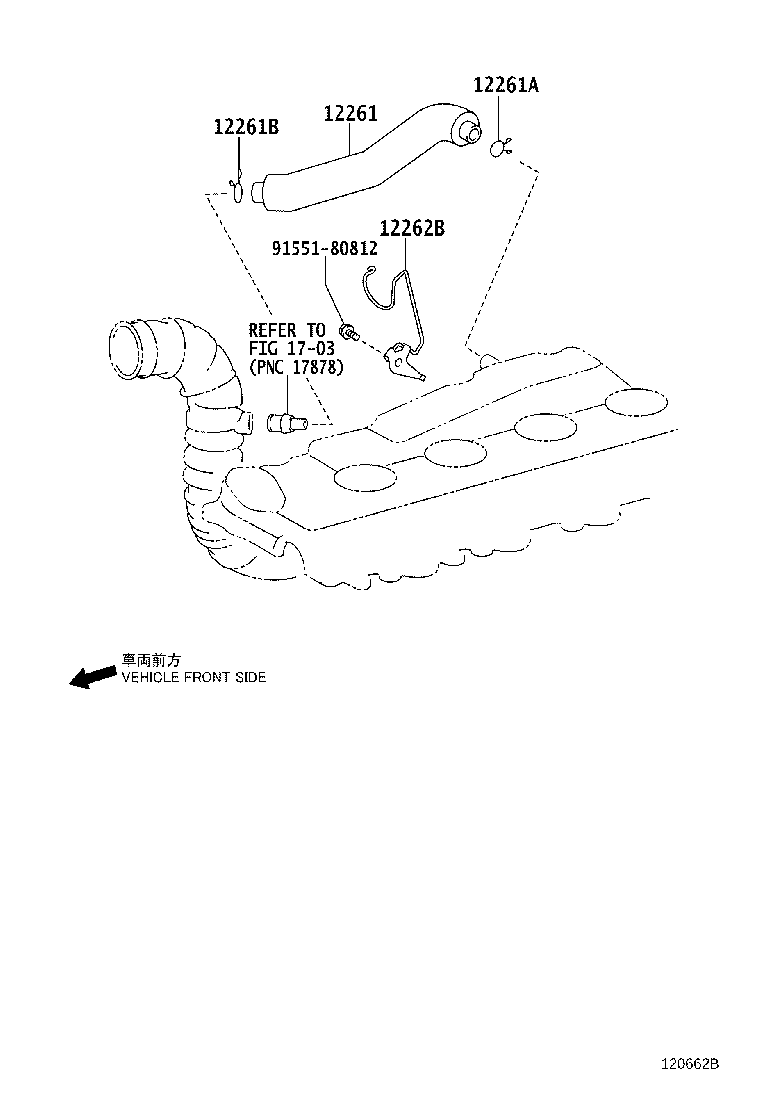

Click highlighted areas on diagram

diagram 12261 12261A 12261B 12262B 1703 9155180812
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-0L020

2KDFTV..KUN15,25

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90466-T0032

2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB

 2
Common parts
91551-80812
Linked diagrams
1703
