KUN15L-PRMDHW3 (2006)

Toyota Hilux

Production Oct 2006 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0808) ; (0808-0810)1KDFTV,2KDFTV..DCB,SCB

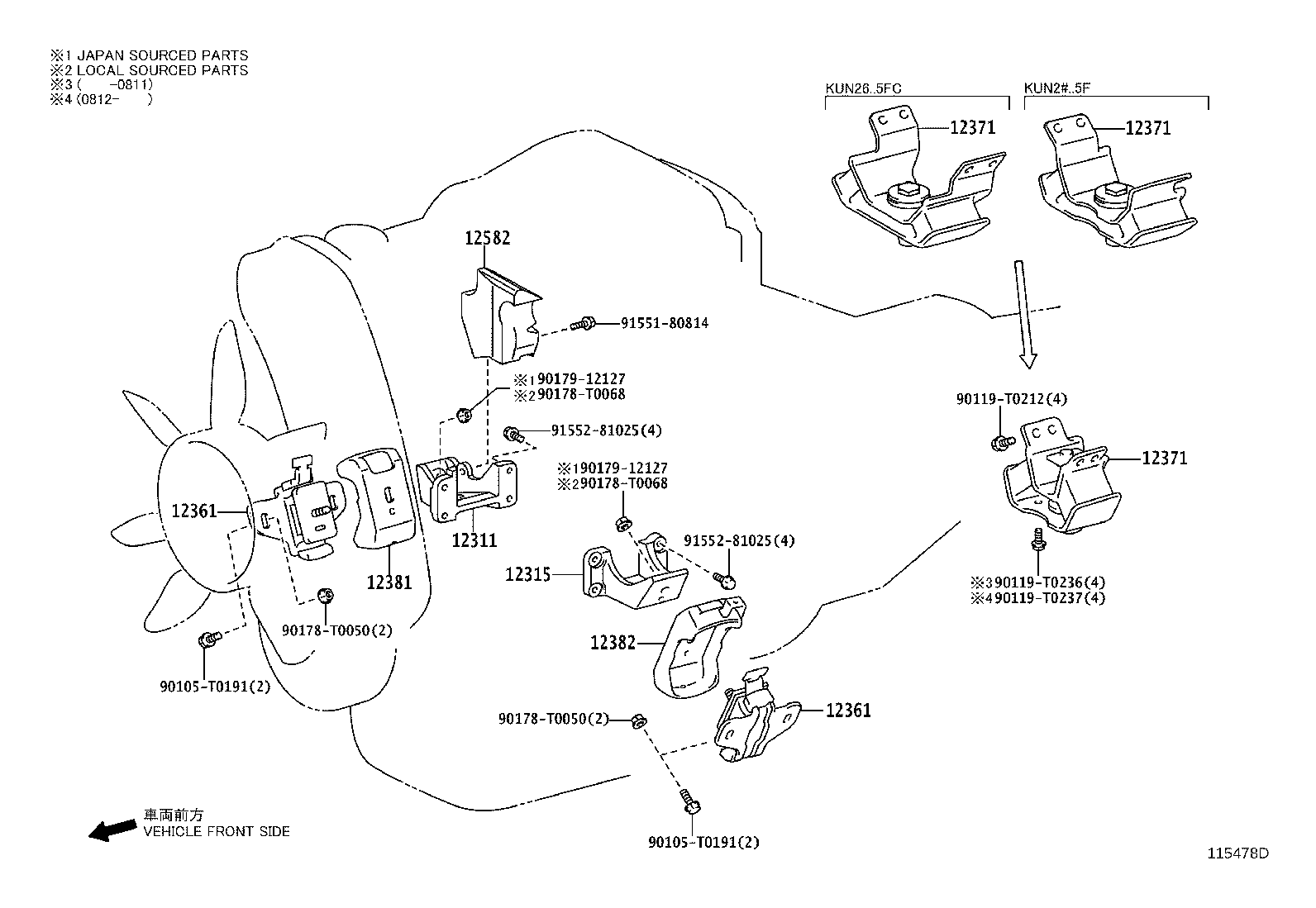

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12382 12582 90105T0073 90105T0073 90105T0191 90105T0191 90119T0212 90119T0236 90178T0050 90178T0050 90178T0068 90178T0068 9017912127 9017912127 9155180814 9155281025 9155281025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67021

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

*163 OR *184

 1
12311-0L030

2KDFTV..KUN15,25..DCB,SCB

*130

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0L030

2KDFTV..KUN15,25..DCB,SCB

*130

 1
12315-67011

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

*163 OR *184

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L030

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 2
12361-30080

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L030

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 2
12361-30080

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C070

2KDFTV..KUN15..DCR

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C070

2KDFTV..KUN15..DCR

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-0L031

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 1
12381-30021

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-0L040

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 1
12382-30031

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 1
Common parts
90105-T0073
90105-T0191
90119-T0212
90119-T0236
90178-T0050
90178-T0068
90179-12127
91551-80814
91552-81025

(0808- )1KDFTV,2KDFTV..THDCB,THSCB,XTR ; (0810- )1KDFTV,2KDFTV..DCB,SCB

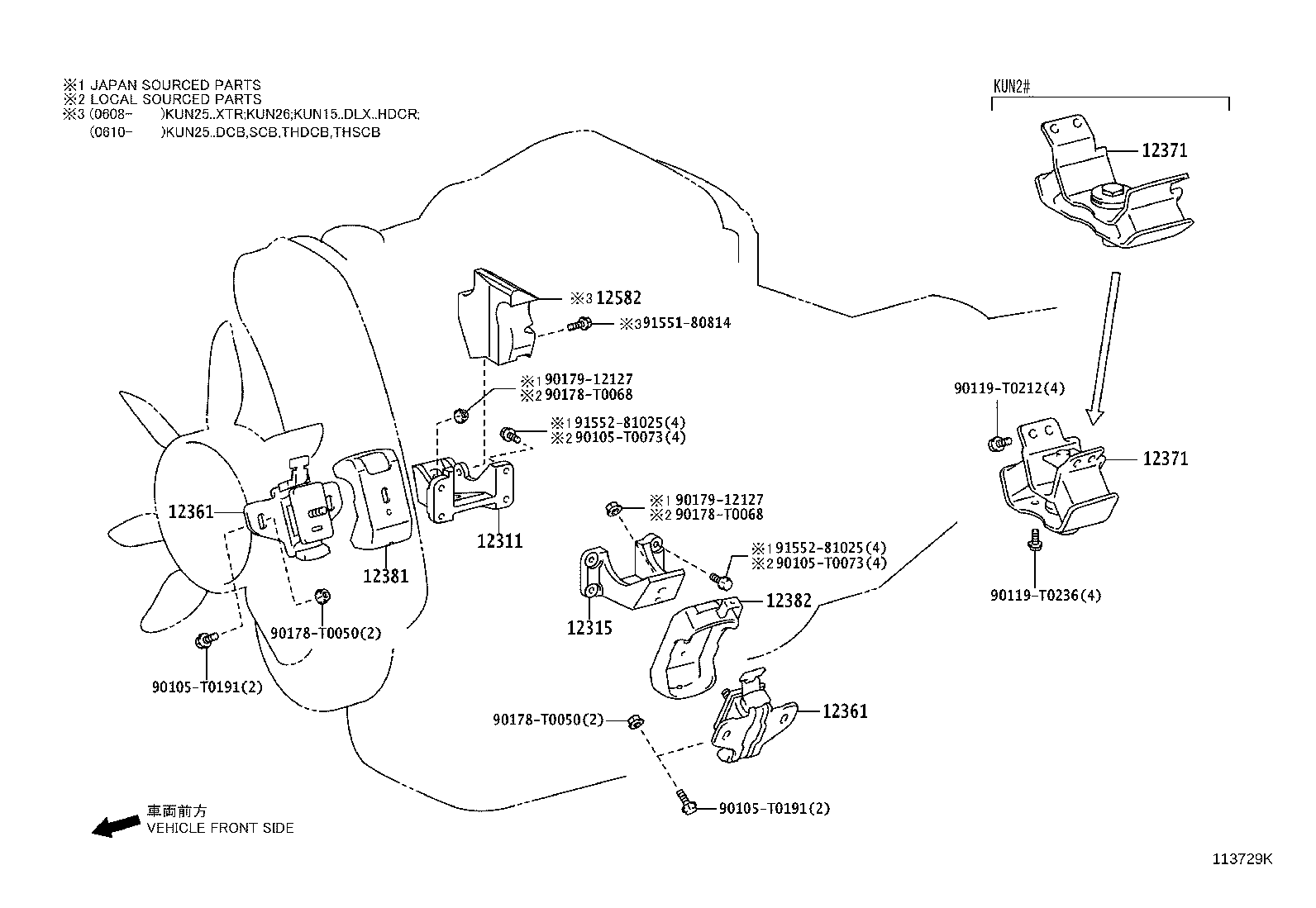

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12371 12381 12382 12582 90105T0191 90105T0191 90119T0212 90119T0236 90119T0237 90178T0050 90178T0050 90178T0068 90178T0068 9017912127 9017912127 9155180814 9155281025 9155281025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67021

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

*163 OR *184

 1
12311-0L030

2KDFTV..KUN15,25..DCB,SCB

*130

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0L030

2KDFTV..KUN15,25..DCB,SCB

*130

 1
12315-67011

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

*163 OR *184

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L030

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 2
12361-30080

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L030

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 2
12361-30080

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C070

2KDFTV..KUN15..DCR

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C070

2KDFTV..KUN15..DCR

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0C070

2KDFTV..KUN15..DCR

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-0L031

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 1
12381-30021

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-0L040

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(L)

 1
12382-30031

1KDFTV,2KDFTV..KUN15,2#..4FC,5F

(J)

 1
Common parts
90105-T0191
90119-T0212
90119-T0236
90119-T0237
90178-T0050
90178-T0068
90179-12127
91551-80814
91552-81025
