KUN15L-DRMDHW3 (2007)
Toyota Hilux

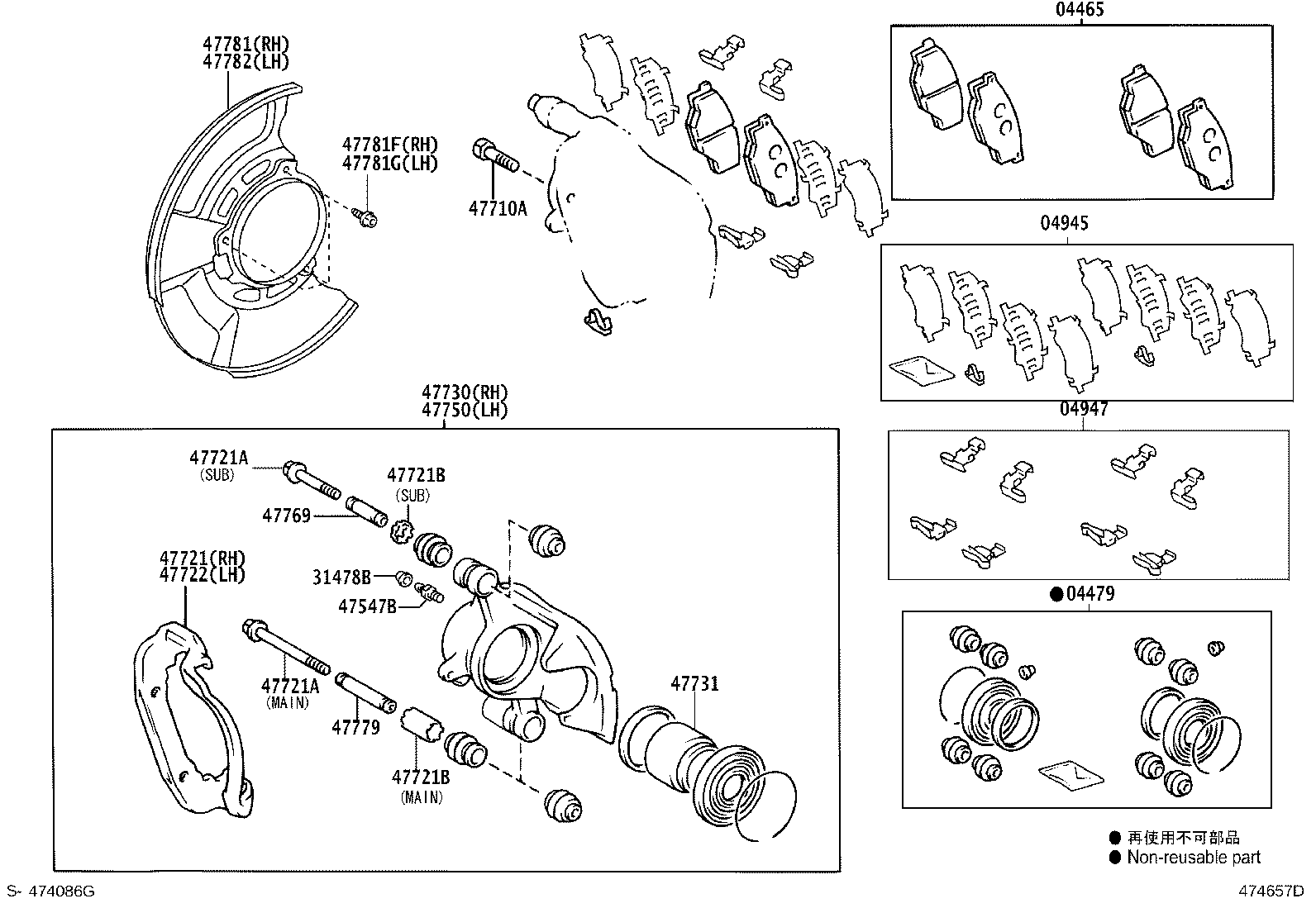

(0507-0808)KUN15..THDCB,THSCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K130 |
KUN15..DCB,SCB MARK ADVICS PS558H |
1 | ||
| 04465-0K160 |
KUN15..THDCB,THSCB,XTR MARK ADVICS PS558H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-04030 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 04478-0K060 |
KUN15..DCB,SCB |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K130 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 04945-0K171 |
KUN15..DCB,SCB |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 04947-0K020 |
KUN15..DCB,SCB |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0K020 |
KUN15..DCB,SCB |
2 | ||
| 31478-30010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
KUN15..THDCB,THSCB,XTR |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-C1230 |
KUN15 *12-1.25PX30-26.25 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47721-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AA201 |
KUN15..THDCB,THSCB,XTR *10-1.25PX89.7-30,MAIN PIN SIDE |
2 | ||
| 90080-11308 |
KUN15..THDCB,THSCB,XTR *10-1.25PX63.7-30,SUB PIN SIDE |
2 | ||
| 90080-10190 |
KUN15..DCB,SCB *8-1.00PX22-14.5 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AA201 |
KUN15..THDCB,THSCB,XTR *10-1.25PX89.7-30,MAIN PIN SIDE |
2 | ||
| 90080-11308 |
KUN15..THDCB,THSCB,XTR *10-1.25PX63.7-30,SUB PIN SIDE |
2 | ||
| 90080-10190 |
KUN15..DCB,SCB *8-1.00PX22-14.5 |
4 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AX202 |
KUN15..THDCB,THSCB,XTR MAIN PIN SIDE |
2 | ||
| 90016-AX203 |
KUN15..THDCB,THSCB,XTR SUB PIN SIDE |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AX202 |
KUN15..THDCB,THSCB,XTR MAIN PIN SIDE |
2 | ||
| 90016-AX203 |
KUN15..THDCB,THSCB,XTR SUB PIN SIDE |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47722-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47730-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..THDCB,THSCB,XTR |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47750-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-04010 |
KUN15..THDCB,THSCB,XTR |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-0K010 |
KUN15..THDCB,THSCB,XTR |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K010 |
KUN15 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-T0005 |
KUN15 |
3 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-T0005 |
KUN15 |
3 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K010 |
KUN15 |
1 | ||

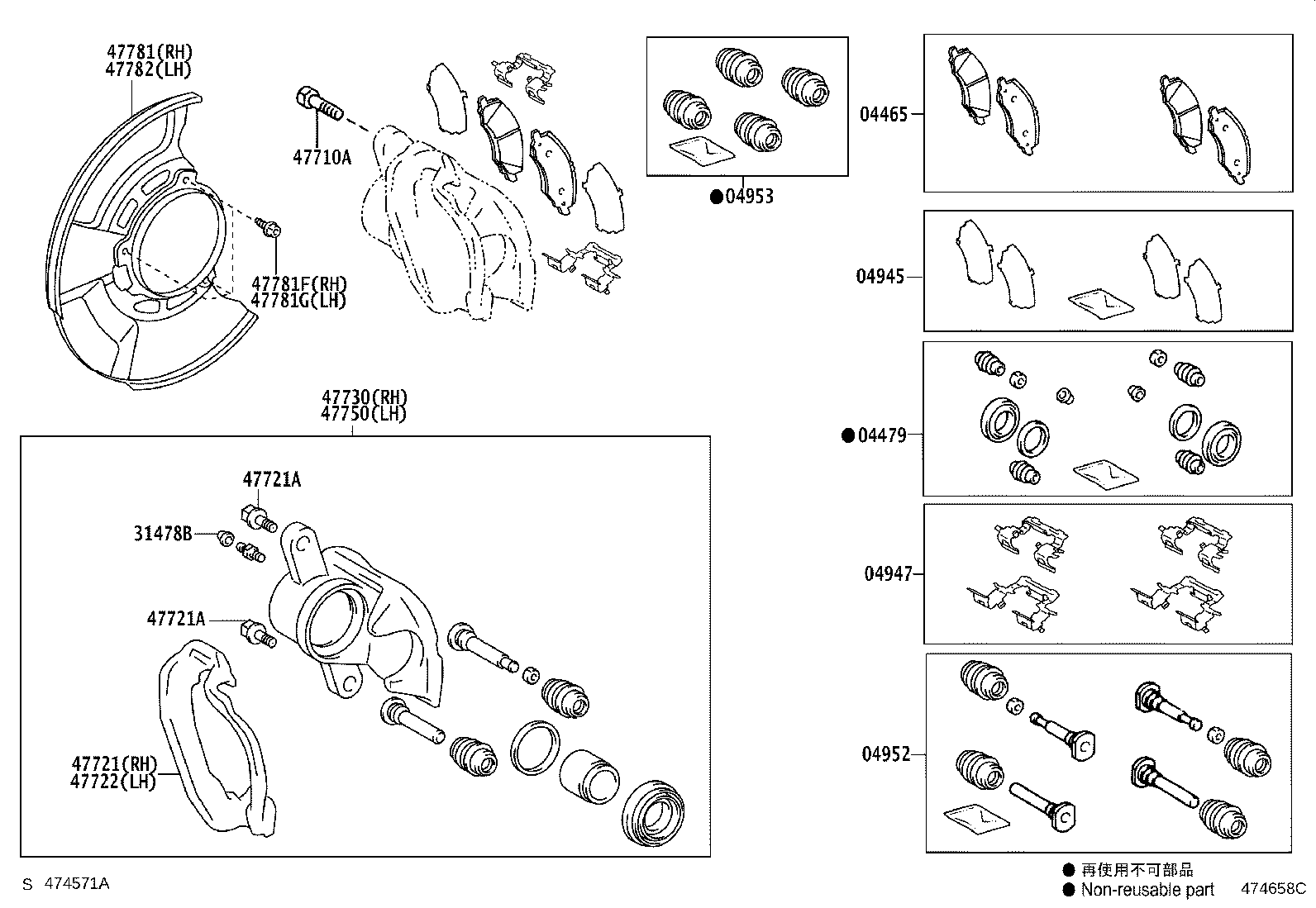

(0507-0810)KUN15..DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K130 |
KUN15..DCB,SCB MARK ADVICS PS558H |
1 | ||
| 04465-0K160 |
KUN15..THDCB,THSCB,XTR MARK ADVICS PS558H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-04030 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 04478-0K060 |
KUN15..DCB,SCB |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K130 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 04945-0K171 |
KUN15..DCB,SCB |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 04947-0K020 |
KUN15..DCB,SCB |
1 | ||
| 04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 04952-02030 |
KUN15..DCB,SCB |
1 | ||
| 04953 - BOOT KIT, FRONT DISC BRAKE CYLINDER SLIDE PIN | ||||
| 04953-02030 |
KUN15..DCB,SCB |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0K020 |
KUN15..DCB,SCB |
2 | ||
| 31478-30010 |
KUN15,2#..THDCB,THSCB,XTR |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-C1230 |
KUN15 *12-1.25PX30-26.25 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47721-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AA201 |
KUN15..THDCB,THSCB,XTR *10-1.25PX89.7-30,MAIN PIN SIDE |
2 | ||
| 90080-11308 |
KUN15..THDCB,THSCB,XTR *10-1.25PX63.7-30,SUB PIN SIDE |
2 | ||
| 90080-10190 |
KUN15..DCB,SCB *8-1.00PX22-14.5 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AA201 |
KUN15..THDCB,THSCB,XTR *10-1.25PX89.7-30,MAIN PIN SIDE |
2 | ||
| 90080-11308 |
KUN15..THDCB,THSCB,XTR *10-1.25PX63.7-30,SUB PIN SIDE |
2 | ||
| 90080-10190 |
KUN15..DCB,SCB *8-1.00PX22-14.5 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47722-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47730-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K020 |
KUN15..DCB,SCB |
1 | ||
| 47750-0K010 |
KUN15..THDCB,THSCB,XTR |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K010 |
KUN15 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-T0005 |
KUN15 |
3 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-T0005 |
KUN15 |
3 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K010 |
KUN15 |
1 | ||
