KUN15L-BRMDHW (2008)
Toyota Hilux

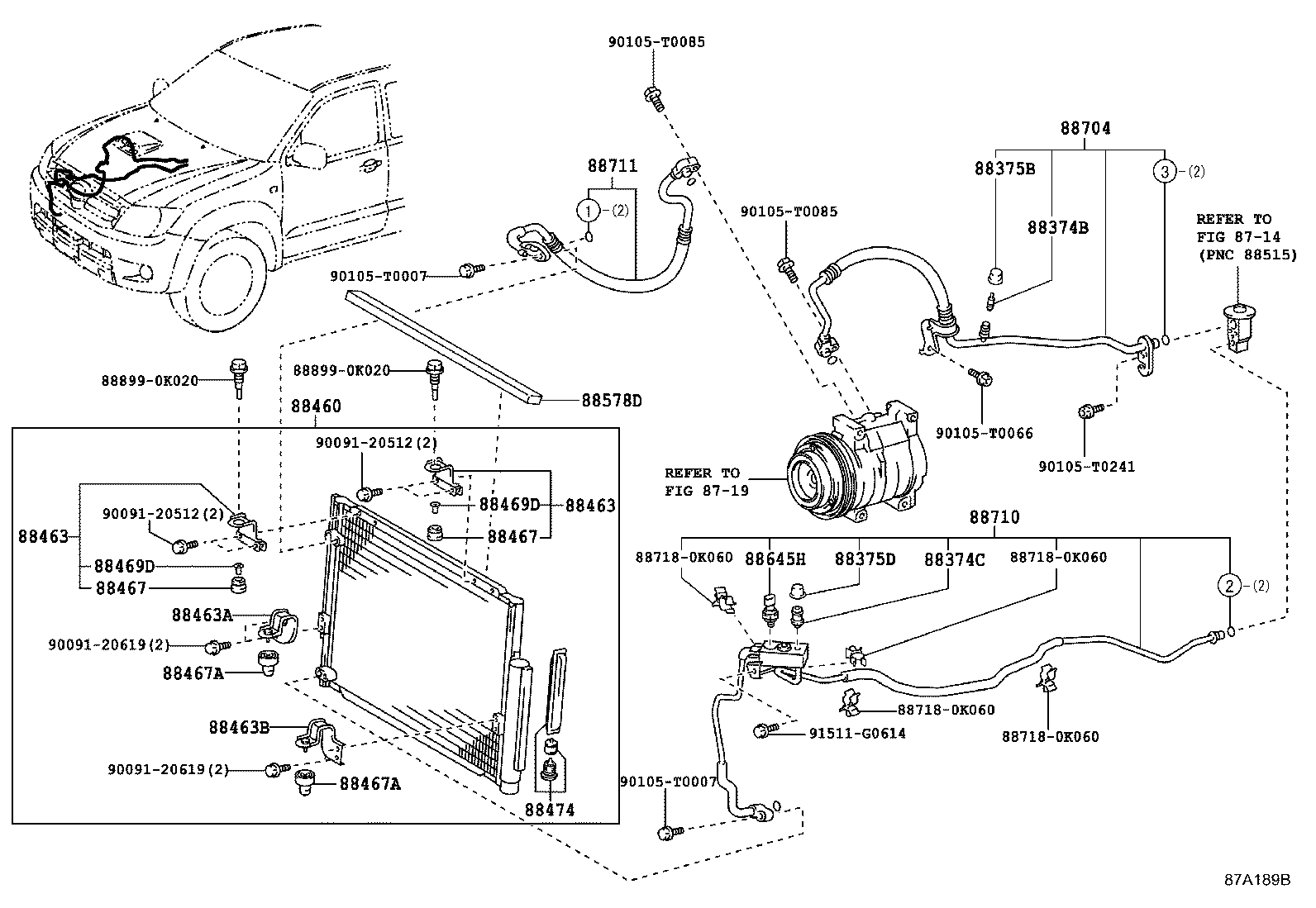

ILLUST NO. 1 OF 2(0808- )THDCB,THSCB,XTR
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375-30280 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467-12180 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88467-12180 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
4 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467-28040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467-28040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88469-52010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
4 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
4 | ||
| 88469-52010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-08010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K790 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KUN15..THDCB,THSCB,XTR;KUN25..RHD..(THDCB,THSCB) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K050 |
KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K500 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88704-0K650 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K672 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K701 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K670 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K671 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K710 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K090 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88703-0K250 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K071 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K250 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-0K020 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0810- )LHD..DCB,SCB
SINGLE AIR CONDITIONER & COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-0K020 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88470-0K010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-08010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K050 |
KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K500 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88704-0K650 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K672 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K701 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K670 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K671 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88717-0KD70 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88717-0KE01 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88717-0KA70 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88717-0KE00 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K710 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-0K750 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-0K520 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-0KB50 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88712-0KB51 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0K151 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-0KB60 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88716-0K160 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-0K180 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716-0KD20 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-0KD21 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KUN15,25..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88719-33020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719-40020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88467-0K140 | ||||
| 88688-0K640 | ||||
| 88688-0K650 | ||||
| 88718-0K060 | ||||
| 88718-0K310 | ||||
| 88718-0KF80 | ||||
| 88899-52050 | ||||
| 90069-31014 | ||||
| 90069-31015 | ||||
| 90069-31016 | ||||
| 90069-33018 | ||||
| 90069-48009 | ||||
| 90105-T0007 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0152 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0810- )DCB,SCB
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-08010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K790 |
KUN15,2#..THDCB,THSCB,XTR |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KUN15..THDCB,THSCB,XTR;KUN25..RHD..(THDCB,THSCB) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K050 |
KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K500 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88704-0K650 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K672 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K701 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K670 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K671 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K710 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K090 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88703-0K250 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K071 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K250 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-52050 | ||||
| 90105-T0007 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0507-0810)DCB,SCB
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K050 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
2 | ||
| 88463-0K020 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K020 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K250 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K260 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467-28040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88467-28040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88474-17010 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-08010 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K050 |
KUN15,25..LHD..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K500 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88704-0K650 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K672 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K701 |
KUN15,2#..LHD..(DCB,SCB) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K670 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K671 |
KUN15,25..LHD..(THDCB,THSCB,XTR) COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K710 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K040 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K020 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K090 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88703-0K250 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,2#..THDCB,THSCB,XTR SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K070 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K071 |
KUN15,25..THDCB,THSCB,XTR AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K250 |
KUN15,25..THDCB,THSCB,XTR COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,2#..DCB,SCB AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-52050 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0038 | ||||
| 90105-T0066 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
