Toyota Hilux KDN170 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
EU
HILUX
KDN170L-CRMSYW3 (2001)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

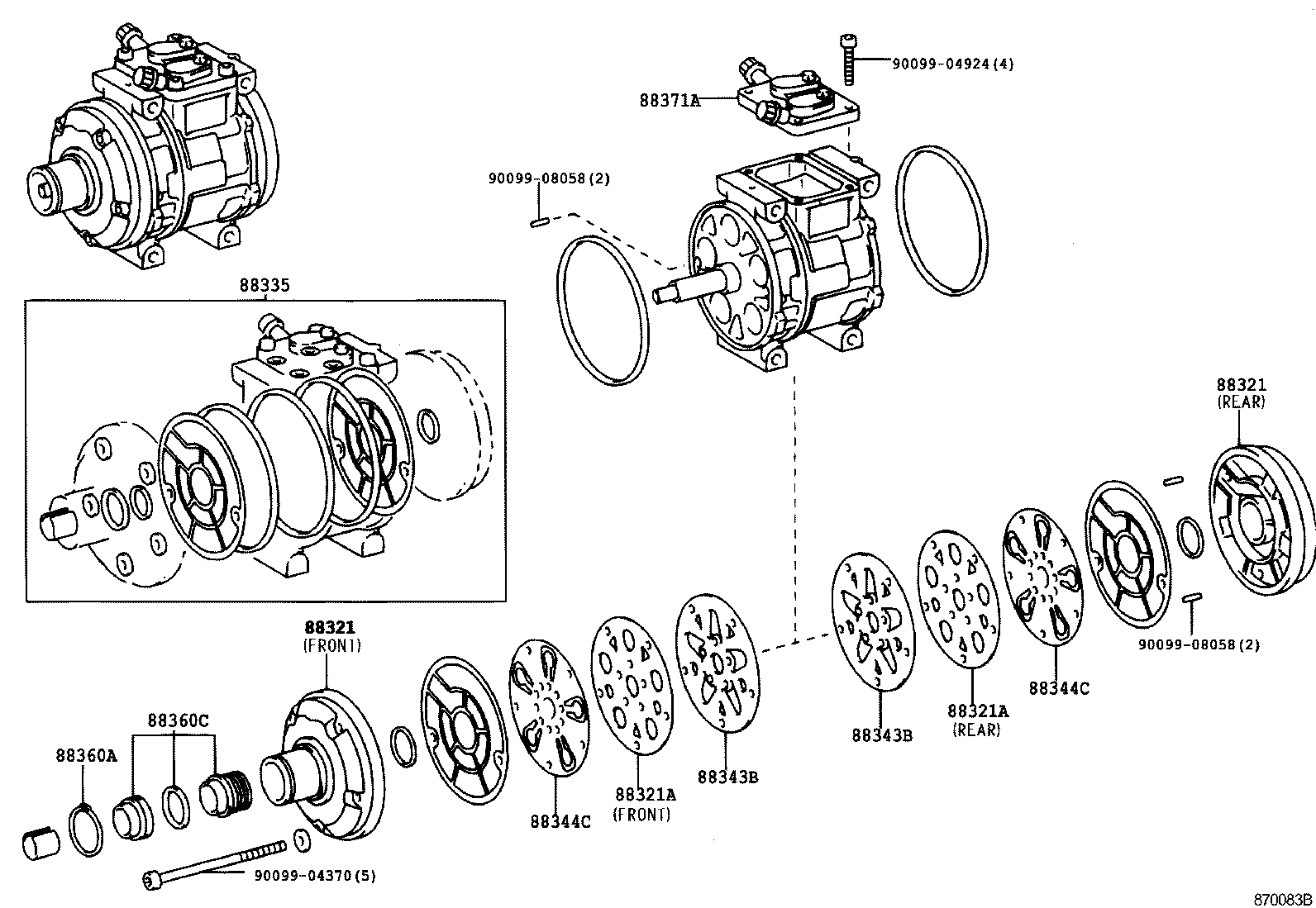

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

COMPONENT OF COMPRESSOR

Part #	Description	Period	Qty
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040	LN145,150,165,170,190,RZN168,173..LHD REAR	08/1997 - 08/2001	1
88321-32010	LN145,150,165,170,190,RZN168,173..LHD FRONT	08/1997 - 08/2001	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040	LN145,150,165,170,190,RZN168,173..LHD REAR	08/1997 - 08/2001	1
88321-32010	LN145,150,165,170,190,RZN168,173..LHD FRONT	08/1997 - 08/2001	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040	LN145,150,165,170,190,RZN168,173..LHD REAR	08/1997 - 08/2001	1
88321-32010	LN145,150,165,170,190,RZN168,173..LHD FRONT	08/1997 - 08/2001	1
88321A - PLATE SUB-ASSY, VALVE
88342-22010	LN145,150,165,170,190,RZN168,173..LHD REAR	08/1997 - 08/2001	1
88341-22010	LN145,150,165,170,190,RZN168,173..LHD FRONT	08/1997 - 08/2001	1
88321A - PLATE SUB-ASSY, VALVE
88342-22010	LN145,150,165,170,190,RZN168,173..LHD REAR	08/1997 - 08/2001	1
88341-22010	LN145,150,165,170,190,RZN168,173..LHD FRONT	08/1997 - 08/2001	1
88335 - GASKET KIT, OVERHAUL
88335-2B030	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	1
88343B - REED, SUCTION VALVE
88343-14020	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	2
88343B - REED, SUCTION VALVE
88343-14020	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	2
88344C - REED, DISCHARGE VALVE
88344-22010	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	2
88344C - REED, DISCHARGE VALVE
88344-22010	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	1
88360C - SEAL ASSY, SHAFT
88360-2B020	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	1
88371A - VALVE, SUCTION
88371-35270	LN145,150,165,170,190..LHD	08/1997 - 08/2001	1
Common parts
90099-04370
90099-04924
90099-08058

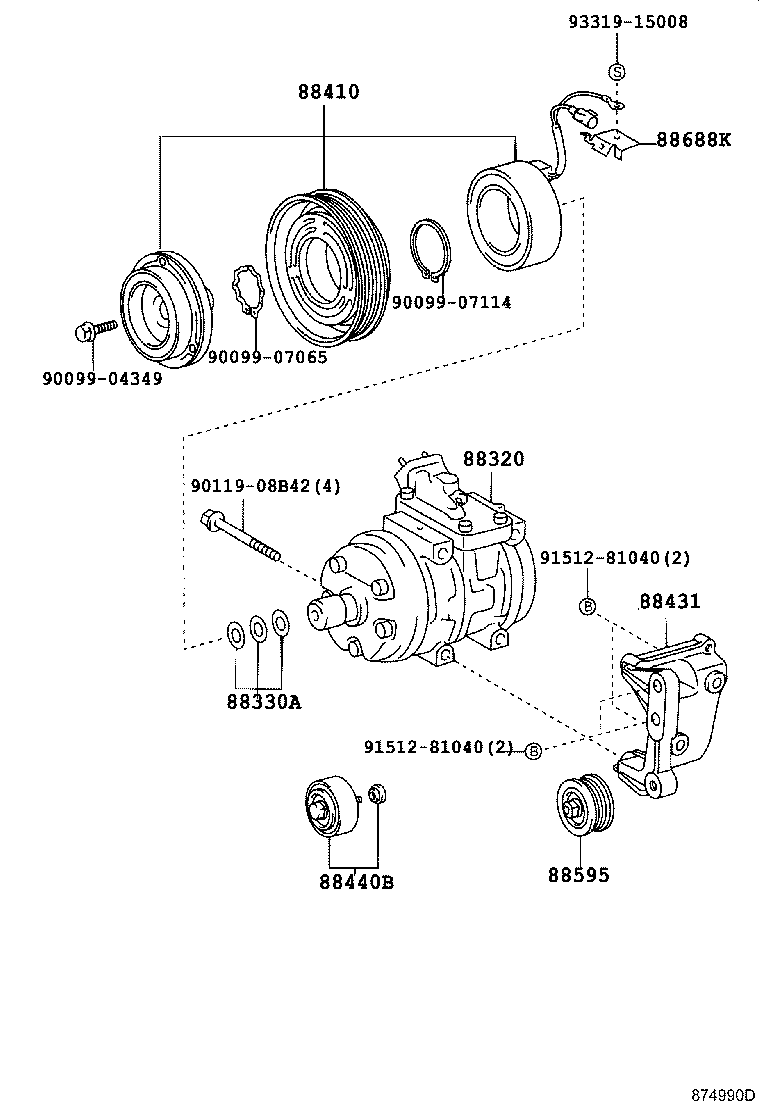

ILLUST NO. 1 OF 2(0108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-35620	LN145,150,165,170,190..LHD	08/1997 - 08/2001	1
88320-35680	KDN145,150,165,170..(DCB,XTR)..IV3	07/2004 - 08/2005	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	LN145,150,165,170,190,RZN168,173..LHD	08/1997 - 08/2001	1
88410 - CLUTCH ASSY, MAGNET
88410-22480	LN145,150,165,170,190..LHD	08/1997 - 08/2001	1
88410-28200	KDN145,150,165,170..(DCB,XTR)..IV3	07/2004 - 08/2005	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60180	LN145,150,165,170,190..LHD	08/1997 - 08/2001	1
88431-25240	KDN145..LHD..DLX;KDN150,165,170..LHD W(AIR CONDITIONER (DEALER OPTION))	08/2001 - 08/2003	1
88431-35250	KDN145,150,165,170..(DCB,XTR)..IV3	09/2003 - 07/2004	1
88440B - PULLEY ASSY, IDLE
88440-35130	KDN145..LHD..DLX;KDN150,165,170..LHD	08/2001 - 08/2005	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35030	LN145..LHD..DLX;LN150,165,170..LHD	08/1997 - 08/2001	1
88688K - BRACKET, COOLER COMPRESSOR
88569-35170	KDN145,150,165,170..(DCB,XTR)..IV3	07/2004 - 08/2005	1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
91512-81040
93319-15008
