KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

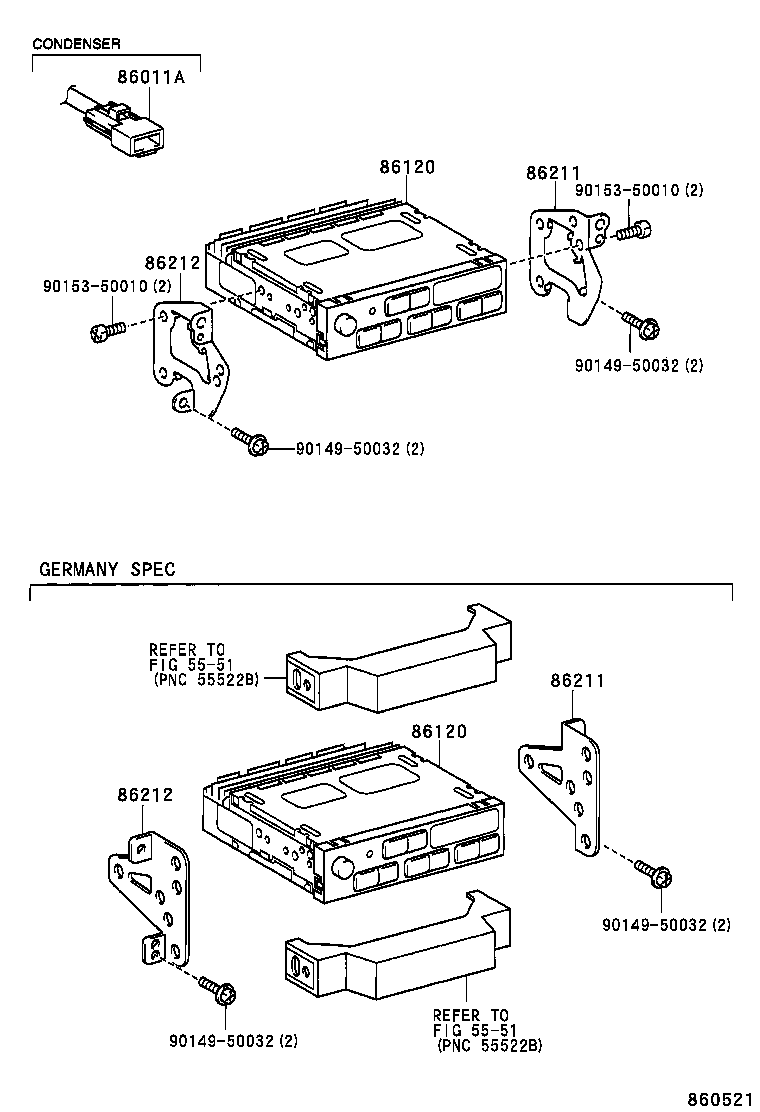

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

BRACKET RECEIVER & CONDENSER

diagram 5551 5551 86011A 86120 86120 86211 86211 86212 86212 9014950032 9014950032 9014950032 9014950032 9015350010 9015350010
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-60220

LN145,150,165,170,190,RZN168,173

FUJITSU TEN,ID=13302,AM/FM/LW,2 SPEAKER

 1
86120-60220

KDN145,150,165,170,190

FUJITSU TEN,ID=13302,AM/FM/LW,2 SPEAKER

 1
86120-60210

KDN145..RHD;KDN145..DCB;KDN150,165,170,190

MATSUSHITA, ID=58408,AM/FM/LW CASSETTE,2 SPEAKER

 1
86120-60210

LN145..RHD;LN145..DCB;LN150,165,170,190,RZN168,173

MATSUSHITA, ID=58408,AM/FM/LW CASSETTE,2 SPEAKER

 1
86120 - RECEIVER ASSY, RADIO
86120-60220

LN145,150,165,170,190,RZN168,173

FUJITSU TEN,ID=13302,AM/FM/LW,2 SPEAKER

 1
86120-60220

KDN145,150,165,170,190

FUJITSU TEN,ID=13302,AM/FM/LW,2 SPEAKER

 1
86120-60210

KDN145..RHD;KDN145..DCB;KDN150,165,170,190

MATSUSHITA, ID=58408,AM/FM/LW CASSETTE,2 SPEAKER

 1
86120-60210

LN145..RHD;LN145..DCB;LN150,165,170,190,RZN168,173

MATSUSHITA, ID=58408,AM/FM/LW CASSETTE,2 SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-89111

LN145,150,165,170,190,RZN168,173

 1
86211-89111

KDN145,150,165,170,190

 1
86211 - BRACKET, RADIO, NO.1
86211-89111

LN145,150,165,170,190,RZN168,173

 1
86211-89111

KDN145,150,165,170,190

 1
86212 - BRACKET, RADIO, NO.2
86212-89111

LN145,150,165,170,190,RZN168,173

 1
86212-89111

KDN145,150,165,170,190

 1
86212 - BRACKET, RADIO, NO.2
86212-89111

LN145,150,165,170,190,RZN168,173

 1
86212-89111

KDN145,150,165,170,190

 1
Common parts
90149-50032
90153-50010
Linked diagrams
5551

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

KNOB & DETACHABLE TYPE RECEIVER

diagram 86120 8612812400 8612826020 86170 86174 9015350010 9015350010
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-60220

LN145,150,165,170,190,RZN168,173

FUJITSU TEN,ID=13302,AM/FM/LW,2 SPEAKER

 1
86120-60220

KDN145,150,165,170,190

FUJITSU TEN,ID=13302,AM/FM/LW,2 SPEAKER

 1
86120-60210

KDN145..RHD;KDN145..DCB;KDN150,165,170,190

MATSUSHITA, ID=58408,AM/FM/LW CASSETTE,2 SPEAKER

 1
86120-60210

LN145..RHD;LN145..DCB;LN150,165,170,190,RZN168,173

MATSUSHITA, ID=58408,AM/FM/LW CASSETTE,2 SPEAKER

 1
86170 - SWITCH AND VOLUME ASSY, RADIO
86170-60010

KDN145..RHD;KDN145..DCB;KDN150,165,170,190

 1
86170-60010

LN145..RHD;LN145..DCB;LN150,165,170,190,RZN168,173

 1
86174 - CASE, SWITCH & VOLUME
86174-60010

KDN145..RHD;KDN145..DCB;KDN150,165,170,190

 1
86174-60010

LN145..RHD;LN145..DCB;LN150,165,170,190,RZN168,173

 1
Common parts
86128-12400
86128-26020
90153-50010
