KDN170L-CRMSYW3 (2001)
Toyota Hilux
ILLUST NO. 5 OF 6(9708- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-35190 |
LN145,150,165,170,190 |
1 | ||
| 82124-35230 |
KDN145,150,165,170,190 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-35190 |
LN145,150,165,170,190 |
1 | ||
| 82124-35230 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91612-B1014 | ||||
ILLUST NO. 4 OF 6(9708- )
ROOF,DOOR,FRAME & DIFF. WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82127A - WIRE, DIFFERENTIAL (TO WIRE FRAME) | ||||
| 82127-35150 |
LN145,150,165,170,RZN168,173..LHD |
1 | ||
| 82127-35151 |
KDN165,170..LHD..(DCB,XTR) |
1 | ||
| 82127-35130 |
KDN165,170 W(DIFFERENTIAL LOCK) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-35190 |
LN145,150,165,170,RZN168,173..SCB,XTR 2SPEAKER |
1 | ||
| 82152-35130 |
KDN145,150,165,170..LHD..(SCB,XTR) W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-35190 |
LN145,150,165,170,RZN168,173..SCB,XTR W(SPEAKER) |
1 | ||
| 82152-35250 |
KDN145,150,165,170..LHD..(SCB,XTR) W(POWER WINDOW & *80) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3G710 |
KDN170..IV3 W(DIFFERENTIAL LOCK) |
1 | ||
| 82164-3G690 |
KDN150,170..IV3 |
1 | ||
| 82164-3G720 |
KDN170..IV3 W(DIFFERENTIAL LOCK) & W(ABS) |
1 | ||
| 82164-3G700 |
KDN150,170..IV3 W(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-35390 |
KDN150,170 W(REAR WINDOW DEFOGGER) |
1 | ||
| 82171-35410 |
KDN150,170..SR W(MOON ROOF) |
1 | ||
| 82171-35330 |
LN145,150,165,170,190,RZN168,173..LHD..(DCB,XTR) |
1 | ||
| 82171-35330 |
KDN145,150,165,170,190..LHD..(DCB,XTR) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-35050 |
KDN150,170 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-35420 |
LN145,150,165,170,190,RZN168,173..DCB,XTR |
1 | ||
| 82817-35420 |
KDN145,150,165,170,190 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-35430 |
LN145,150,165,170,190,RZN168,173..DCB,XTR |
1 | ||
| 82817-35430 |
KDN145,150,165,170,190 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-33150 |
KDN145,150,165,170,190 W(ABS) |
1 | ||
| Common parts | ||||
| 82711-2A720 | ||||
| 82711-35480 | ||||
| 88266-35600 | ||||
| 90119-06915 | ||||
| 90179-08230 | ||||
| 90179-08237 | ||||
| 90464-00165 | ||||
ILLUST NO. 3 OF 6(9708- )LHD

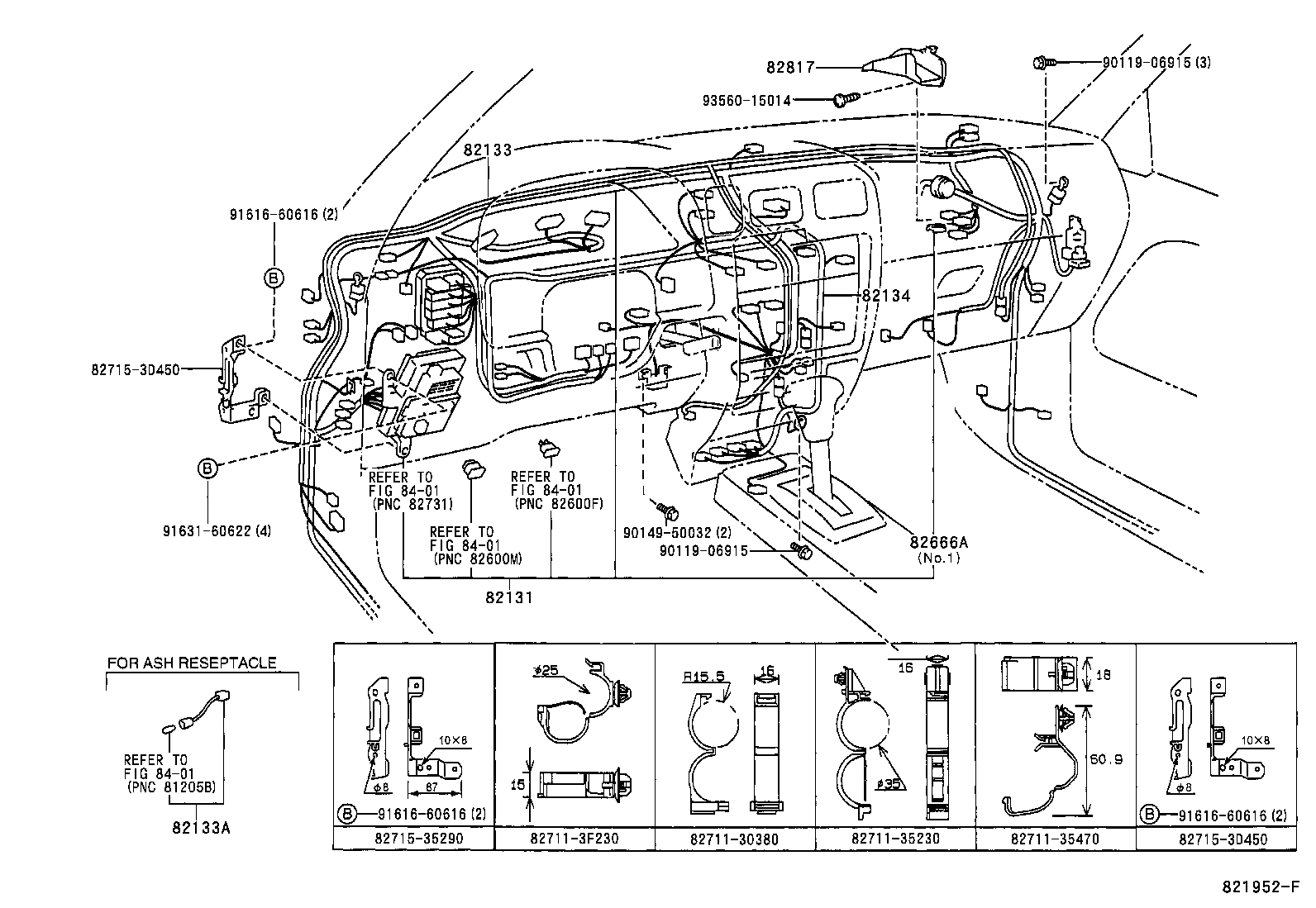

COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-3M560 |
KDN150,170..LHD W(SRS AIR BAG) |
1 | ||
| 82131-3M590 |
KDN145,150,165,170..LHD..(SCB,XTR) |
1 | ||
| 82131-3M600 |
KDN165,170..(SCB,XTR)..IV3 DENMARK,NORWAY OR SWEDEN SPEC |
1 | ||
| 82131-3M570 |
KDN170..IV3 ENGLAND SPEC & W(SRS AIR BAG) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-35020 |
LN145,150,165,170,190,RZN168,173..LHD |
1 | ||
| 82133-35020 |
KDN145,150,165,170,190..LHD |
1 | ||
| 82133A - WIRE, COWL, NO.3 | ||||
| 82133-35080 |
KDN145,150,165,170,190..SR |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-35040 |
LN145,150,165,170,RZN168,173..LHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35410 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-35450 |
RZN168..DCB;LN145,150,165,170,190,RZN173..LHD |
1 | ||
| 82817-35450 |
KDN145,150,165,170,190..LHD |
1 | ||
| Common parts | ||||
| 82711-30380 | ||||
| 82711-35230 | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 82715-35290 | ||||
| 82715-3D450 | ||||
| 90119-06915 | ||||
| 90149-50032 | ||||
| 91616-60616 | ||||
| 91631-60622 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 6(9708- )LN145,150,165,170,190
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-35060 | ||||
| 82711-95J26 | ||||
| 82715-26460 | ||||
| 82715-30500 | ||||
| 82715-34190 | ||||
| 82715-35170 | ||||
| 82715-35320 | ||||
| 82715-35680 | ||||
| 82715-35880 | ||||
| 82715-3D010 | ||||
| 82715-3D020 | ||||
| 82715-3D060 | ||||
| 82715-3D200 | ||||
| 82715-3D210 | ||||
| 82715-3D220 | ||||
| 82715-3D280 | ||||
| 82715-3D290 | ||||
| 82715-3D320 | ||||
| 82715-89101 | ||||
| 82715-89103 | ||||
| 82715-89104 | ||||
| 82715-89107 | ||||
| 82715-89113 | ||||
| 82715-89115 | ||||
| 82715-89118 | ||||
| 87616-35010 | ||||
| 90119-08671 | ||||
| 90119-08A96 | ||||
| 90168-60010 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91651-40610 | ||||
ILLUST NO. 2 OF 6(9708- )LN145,150,165,170,190

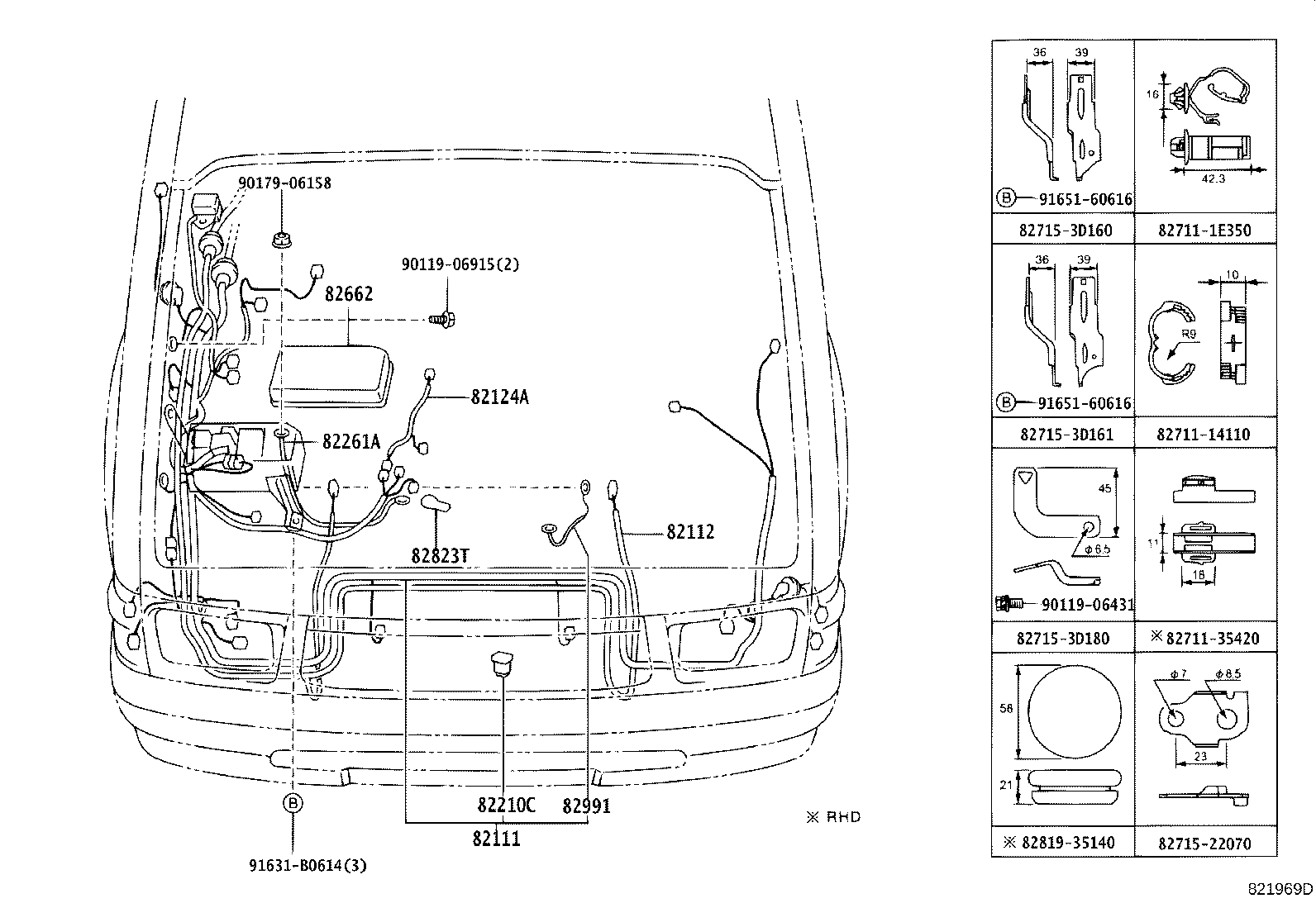

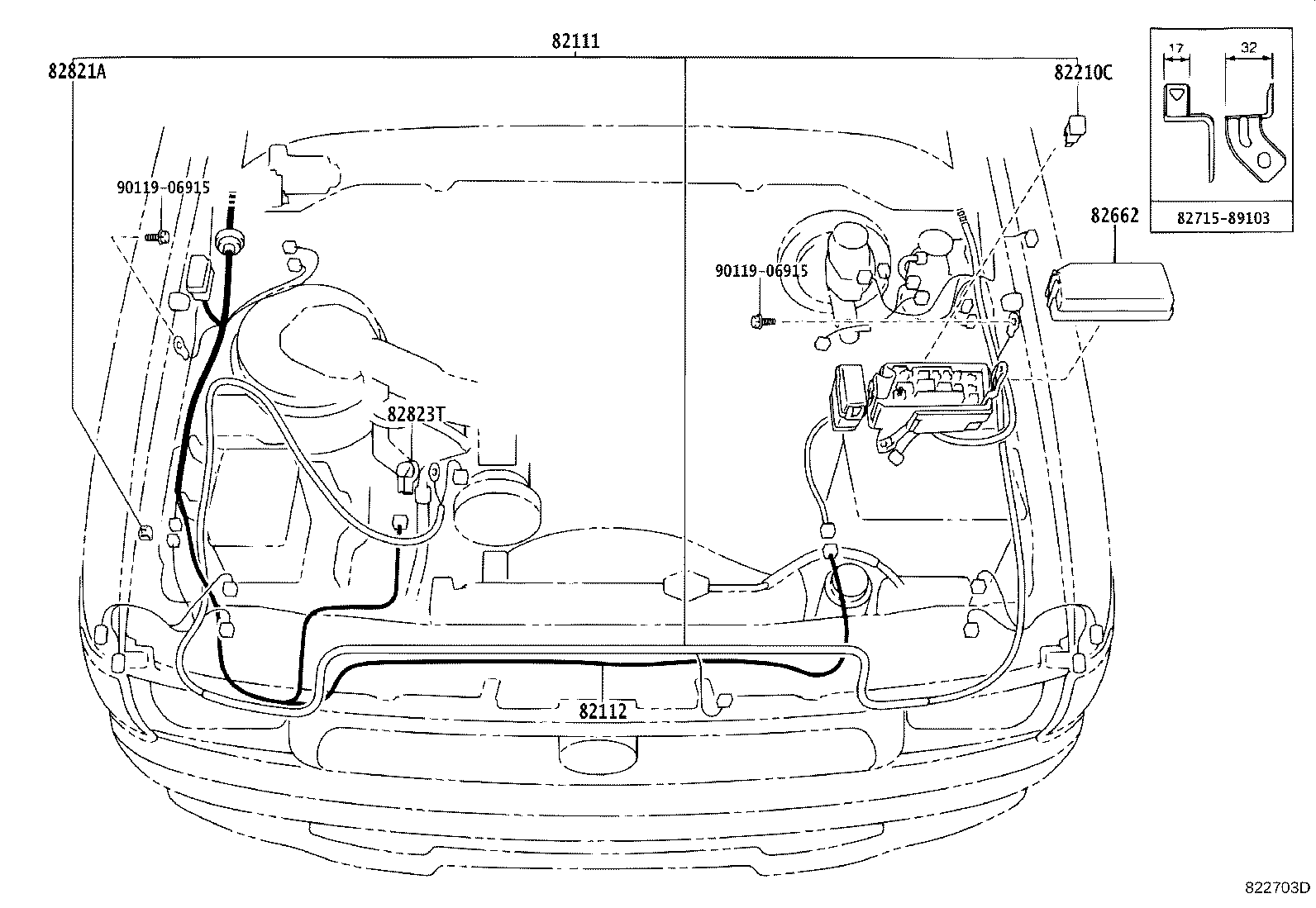

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3G200 |
LN145,150,165,170..LHD |
1 | ||
| 82111-3G260 |
LN165..LHD..SCB..CBU;LN145,150,170..LHD..(SCB,XTR) W(DAY TIME RUNNING LIGHT SYSTEM,FUEL HEATER & HEADLAMP LEVELING) |
1 | ||
| 82111-3G220 |
LN145,150,165,170..LHD W(HEADLAMP LEVELING) |
1 | ||
| 82111-3G230 |
LN145,150,165,170..LHD W(FUEL HEATER & HEADLAMP LEVELING) |
1 | ||
| 82111-3G250 |
LN165..LHD..CBU;LN145,150,170..LHD W(DAY TIME RUNNING LIGHT SYSTEM & FUEL HEATER) |
1 | ||
| 82111-3G240 |
LN165..LHD..CBU;LN145,150,170..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-3G210 |
LN145,150,165,170..LHD W(FUEL HEATER) |
1 | ||
| 82111-3M190 |
KDN145..LHD..DLX;KDN150,165,170..LHD..(DCB,XTR) AUSTRALIA SPEC |
1 | ||
| 82111-3M220 |
KDN165,170..IV3;KDN145..DCB..IV3 COLD SPEC & DENMARK SPEC |
1 | ||
| 82111-3M180 |
KDN165,170..(DCB,XTR)..IV3 |
1 | ||
| 82111-3M350 |
KDN165,170..(DCB,XTR)..IV3 SWITZERLAND SPEC |
1 | ||
| 82111-3M200 |
KDN145..LHD..DLX;KDN150,165,170..LHD COLD SPEC & W(*80) |
1 | ||
| 82111-3M210 |
KDN145,165,170..(DCB,XTR)..IV3 DENMARK SPEC |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-35050 |
KDN145,150,165,170,190..LHD |
1 | ||
| 82112-35030 |
LN145,150,165,170,RZN168,173..LHD |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-35070 |
LN145,150,165,170,190 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
LN145,150,165,170,190,RZN168,173 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08203 |
KDN145,150,165,170,190 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08282 |
LN145,150,165,170,190,RZN168,173 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08285 |
KDN145,150,165,170,190 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
KDN145,150,165,170,190 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08203 |
LN145,150,165,170,190,RZN168,173 80A,TERM.:MALE,BLK,TAIHEIYO |
1 | ||
| 90982-08284 |
LN145,150,165,170,190,RZN168,173 40A,TERM.:FEMALE,GRN,TAIHEIYO |
1 | ||
| 90982-08281 |
KDN145,150,165,170,190 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
KDN145,150,165,170,190 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
LN145,150,165,170,190,RZN168,173 50A,TERM.:FEMALE,RED,TAIHEIYO |
1 | ||
| 90982-08282 |
KDN145,150,165,170,190 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08246 |
LN145,150,165,170,190 100A,TERM.:MALE,BLUE,TAIHEIYO |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-35590 |
LN145,150,165,170..LHD |
1 | ||
| 82662-3D060 |
KDN145,150,165,170,190 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDN145,150,165,170,190 |
1 | ||
| 82823-22050 |
LN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1E350 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82715-3D160 | ||||
| 82715-3D161 | ||||
| 82715-3D180 | ||||
| 82819-35140 | ||||
| 90119-06431 | ||||
| 90119-06915 | ||||
| 90179-06158 | ||||
| 91631-B0614 | ||||
| 91651-60616 | ||||
ILLUST NO. 1 OF 6(9708- )LN145,150,165,170,190

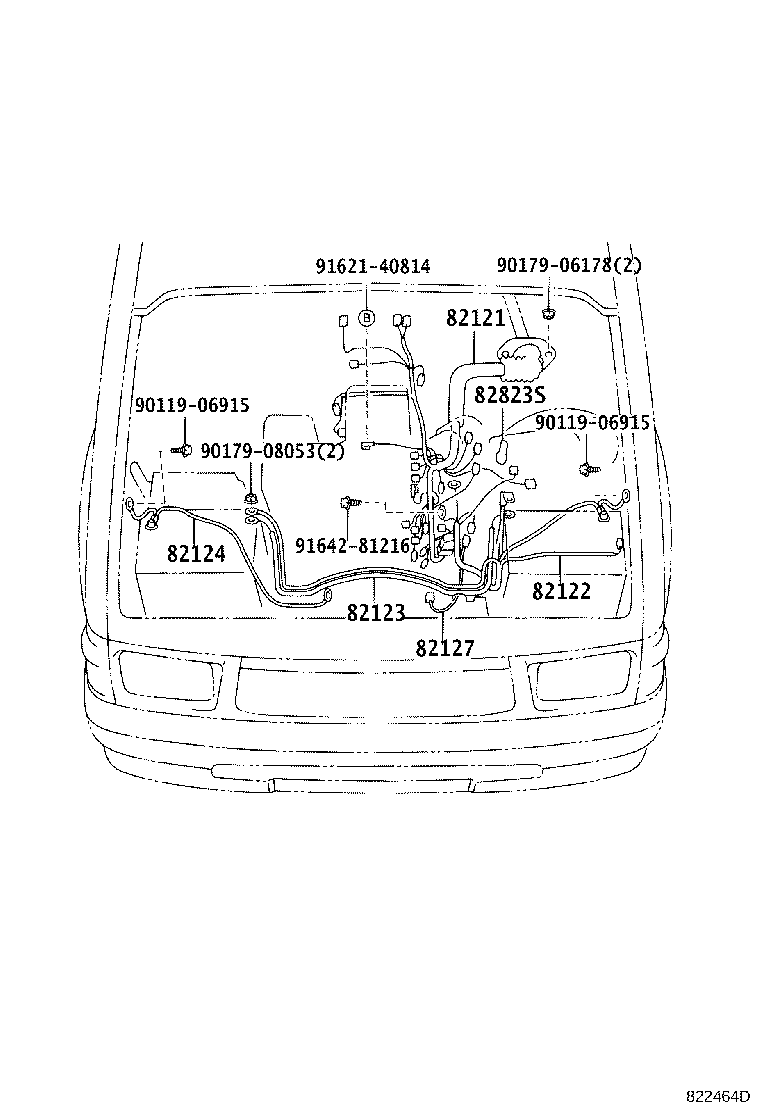

ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3D670 |
LN165,170..LHD |
1 | ||
| 82121-3M140 |
KDN165,170..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35590 |
LN165,170..LHD COLD SPEC & W(A.D.D.) |
1 | ||
| 82122-35530 |
LN165,170..LHD |
1 | ||
| 82122-35580 |
LN165,170 COLD SPEC |
1 | ||
| 82122-35540 |
LN165,170..LHD W(A.D.D) |
1 | ||
| 82122-3D040 |
KDN165,170..LHD..(DCB,XTR) COLD SPEC & W(A.D.D.) |
1 | ||
| 82122-35830 |
KDN165,170..LHD..(DCB,XTR) |
1 | ||
| 82122-3D010 |
KDN165,170..LHD..(DCB,XTR) COLD SPEC |
1 | ||
| 82122-35840 |
KDN165,170..LHD..(DCB,XTR) W(A.D.D) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-35110 |
KDN145..DLX;KDN150,165,170 |
1 | ||
| 82123-35070 |
LN145,150,165,170,190 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-35220 |
KDN165,170 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-35140 |
LN165,170,RZN173..LHD |
1 | ||
| 82127-35190 |
KDN165,170 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35070 |
LN145,150,165,170,190 MARK 82823-35070 |
1 | ||
| 82823-35060 |
KDN165..LHD..DCB;KDN145,150,170..LHD |
1 | ||
| 82823-35060 |
LN165..LHD..DCB;LN145,150,170..LHD MARK 82823-35060 |
1 | ||
| 82823-35070 |
KDN145..DLX;KDN150,165,170,190 COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06178 | ||||
| 90179-08053 | ||||
| 91621-40814 | ||||
| 91642-81216 | ||||
ILLUST NO. 1 OF 6(0108- )LHD
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3D670 |
LN165,170..LHD |
1 | ||
| 82121-3M140 |
KDN165,170..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35590 |
LN165,170..LHD COLD SPEC & W(A.D.D.) |
1 | ||
| 82122-35530 |
LN165,170..LHD |
1 | ||
| 82122-35580 |
LN165,170 COLD SPEC |
1 | ||
| 82122-35540 |
LN165,170..LHD W(A.D.D) |
1 | ||
| 82122-3D040 |
KDN165,170..LHD..(DCB,XTR) COLD SPEC & W(A.D.D.) |
1 | ||
| 82122-35830 |
KDN165,170..LHD..(DCB,XTR) |
1 | ||
| 82122-3D010 |
KDN165,170..LHD..(DCB,XTR) COLD SPEC |
1 | ||
| 82122-35840 |
KDN165,170..LHD..(DCB,XTR) W(A.D.D) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-35110 |
KDN145..DLX;KDN150,165,170 |
1 | ||
| 82123-35070 |
LN145,150,165,170,190 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-35220 |
KDN165,170 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-35140 |
LN165,170,RZN173..LHD |
1 | ||
| 82127-35190 |
KDN165,170 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35410 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35070 |
LN145,150,165,170,190 MARK 82823-35070 |
1 | ||
| 82823-35060 |
KDN165..LHD..DCB;KDN145,150,170..LHD |
1 | ||
| 82823-35060 |
LN165..LHD..DCB;LN145,150,170..LHD MARK 82823-35060 |
1 | ||
| 82823-35070 |
KDN145..DLX;KDN150,165,170,190 COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-04030 | ||||
| 90179-06178 | ||||
| 90179-08053 | ||||
| 90189-04024 | ||||
| 91511-80620 | ||||
| 91611-B0816 | ||||
| 91621-40814 | ||||
| 91642-81216 | ||||

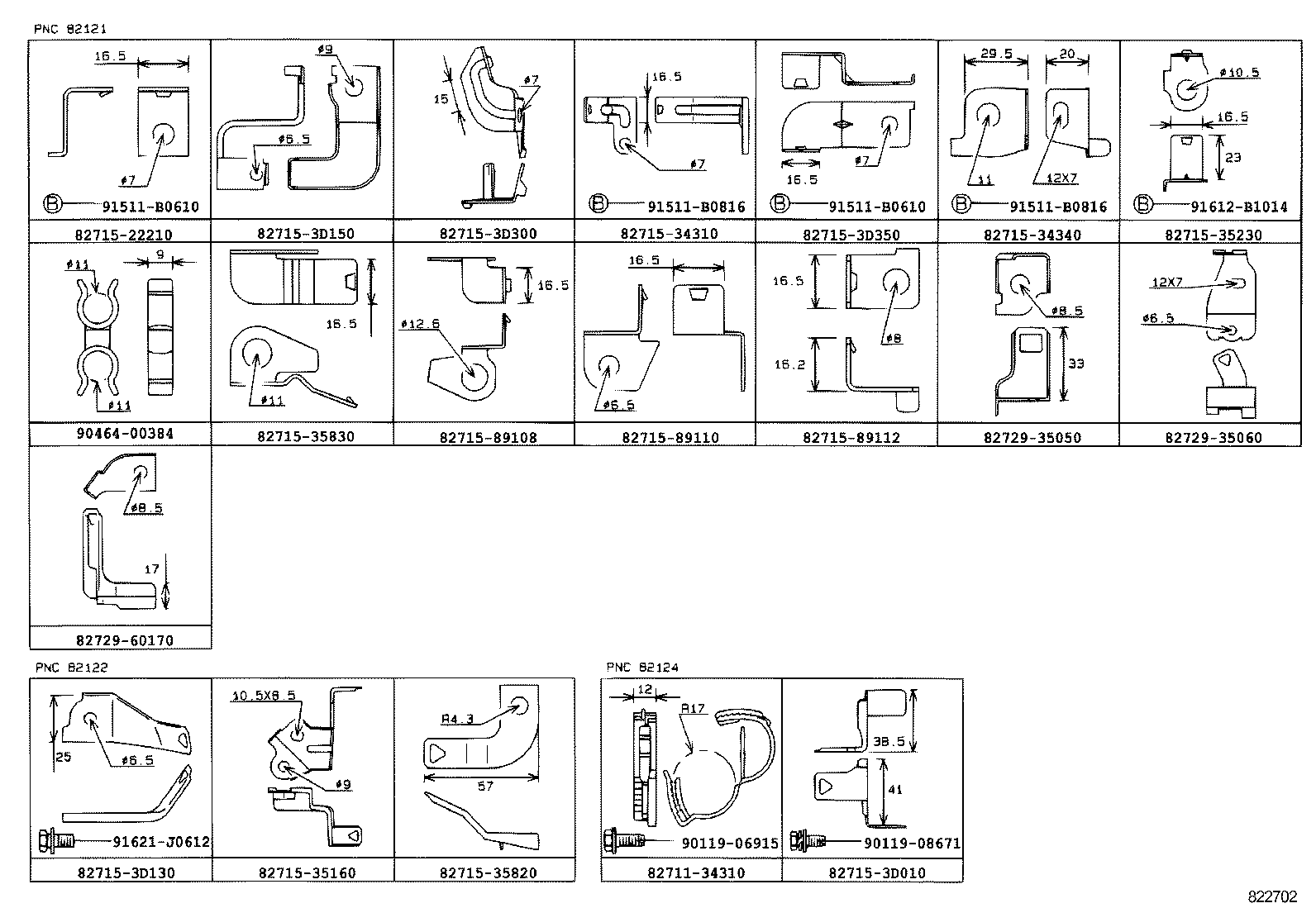

ILLUST NO. 1 OF 6(0108- )
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-34310 | ||||
| 82715-22210 | ||||
| 82715-34310 | ||||
| 82715-34340 | ||||
| 82715-35160 | ||||
| 82715-35230 | ||||
| 82715-35820 | ||||
| 82715-35830 | ||||
| 82715-3D010 | ||||
| 82715-3D130 | ||||
| 82715-3D150 | ||||
| 82715-3D300 | ||||
| 82715-3D350 | ||||
| 82715-89108 | ||||
| 82715-89110 | ||||
| 82715-89112 | ||||
| 82729-35050 | ||||
| 82729-35060 | ||||
| 82729-60170 | ||||
| 90119-06915 | ||||
| 90119-08671 | ||||
| 90464-00384 | ||||
| 91511-B0610 | ||||
| 91511-B0816 | ||||
| 91612-B1014 | ||||
| 91621-J0612 | ||||
ILLUST NO. 2 OF 6(0108- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3G200 |
LN145,150,165,170..LHD |
1 | ||
| 82111-3G260 |
LN165..LHD..SCB..CBU;LN145,150,170..LHD..(SCB,XTR) W(DAY TIME RUNNING LIGHT SYSTEM,FUEL HEATER & HEADLAMP LEVELING) |
1 | ||
| 82111-3G220 |
LN145,150,165,170..LHD W(HEADLAMP LEVELING) |
1 | ||
| 82111-3G230 |
LN145,150,165,170..LHD W(FUEL HEATER & HEADLAMP LEVELING) |
1 | ||
| 82111-3G250 |
LN165..LHD..CBU;LN145,150,170..LHD W(DAY TIME RUNNING LIGHT SYSTEM & FUEL HEATER) |
1 | ||
| 82111-3G240 |
LN165..LHD..CBU;LN145,150,170..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-3G210 |
LN145,150,165,170..LHD W(FUEL HEATER) |
1 | ||
| 82111-3M190 |
KDN145..LHD..DLX;KDN150,165,170..LHD..(DCB,XTR) AUSTRALIA SPEC |
1 | ||
| 82111-3M220 |
KDN165,170..IV3;KDN145..DCB..IV3 COLD SPEC & DENMARK SPEC |
1 | ||
| 82111-3M180 |
KDN165,170..(DCB,XTR)..IV3 |
1 | ||
| 82111-3M350 |
KDN165,170..(DCB,XTR)..IV3 SWITZERLAND SPEC |
1 | ||
| 82111-3M200 |
KDN145..LHD..DLX;KDN150,165,170..LHD COLD SPEC & W(*80) |
1 | ||
| 82111-3M210 |
KDN145,165,170..(DCB,XTR)..IV3 DENMARK SPEC |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-35050 |
KDN145,150,165,170,190..LHD |
1 | ||
| 82112-35030 |
LN145,150,165,170,RZN168,173..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
LN145,150,165,170,190,RZN168,173 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08203 |
KDN145,150,165,170,190 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08282 |
LN145,150,165,170,190,RZN168,173 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08285 |
KDN145,150,165,170,190 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
KDN145,150,165,170,190 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08203 |
LN145,150,165,170,190,RZN168,173 80A,TERM.:MALE,BLK,TAIHEIYO |
1 | ||
| 90982-08284 |
LN145,150,165,170,190,RZN168,173 40A,TERM.:FEMALE,GRN,TAIHEIYO |
1 | ||
| 90982-08281 |
KDN145,150,165,170,190 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
KDN145,150,165,170,190 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
LN145,150,165,170,190,RZN168,173 50A,TERM.:FEMALE,RED,TAIHEIYO |
1 | ||
| 90982-08282 |
KDN145,150,165,170,190 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 90982-08246 |
LN145,150,165,170,190 100A,TERM.:MALE,BLUE,TAIHEIYO |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-35590 |
LN145,150,165,170..LHD |
1 | ||
| 82662-3D060 |
KDN145,150,165,170,190 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20280 |
KDN145,150,165,170,190 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDN145,150,165,170,190 |
1 | ||
| 82823-22050 |
LN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 82715-89103 | ||||
| 90119-06915 | ||||
ILLUST NO. 6 OF 6(9708- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10162 | ||||
| 90980-10173 | ||||
| 90980-10216 | ||||
| 90980-10359 | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11140 | ||||
| 90980-11142 | ||||
| 90980-11149 | ||||
| 90980-11162 | ||||
| 90980-11248 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
