KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

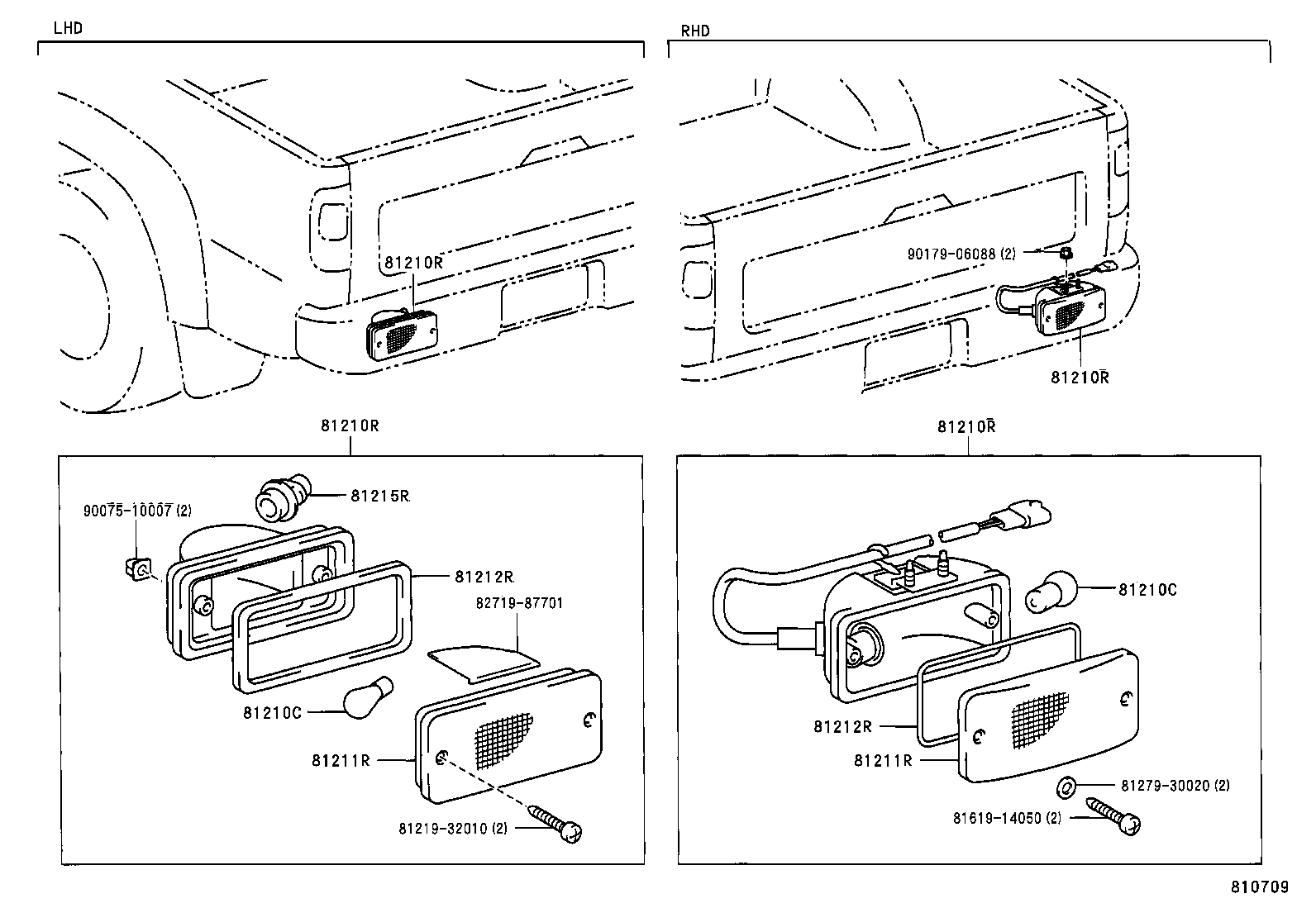

Click highlighted areas on diagram

diagram 81210C 81210C 81210R 81210R 81210R 81210R 81211R 81211R 81212R 81212R 81215R 8121932010 8127930020 8161914050 8271987701 9007510007 9017906088
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

LN145,150,165,170,190,RZN168,173

12V 21W

 1
99132-11210

KDN145,150,165,170,190

12V 21W

 1
81210C - BULB, REAR FOG LAMP
99132-11210

LN145,150,165,170,190,RZN168,173

12V 21W

 1
99132-11210

KDN145,150,165,170,190

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81210-89107

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81210-89107

KDN145,150,165,170..IV3

 1
81210R - LAMP ASSY, REAR FOG
81210-89107

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81210-89107

KDN145,150,165,170..IV3

 1
81210R - LAMP ASSY, REAR FOG
81210-89107

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81210-89107

KDN145,150,165,170..IV3

 1
81210R - LAMP ASSY, REAR FOG
81210-89107

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81210-89107

KDN145,150,165,170..IV3

 1
81211R - LENS, REAR FOG LAMP
81211-95700

KDN145,150,165,170..IV3

 1
81211-95700

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81211R - LENS, REAR FOG LAMP
81211-95700

KDN145,150,165,170..IV3

 1
81211-95700

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81212-95700

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81212-95700

KDN145,150,165,170..IV3

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81212-95700

LN145..RHD..IV3;LN145,165..DCB..IV3;LN150,170,RZN168..IV3

 1
81212-95700

KDN145,150,165,170..IV3

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
81615-87705

LN145..LHD;RZN168..CBU;LN145..RHD..CBU;LN150,165,170,RZN173

 1
Common parts
81219-32010
81279-30020
81619-14050
82719-87701
90075-10007
90179-06088
