KDN170L-CRMSYW3 (2001)
Toyota Hilux
ILLUST NO. 1 OF 2(9708- )SCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35220 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77011-35220 |
KDN145,150,165,170,190 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-35070 |
LN145..LHD..SCB;LN145..RHD..CBU;LN150,165,170,RZN173..SCB,XTR |
1 | ||
| 77018-35070 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
KDN145,150,165,170,190 |
1 | ||
| 77023-32040 |
LN145,150,165,170,190 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3D923 |
KDN165,170..SCB,XTR |
1 | ||
| 77001-3D919 |
LN165,170..SCB,XTR |
1 | ||
| 77001-3D919 |
KDN165,170..SCB,XTR |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35180 |
KDN145,165,170,190..DCB,XTR |
1 | ||
| 77161-35180 |
LN145,165,170,190..DCB,XTR (J) |
1 | ||
| 77606-35030 |
KDN165,170 W(LARGE FUEL TANK PROTECTOR) |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35180 |
KDN145,165,170,190..DCB,XTR |
1 | ||
| 77161-35180 |
LN145,165,170,190..DCB,XTR (J) |
1 | ||
| 77606-35030 |
KDN165,170 W(LARGE FUEL TANK PROTECTOR) |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35180 |
KDN145,165,170,190..DCB,XTR |
1 | ||
| 77161-35180 |
LN145,165,170,190..DCB,XTR (J) |
1 | ||
| 77606-35030 |
KDN165,170 W(LARGE FUEL TANK PROTECTOR) |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
KDN165,170,190 |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35020 |
KDN165,170,190 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77169-14010 |
KDN145,150,165,170,190 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
KDN145,150,165,170,190 |
1 | ||
| 77178-34010 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77179-26010 |
KDN145,150,165,170,190 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35760 |
LN145,150,165,170..LHD..(SCB,XTR)..IV3 |
1 | ||
| 77201-35760 |
KDN145,150,165,170..(SCB,XTR)..IV3 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77269-35010 |
KDN145,150,165,170..(SCB,XTR)..IV3 L=200 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35620 |
LN165,170..SCB,XTR |
1 | ||
| 77203-35620 |
KDN165,170..SCB,XTR |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35350 |
KDN145,150,165,170..(SCB,XTR)..IV3 |
1 | ||
| 77292A - STAY, FUEL TANK FILLAR UPPER PIPE | ||||
| 77292-35200 |
LN145,150,165,170..LHD..(SCB,XTR)..IV3 |
1 | ||
| 77292-35200 |
KDN145,150,165,170..(SCB,XTR)..IV3 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
KDN145,150,165,170,190 |
1 | ||
| 77295-35140 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
KDN145,150,165,170,190 |
1 | ||
| 77380-26010 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| Common parts | ||||
| 90105-12116 | ||||
| 90119-08667 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90201-06547 | ||||
| 90269-04059 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90541-06058 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 94130-60600 | ||||
ILLUST NO. 2 OF 2(9708- )LN145,150,165,170,190
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190..LHD *H,L=240,ID=7.6 |
1 | ||
| 95332-10030 |
KDN145,150,165,170,190..LHD *H,L=240 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190 *H,L=220,ID=7.6 |
2 | ||
| 95333-08030 |
KDN145,150,165,170,190 *H,L=220,ID=7.6 |
1 | ||
| 95332-10020 |
KDN145,150,165,170,190 *H,L=200 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190 *H,L=220,ID=7.6 |
2 | ||
| 95333-08030 |
KDN145,150,165,170,190 *H,L=220,ID=7.6 |
1 | ||
| 95332-10020 |
KDN145,150,165,170,190 *H,L=200 |
1 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
LN145,150,165,170,190 *H,L=140 |
1 | ||
| 95333-06020 |
KDN145,150,165,170,190 *H,L=150 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
KDN145,150,165,170,190 |
1 | ||
| 77249-35120 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D391 |
KDN150,170..LHD |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-35360 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
1 | ||
| 77252-35390 |
KDN145,150,165,170,190 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35881 |
KDN150,170..LHD |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77256-35060 |
KDN145,150,165,170,190 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77262-35090 |
KDN145,150,165,170,190 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35030 |
KDN145,150,165,170,190 |
1 | ||
| 77273-35020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77285-35461 |
KDN145,150,165,170,190..LHD |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35090 |
KDN145,150,165,170,190 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77286-35100 |
KDN145,150,165,170,190 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35030 |
KDN145,150,165,170,190 |
2 | ||
| 77289-35020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35170 |
KDN145,150,165,170,190 |
1 | ||
| 77295-35170 |
LN145,150,165,170,190 |
1 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35290 |
KDN145,150,165,170,190 |
1 | ||
| 77295-35160 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35020 |
KDN145,150,165,170,190 |
1 | ||
| 77298-35010 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35020 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
2 | ||
| 77439-35020 |
KDN145,150,165,170,190 |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35020 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
2 | ||
| 77439-35020 |
KDN145,150,165,170,190 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LN145,150,165,170,190 |
1 | ||
| 90917-10090 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

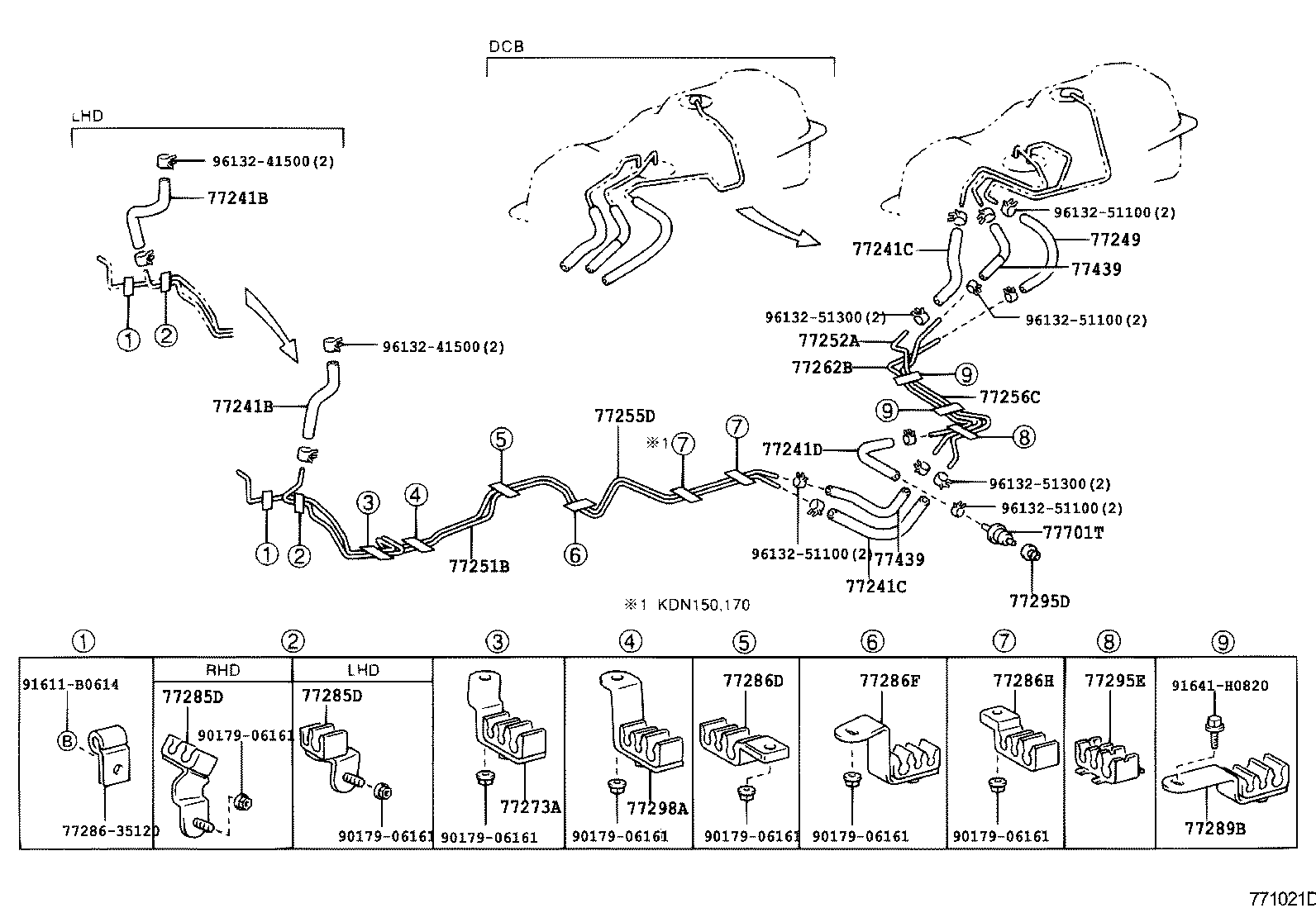

ILLUST NO. 2 OF 2(0108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190..LHD *H,L=240,ID=7.6 |
1 | ||
| 95332-10030 |
KDN145,150,165,170,190..LHD *H,L=240 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190..LHD *H,L=240,ID=7.6 |
1 | ||
| 95332-10030 |
KDN145,150,165,170,190..LHD *H,L=240 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190 *H,L=220,ID=7.6 |
2 | ||
| 95333-08030 |
KDN145,150,165,170,190 *H,L=220,ID=7.6 |
1 | ||
| 95332-10020 |
KDN145,150,165,170,190 *H,L=200 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LN145,150,165,170,190 *H,L=220,ID=7.6 |
2 | ||
| 95333-08030 |
KDN145,150,165,170,190 *H,L=220,ID=7.6 |
1 | ||
| 95332-10020 |
KDN145,150,165,170,190 *H,L=200 |
1 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
LN145,150,165,170,190 *H,L=140 |
1 | ||
| 95333-06020 |
KDN145,150,165,170,190 *H,L=150 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-35120 |
KDN145,150,165,170,190 |
1 | ||
| 77249-35120 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D391 |
KDN150,170..LHD |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-35360 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
1 | ||
| 77252-35390 |
KDN145,150,165,170,190 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35881 |
KDN150,170..LHD |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-35050 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77256-35060 |
KDN145,150,165,170,190 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-35060 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77262-35090 |
KDN145,150,165,170,190 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-35030 |
KDN145,150,165,170,190 |
1 | ||
| 77273-35020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77285-35461 |
KDN145,150,165,170,190..LHD |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35320 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77285-35461 |
KDN145,150,165,170,190..LHD |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35090 |
KDN145,150,165,170,190 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35040 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77286-35100 |
KDN145,150,165,170,190 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-35110 |
KDN150,170 |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-35030 |
KDN145,150,165,170,190 |
2 | ||
| 77289-35020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35170 |
KDN145,150,165,170,190 |
1 | ||
| 77295-35170 |
LN145,150,165,170,190 |
1 | ||
| 77295E - GROMMET, FUEL TUBE | ||||
| 77295-35290 |
KDN145,150,165,170,190 |
1 | ||
| 77295-35160 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-35020 |
KDN145,150,165,170,190 |
1 | ||
| 77298-35010 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35020 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
2 | ||
| 77439-35020 |
KDN145,150,165,170,190 |
2 | ||
| 77439 - HOSE, FUEL RETURN | ||||
| 77439-35020 |
LN145..LHD;LN145..RHD..CBU;LN150,165,170,190 |
2 | ||
| 77439-35020 |
KDN145,150,165,170,190 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LN145,150,165,170,190 |
1 | ||
| 90917-10090 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 77286-35120 | ||||
| 90179-06161 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
