KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

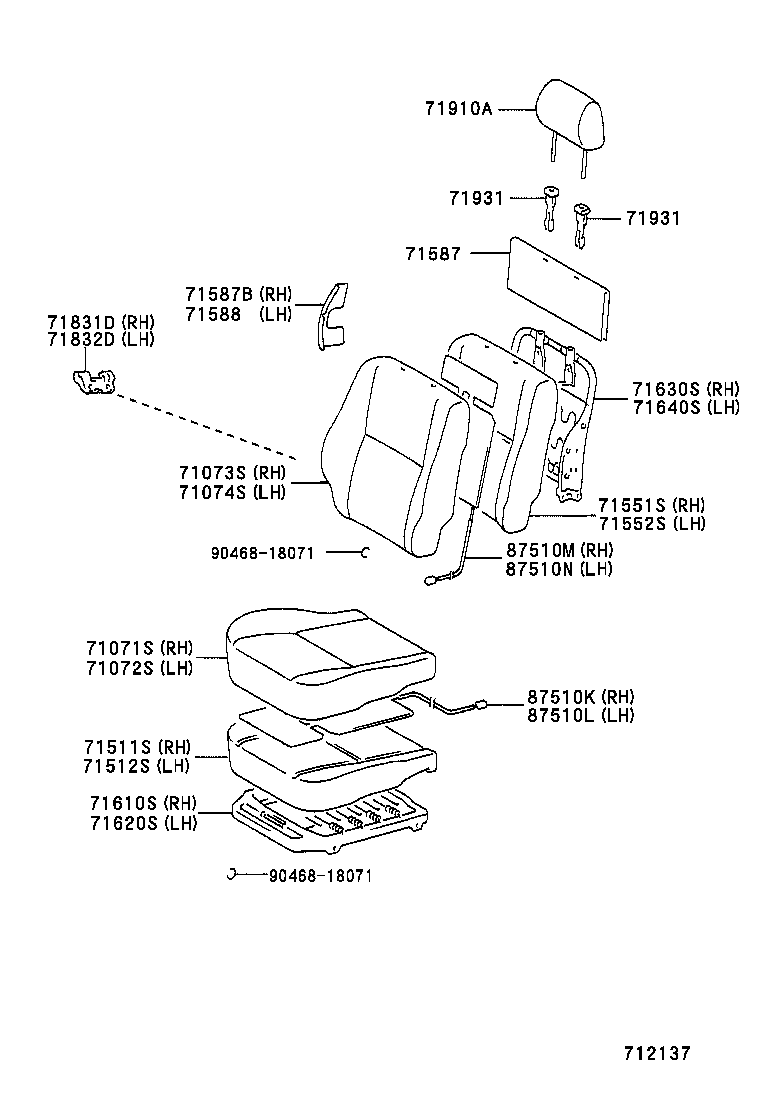

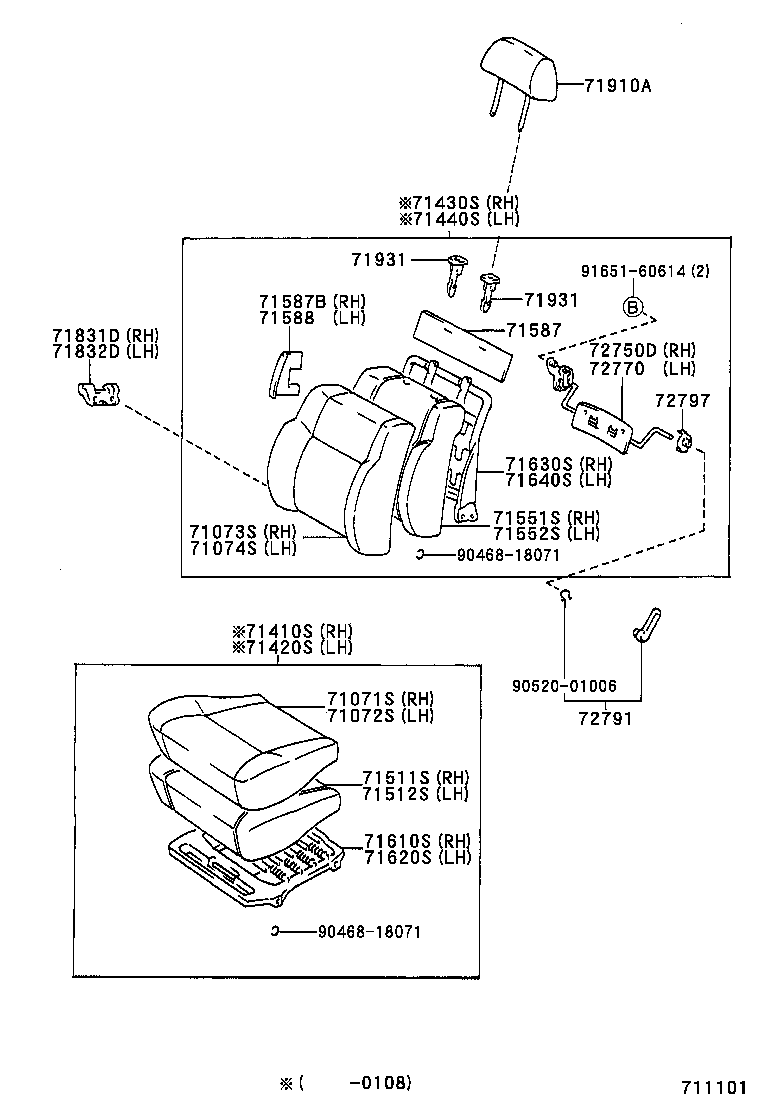

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587B 71588 71610S 71620S 71630S 71640S 71831D 71832D 71910A 71931 71931 72750D 72770 72791 72797 9046818071 9046818071 9052001006 9165160614
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3D500B0

LN165..SR;LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D510B0

LN150,170,RZN173

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3G290B0

KDN150,165,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71071-3G360B1

KDN150,165,170..LHD..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-3D500B0

LN165..SR;LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D510B0

LN150,170,RZN173

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3G290B0

KDN150,165,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71071-3G360B1

KDN150,165,170..LHD..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3G400B1

KDN150,170..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MOONMIST,TRIM1#

 1
71073-3G340B1

KDN150,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-3G340B1

KDN150,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71073-3G400B1

KDN150,170..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MOONMIST,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-3D320B4

LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D340B2

LN165..SR;LN150,170,RZN173

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-3D320B4

LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71410-3D340B2

LN165..SR;LN150,170,RZN173

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-3G030B2

LN165..SR;LN150,170,RZN173

MEDIUM MOONMIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-3G030B2

LN165..SR;LN150,170,RZN173

MEDIUM MOONMIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-35080

KDN145..DLX;KDN150,165,170

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-35080

KDN145..DLX;KDN150,165,170

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-35070

KDN145..DLX;KDN150,165,170

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-35070

KDN145..DLX;KDN150,165,170

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-60080

KDN145,150,165,170,190

 2
71587-60080

LN145,150,165,170,190,RZN168,173

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-60030

LN145,150,165,170,190,RZN168,173

 2
71588-60030

KDN145,150,165,170,190

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35100

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

W(SEAT HEATER)

 1
71610-35090

KDN145,150,165,170,190

 1
71610-35090

LN145,150,165,170,190,RZN168,173

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35090

LN145,150,165,170,190,RZN168,173

 1
71610-35090

KDN145,150,165,170,190

 1
71610-35100

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

W(SEAT HEATER)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-35130

KDN145..DLX;KDN150,165,170

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-35130

KDN145..DLX;KDN150,165,170

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

KDN145,150,165,170,190

 2
71831-35050

LN145,150,165,170,190,RZN168,173

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

KDN145,150,165,170,190

 2
71832-35050

LN145,150,165,170,190,RZN168,173

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-35430B2

LN145,165..SCB;LN145,165..DCB..IV3;LN150,170,RZN168,173

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35390B0

LN165..SR;LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35610B0

KDN150,165,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-13030B2

LN145,150,165,170,190,RZN168,173

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

KDN145,150,165,170,190

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KDN145,150,165,170,190

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

LN145,150,165,170,190,RZN168,173

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-13030B2

LN145,150,165,170,190,RZN168,173

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

KDN145,150,165,170,190

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KDN145,150,165,170,190

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

LN145,150,165,170,190,RZN168,173

W/O(LOCK),BLUE GRAY,TRIM1#

 2
Common parts
90468-18071
90520-01006
91651-60614

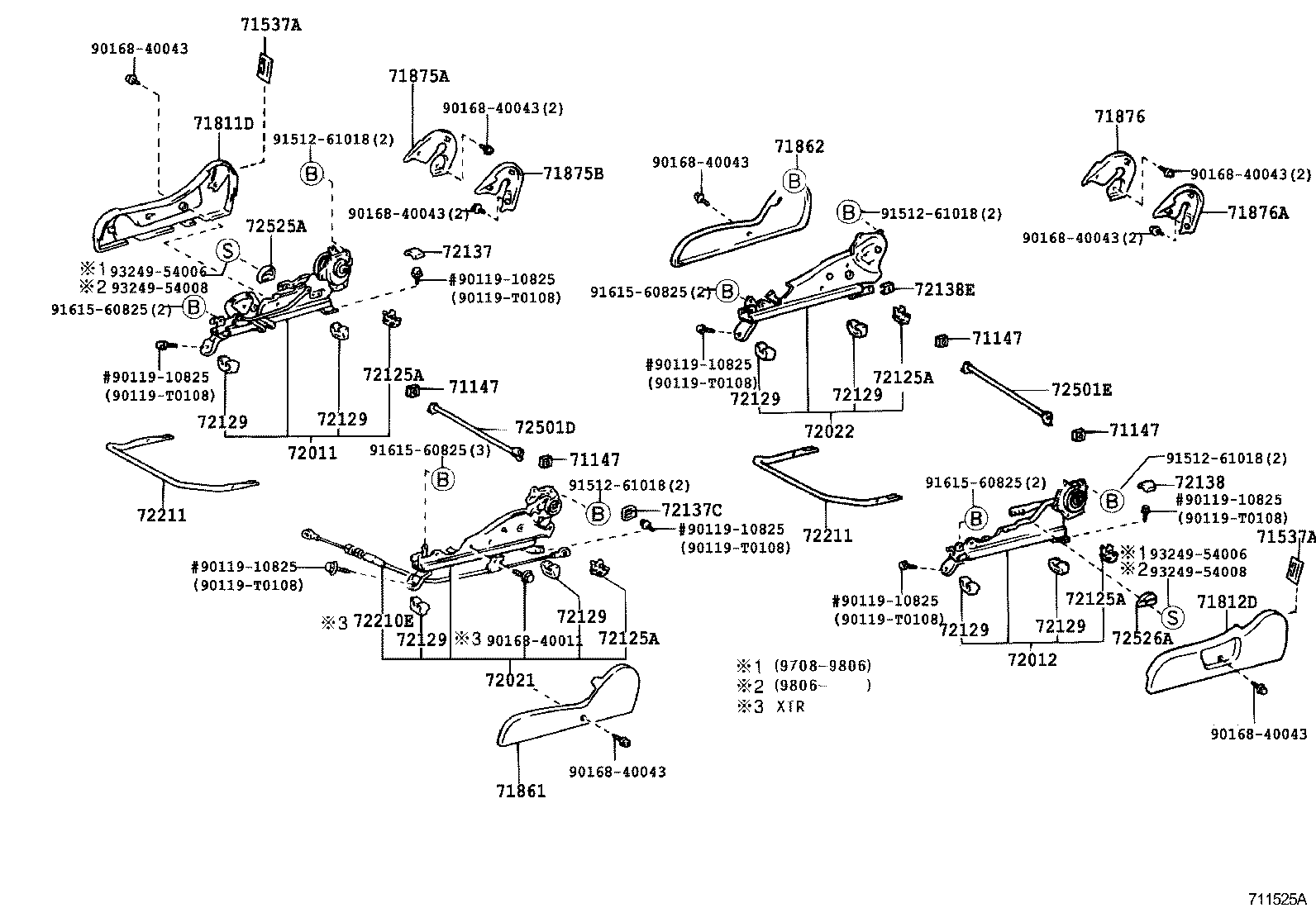

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71147 71147 71147 71147 71537A 71537A 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72129 72129 72129 72129 72137 72137C 72138 72138E 72210E 72211 72211 72501D 72501E 72525A 72526A 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 9016840011 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9324954006 9324954006 9324954008 9324954008
Part # Description Qty Price
71147 - SILENCER, SEAT SPRING
71147-35010

LN145,150,165,170,190,RZN168,173

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN145,150,165,170,190,RZN168,173

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN145,150,165,170,190,RZN168,173

 2
71147 - SILENCER, SEAT SPRING
71147-35010

LN145,150,165,170,190,RZN168,173

 2
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-34020B0

KDN150,170..LHD

MOON MIST,TRIM1#

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-34020B0

KDN150,170..LHD

MOON MIST,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-35100B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71811-35110B0

KDN150,170..LHD

W(WALK-IN SEAT),MD.MOON MIST,TRIM1#

 1
71811-35100B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-35120B0

KDN145..DLX;KDN150,165,170

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-35050B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71861-35050B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-35060B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
71862-35060B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35040B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71875-35040B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35050B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
71875-35050B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35040B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
71876-35040B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35050B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71876-35050B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-35130

LN145,150,165,170,190,RZN168,173..DCB,XTR

 1
72011-35170

KDN145,150,165,170,190..DCB,XTR

 1
72011-35160

KDN150,170..LHD

W(WALK-IN SEAT)

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-35150

LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR

 1
72012-35200

KDN145..DCB..IV3;KDN150,165,170..DCB,XTR

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-35130

LN145,150,165,170,RZN168,173..DCB,XTR

 1
72021-35130

KDN145,150,165,170,190..DCB,XTR

 1
72021-35120

KDN150,170..LHD

W(WALK-IN SEAT)

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-35150

LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR

 1
72022-35150

KDN145..DCB..IV3;KDN150,165,170..DCB,XTR

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-44010

LN145,150,165,170,190,RZN168,173

INNER

 2
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-10010

LN145,150,165,170,190,RZN168,173

OUTER

 2
72125-44010

KDN145,150,165,170,190..DCB,XTR

INNER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-44010

LN145,150,165,170,190,RZN168,173

INNER

 2
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-10010

LN145,150,165,170,190,RZN168,173

OUTER

 2
72125-44010

KDN145,150,165,170,190..DCB,XTR

INNER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-44010

LN145,150,165,170,190,RZN168,173

INNER

 2
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-10010

LN145,150,165,170,190,RZN168,173

OUTER

 2
72125-44010

KDN145,150,165,170,190..DCB,XTR

INNER

 2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-44010

LN145,150,165,170,190,RZN168,173

INNER

 2
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-10010

LN145,150,165,170,190,RZN168,173

OUTER

 2
72125-44010

KDN145,150,165,170,190..DCB,XTR

INNER

 2
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-12010

LN145,150,165,170,190,RZN168,173

OUTER

 4
72129-44030

KDN145,150,165,170,190..DCB,XTR

INNER

 4
72129-44030

LN145,150,165,170,190,RZN168,173

INNER

 4
72129-12010

KDN145,150,165,170,190

OUTER

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-35050B0

LN145,150,165,170,190,RZN168,173..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KDN145,150,165,170,190..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72137C - COVER, SEAT TRACK INNER, RH
72137-35020B0

KDN145,150,165,170,190..DCB,XTR

MD.MOON MIST,TRIM1#

 1
72137-35020B0

LN145,150,165,170,190,RZN168,173..DCB,XTR

MD.MOON MIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-35050B0

LN145,150,165,170,190,RZN168,173..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KDN145,150,165,170,190..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72138E - COVER, SEAT TRACK, INNER LH
72138-35010B0

LN145,150,165,170,190,RZN168,173..DCB,XTR

MD.MOON MIST,TRIM1#

 1
72138-35010B0

KDN145,150,165,170,190..DCB,XTR

MD.MOON MIST,TRIM1#

 1
72210E - CABLE ASSY, SEAT TRACK CONTROL(FOR WALK IN)
72210-35070

KDN150,170..LHD

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN145,150,165,170,190,RZN168,173

LH

 1
72211-35010

KDN145,150,165,170,190

RH

 1
72212-35010

KDN145,150,165,170,190

LH

 1
72211-35010

LN145,150,165,170,190,RZN168,173

RH

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72212-35010

LN145,150,165,170,190,RZN168,173

LH

 1
72211-35010

KDN145,150,165,170,190

RH

 1
72212-35010

KDN145,150,165,170,190

LH

 1
72211-35010

LN145,150,165,170,190,RZN168,173

RH

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-35010

LN145,150,165,170,190,RZN168,173

 1
72501-35010

KDN145,150,165,170,190

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-35010

KDN145,150,165,170,190

 1
72501-35010

LN145,150,165,170,190,RZN168,173

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-35030B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
72525-35030B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-35020B0

LN145,150,165,170,190,RZN168,173

MD.MOON MIST,TRIM1#

 1
72526-35020B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10825
90119-T0108
90168-40011
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

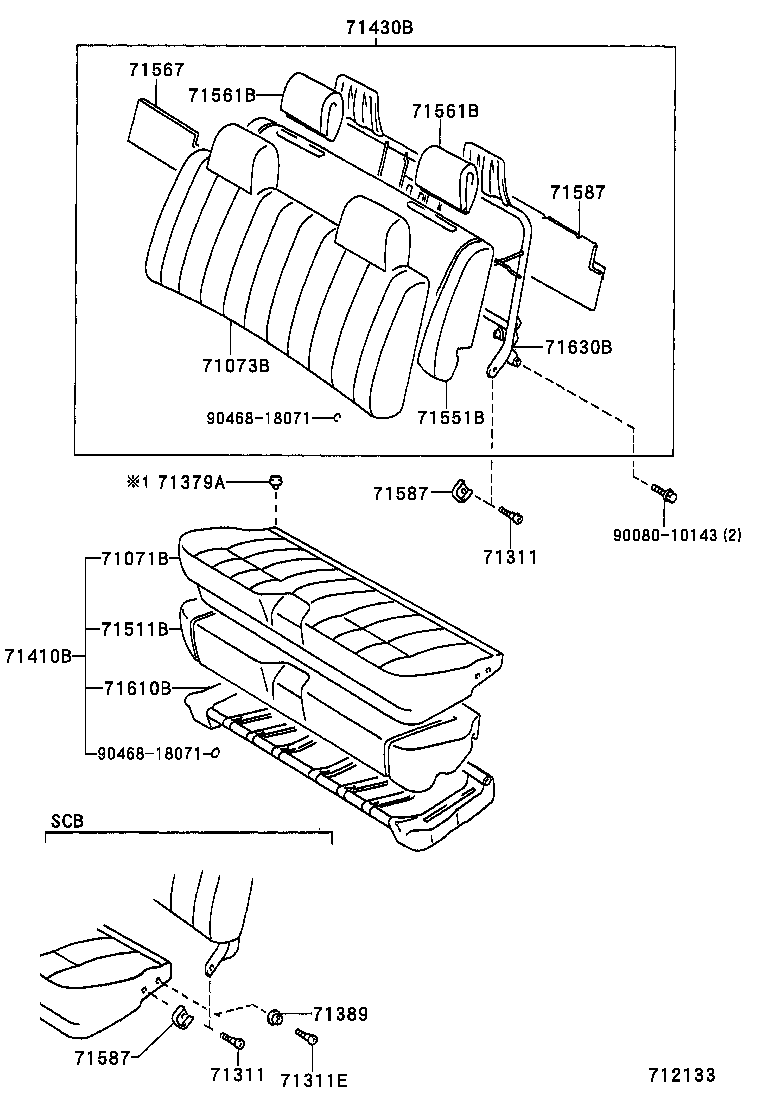

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 71071B 71073B 71311 71311 71311E 71379A 71389 71410B 71430B 71511B 71551B 71561B 71561B 71567 71587 71587 71587 71610B 71630B 9008010143 9046818071 9046818071
Part # Description Qty Price
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
Common parts
90080-10143
90468-18071

ILLUST NO. 1 OF 3(0108- )KDN150,170 ; (0108- )KDN145..DCB..IV3 ; (0108- )KDN165..LHD..DCB

Click highlighted areas on diagram

FRONT SEPARATE SEAT, W(SEAT HEATER)

diagram 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71587 71587B 71588 71610S 71620S 71630S 71640S 71831D 71832D 71910A 71931 71931 87510K 87510L 87510M 87510N 9046818071 9046818071
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3D500B0

LN165..SR;LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D510B0

LN150,170,RZN173

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3G290B0

KDN150,165,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71071-3G360B1

KDN150,165,170..LHD..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-3D500B0

LN165..SR;LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 1
71071-3D510B0

LN150,170,RZN173

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MD. MOON MIST,TRIM1#

 1
71071-3G290B0

KDN150,165,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71071-3G360B1

KDN150,165,170..LHD..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3G400B1

KDN150,170..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MOONMIST,TRIM1#

 1
71073-3G340B1

KDN150,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-3G340B1

KDN150,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 1
71073-3G400B1

KDN150,170..SR

W(SEAT HEATER & FABRIC SEAT = SR TYPE(SPORTS SEAT))-*104,MOONMIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-35080

KDN145..DLX;KDN150,165,170

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-35080

KDN145..DLX;KDN150,165,170

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-35070

KDN145..DLX;KDN150,165,170

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-35070

KDN145..DLX;KDN150,165,170

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-60080

KDN145,150,165,170,190

 2
71587-60080

LN145,150,165,170,190,RZN168,173

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-60030

LN145,150,165,170,190,RZN168,173

 2
71588-60030

KDN145,150,165,170,190

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35100

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

W(SEAT HEATER)

 1
71610-35090

KDN145,150,165,170,190

 1
71610-35090

LN145,150,165,170,190,RZN168,173

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35090

LN145,150,165,170,190,RZN168,173

 1
71610-35090

KDN145,150,165,170,190

 1
71610-35100

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

W(SEAT HEATER)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-35130

KDN145..DLX;KDN150,165,170

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-35130

KDN145..DLX;KDN150,165,170

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

KDN145,150,165,170,190

 2
71831-35050

LN145,150,165,170,190,RZN168,173

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

KDN145,150,165,170,190

 2
71832-35050

LN145,150,165,170,190,RZN168,173

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-35430B2

LN145,165..SCB;LN145,165..DCB..IV3;LN150,170,RZN168,173

W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35390B0

LN165..SR;LN150,170,RZN173

W(FABRIC SEAT = SR TYPE)-*104,MEDIUM MOONMIST,TRIM1#

 2
71910-35610B0

KDN150,165,170..SR

W(FABRIC SEAT = SR TYPE)-*104,MOONMIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-13030B2

LN145,150,165,170,190,RZN168,173

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

KDN145,150,165,170,190

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KDN145,150,165,170,190

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

LN145,150,165,170,190,RZN168,173

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-13030B2

LN145,150,165,170,190,RZN168,173

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

KDN145,150,165,170,190

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KDN145,150,165,170,190

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

LN145,150,165,170,190,RZN168,173

W/O(LOCK),BLUE GRAY,TRIM1#

 2
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-35010

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-35010

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87510-35020

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87510-35020

KDN150,170;KDN145..DCB..IV3;KDN165..LHD..DCB

 1
Common parts
90468-18071

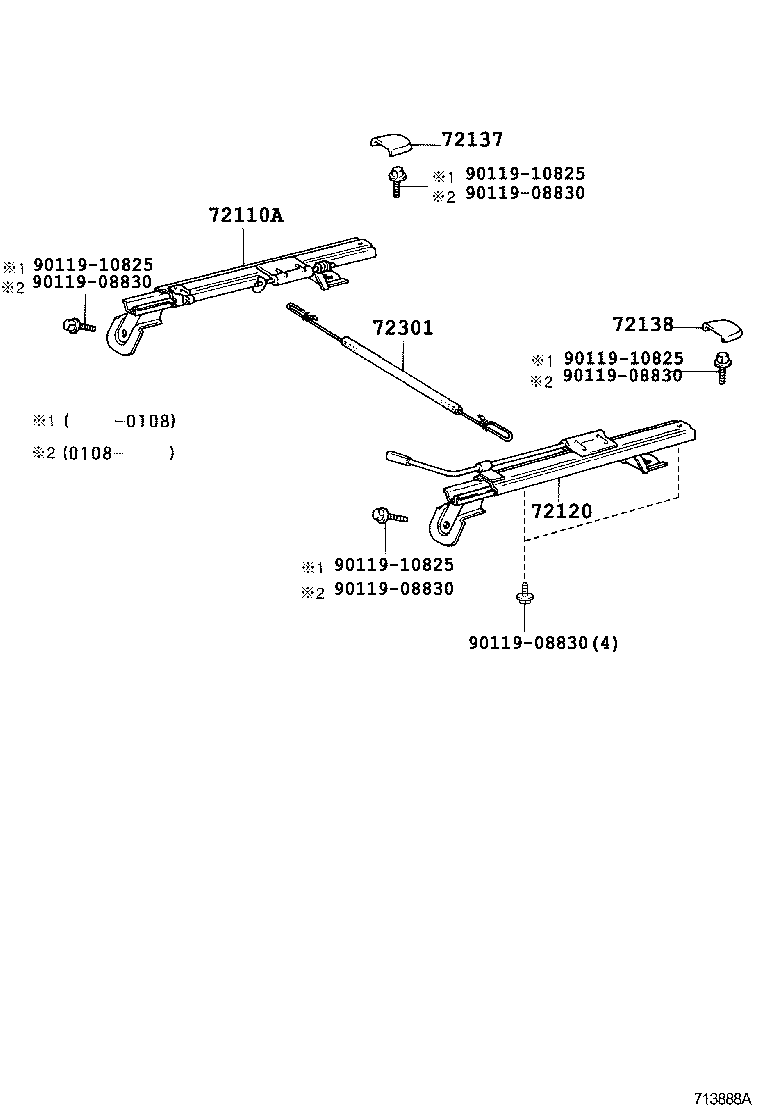

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 72110A 72120 72137 72138 72301 9011908830 9011908830 9011908830 9011908830 9011908830 9011910825 9011910825 9011910825 9011910825
Part # Description Qty Price
72137 - COVER, SEAT TRACK, OUTER RH
72137-35050B0

LN145,150,165,170,190,RZN168,173..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KDN145,150,165,170,190..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-35050B0

LN145,150,165,170,190,RZN168,173..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
72137-35050B0

KDN145,150,165,170,190..DCB,XTR

MEDIUM MOONMIST,TRIM1#

 1
Common parts
90119-08830
90119-10825
