KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

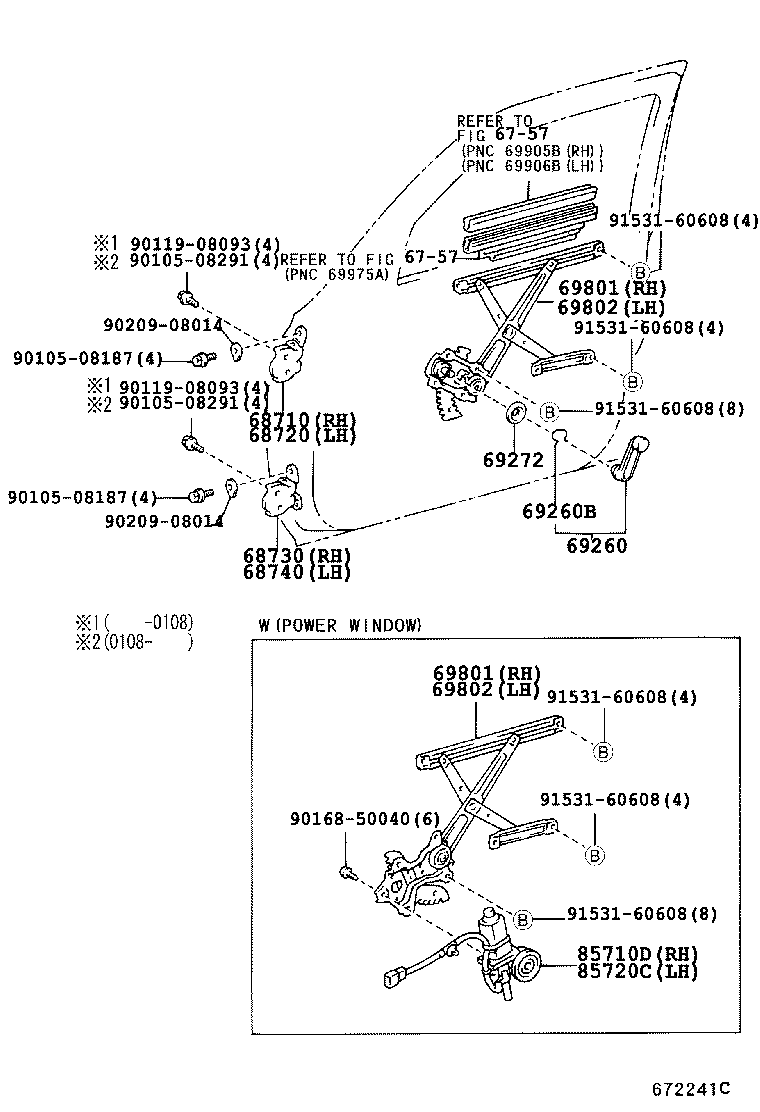

Click highlighted areas on diagram

diagram 6757 6757 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 9010508187 9010508187 9010508291 9010508291 9011908093 9011908093 9016850040 9020908014 9020908014 9153160608 9153160608 9153160608 9153160608 9153160608 9153160608
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-04010

KDN145,150,165,170,190

 1
68710-04010

LN145,150,165,170,190,RZN168,173

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-04010

LN145,150,165,170,190,RZN168,173

 1
68730-04010

KDN145,150,165,170,190

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-04010

LN145,150,165,170,190,RZN168,173

 1
68730-04010

KDN145,150,165,170,190

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-04010

KDN145,150,165,170,190

 1
68710-04010

LN145,150,165,170,190,RZN168,173

 1
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

LN145,165..DCB..IV3;LN145,150,165,170,RZN168,173..SCB,XTR

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

LN145,165..DCB..IV3;LN145,150,165,170,RZN168,173..SCB,XTR

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-35140

LN165..SR;LN150,170,RZN173

W(POWER WINDOW)

 1
69801-35140

KDN145,150,165,170,190

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-35140

LN165..SR;LN150,170,RZN173

W(POWER WINDOW)

 1
69801-35140

KDN145,150,165,170,190

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-35140

LN165..SR;LN150,170,RZN173

W(POWER WINDOW)

 1
69802-35140

KDN145,150,165,170,190

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-35140

LN165..SR;LN150,170,RZN173

W(POWER WINDOW)

 1
69802-35140

KDN145,150,165,170,190

W(POWER WINDOW)

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35120

LN165..SR;LN150,170,RZN173

 1
85710-35120

KDN145,150,165,170,190

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-35090

LN165..SR;LN150,170,RZN173

 1
85720-35090

KDN145,150,165,170,190

 1
Common parts
90105-08187
90105-08291
90119-08093
90168-50040
90209-08014
91531-60608
Linked diagrams
6757
