KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9708- )KDN165,170,190,LN165,170,190,RZN168,173

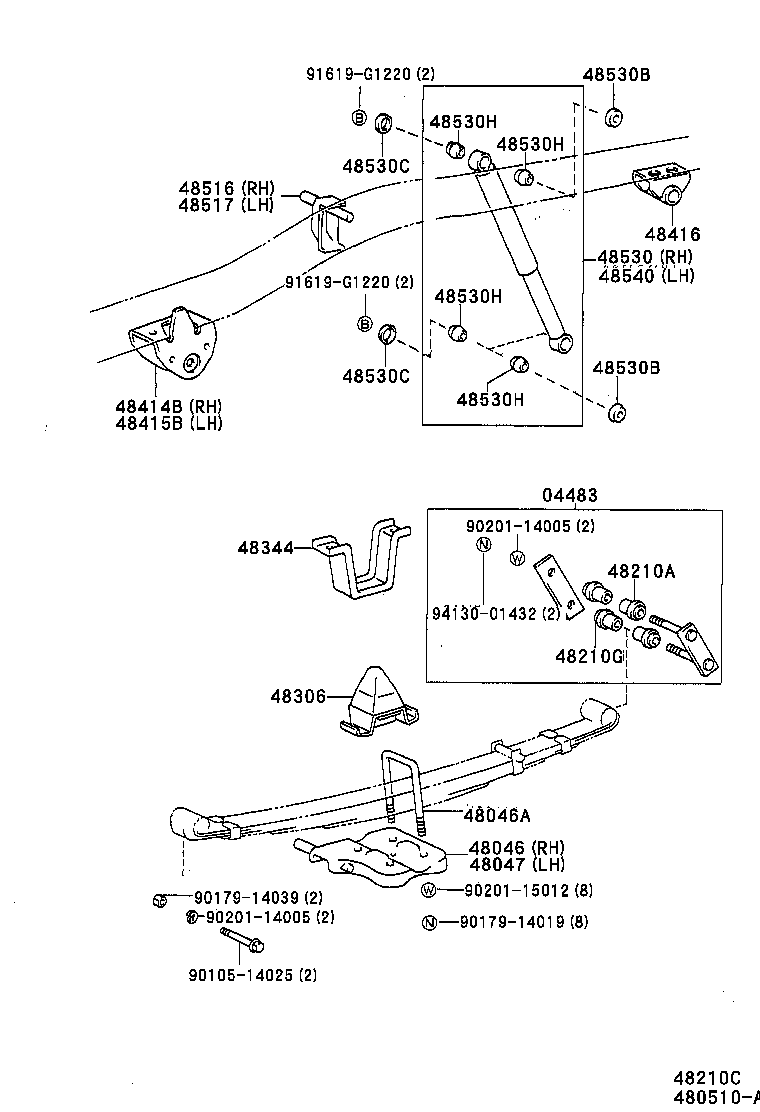

Click highlighted areas on diagram

diagram 04483 48046 48046A 48047 48210A 48210G 48306 48344 48414B 48415B 48416 48516 48517 48530 48530B 48530B 48530C 48530C 48530H 48530H 48530H 48530H 48540 9010514025 9017914019 9017914039 9020114005 9020114005 9020115012 91619G1220 91619G1220 9413001432
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35120

LN165,RZN168;LN145,150,170,190,RZN173..DCB,XTR

 2
04483-35120

KDN165;KDN145,150,170,190..DCB,XTR

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35170

RZN168..DCB;LN165,170,190,RZN173

 1
48046-35170

KDN165,170,190

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14044

KDN165,170,190

L=165

 4
90117-14044

RZN168..DCB;LN165,170,190,RZN173

L=165

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35170

KDN165,170,190

 1
48046-35170

RZN168..DCB;LN165,170,190,RZN173

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18019

LN165;LN145,150,170,190,RZN168,173..DCB,XTR

 4
90385-18019

KDN165;KDN145,150,170,190..DCB,XTR

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18020

KDN165;KDN145,150,170,190..DCB,XTR

 4
90385-18020

LN165;LN145,150,170,190,RZN168,173..DCB,XTR

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-35190

KDN165,170,190

 2
48306-35190

RZN168..DCB;LN165,170,190,RZN173

 2
48344 - STOPPER, BUMPER, REAR
48344-35020

KDN165,170,190

 2
48344-35020

RZN168..DCB;LN165,170,190,RZN173

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-35120

KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR)

 1
48414-35120

RZN168..DCB;LN165,170,190,RZN173

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-35050

KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR)

 1
48415-35050

RZN168..DCB;LN165,170,190,RZN173

 1
48416 - BRACKET, SPRING, NO.4
48416-35070

KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR)

 2
48416-35070

RZN168..DCB;LN165,170,190,RZN173

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35070

RZN168..DCB;LN165,170,190,RZN173

 1
48505-35070

KDN165,170,190

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-35010

LN165,170,RZN173..SCB,XTR

 1
48506-35010

KDN165,170..SCB,XTR

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80644

LN165,170,RZN168,173

MARK 48531-3D060

 1
48531-80669

KDN165,170,190

MARK 48531-3D061

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

KDN165,170,190

 4
90948-03011

RZN168..DCB;LN165,170,190,RZN173

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

KDN165,170,190

 4
90948-03011

RZN168..DCB;LN165,170,190,RZN173

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03020

RZN168..DCB;LN165,170,190,RZN173

 4
90948-03020

KDN165,170,190

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03020

RZN168..DCB;LN165,170,190,RZN173

 4
90948-03020

KDN165,170,190

 4
48530H - BUSH, REAR SHOCK ABSORBER
90385-19007

RZN168..DCB;LN165,170,190,RZN173

 8
90385-19007

KDN165,170,190

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-19007

RZN168..DCB;LN165,170,190,RZN173

 8
90385-19007

KDN165,170,190

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-19007

RZN168..DCB;LN165,170,190,RZN173

 8
90385-19007

KDN165,170,190

 8
48530H - BUSH, REAR SHOCK ABSORBER
90385-19007

RZN168..DCB;LN165,170,190,RZN173

 8
90385-19007

KDN165,170,190

 8
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-39305

LN165,170,RZN168,173

MARK 48541-35220

 1
48541-39306

KDN165,170,190

MARK 48541-35221

 1
Common parts
90105-14025
90179-14019
90179-14039
90201-14005
90201-15012
91619-G1220
94130-01432
