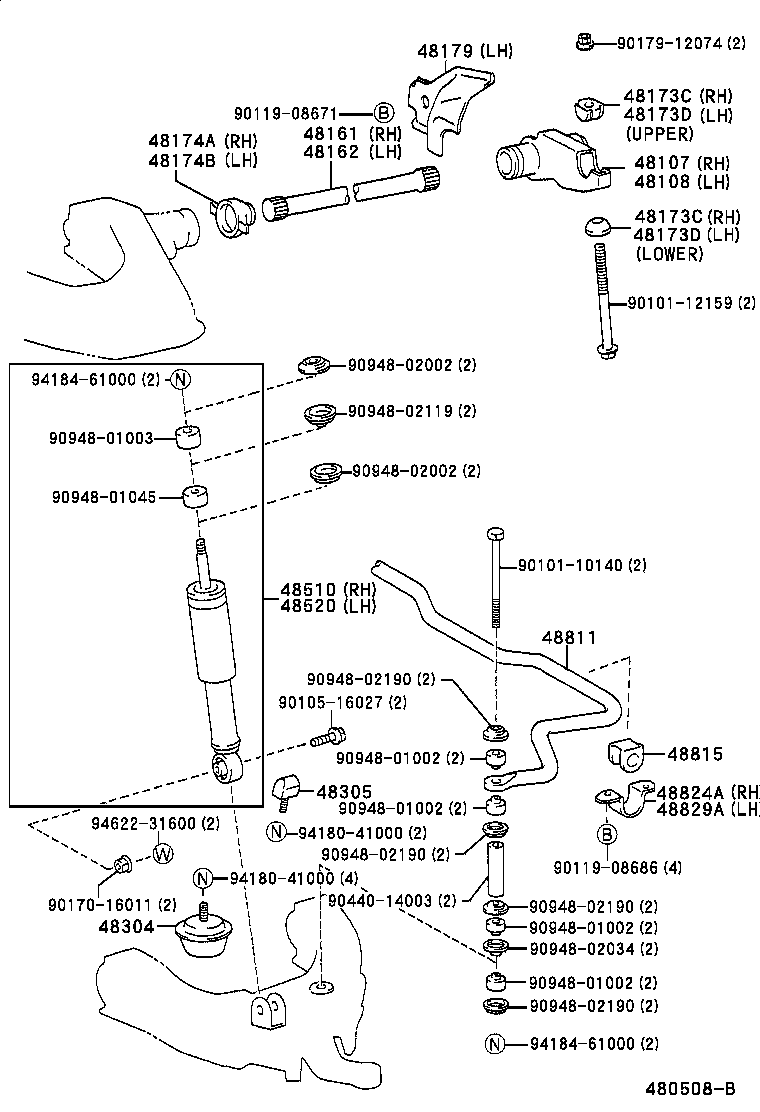

KDN170L-CRMSYW3 (2001)
Toyota Hilux
(9708- )KDN165,170,190,LN165,170,190,RZN168,173
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-35050 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48107-35050 |
KDN165,170,190 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-35050 |
KDN165,170,190 |
1 | ||
| 48108-35050 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-35130 |
LN165,170,190 |
1 | ||
| 48161-35130 |
KDN165,170,190 |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-35130 |
KDN165,170,190 |
1 | ||
| 48162-35130 |
LN165,170,190 |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-35020 |
RZN168..DCB;LN165,170,190,RZN173 UPPER |
1 | ||
| 48173-35010 |
KDN165,170,190 LOWER |
1 | ||
| 48173-35020 |
KDN165,170,190 UPPER |
1 | ||
| 48173-35010 |
RZN168..DCB;LN165,170,190,RZN173 LOWER |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-35020 |
RZN168..DCB;LN165,170,190,RZN173 UPPER |
1 | ||
| 48173-35010 |
KDN165,170,190 LOWER |
1 | ||
| 48173-35020 |
KDN165,170,190 UPPER |
1 | ||
| 48173-35010 |
RZN168..DCB;LN165,170,190,RZN173 LOWER |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-35020 |
KDN165,170,190 UPPER |
1 | ||
| 48173-35010 |
KDN165,170,190 LOWER |
1 | ||
| 48173-35010 |
RZN168..DCB;LN165,170,190,RZN173 LOWER |
1 | ||
| 48173-35020 |
RZN168..DCB;LN165,170,190,RZN173 UPPER |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-35020 |
KDN165,170,190 UPPER |
1 | ||
| 48173-35010 |
KDN165,170,190 LOWER |
1 | ||
| 48173-35010 |
RZN168..DCB;LN165,170,190,RZN173 LOWER |
1 | ||
| 48173-35020 |
RZN168..DCB;LN165,170,190,RZN173 UPPER |
1 | ||
| 48174A - COVER, TORSION BAR DUST, RH | ||||
| 48174-26010 |
KDN165,170,190 |
1 | ||
| 48174-26010 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48174B - COVER, TORSION BAR DUST, LH | ||||
| 48174-26010 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48179 - PROTECTOR, TORSION BAR DUST COVER, LH | ||||
| 48179-35030 |
KDN165,170,190 |
1 | ||
| 48179-35030 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-35170 |
RZN168..DCB;LN165,170,190,RZN173 (J) |
4 | ||
| 48304-35170 |
KDN165,170,190 |
4 | ||
| 48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48305-35020 |
RZN168..DCB;LN165,170,190,RZN173 (J) |
2 | ||
| 48305-35020 |
KDN165,170,190 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80042 |
LN165,170,RZN168,173 MARK 48511-35461 |
1 | ||
| 48511-80064 |
KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR) MARK 48511-35462 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80064 |
KDN165..RHD;KDN165,170,190..LHD..(DCB,XTR) MARK 48511-35462 |
1 | ||
| 48511-80042 |
LN165,170,RZN168,173 MARK 48511-35461 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-35330 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48811-35330 |
KDN165,170,190 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14160 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 48815-14160 |
KDN145,150,165,170,190 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-35080 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48824-35080 |
KDN165,170,190 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-35050 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 48829-35050 |
KDN165,170,190 |
1 | ||
| Common parts | ||||
| 90101-10140 | ||||
| 90101-12159 | ||||
| 90105-16027 | ||||
| 90119-08671 | ||||
| 90119-08686 | ||||
| 90170-16011 | ||||
| 90179-12074 | ||||
| 90440-14003 | ||||
| 90948-01002 | ||||
| 90948-01003 | ||||
| 90948-01045 | ||||
| 90948-02002 | ||||
| 90948-02034 | ||||
| 90948-02119 | ||||
| 90948-02190 | ||||
| 94180-41000 | ||||
| 94184-61000 | ||||
| 94622-31600 | ||||
