KDN170L-CRMSYW3 (2001)
Toyota Hilux

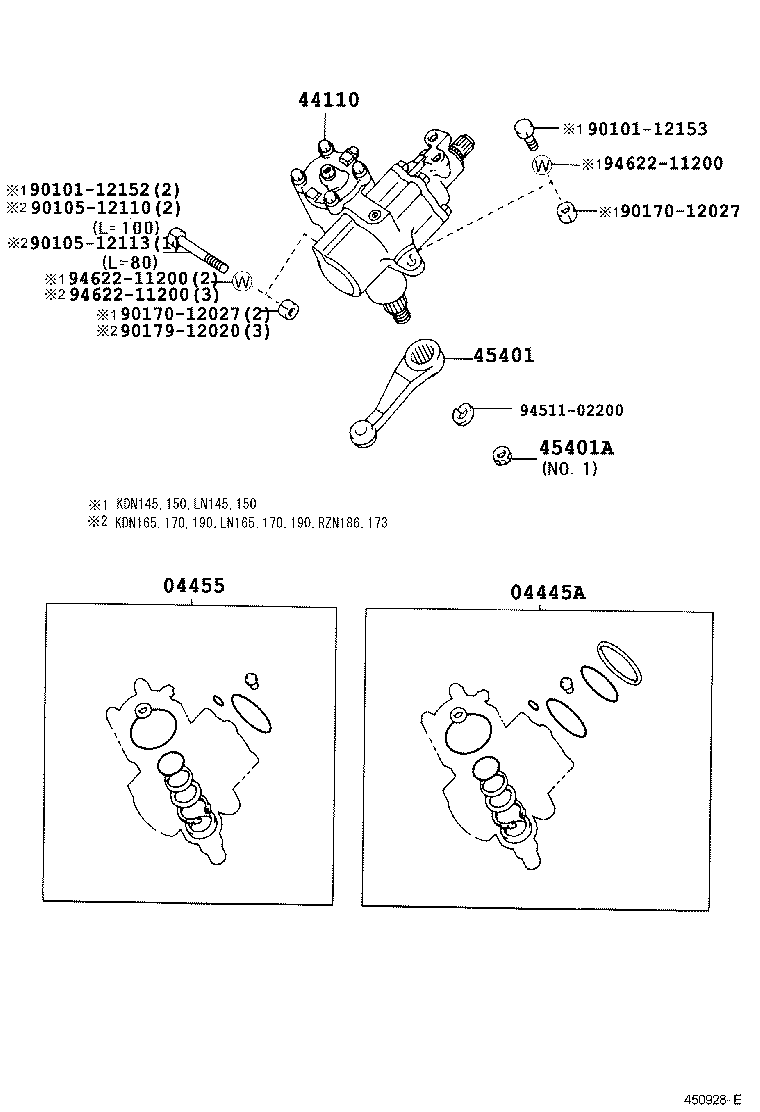

ILLUST NO. 2 OF 3(9708- )
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-35180 |
KDN165,170,190 |
1 | ||
| 04445-35180 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-35100 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 04455-35100 |
KDN165,170,190 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35350 |
RZN168..DCB;LN165,170,190,RZN173..LHD |
1 | ||
| 44110-35350 |
KDN165,170,190..LHD |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35270 |
RZN168..DCB;LN165,170,190,RZN173..LHD |
1 | ||
| 45401-35270 |
KDN165,170,190..LHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
KDN145,150,165,170,190 NO.1 |
1 | ||
| 90171-14042 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 NO.2 |
1 | ||
| 90170-22058 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 NO.1 |
1 | ||
| 90171-14042 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| Common parts | ||||
| 90101-12152 | ||||
| 90101-12153 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12027 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||

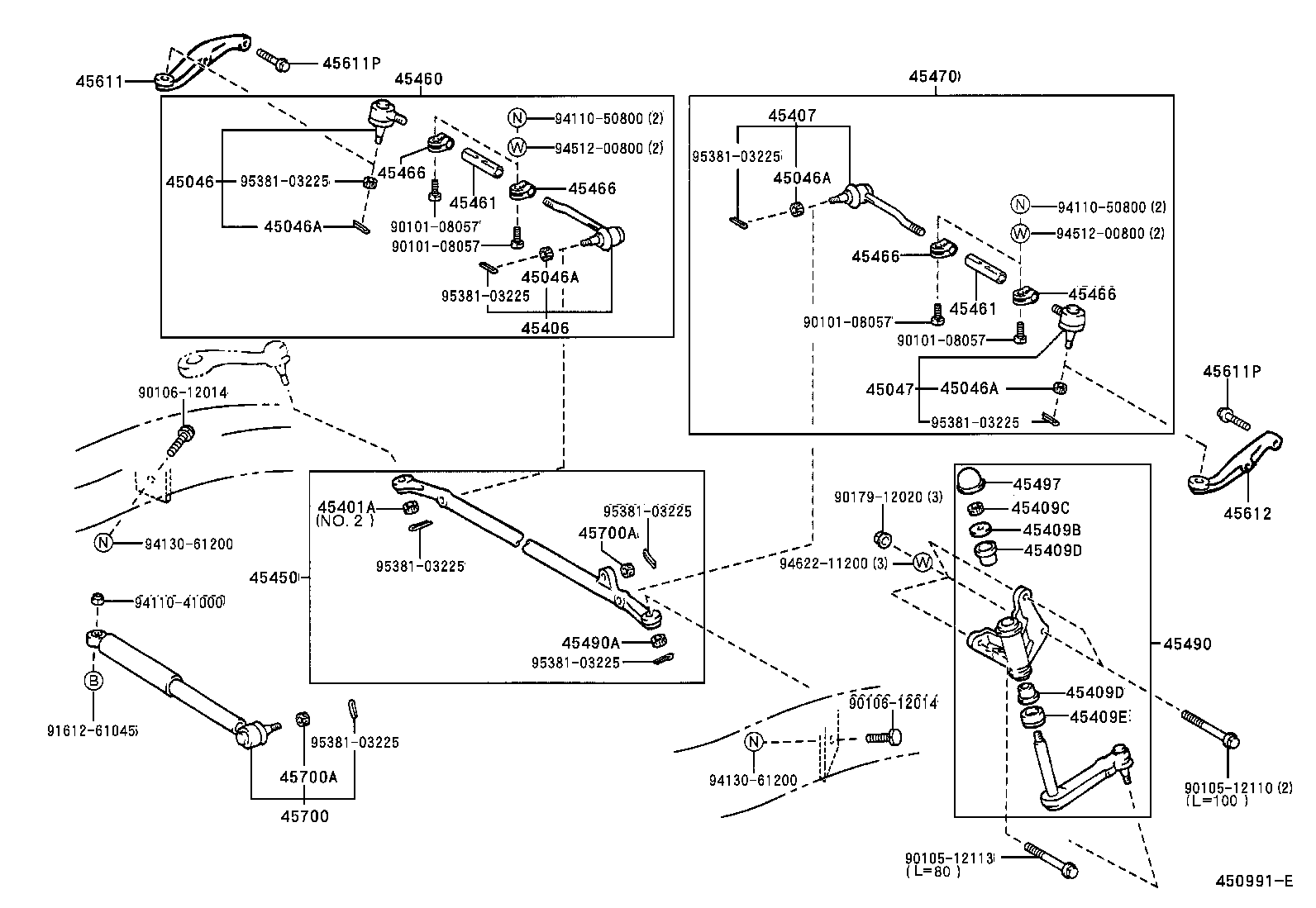

ILLUST NO. 1 OF 3(9708- )KDN165,170,190,LN165,170,190,RZN168,173..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39385 |
KDN165,170,190 |
1 | ||
| 45046-39385 |
LN165,170,190,RZN168,173 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 90171-14042 |
KDN145,150,165,170,190 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 90171-14042 |
KDN145,150,165,170,190 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 90171-14042 |
KDN145,150,165,170,190 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
2 | ||
| 90171-14042 |
KDN145,150,165,170,190 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39385 |
KDN165,170,190 |
1 | ||
| 45046-39385 |
LN165,170,190,RZN168,173 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
KDN145,150,165,170,190 NO.1 |
1 | ||
| 90171-14042 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 NO.2 |
1 | ||
| 90170-22058 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 NO.1 |
1 | ||
| 90171-14042 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39185 |
LN165,170,190,RZN168,173 |
1 | ||
| 45406-39185 |
KDN165,170,190 |
1 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39185 |
LN165,170,190,RZN168,173 |
1 | ||
| 45406-39185 |
KDN165,170,190 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 90201-14010 |
KDN145,150,165,170,190 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61401 |
KDN165,170,190 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90389-21004 |
LN165,170,190,RZN168,173 |
2 | ||
| 90389-21004 |
KDN165,170,190 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90389-21004 |
LN165,170,190,RZN168,173 |
2 | ||
| 90389-21004 |
KDN165,170,190 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 90304-31012 |
KDN145,150,165,170,190 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45451-39185 |
LN165,170..LHD |
1 | ||
| 45451-39605 |
KDN165,170,190..LHD |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39505 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 45460-39505 |
KDN165,170,190 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35040 |
KDN165,170,190 |
2 | ||
| 45465-35040 |
RZN168..DCB;LN165,170,190,RZN173 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35040 |
KDN165,170,190 |
2 | ||
| 45465-35040 |
RZN168..DCB;LN165,170,190,RZN173 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
4 | ||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
4 | ||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
4 | ||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
4 | ||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39505 |
KDN165,170,190 |
1 | ||
| 45460-39505 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39456 |
KDN165,170,190..LHD |
1 | ||
| 45490-39455 |
RZN168..DCB;LN165,170,190,RZN173..LHD |
1 | ||
| 45490-39455 |
KDN165,170,190..LHD |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
KDN145,150,165,170,190 |
1 | ||
| 90171-12028 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 45497-28010 |
KDN145,150,165,170,190 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35130 |
KDN165,170,190 |
1 | ||
| 45611-35130 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
RZN168..DCB;LN165,170,190,RZN173 |
4 | ||
| 90105-14043 |
KDN165,170,190 |
4 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
RZN168..DCB;LN165,170,190,RZN173 |
4 | ||
| 90105-14043 |
KDN165,170,190 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35150 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 45612-35150 |
KDN165,170,190 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39046 |
KDN165,170,190 |
1 | ||
| 45700-39046 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
KDN165,170,190 |
1 | ||
| 90171-12028 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
KDN165,170,190 |
1 | ||
| 90171-12028 |
RZN168..DCB;LN165,170,190,RZN173 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90106-12014 | ||||
| 90179-12020 | ||||
| 91612-61045 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94130-61200 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03225 | ||||
