Toyota Hilux KDN170 STEERING WHEEL

KDN170L-CRMSYW3 (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9708- )LN145,150,165,170,190,RZN168,173

Click highlighted areas on diagram

2-SPOKE,W(*80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-35380C0	LN145,150,165,170,190..DCB,XTR 2-SPOKE,URETHANE,W(*80),BLACK,TRIM1#	08/1997 - 08/2001	1
45100-26220C0	LN145,150,165,170,190,RZN168,173 2-SPOKE,URETHANE,BLACK,TRIM1#	08/1997 - 08/2001	1
45100-26290C0	KDN145,150,165,170,190 4-SPOKE,URETHANE,BLACK,TRIM1#	08/2001 - 12/2999	1
45100-60250C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB 3-SPOKE,URETHANE,BLACK,TRIM1#	08/2001 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-35350C0	LN145,150,165,170,RZN168,173 TOYOTA BRAND & W(*80),BLACK,TRIM1#	08/1997 - 08/1999	1
45130-35380C0	KDN145,150,165,170,190 W(4-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45130-43010C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(3-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45130-26240C0	LN145,150,165,170,190,RZN168,173 W(2-SPOKE URETHANE STEERING WHEEL),BLACK,TRIM1#	08/1997 - 08/2001	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050C0	KDN145,150,165,170,190 BLACK,TRIM1#	08/2001 - 12/2999	1
45186-26010C0	LN145,150,165,170,190,RZN168,173 BLACK,TRIM1#	08/1997 - 08/2001	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010C0	LN145,150,165,170,190,RZN168,173 BLACK,TRIM1#	08/1997 - 08/2001	1
45186-33050C0	KDN145,150,165,170,190 BLACK,TRIM1#	08/2001 - 12/2999	1
45201P - NUT, STEERING WHEEL SET
90179-12071	KDN145,150,165,170,190	08/2001 - 12/2999	1
90179-12071	LN145,150,165,170,190,RZN168,173	08/1997 - 08/2001	1
Common parts
90148-60011
90159-50238

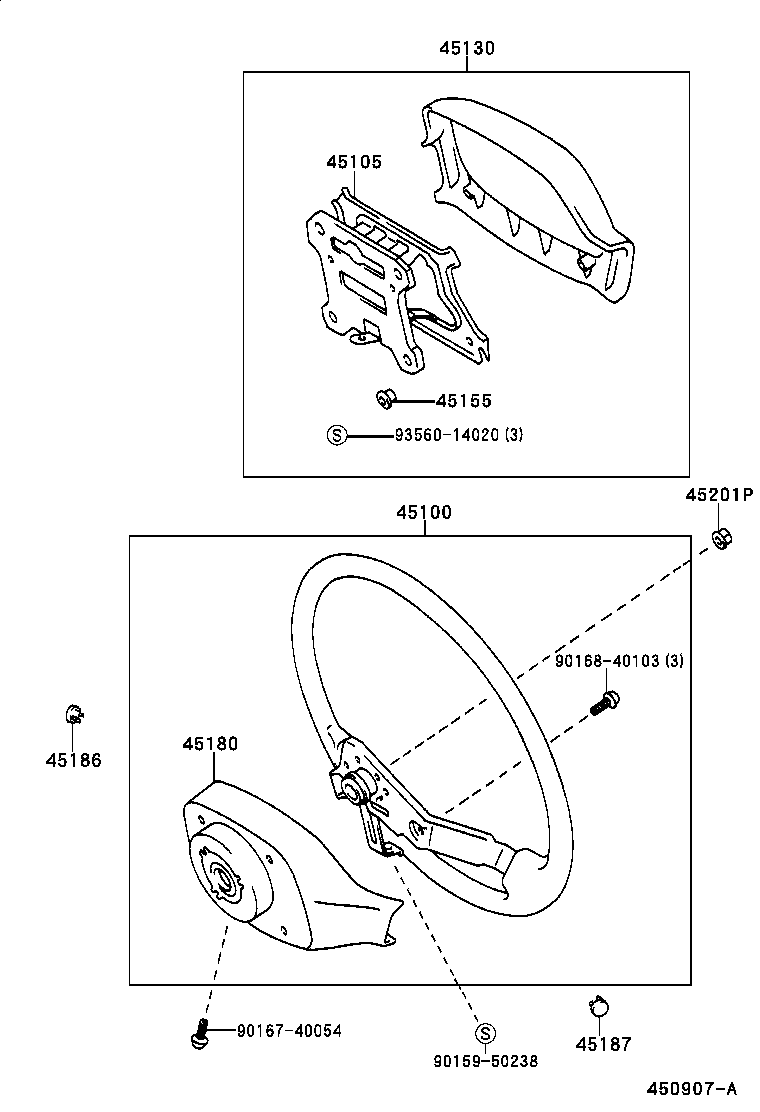

(9708- )

Click highlighted areas on diagram

2-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-35380C0	LN145,150,165,170,190..DCB,XTR 2-SPOKE,URETHANE,W(*80),BLACK,TRIM1#	08/1997 - 08/2001	1
45100-26220C0	LN145,150,165,170,190,RZN168,173 2-SPOKE,URETHANE,BLACK,TRIM1#	08/1997 - 08/2001	1
45100-26290C0	KDN145,150,165,170,190 4-SPOKE,URETHANE,BLACK,TRIM1#	08/2001 - 12/2999	1
45100-60250C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB 3-SPOKE,URETHANE,BLACK,TRIM1#	08/2001 - 12/2999	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30220	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(3-SPOKE,URETHANE)	08/2001 - 12/2999	1
45105-26100	LN145,150,165,170,RZN168,173 W(URETHANE STEERING WHEEL)	08/1997 - 08/2001	1
45130 - BUTTON ASSY, HORN
45130-35350C0	LN145,150,165,170,RZN168,173 TOYOTA BRAND & W(*80),BLACK,TRIM1#	08/1997 - 08/1999	1
45130-35380C0	KDN145,150,165,170,190 W(4-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45130-43010C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(3-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45130-26240C0	LN145,150,165,170,190,RZN168,173 W(2-SPOKE URETHANE STEERING WHEEL),BLACK,TRIM1#	08/1997 - 08/2001	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-60070C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(3-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45180-26030C0	LN145,150,165,170,RZN168,173 W(URETHANE STEERING WHEEL),BLACK,TRIM1#	08/1997 - 08/2001	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050C0	KDN145,150,165,170,190 BLACK,TRIM1#	08/2001 - 12/2999	1
45186-26010C0	LN145,150,165,170,190,RZN168,173 BLACK,TRIM1#	08/1997 - 08/2001	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010C0	LN145,150,165,170,190,RZN168,173 BLACK,TRIM1#	08/1997 - 08/2001	1
45186-33050C0	KDN145,150,165,170,190 BLACK,TRIM1#	08/2001 - 12/2999	1
45201P - NUT, STEERING WHEEL SET
90179-12071	KDN145,150,165,170,190	08/2001 - 12/2999	1
90179-12071	LN145,150,165,170,190,RZN168,173	08/1997 - 08/2001	1
Common parts
90159-50238
90167-40054
90168-40103
93560-14020

(0108- )

Click highlighted areas on diagram

4-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-35380C0	LN145,150,165,170,190..DCB,XTR 2-SPOKE,URETHANE,W(*80),BLACK,TRIM1#	08/1997 - 08/2001	1
45100-26220C0	LN145,150,165,170,190,RZN168,173 2-SPOKE,URETHANE,BLACK,TRIM1#	08/1997 - 08/2001	1
45100-26290C0	KDN145,150,165,170,190 4-SPOKE,URETHANE,BLACK,TRIM1#	08/2001 - 12/2999	1
45100-60250C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB 3-SPOKE,URETHANE,BLACK,TRIM1#	08/2001 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-35350C0	LN145,150,165,170,RZN168,173 TOYOTA BRAND & W(*80),BLACK,TRIM1#	08/1997 - 08/1999	1
45130-35380C0	KDN145,150,165,170,190 W(4-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45130-43010C0	KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB W(3-SPOKE STEERING WHEEL),BLACK,TRIM1#	08/2001 - 12/2999	1
45130-26240C0	LN145,150,165,170,190,RZN168,173 W(2-SPOKE URETHANE STEERING WHEEL),BLACK,TRIM1#	08/1997 - 08/2001	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050C0	KDN145,150,165,170,190 BLACK,TRIM1#	08/2001 - 12/2999	1
45186-26010C0	LN145,150,165,170,190,RZN168,173 BLACK,TRIM1#	08/1997 - 08/2001	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010C0	LN145,150,165,170,190,RZN168,173 BLACK,TRIM1#	08/1997 - 08/2001	1
45186-33050C0	KDN145,150,165,170,190 BLACK,TRIM1#	08/2001 - 12/2999	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	KDN145,150,165,170,190 L=18	08/2001 - 08/2005	2
45201P - NUT, STEERING WHEEL SET
90179-12071	KDN145,150,165,170,190	08/2001 - 12/2999	1
90179-12071	LN145,150,165,170,190,RZN168,173	08/1997 - 08/2001	1
Common parts
90168-40113
