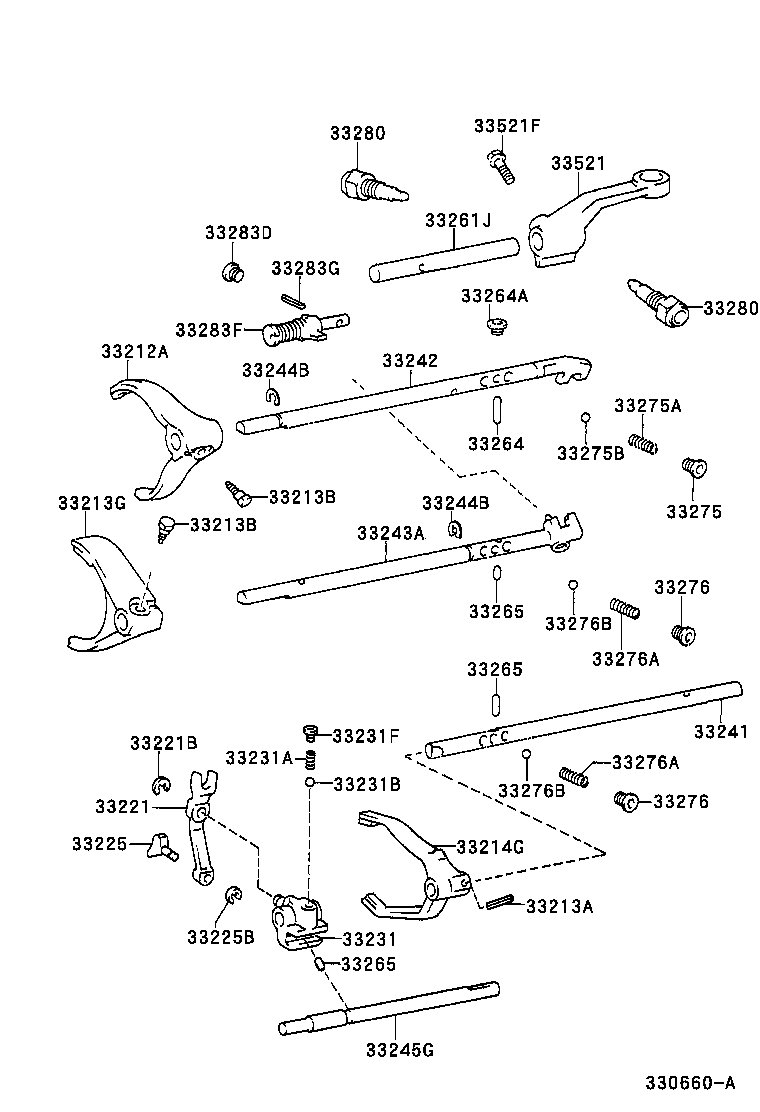

KDN170L-CRMSYW3 (2001)
Toyota Hilux
(9708- )LN165,170,RZN168,173
W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-30050 |
LN165,170,RZN168,173 |
1 | ||
| 33212-35032 |
KDN165,170 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KDN165,170 |
2 | ||
| 90254-05016 |
LN165,170,RZN168,173 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN165,170,RZN168,173 |
2 | ||
| 90105-06077 |
KDN165,170 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN165,170,RZN168,173 |
2 | ||
| 90105-06077 |
KDN165,170 |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35040 |
KDN165,170 |
1 | ||
| 33213-30060 |
LN165,170,RZN168,173 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35010 |
KDN165,170 |
1 | ||
| 33230-30011 |
LN165,170,RZN168,173 |
1 | ||
| 33230-35011 |
KDN165,170 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22020 |
LN165,170,RZN168,173 |
1 | ||
| 33221-35050 |
KDN165,170 |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-00800 |
LN165,170,RZN168,173 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-22020 |
LN165,170,RZN168,173 |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00600 |
LN165,170,RZN168,173 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22040 |
LN165,170,RZN168,173 |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-10052 |
LN165,170,RZN168,173 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-08009 |
LN165,170,RZN168,173 |
1 | ||
| 33231F - PLUG(FOR REVERSE SHIFT HEAD) | ||||
| 90341-10016 |
LN165,170,RZN168,173 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35060 |
KDN165,170 |
1 | ||
| 33244-30050 |
LN165,170,RZN168,173 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-30070 |
LN165,170,RZN168,173 |
1 | ||
| 33242-60090 |
KDN165,170 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-30130 |
LN165,170,RZN168,173 |
1 | ||
| 33243-60120 |
KDN165,170 |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LN165,170,RZN168,173 |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LN165,170,RZN168,173 |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-22011 |
LN165,170,RZN168,173 |
1 | ||
| 33245-35090 |
KDN165,170 |
1 | ||
| 33261J - SHAFT, SHIFT LEVER | ||||
| 33261-35140 |
LN165,170,RZN168,173 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-22010 |
LN165,170,RZN168,173 |
1 | ||
| 90250-05029 |
KDN165,170 L=11.5,OD=4.8 |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-10065 |
RZN168..DCB;LN165,170,RZN173 L=7.5,OD=15 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
LN165,170,RZN168,173 L=11.2,OD=4 |
1 | ||
| 90250-06007 |
LN165,170,RZN168,173 L=8.6,OD=6 |
1 | ||
| 33266-22010 |
LN165,170,RZN168,173 L=13.6,OD=6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
LN165,170,RZN168,173 L=11.2,OD=4 |
1 | ||
| 90250-06007 |
LN165,170,RZN168,173 L=8.6,OD=6 |
1 | ||
| 33266-22010 |
LN165,170,RZN168,173 L=13.6,OD=6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-22010 |
LN165,170,RZN168,173 L=11.2,OD=4 |
1 | ||
| 90250-06007 |
LN165,170,RZN168,173 L=8.6,OD=6 |
1 | ||
| 33266-22010 |
LN165,170,RZN168,173 L=13.6,OD=6 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LN165,170,RZN168,173 OD=17 |
1 | ||
| 90341-12008 |
KDN165,170 OD=18 |
4 | ||
| 90341-12014 |
KDN165,170 OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KDN165,170 L=33.8 |
3 | ||
| 90501-14123 |
RZN168..DCB;LN165,170,RZN173 L=20.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN165,170,RZN168,173 |
1 | ||
| 90360-10003 |
KDN165,170 |
3 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12018 |
LN165,170,RZN168,173 |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12018 |
LN165,170,RZN168,173 |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14123 |
LN165,170,RZN168,173 |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14123 |
LN165,170,RZN168,173 |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LN165,170,RZN168,173 |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LN165,170,RZN168,173 |
2 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-27011 |
KDN165,170 LH |
1 | ||
| 33280-35021 |
LN145,150,165,170,RZN168,173 RH |
1 | ||
| 33280-35031 |
LN165,170,RZN168,173 LH |
1 | ||
| 33280-35021 |
KDN145,150,165,170 RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-27011 |
KDN165,170 LH |
1 | ||
| 33280-35021 |
LN145,150,165,170,RZN168,173 RH |
1 | ||
| 33280-35031 |
LN165,170,RZN168,173 LH |
1 | ||
| 33280-35021 |
KDN145,150,165,170 RH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
RZN168..DCB;LN165,170,RZN173 |
1 | ||
| 90341-12008 |
KDN165,170 |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-30061 |
LN165,170,RZN168,173 |
1 | ||
| 33280-35100 |
KDN165,170 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
LN165,170,RZN168,173 |
1 | ||
| 90254-05001 |
KDN145,150,165,170 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35340 |
LN165,170,RZN168,173 |
1 | ||
| 33521-35330 |
KDN165,170 |
1 | ||
| 33521-35331 |
KDN165,170 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
LN145,150,165,170,RZN168,173 |
1 | ||

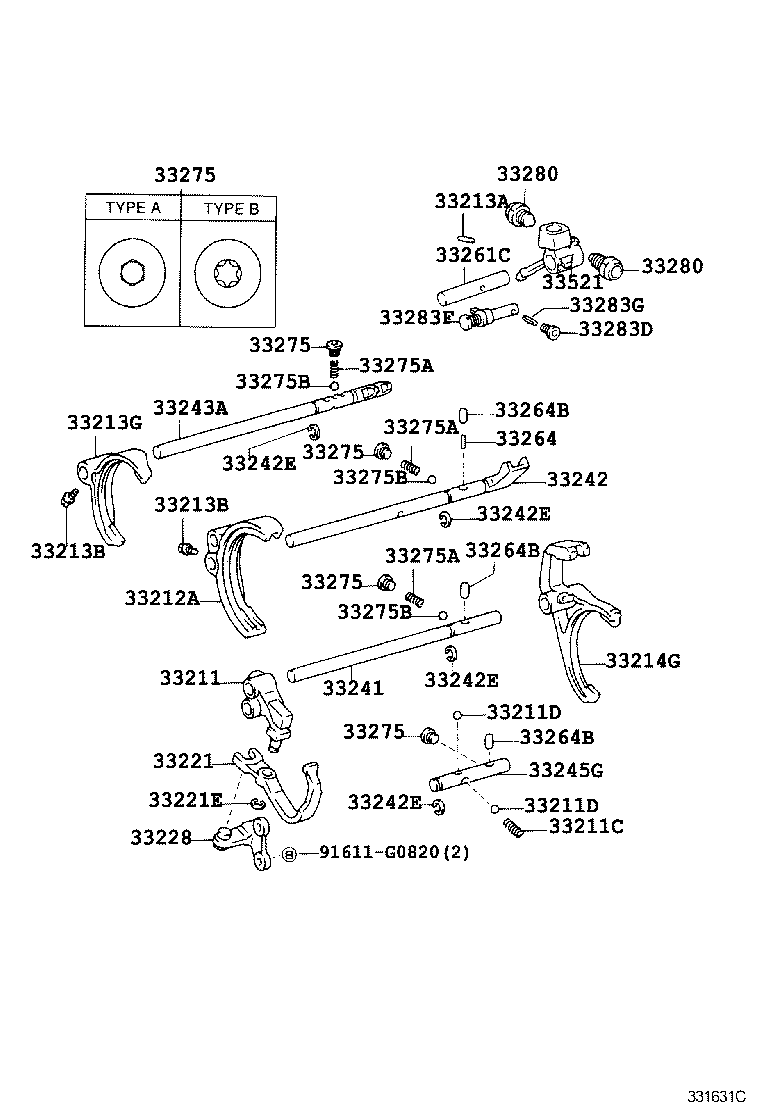

(0108- )KDN165,170
R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
KDN165,170 |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-12166 |
KDN165,170 |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KDN165,170 OD=9.52,STEEL |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KDN165,170 OD=9.52,STEEL |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-30050 |
LN165,170,RZN168,173 |
1 | ||
| 33212-35032 |
KDN165,170 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KDN165,170 |
2 | ||
| 90254-05016 |
LN165,170,RZN168,173 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN165,170,RZN168,173 |
2 | ||
| 90105-06077 |
KDN165,170 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN165,170,RZN168,173 |
2 | ||
| 90105-06077 |
KDN165,170 |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35040 |
KDN165,170 |
1 | ||
| 33213-30060 |
LN165,170,RZN168,173 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35010 |
KDN165,170 |
1 | ||
| 33230-30011 |
LN165,170,RZN168,173 |
1 | ||
| 33230-35011 |
KDN165,170 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22020 |
LN165,170,RZN168,173 |
1 | ||
| 33221-35050 |
KDN165,170 |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
KDN165,170 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-35030 |
KDN165,170 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35060 |
KDN165,170 |
1 | ||
| 33244-30050 |
LN165,170,RZN168,173 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-30070 |
LN165,170,RZN168,173 |
1 | ||
| 33242-60090 |
KDN165,170 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KDN165,170 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KDN165,170 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KDN165,170 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KDN165,170 |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-30130 |
LN165,170,RZN168,173 |
1 | ||
| 33243-60120 |
KDN165,170 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-22011 |
LN165,170,RZN168,173 |
1 | ||
| 33245-35090 |
KDN165,170 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35131 |
KDN165,170 |
1 | ||
| 33261-35130 |
KDN165,170 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-22010 |
LN165,170,RZN168,173 |
1 | ||
| 90250-05029 |
KDN165,170 L=11.5,OD=4.8 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KDN165,170 L=13.6,OD=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KDN165,170 L=13.6,OD=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KDN165,170 L=13.6,OD=9.5 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LN165,170,RZN168,173 OD=17 |
1 | ||
| 90341-12008 |
KDN165,170 OD=18 |
4 | ||
| 90341-12014 |
KDN165,170 OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LN165,170,RZN168,173 OD=17 |
1 | ||
| 90341-12008 |
KDN165,170 OD=18 |
4 | ||
| 90341-12014 |
KDN165,170 OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LN165,170,RZN168,173 OD=17 |
1 | ||
| 90341-12008 |
KDN165,170 OD=18 |
4 | ||
| 90341-12014 |
KDN165,170 OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LN165,170,RZN168,173 OD=17 |
1 | ||
| 90341-12008 |
KDN165,170 OD=18 |
4 | ||
| 90341-12014 |
KDN165,170 OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LN165,170,RZN168,173 OD=17 |
1 | ||
| 90341-12008 |
KDN165,170 OD=18 |
4 | ||
| 90341-12014 |
KDN165,170 OD=17,TYPE A:REFER TO ILLUSTRATION |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KDN165,170 L=33.8 |
3 | ||
| 90501-14123 |
RZN168..DCB;LN165,170,RZN173 L=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KDN165,170 L=33.8 |
3 | ||
| 90501-14123 |
RZN168..DCB;LN165,170,RZN173 L=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KDN165,170 L=33.8 |
3 | ||
| 90501-14123 |
RZN168..DCB;LN165,170,RZN173 L=20.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN165,170,RZN168,173 |
1 | ||
| 90360-10003 |
KDN165,170 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN165,170,RZN168,173 |
1 | ||
| 90360-10003 |
KDN165,170 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN165,170,RZN168,173 |
1 | ||
| 90360-10003 |
KDN165,170 |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-27011 |
KDN165,170 LH |
1 | ||
| 33280-35021 |
LN145,150,165,170,RZN168,173 RH |
1 | ||
| 33280-35031 |
LN165,170,RZN168,173 LH |
1 | ||
| 33280-35021 |
KDN145,150,165,170 RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-27011 |
KDN165,170 LH |
1 | ||
| 33280-35021 |
LN145,150,165,170,RZN168,173 RH |
1 | ||
| 33280-35031 |
LN165,170,RZN168,173 LH |
1 | ||
| 33280-35021 |
KDN145,150,165,170 RH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
RZN168..DCB;LN165,170,RZN173 |
1 | ||
| 90341-12008 |
KDN165,170 |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-30061 |
LN165,170,RZN168,173 |
1 | ||
| 33280-35100 |
KDN165,170 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
LN165,170,RZN168,173 |
1 | ||
| 90254-05001 |
KDN145,150,165,170 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35340 |
LN165,170,RZN168,173 |
1 | ||
| 33521-35330 |
KDN165,170 |
1 | ||
| 33521-35331 |
KDN165,170 |
1 | ||
| Common parts | ||||
| 91611-G0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
