KDN170L-CRMSYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )LHD

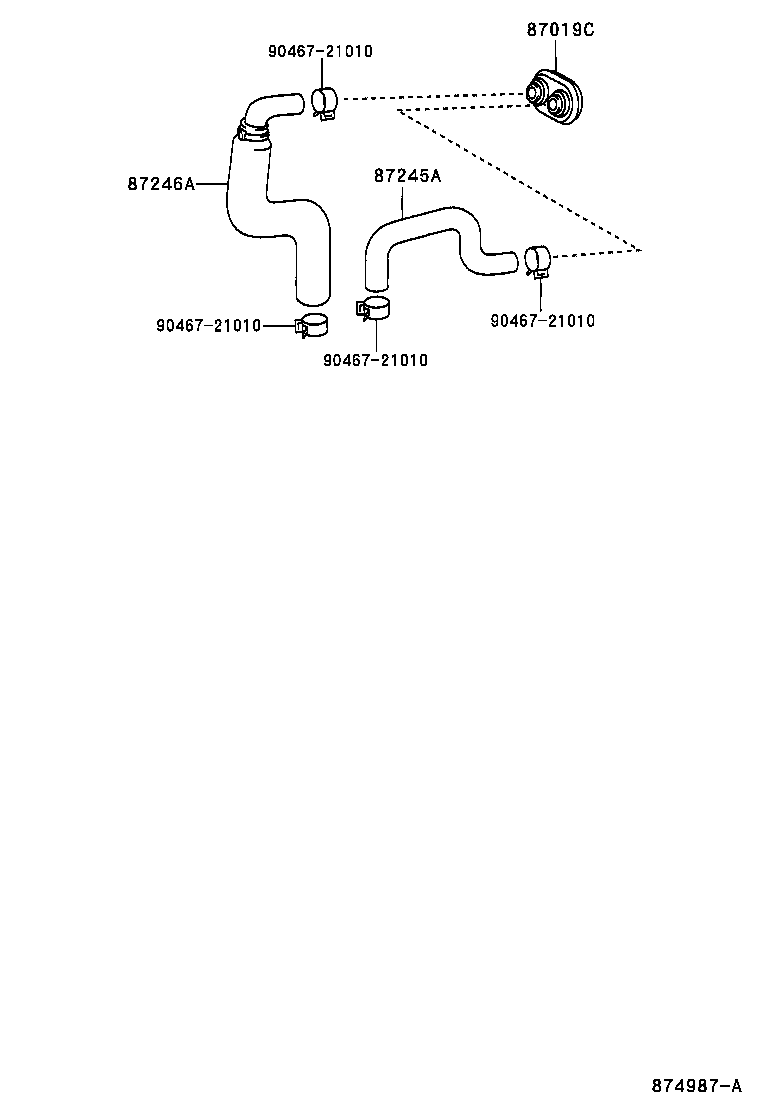

Click highlighted areas on diagram

diagram 87019C 87245A 87246A 9046721010 9046721010 9046721010 9046721010
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

KDN145,150,165,170,190

 1
90480-01405

LN145,150,165,170,190,RZN168,173

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3D070

LN165,170,190..LHD

 1
87245-3D390

KDN145,150,165,170,190..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87246-35070

KDN145,150,165,170,190..LHD

 1
87246-35050

LN165,170,190..LHD

 1
Common parts
90467-21010
