KDN170L-CRMSYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

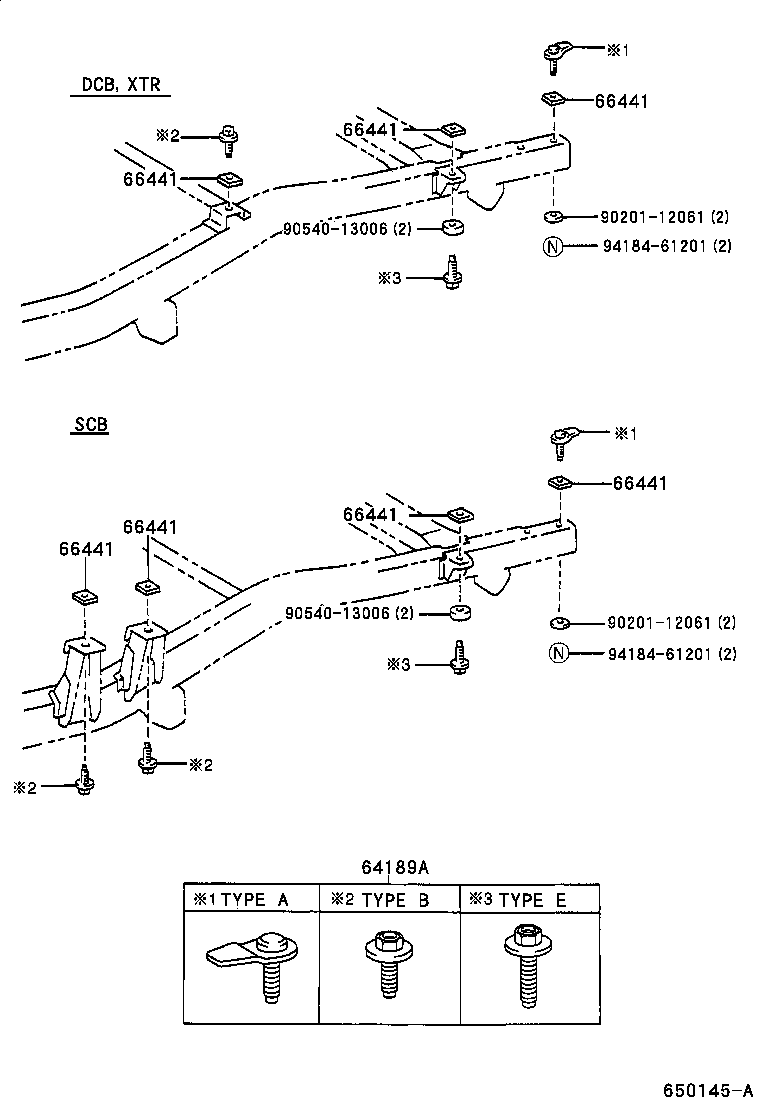

Click highlighted areas on diagram

diagram 64189A 66441 66441 66441 66441 66441 66441 66441 9020112061 9020112061 9054013006 9054013006 9418461201 9418461201
Part # Description Qty Price
64189A - BOLT, REAR BODY MOUNTING
64189-35040

KDN145,150,165,170,190..DCB,XTR

TYPE B:REFER ILLUST.

 2
64189-35040

LN145,150,165,170,190,RZN168,173..DCB,XTR

TYPE B:REFER TO ILLUSTRATION

 2
64189-35050

KDN145,150,165,170,190

TYPE E:REFER ILLUST.

 2
64189-35010

KDN145,150,165,170,190

TYPE A:REFER ILLUST.

 2
64189-35050

LN145,150,165,170,190,RZN168,173

TYPE E:REFER TO ILLUSTRATION

 2
64189-35010

LN145,150,165,170,190,RZN168,173

TYPE A:REFER TO ILLUSTRATION

 2
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
66441 - SHIM, MOUNTING, NO.1
90950-04030

KDN145,150,165,170,190..DCB,XTR

T=5.0

 6
90950-04030

LN145,150,165,170,190,RZN168,173

T=5.0

 1
Common parts
90201-12061
90540-13006
94184-61201
