KDN170L-CRMSYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN165,170,190,LN165,170,190,RZN168,173..LHD

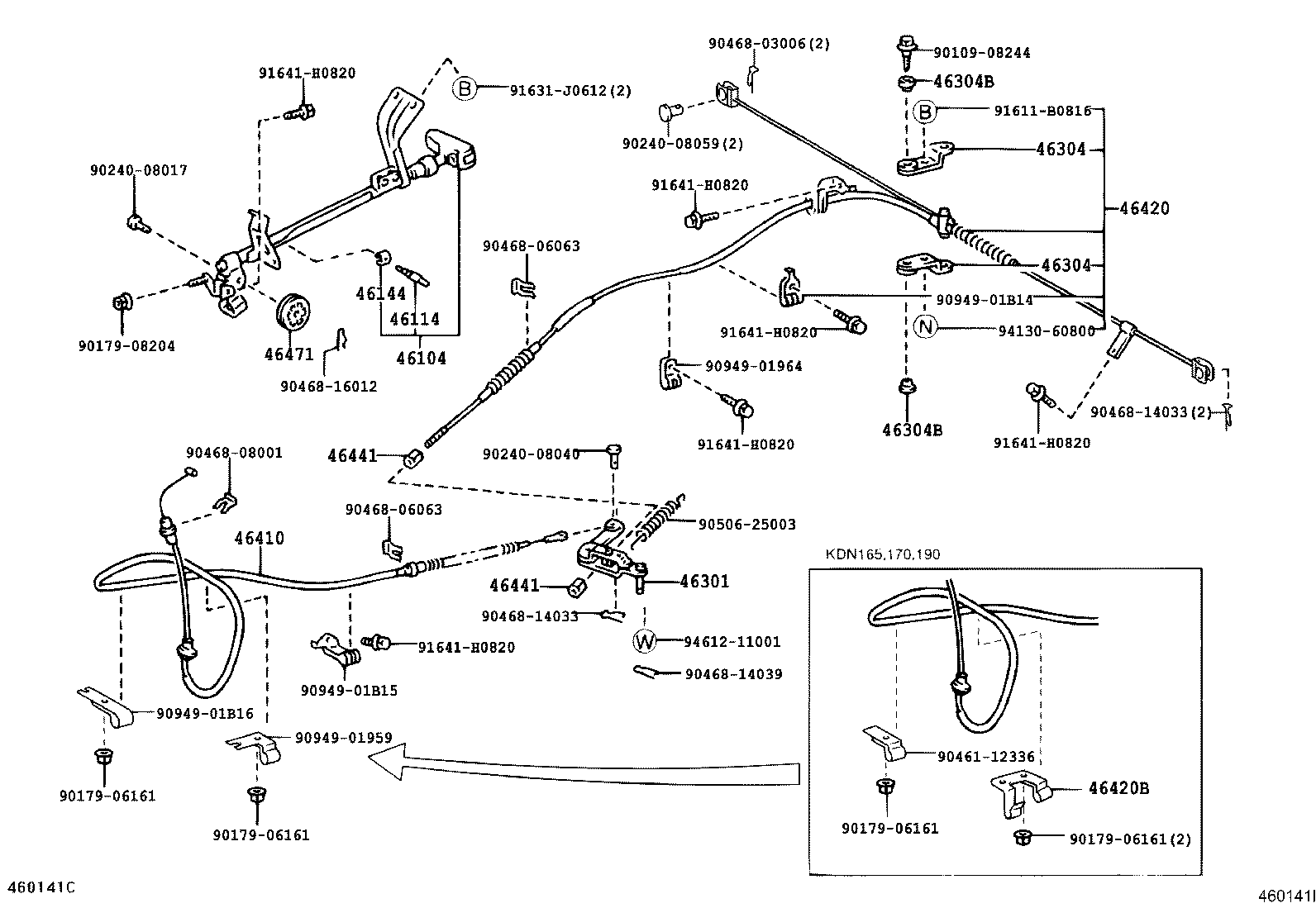

Click highlighted areas on diagram

diagram 46104 46114 46144 46301 46304 46304 46304B 46304B 46410 46420 46420B 46441 46441 46471 9010908244 9017906161 9017906161 9017906161 9017906161 9017908204 9024008017 9024008040 9046112336 9046806063 9046806063 9046808001 9046814033 9046814033 9046814039 9046816012 9050625003 9094901959 9094901964 9094901B14 9094901B15 9094901B16 91611B0816 91631J0612 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 9413060800 9461211001
Part # Description Qty Price
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-35040

KDN145,150,165,170,190..LHD

 1
46104-35040

LN145,150,165,170,190,RZN168,173..LHD

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LN145,150,165,170,190,RZN168,173

 1
46114-20010

KDN145,150,165,170,190

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

LN145,150,165,170,190,RZN168,173

 1
46144-30020

KDN145,150,165,170,190

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-04020

KDN165,170,190

(L)

 1
46301-35200

KDN165,170,190

(J)

 1
46301-35200

LN165,170,190,RZN168,173

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

KDN165,170,190

 2
46341-35030

LN165,170,190,RZN168,173

 2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

KDN165,170,190

 2
46341-35030

LN165,170,190,RZN168,173

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

KDN165,170,190

 2
90385-12012

LN165,170,190,RZN168,173

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

KDN165,170,190

 2
90385-12012

LN165,170,190,RZN168,173

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-3D060

KDN170

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35620

KDN165,170

 1
46420-35620

LN165,170,RZN168,173

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-35040

KDN165,170,190..LHD

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

KDN165,170,190

 2
46441-30030

LN165,170,190,RZN168,173

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

KDN165,170,190

 2
46441-30030

LN165,170,190,RZN168,173

 2
46471 - PULLEY, WIRE
46471-30010

LN145,150,165,170,190,RZN168,173

 1
46471-30010

KDN145,150,165,170,190

 1
Common parts
90109-08244
90179-06161
90179-08204
90240-08017
90240-08040
90461-12336
90468-06063
90468-08001
90468-14033
90468-14039
90468-16012
90506-25003
90949-01959
90949-01964
90949-01B14
90949-01B15
90949-01B16
91611-B0816
91631-J0612
91641-H0820
94130-60800
94612-11001
