KDN170L-CRMSYW (2001)
Toyota Hilux
(9708- )LN165,170,RZN168,173

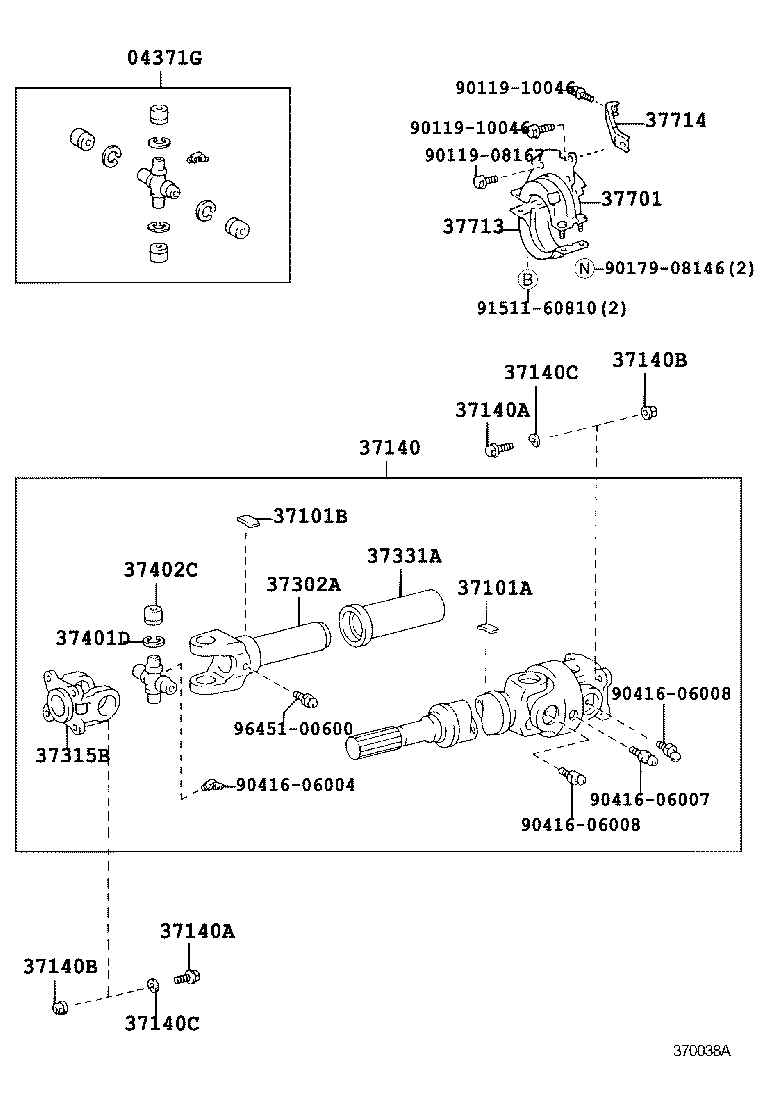

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60070 |
KDN165,170 |
1 | ||
| 04371-35031 |
LN165,170,RZN168,173 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01147 |
KDN145,150,165,170,190 2G,T=2.0 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01148 |
KDN145,150,165,170,190 4G,T=2.0 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 90937-01132 |
KDN145,150,165,170,190 10G,L=20.7 |
1 | ||
| 90937-01157 |
KDN145,150,165,170,190 26G,L=53.9 |
1 | ||
| 90937-01152 |
KDN145,150,165,170,190 14G,L=29.0 |
1 | ||
| 90937-01136 |
KDN145,150,165,170,190 20G,L=41.4 |
1 | ||
| 90937-01154 |
KDN145,150,165,170,190 18G,L=37.3 |
1 | ||
| 90937-01201 |
KDN145,150,165,170,190 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01149 |
KDN145,150,165,170,190 6G,L=12.4 |
1 | ||
| 90937-01153 |
KDN145,150,165,170,190 16G,L=33.2 |
1 | ||
| 90937-01156 |
KDN145,150,165,170,190 24G,L=49.7 |
1 | ||
| 90937-01155 |
KDN145,150,165,170,190 22G,L=45.6 |
1 | ||
| 90937-01203 |
KDN145,150,165,170,190 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01202 |
KDN145,150,165,170,190 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01204 |
KDN145,150,165,170,190 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
KDN145,150,165,170,190 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01150 |
KDN145,150,165,170,190 8G,L=16.6 |
1 | ||
| 90937-01151 |
KDN145,150,165,170,190 12G,L=24.9 |
1 | ||
| 90937-01205 |
KDN145,150,165,170,190 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01207 |
KDN145,150,165,170,190 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01399 |
KDN165,170 22G,T=4.5,L=20.1 |
1 | ||
| 90937-01206 |
KDN145,150,165,170,190 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01402 |
KDN165,170 28G,T=4.5,L=25.6 |
1 | ||
| 90937-01397 |
KDN165,170 18G,T=4.5,L=16.4 |
1 | ||
| 90937-01158 |
KDN145,150,165,170,190 28G,L=58.1 |
1 | ||
| 90937-01211 |
KDN145,150,165,170,190 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01209 |
KDN145,150,165,170,190 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01210 |
KDN145,150,165,170,190 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01401 |
KDN165,170 26G,T=4.5,L=23.7 |
1 | ||
| 90937-01400 |
KDN165,170 24G,T=4.5,L=21.9 |
1 | ||
| 90937-01396 |
KDN165,170 16G,T=4.5,L=14.6 |
1 | ||
| 90937-01398 |
KDN165,170 20G,T=4.5,L=18.3 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01192 |
RZN168..DCB;LN165,170,RZN173 12G,T=4.5 |
1 | ||
| 90937-01184 |
RZN168..DCB;LN165,170,RZN173 4G,T=1.6 |
1 | ||
| 90937-01269 |
RZN168..DCB;LN165,170,RZN173 40G,L=25.6 |
1 | ||
| 90937-01191 |
RZN168..DCB;LN165,170,RZN173 8G,T=1.6 |
1 | ||
| 90937-01199 |
RZN168..DCB;LN165,170,RZN173 28G,T=6,L=22.7 |
1 | ||
| 90937-01271 |
RZN168..DCB;LN165,170,RZN173 48G,L=24.6 |
1 | ||
| 90937-01270 |
RZN168..DCB;LN165,170,RZN173 44G,L=22.6 |
1 | ||
| 90937-01273 |
RZN168..DCB;LN165,170,RZN173 56G,L=28.7 |
1 | ||
| 90937-01194 |
RZN168..DCB;LN165,170,RZN173 20G,T=4.5 |
1 | ||
| 90937-01268 |
RZN168..DCB;LN165,170,RZN173 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01184 |
KDN165,170 4G,T=1.6 |
1 | ||
| 90937-01274 |
RZN168..DCB;LN165,170,RZN173 60G,L=28.7 |
1 | ||
| 90937-01194 |
KDN165,170 20G,T=4.5 |
1 | ||
| 90937-01198 |
KDN165,170 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01272 |
RZN168..DCB;LN165,170,RZN173 52G,L=26.7 |
1 | ||
| 90937-01199 |
KDN165,170 28G,T=6,L=22.7 |
1 | ||
| 90937-01193 |
KDN165,170 16G,T=4.5 |
1 | ||
| 90937-01200 |
RZN168..DCB;LN165,170,RZN173 32G,T=6,L=24.3 |
1 | ||
| 90937-01191 |
KDN165,170 8G,T=1.6 |
1 | ||
| 90937-01192 |
KDN165,170 12G,T=4.5 |
1 | ||
| 90937-01272 |
KDN165,170 52G,L=26.7 |
1 | ||
| 90937-01273 |
KDN165,170 56G,L=28.7 |
1 | ||
| 90937-01198 |
RZN168..DCB;LN165,170,RZN173 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01200 |
KDN165,170 32G,T=6,L=24.3 |
1 | ||
| 90937-01268 |
KDN165,170 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01271 |
KDN165,170 48G,L=24.6 |
1 | ||
| 90937-01193 |
RZN168..DCB;LN165,170,RZN173 16G,T=4.5 |
1 | ||
| 90937-01270 |
KDN165,170 44G,L=22.6 |
1 | ||
| 90937-01269 |
KDN165,170 40G,L=25.6 |
1 | ||
| 90937-01274 |
KDN165,170 60G,L=28.7 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-35071 |
LN165,170,RZN168,173 |
1 | ||
| 37140-35071 |
KDN165,170 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
LN165,170,RZN168,173 |
8 | ||
| 90105-10085 |
KDN165,170 |
4 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
LN165,170,RZN168,173 |
8 | ||
| 90105-10085 |
KDN165,170 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 90179-10059 |
KDN165,170 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 90179-10059 |
KDN165,170 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN165,170 |
8 | ||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN165,170 |
8 | ||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37302A - YOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
KDN165,170 |
1 | ||
| 37302-35050 |
LN165,170,RZN168,173 |
1 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35070 |
KDN165,170 |
1 | ||
| 37315-35040 |
LN165,170,RZN168,173 |
1 | ||
| 37331A - COVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUS | ||||
| 37305-35020 |
LN165,170,RZN168,173 |
1 | ||
| 37305-35020 |
KDN165,170 |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26038 |
LN165,170,RZN168 T=2.125,MARK 1 |
4 | ||
| 90520-26043 |
LN165,170,RZN168 T=2.325,MARK 5 |
4 | ||
| 90520-26040 |
LN165,170,RZN168 T=2.175,MARK 2 |
4 | ||
| 90520-26046 |
LN165,170,RZN168 T=2.475,MARK 8 |
4 | ||
| 90520-26042 |
LN165,170,RZN168 T=2.275,MARK 4 |
4 | ||
| 90520-26045 |
LN165,170,RZN168 T=2.425,MARK 7 |
4 | ||
| 90520-26044 |
LN165,170,RZN168 T=2.375,MARK 6 |
4 | ||
| 90520-26041 |
LN165,170,RZN168 T=2.225,MARK 3 |
4 | ||
| 90520-25039 |
KDN165,170 T=2.29,MARK 1 |
4 | ||
| 90520-25041 |
KDN165,170 T=2.33,NO MARK |
4 | ||
| 90520-25040 |
KDN165,170 T=2.31,MARK 2 |
4 | ||
| 90520-25043 |
KDN165,170 T=2.37,BLUE |
4 | ||
| 90520-25045 |
KDN165,170 T=2.41,MARK 7 |
4 | ||
| 90520-25051 |
KDN165,170 T=2.53,MARK C |
4 | ||
| 90520-25048 |
KDN165,170 T=2.47,MARK 10 |
4 | ||
| 90520-25049 |
KDN165,170 T=2.49,MARK A |
4 | ||
| 90520-25047 |
KDN165,170 T=2.45,MARK 9 |
4 | ||
| 90520-25044 |
KDN165,170 T=2.39,MARK 6 |
4 | ||
| 90520-25052 |
KDN165,170 T=2.55,MARK D |
4 | ||
| 90520-25046 |
KDN165,170 T=2.43,MARK 8 |
4 | ||
| 90520-25055 |
KDN165,170 T=2.21,MARK E |
4 | ||
| 90520-25053 |
KDN165,170 T=2.57,MARK E |
4 | ||
| 90520-25042 |
KDN165,170 T=2.35,BROWN |
4 | ||
| 90520-25058 |
KDN165,170 T=2.27,MARK H |
4 | ||
| 90520-25057 |
KDN165,170 T=2.25,MARK G |
4 | ||
| 90520-25056 |
KDN165,170 T=2.23,MARK F |
4 | ||
| 90520-25050 |
KDN165,170 T=2.51,MARK B |
4 | ||
| 90520-25054 |
KDN165,170 T=2.19,MARK D |
4 | ||
| 37402C - BEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LN165,170,RZN168,173 NO PAINT |
4 | ||
| 37402-30021 |
KDN165,170 RED PAINTED |
4 | ||
| 37402-30011 |
KDN165,170 NO PAINT |
4 | ||
| 37402-30021 |
LN165,170,RZN168 RED PAINTED |
4 | ||
| 37701 - COVER SUB-ASSY, PROPELLER SHAFT DUST | ||||
| 37701-35071 |
LN165,170,RZN168,173 |
1 | ||
| 37701-35110 |
KDN165,170 |
1 | ||
| 37713 - COVER, PROPELLER SHAFT DUST, NO.2 | ||||
| 37713-35070 |
LN165,170,RZN168,173 |
1 | ||
| 37714 - STAY, PROPELLER SHAFT DUST COVER | ||||
| 37714-35051 |
LN165,170,RZN168,173 |
1 | ||
| 37714-35051 |
KDN165,170 |
1 | ||
| Common parts | ||||
| 90119-08167 | ||||
| 90119-10046 | ||||
| 90179-08146 | ||||
| 90416-06004 | ||||
| 90416-06007 | ||||
| 90416-06008 | ||||
| 91511-60810 | ||||
| 96451-00600 | ||||

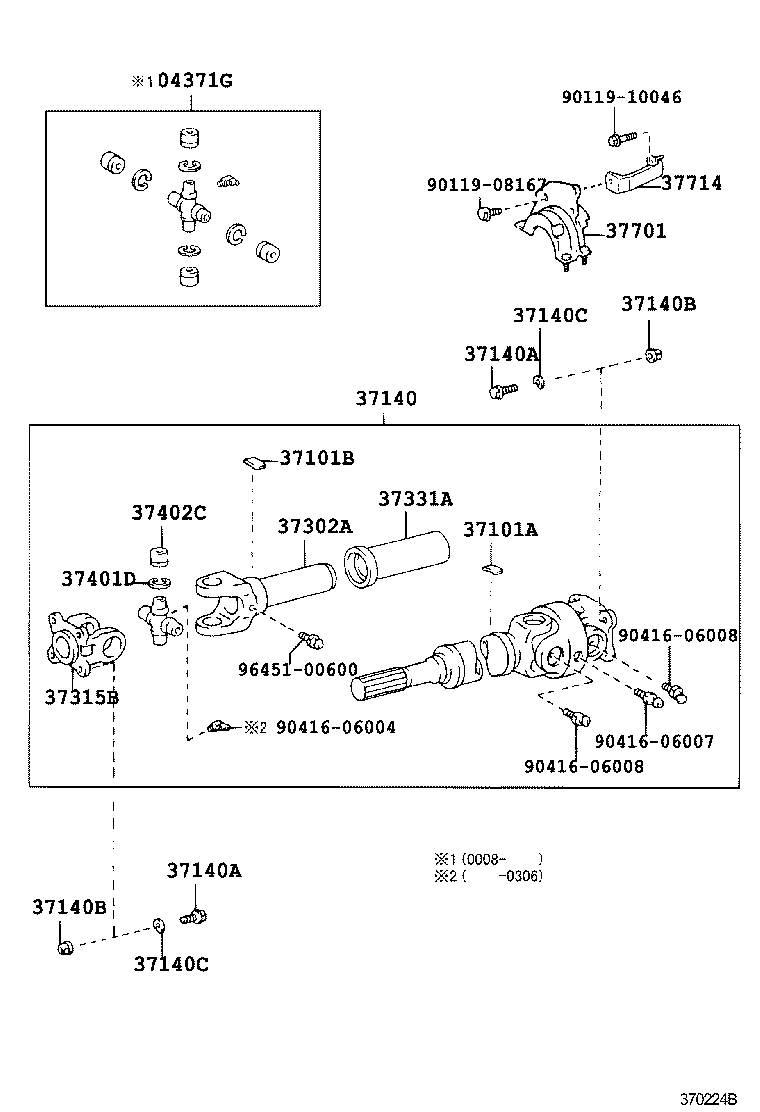

(9708- )KDN165,170
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60070 |
KDN165,170 |
1 | ||
| 04371-35031 |
LN165,170,RZN168,173 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01147 |
KDN145,150,165,170,190 2G,T=2.0 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01148 |
KDN145,150,165,170,190 4G,T=2.0 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 90937-01132 |
KDN145,150,165,170,190 10G,L=20.7 |
1 | ||
| 90937-01157 |
KDN145,150,165,170,190 26G,L=53.9 |
1 | ||
| 90937-01152 |
KDN145,150,165,170,190 14G,L=29.0 |
1 | ||
| 90937-01136 |
KDN145,150,165,170,190 20G,L=41.4 |
1 | ||
| 90937-01154 |
KDN145,150,165,170,190 18G,L=37.3 |
1 | ||
| 90937-01201 |
KDN145,150,165,170,190 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01149 |
KDN145,150,165,170,190 6G,L=12.4 |
1 | ||
| 90937-01153 |
KDN145,150,165,170,190 16G,L=33.2 |
1 | ||
| 90937-01156 |
KDN145,150,165,170,190 24G,L=49.7 |
1 | ||
| 90937-01155 |
KDN145,150,165,170,190 22G,L=45.6 |
1 | ||
| 90937-01203 |
KDN145,150,165,170,190 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01202 |
KDN145,150,165,170,190 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01204 |
KDN145,150,165,170,190 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
KDN145,150,165,170,190 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01150 |
KDN145,150,165,170,190 8G,L=16.6 |
1 | ||
| 90937-01151 |
KDN145,150,165,170,190 12G,L=24.9 |
1 | ||
| 90937-01205 |
KDN145,150,165,170,190 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01207 |
KDN145,150,165,170,190 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01399 |
KDN165,170 22G,T=4.5,L=20.1 |
1 | ||
| 90937-01206 |
KDN145,150,165,170,190 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01402 |
KDN165,170 28G,T=4.5,L=25.6 |
1 | ||
| 90937-01397 |
KDN165,170 18G,T=4.5,L=16.4 |
1 | ||
| 90937-01158 |
KDN145,150,165,170,190 28G,L=58.1 |
1 | ||
| 90937-01211 |
KDN145,150,165,170,190 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01209 |
KDN145,150,165,170,190 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01210 |
KDN145,150,165,170,190 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01401 |
KDN165,170 26G,T=4.5,L=23.7 |
1 | ||
| 90937-01400 |
KDN165,170 24G,T=4.5,L=21.9 |
1 | ||
| 90937-01396 |
KDN165,170 16G,T=4.5,L=14.6 |
1 | ||
| 90937-01398 |
KDN165,170 20G,T=4.5,L=18.3 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01192 |
RZN168..DCB;LN165,170,RZN173 12G,T=4.5 |
1 | ||
| 90937-01184 |
RZN168..DCB;LN165,170,RZN173 4G,T=1.6 |
1 | ||
| 90937-01269 |
RZN168..DCB;LN165,170,RZN173 40G,L=25.6 |
1 | ||
| 90937-01191 |
RZN168..DCB;LN165,170,RZN173 8G,T=1.6 |
1 | ||
| 90937-01199 |
RZN168..DCB;LN165,170,RZN173 28G,T=6,L=22.7 |
1 | ||
| 90937-01271 |
RZN168..DCB;LN165,170,RZN173 48G,L=24.6 |
1 | ||
| 90937-01270 |
RZN168..DCB;LN165,170,RZN173 44G,L=22.6 |
1 | ||
| 90937-01273 |
RZN168..DCB;LN165,170,RZN173 56G,L=28.7 |
1 | ||
| 90937-01194 |
RZN168..DCB;LN165,170,RZN173 20G,T=4.5 |
1 | ||
| 90937-01268 |
RZN168..DCB;LN165,170,RZN173 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01184 |
KDN165,170 4G,T=1.6 |
1 | ||
| 90937-01274 |
RZN168..DCB;LN165,170,RZN173 60G,L=28.7 |
1 | ||
| 90937-01194 |
KDN165,170 20G,T=4.5 |
1 | ||
| 90937-01198 |
KDN165,170 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01272 |
RZN168..DCB;LN165,170,RZN173 52G,L=26.7 |
1 | ||
| 90937-01199 |
KDN165,170 28G,T=6,L=22.7 |
1 | ||
| 90937-01193 |
KDN165,170 16G,T=4.5 |
1 | ||
| 90937-01200 |
RZN168..DCB;LN165,170,RZN173 32G,T=6,L=24.3 |
1 | ||
| 90937-01191 |
KDN165,170 8G,T=1.6 |
1 | ||
| 90937-01192 |
KDN165,170 12G,T=4.5 |
1 | ||
| 90937-01272 |
KDN165,170 52G,L=26.7 |
1 | ||
| 90937-01273 |
KDN165,170 56G,L=28.7 |
1 | ||
| 90937-01198 |
RZN168..DCB;LN165,170,RZN173 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01200 |
KDN165,170 32G,T=6,L=24.3 |
1 | ||
| 90937-01268 |
KDN165,170 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01271 |
KDN165,170 48G,L=24.6 |
1 | ||
| 90937-01193 |
RZN168..DCB;LN165,170,RZN173 16G,T=4.5 |
1 | ||
| 90937-01270 |
KDN165,170 44G,L=22.6 |
1 | ||
| 90937-01269 |
KDN165,170 40G,L=25.6 |
1 | ||
| 90937-01274 |
KDN165,170 60G,L=28.7 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-35071 |
LN165,170,RZN168,173 |
1 | ||
| 37140-35071 |
KDN165,170 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
LN165,170,RZN168,173 |
8 | ||
| 90105-10085 |
KDN165,170 |
4 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
LN165,170,RZN168,173 |
8 | ||
| 90105-10085 |
KDN165,170 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 90179-10059 |
KDN165,170 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 90179-10059 |
KDN165,170 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN165,170 |
8 | ||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN165,170 |
8 | ||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37302A - YOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
KDN165,170 |
1 | ||
| 37302-35050 |
LN165,170,RZN168,173 |
1 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35070 |
KDN165,170 |
1 | ||
| 37315-35040 |
LN165,170,RZN168,173 |
1 | ||
| 37331A - COVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUS | ||||
| 37305-35020 |
LN165,170,RZN168,173 |
1 | ||
| 37305-35020 |
KDN165,170 |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26038 |
LN165,170,RZN168 T=2.125,MARK 1 |
4 | ||
| 90520-26043 |
LN165,170,RZN168 T=2.325,MARK 5 |
4 | ||
| 90520-26040 |
LN165,170,RZN168 T=2.175,MARK 2 |
4 | ||
| 90520-26046 |
LN165,170,RZN168 T=2.475,MARK 8 |
4 | ||
| 90520-26042 |
LN165,170,RZN168 T=2.275,MARK 4 |
4 | ||
| 90520-26045 |
LN165,170,RZN168 T=2.425,MARK 7 |
4 | ||
| 90520-26044 |
LN165,170,RZN168 T=2.375,MARK 6 |
4 | ||
| 90520-26041 |
LN165,170,RZN168 T=2.225,MARK 3 |
4 | ||
| 90520-25039 |
KDN165,170 T=2.29,MARK 1 |
4 | ||
| 90520-25041 |
KDN165,170 T=2.33,NO MARK |
4 | ||
| 90520-25040 |
KDN165,170 T=2.31,MARK 2 |
4 | ||
| 90520-25043 |
KDN165,170 T=2.37,BLUE |
4 | ||
| 90520-25045 |
KDN165,170 T=2.41,MARK 7 |
4 | ||
| 90520-25051 |
KDN165,170 T=2.53,MARK C |
4 | ||
| 90520-25048 |
KDN165,170 T=2.47,MARK 10 |
4 | ||
| 90520-25049 |
KDN165,170 T=2.49,MARK A |
4 | ||
| 90520-25047 |
KDN165,170 T=2.45,MARK 9 |
4 | ||
| 90520-25044 |
KDN165,170 T=2.39,MARK 6 |
4 | ||
| 90520-25052 |
KDN165,170 T=2.55,MARK D |
4 | ||
| 90520-25046 |
KDN165,170 T=2.43,MARK 8 |
4 | ||
| 90520-25055 |
KDN165,170 T=2.21,MARK E |
4 | ||
| 90520-25053 |
KDN165,170 T=2.57,MARK E |
4 | ||
| 90520-25042 |
KDN165,170 T=2.35,BROWN |
4 | ||
| 90520-25058 |
KDN165,170 T=2.27,MARK H |
4 | ||
| 90520-25057 |
KDN165,170 T=2.25,MARK G |
4 | ||
| 90520-25056 |
KDN165,170 T=2.23,MARK F |
4 | ||
| 90520-25050 |
KDN165,170 T=2.51,MARK B |
4 | ||
| 90520-25054 |
KDN165,170 T=2.19,MARK D |
4 | ||
| 37402C - BEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LN165,170,RZN168,173 NO PAINT |
4 | ||
| 37402-30021 |
KDN165,170 RED PAINTED |
4 | ||
| 37402-30011 |
KDN165,170 NO PAINT |
4 | ||
| 37402-30021 |
LN165,170,RZN168 RED PAINTED |
4 | ||
| 37701 - COVER SUB-ASSY, PROPELLER SHAFT DUST | ||||
| 37701-35071 |
LN165,170,RZN168,173 |
1 | ||
| 37701-35110 |
KDN165,170 |
1 | ||
| 37714 - STAY, PROPELLER SHAFT DUST COVER | ||||
| 37714-35051 |
LN165,170,RZN168,173 |
1 | ||
| 37714-35051 |
KDN165,170 |
1 | ||
| Common parts | ||||
| 90119-08167 | ||||
| 90119-10046 | ||||
| 90416-06004 | ||||
| 90416-06007 | ||||
| 90416-06008 | ||||
| 96451-00600 | ||||
(0108- )KDN165,170
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35051 |
KDN165,170 |
2 | ||
| 04371-60070 |
KDN165,170 |
2 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-3D460 |
KDN170 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
LN145,150,165,170,190,RZN168,173 |
4 | ||
| 90105-10085 |
KDN145,150,165,170,190 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 90179-10059 |
KDN165,170 |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 90179-10059 |
KDN165,170 |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 90204-10002 |
KDN165,170 |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 90204-10002 |
KDN165,170 |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01147 |
KDN145,150,165,170,190 2G,T=2.0 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01148 |
KDN145,150,165,170,190 4G,T=2.0 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 90937-01132 |
KDN145,150,165,170,190 10G,L=20.7 |
1 | ||
| 90937-01157 |
KDN145,150,165,170,190 26G,L=53.9 |
1 | ||
| 90937-01152 |
KDN145,150,165,170,190 14G,L=29.0 |
1 | ||
| 90937-01136 |
KDN145,150,165,170,190 20G,L=41.4 |
1 | ||
| 90937-01154 |
KDN145,150,165,170,190 18G,L=37.3 |
1 | ||
| 90937-01201 |
KDN145,150,165,170,190 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01149 |
KDN145,150,165,170,190 6G,L=12.4 |
1 | ||
| 90937-01153 |
KDN145,150,165,170,190 16G,L=33.2 |
1 | ||
| 90937-01156 |
KDN145,150,165,170,190 24G,L=49.7 |
1 | ||
| 90937-01155 |
KDN145,150,165,170,190 22G,L=45.6 |
1 | ||
| 90937-01203 |
KDN145,150,165,170,190 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01202 |
KDN145,150,165,170,190 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01204 |
KDN145,150,165,170,190 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
KDN145,150,165,170,190 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01150 |
KDN145,150,165,170,190 8G,L=16.6 |
1 | ||
| 90937-01151 |
KDN145,150,165,170,190 12G,L=24.9 |
1 | ||
| 90937-01205 |
KDN145,150,165,170,190 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01207 |
KDN145,150,165,170,190 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01399 |
KDN165,170 22G,T=4.5,L=20.1 |
1 | ||
| 90937-01206 |
KDN145,150,165,170,190 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01402 |
KDN165,170 28G,T=4.5,L=25.6 |
1 | ||
| 90937-01397 |
KDN165,170 18G,T=4.5,L=16.4 |
1 | ||
| 90937-01158 |
KDN145,150,165,170,190 28G,L=58.1 |
1 | ||
| 90937-01211 |
KDN145,150,165,170,190 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01209 |
KDN145,150,165,170,190 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01210 |
KDN145,150,165,170,190 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01401 |
KDN165,170 26G,T=4.5,L=23.7 |
1 | ||
| 90937-01400 |
KDN165,170 24G,T=4.5,L=21.9 |
1 | ||
| 90937-01396 |
KDN165,170 16G,T=4.5,L=14.6 |
1 | ||
| 90937-01398 |
KDN165,170 20G,T=4.5,L=18.3 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01147 |
KDN145,150,165,170,190 2G,T=2.0 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01148 |
KDN145,150,165,170,190 4G,T=2.0 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 90937-01132 |
KDN145,150,165,170,190 10G,L=20.7 |
1 | ||
| 90937-01157 |
KDN145,150,165,170,190 26G,L=53.9 |
1 | ||
| 90937-01152 |
KDN145,150,165,170,190 14G,L=29.0 |
1 | ||
| 90937-01136 |
KDN145,150,165,170,190 20G,L=41.4 |
1 | ||
| 90937-01154 |
KDN145,150,165,170,190 18G,L=37.3 |
1 | ||
| 90937-01201 |
KDN145,150,165,170,190 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01149 |
KDN145,150,165,170,190 6G,L=12.4 |
1 | ||
| 90937-01153 |
KDN145,150,165,170,190 16G,L=33.2 |
1 | ||
| 90937-01156 |
KDN145,150,165,170,190 24G,L=49.7 |
1 | ||
| 90937-01155 |
KDN145,150,165,170,190 22G,L=45.6 |
1 | ||
| 90937-01203 |
KDN145,150,165,170,190 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01202 |
KDN145,150,165,170,190 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01204 |
KDN145,150,165,170,190 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
KDN145,150,165,170,190 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01150 |
KDN145,150,165,170,190 8G,L=16.6 |
1 | ||
| 90937-01151 |
KDN145,150,165,170,190 12G,L=24.9 |
1 | ||
| 90937-01205 |
KDN145,150,165,170,190 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01207 |
KDN145,150,165,170,190 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01399 |
KDN165,170 22G,T=4.5,L=20.1 |
1 | ||
| 90937-01206 |
KDN145,150,165,170,190 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01402 |
KDN165,170 28G,T=4.5,L=25.6 |
1 | ||
| 90937-01397 |
KDN165,170 18G,T=4.5,L=16.4 |
1 | ||
| 90937-01158 |
KDN145,150,165,170,190 28G,L=58.1 |
1 | ||
| 90937-01211 |
KDN145,150,165,170,190 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01209 |
KDN145,150,165,170,190 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01210 |
KDN145,150,165,170,190 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01401 |
KDN165,170 26G,T=4.5,L=23.7 |
1 | ||
| 90937-01400 |
KDN165,170 24G,T=4.5,L=21.9 |
1 | ||
| 90937-01396 |
KDN165,170 16G,T=4.5,L=14.6 |
1 | ||
| 90937-01398 |
KDN165,170 20G,T=4.5,L=18.3 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01192 |
RZN168..DCB;LN165,170,RZN173 12G,T=4.5 |
1 | ||
| 90937-01184 |
RZN168..DCB;LN165,170,RZN173 4G,T=1.6 |
1 | ||
| 90937-01269 |
RZN168..DCB;LN165,170,RZN173 40G,L=25.6 |
1 | ||
| 90937-01191 |
RZN168..DCB;LN165,170,RZN173 8G,T=1.6 |
1 | ||
| 90937-01199 |
RZN168..DCB;LN165,170,RZN173 28G,T=6,L=22.7 |
1 | ||
| 90937-01271 |
RZN168..DCB;LN165,170,RZN173 48G,L=24.6 |
1 | ||
| 90937-01270 |
RZN168..DCB;LN165,170,RZN173 44G,L=22.6 |
1 | ||
| 90937-01273 |
RZN168..DCB;LN165,170,RZN173 56G,L=28.7 |
1 | ||
| 90937-01194 |
RZN168..DCB;LN165,170,RZN173 20G,T=4.5 |
1 | ||
| 90937-01268 |
RZN168..DCB;LN165,170,RZN173 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01184 |
KDN165,170 4G,T=1.6 |
1 | ||
| 90937-01274 |
RZN168..DCB;LN165,170,RZN173 60G,L=28.7 |
1 | ||
| 90937-01194 |
KDN165,170 20G,T=4.5 |
1 | ||
| 90937-01198 |
KDN165,170 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01272 |
RZN168..DCB;LN165,170,RZN173 52G,L=26.7 |
1 | ||
| 90937-01199 |
KDN165,170 28G,T=6,L=22.7 |
1 | ||
| 90937-01193 |
KDN165,170 16G,T=4.5 |
1 | ||
| 90937-01200 |
RZN168..DCB;LN165,170,RZN173 32G,T=6,L=24.3 |
1 | ||
| 90937-01191 |
KDN165,170 8G,T=1.6 |
1 | ||
| 90937-01192 |
KDN165,170 12G,T=4.5 |
1 | ||
| 90937-01272 |
KDN165,170 52G,L=26.7 |
1 | ||
| 90937-01273 |
KDN165,170 56G,L=28.7 |
1 | ||
| 90937-01198 |
RZN168..DCB;LN165,170,RZN173 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01200 |
KDN165,170 32G,T=6,L=24.3 |
1 | ||
| 90937-01268 |
KDN165,170 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01271 |
KDN165,170 48G,L=24.6 |
1 | ||
| 90937-01193 |
RZN168..DCB;LN165,170,RZN173 16G,T=4.5 |
1 | ||
| 90937-01270 |
KDN165,170 44G,L=22.6 |
1 | ||
| 90937-01269 |
KDN165,170 40G,L=25.6 |
1 | ||
| 90937-01274 |
KDN165,170 60G,L=28.7 |
1 | ||

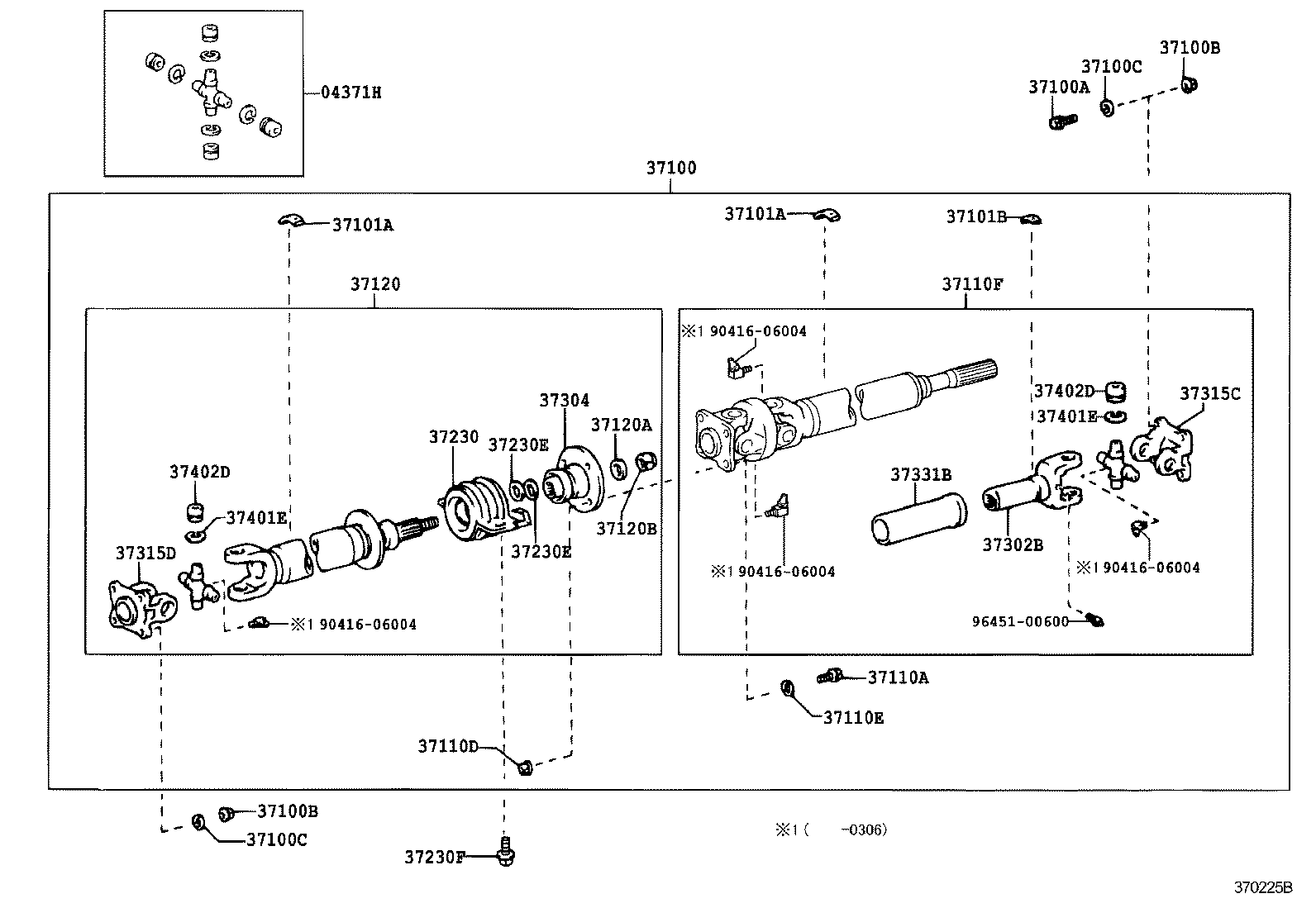

| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LN145,150,170,190,RZN168,173 *10-1.00PX27-13 |
4 | ||
| 90105-10085 |
KDN145,150,165,170,190 *10-1.00PX27-13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LN145,150,170,190,RZN168,173 |
4 | ||
| 90179-10059 |
KDN145,150,165,170,190 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
KDN145,150,165,170,190 |
4 | ||
| 90204-10002 |
LN145,150,170,190,RZN168,173 |
4 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-3D520 |
KDN170 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-3D030 |
KDN170 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
KDN145,150,165,170,190 OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
KDN145,150,165,170,190 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-35130 |
KDN165,170 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25006 |
KDN145,150,165,170,190 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25006 |
KDN145,150,165,170,190 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10049 |
LN145,150,170,190,RZN168 |
2 | ||
| 90119-10049 |
KDN145,150,165,170 |
2 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
KDN165,170 |
1 | ||
| 37302-35050 |
LN165,170,RZN173 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
KDN145,150,165,170,190 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35070 |
KDN165,170 |
1 | ||
| 37315-35040 |
LN165,170,190 |
2 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35070 |
KDN165,170 |
1 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-35020 |
KDN165,170 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-25039 |
KDN165,170 T=2.29,MARK 1 |
4 | ||
| 90520-25041 |
KDN165,170 T=2.33,NO MARK |
4 | ||
| 90520-25043 |
KDN165,170 T=2.37,BLUE |
4 | ||
| 90520-25040 |
KDN165,170 T=2.31,MARK 2 |
4 | ||
| 90520-25044 |
KDN165,170 T=2.39,MARK 6 |
4 | ||
| 90520-25047 |
KDN165,170 T=2.45,MARK 9 |
4 | ||
| 90520-25049 |
KDN165,170 T=2.49,MARK A |
4 | ||
| 90520-25045 |
KDN165,170 T=2.41,MARK 7 |
4 | ||
| 90520-25048 |
KDN165,170 T=2.47,MARK 10 |
4 | ||
| 90520-25050 |
KDN165,170 T=2.51,MARK B |
4 | ||
| 90520-25046 |
KDN165,170 T=2.43,MARK 8 |
4 | ||
| 90520-25042 |
KDN165,170 T=2.35,BROWN |
4 | ||
| 90520-25052 |
KDN165,170 T=2.55,MARK D |
4 | ||
| 90520-25057 |
KDN165,170 T=2.25,MARK G |
4 | ||
| 90520-25054 |
KDN165,170 T=2.19,MARK D |
4 | ||
| 90520-25053 |
KDN165,170 T=2.57,MARK E |
4 | ||
| 90520-25056 |
KDN165,170 T=2.23,MARK F |
4 | ||
| 90520-25055 |
KDN165,170 T=2.21,MARK E |
4 | ||
| 90520-25051 |
KDN165,170 T=2.53,MARK C |
4 | ||
| 90520-25058 |
KDN165,170 T=2.27,MARK H |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-25039 |
KDN165,170 T=2.29,MARK 1 |
4 | ||
| 90520-25041 |
KDN165,170 T=2.33,NO MARK |
4 | ||
| 90520-25043 |
KDN165,170 T=2.37,BLUE |
4 | ||
| 90520-25040 |
KDN165,170 T=2.31,MARK 2 |
4 | ||
| 90520-25044 |
KDN165,170 T=2.39,MARK 6 |
4 | ||
| 90520-25047 |
KDN165,170 T=2.45,MARK 9 |
4 | ||
| 90520-25049 |
KDN165,170 T=2.49,MARK A |
4 | ||
| 90520-25045 |
KDN165,170 T=2.41,MARK 7 |
4 | ||
| 90520-25048 |
KDN165,170 T=2.47,MARK 10 |
4 | ||
| 90520-25050 |
KDN165,170 T=2.51,MARK B |
4 | ||
| 90520-25046 |
KDN165,170 T=2.43,MARK 8 |
4 | ||
| 90520-25042 |
KDN165,170 T=2.35,BROWN |
4 | ||
| 90520-25052 |
KDN165,170 T=2.55,MARK D |
4 | ||
| 90520-25057 |
KDN165,170 T=2.25,MARK G |
4 | ||
| 90520-25054 |
KDN165,170 T=2.19,MARK D |
4 | ||
| 90520-25053 |
KDN165,170 T=2.57,MARK E |
4 | ||
| 90520-25056 |
KDN165,170 T=2.23,MARK F |
4 | ||
| 90520-25055 |
KDN165,170 T=2.21,MARK E |
4 | ||
| 90520-25051 |
KDN165,170 T=2.53,MARK C |
4 | ||
| 90520-25058 |
KDN165,170 T=2.27,MARK H |
4 | ||
| Common parts | ||||
| 90416-06004 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
