KDN170L-CRMSYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9708- )KDN145,150,LN145,150,165,170,RZN168,173..LHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9012908009 9046816012 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35250

RZN168..DCB;LN145,150,165,170,RZN173..LHD

 1
31310-35051

KDN165,170..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030

LN145,150,165,170,RZN168,173

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,RZN173

 1
90541-06036

KDN145,150,165,170

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,RZN173

 1
90541-06036

KDN145,150,165,170

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN145,150,165,170,RZN168,173

 2
90386-13007

KDN165..LHD;KDN145,150,170

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN145,150,165,170,RZN168,173

 2
90386-13007

KDN165..LHD;KDN145,150,170

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KDN145,150,165,170

 1
90101-10369

LN145,150,165,170,RZN168,173

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

RZN168..DCB;LN145,150,165,170,RZN173..LHD

 1
31321-52010

KDN145,150,165,170..LHD

 1
31324 - SHAFT, CLUTCH PEDAL
91121-61070

LN145,150,165,170,RZN168,173..LHD

 1
91121-51090

KDN165,170..LHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10027

LN145,150,165,170,RZN168,173..LHD

 1
90387-10121

KDN165,170..LHD

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010

KDN145,150,165,170

L=27

 1
47148-34010

LN145,150,165,170,RZN168,173

L=27

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

KDN165..LHD;KDN145,150,170

 1
90386-08002

LN145,150,165,170,RZN168,173

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35080

LN145,150,165,170,RZN168,173..LHD

 1
55107-35090

KDN165,170..LHD

 1
Common parts
90129-08009
90468-16012
94120-41000
94512-01000

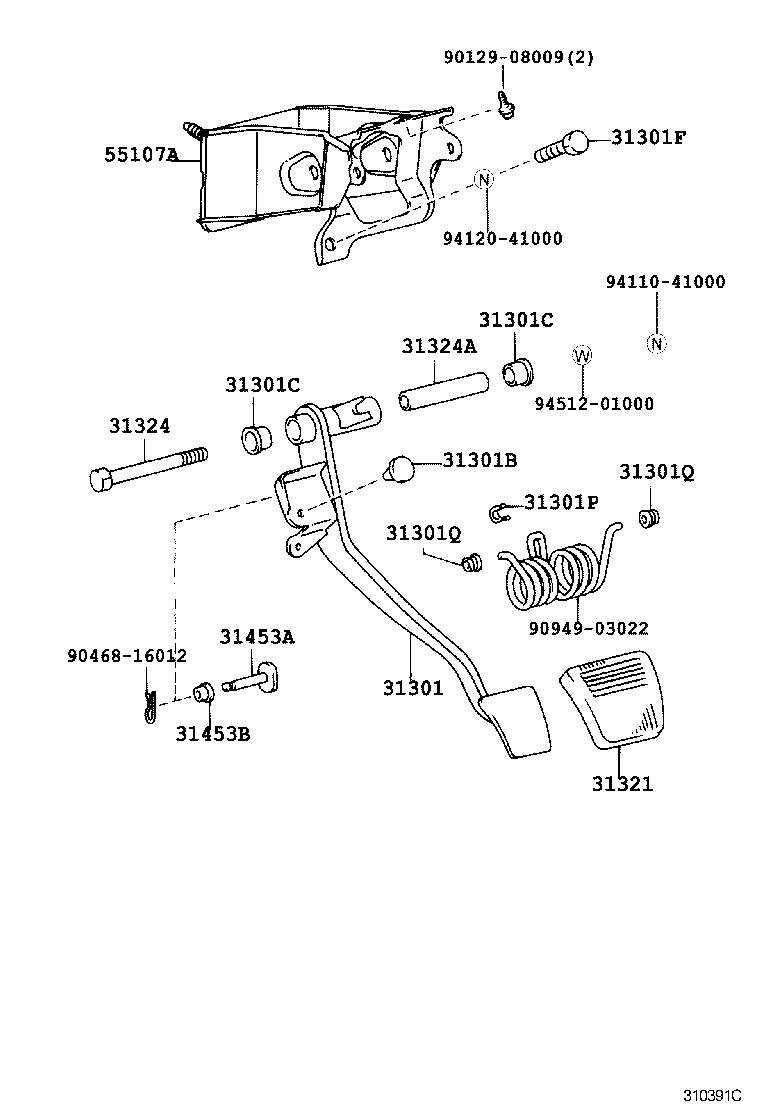

ILLUST NO. 1 OF 2(0108- )KDN165,170..LHD

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301P 31301Q 31301Q 31321 31324 31324A 31453A 31453B 55107A 9012908009 9046816012 9094903022 9411041000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35250

RZN168..DCB;LN145,150,165,170,RZN173..LHD

 1
31310-35051

KDN165,170..LHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,RZN173

 1
90541-06036

KDN145,150,165,170

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN145,150,165,170,RZN168,173

 2
90386-13007

KDN165..LHD;KDN145,150,170

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN145,150,165,170,RZN168,173

 2
90386-13007

KDN165..LHD;KDN145,150,170

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KDN145,150,165,170

 1
90101-10369

LN145,150,165,170,RZN168,173

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-05017

KDN165,170..LHD

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-05018

KDN165,170..LHD

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-05018

KDN165,170..LHD

 2
31321 - PAD, CLUTCH PEDAL
31321-14020

RZN168..DCB;LN145,150,165,170,RZN173..LHD

 1
31321-52010

KDN145,150,165,170..LHD

 1
31324 - SHAFT, CLUTCH PEDAL
91121-61070

LN145,150,165,170,RZN168,173..LHD

 1
91121-51090

KDN165,170..LHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10027

LN145,150,165,170,RZN168,173..LHD

 1
90387-10121

KDN165,170..LHD

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010

KDN145,150,165,170

L=27

 1
47148-34010

LN145,150,165,170,RZN168,173

L=27

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

KDN165..LHD;KDN145,150,170

 1
90386-08002

LN145,150,165,170,RZN168,173

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35080

LN145,150,165,170,RZN168,173..LHD

 1
55107-35090

KDN165,170..LHD

 1
Common parts
90129-08009
90468-16012
90949-03022
94110-41000
94120-41000
94512-01000

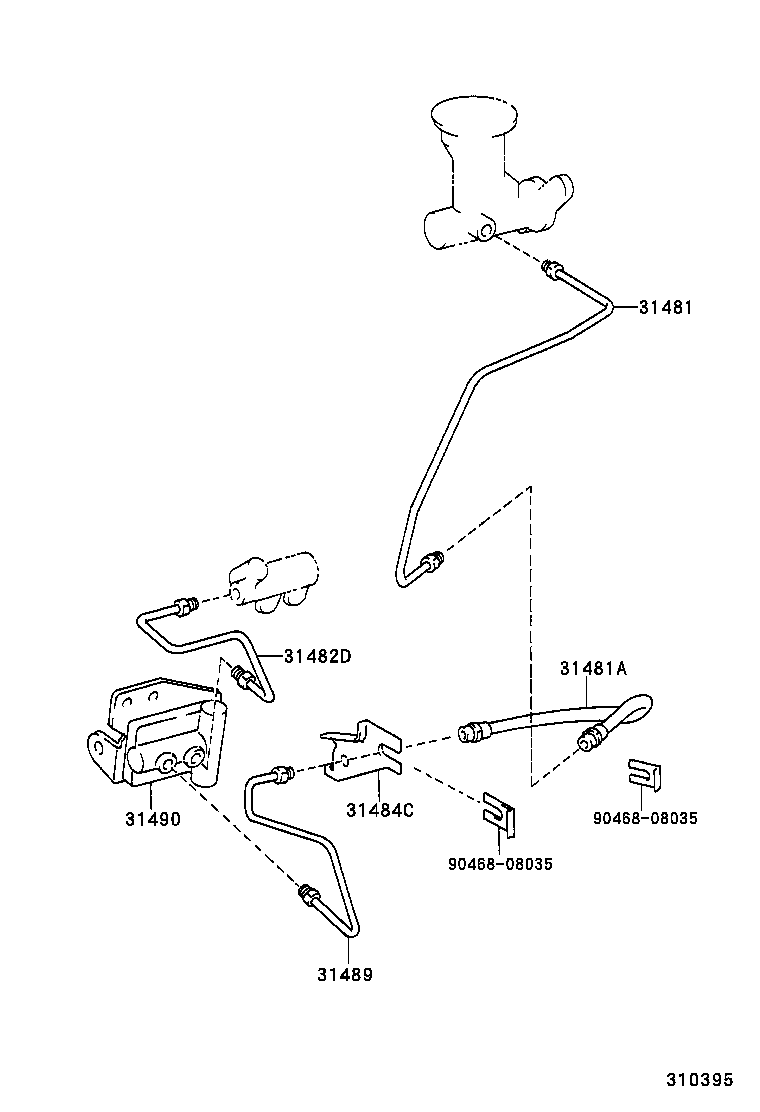

ILLUST NO. 2 OF 2(9708- )LN165,170..LHD

Click highlighted areas on diagram

diagram 31481 31481A 31482D 31484C 31489 31490 9046808035 9046808035
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35450

LN165,170,RZN168,173..LHD

 1
31481-35450

KDN145,150,165,170..LHD

 1
31481A - HOSE, CLUTCH, NO.1
90947-02953

LN145,150,165,170,RZN168,173

 1
90947-02953

KDN145,150,165,170

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-35420

LN165,170..LHD

 1
31482-35430

KDN145,150,165,170

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310

LN145,150,165,170

 1
31484-35340

KDN145,150,165,170

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-35070

KDN145,150,165,170

 1
31489-35060

LN165,170..LHD

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35080

KDN145,150,165,170

 1
31490-35060

LN165,170..LHD

 1
Common parts
90468-08035

ILLUST NO. 2 OF 2(0108- )LHD

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482D 31484C 31489 31490 9046112413 9046112413 9046808035 9046808035 91611B0812 91611B0812
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35450

LN165,170,RZN168,173..LHD

 1
31481-35450

KDN145,150,165,170..LHD

 1
31481A - HOSE, CLUTCH, NO.1
90947-02953

LN145,150,165,170,RZN168,173

 1
90947-02953

KDN145,150,165,170

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-35420

LN165,170..LHD

 1
31482-35430

KDN145,150,165,170

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310

LN145,150,165,170

 1
31484-35340

KDN145,150,165,170

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-35070

KDN145,150,165,170

 1
31489-35060

LN165,170..LHD

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35080

KDN145,150,165,170

 1
31490-35060

LN165,170..LHD

 1
Common parts
90461-12413
90468-08035
91611-B0812
Linked diagrams
3103
3105
