KDN165R-PRMSYW (2001)
Toyota Hilux

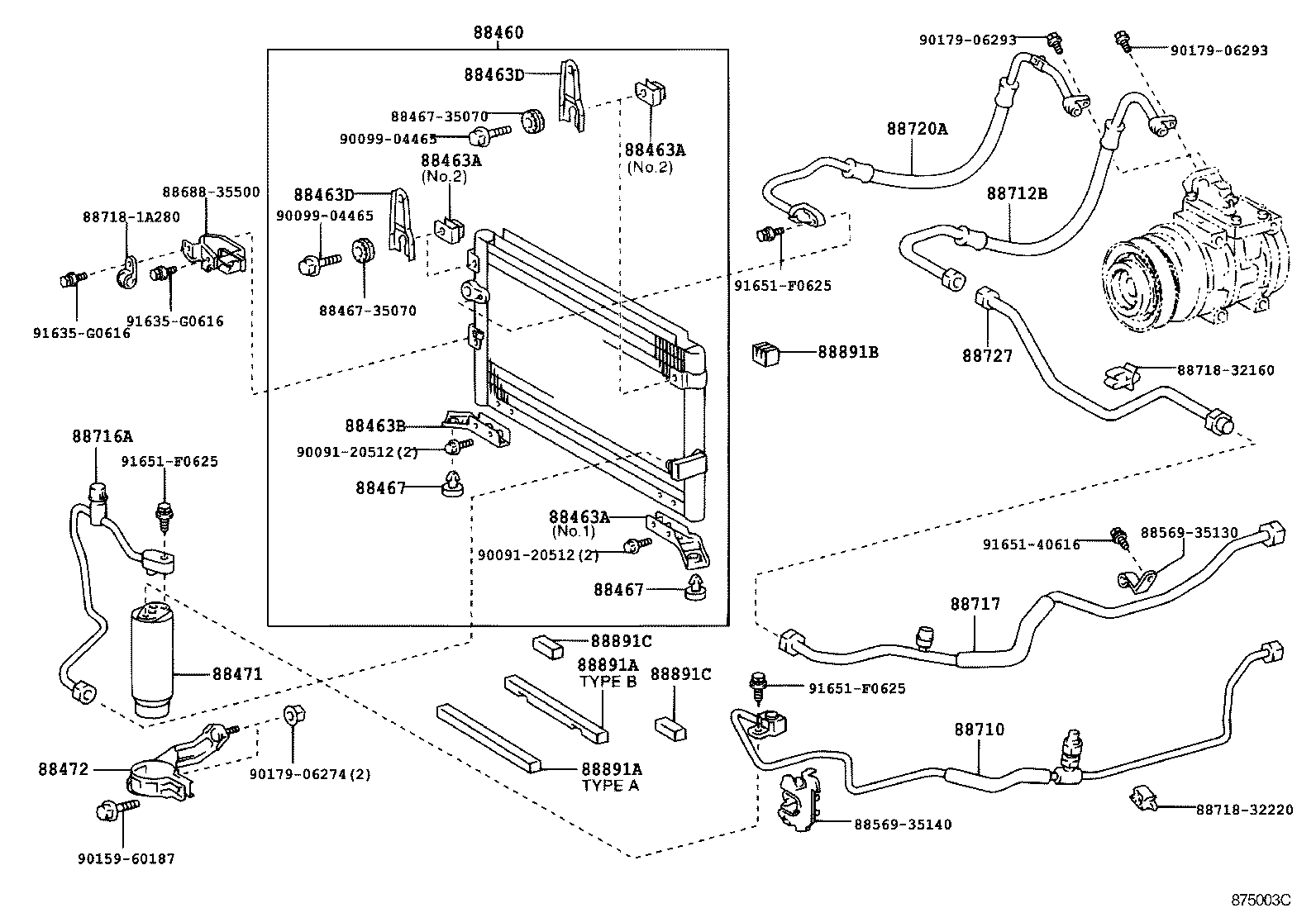

ILLUST NO. 1 OF 2(0108- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-35270 |
KDN145,150,165..RHD |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35100 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU NO.1 |
1 | ||
| 88463-35120 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU NO.2 |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35100 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU NO.1 |
1 | ||
| 88463-35120 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU NO.2 |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-35100 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU NO.1 |
1 | ||
| 88463-35120 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU NO.2 |
2 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-35110 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-35180 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
2 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88463-35180 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-35030 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-35030 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-35050 |
KDN145,150,165..RHD |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35490 |
KDN145,150,165..RHD |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-35580 |
KDN145,150,165..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35590 |
KDN145,150,165..RHD |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-35160 |
KDN145,150,165..RHD |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-35450 |
KDN145,150,165..RHD |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-35040 |
KDN145,150,165..RHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-35130 |
KDN165..SCB..IV3;KDN165,170,190..CBU |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-35130 |
KDN165..SCB..IV3;KDN165,170,190..CBU |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-35120 |
KDN145,150,165..RHD |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89111 |
KDN165..SCB..IV3;KDN165,170,190..CBU |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89111 |
KDN165..SCB..IV3;KDN165,170,190..CBU |
2 | ||
| Common parts | ||||
| 88467-35070 | ||||
| 88569-35130 | ||||
| 88569-35140 | ||||
| 88688-35500 | ||||
| 88718-1A280 | ||||
| 88718-32160 | ||||
| 88718-32220 | ||||
| 90091-20512 | ||||
| 90099-04465 | ||||
| 90159-60187 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91635-G0616 | ||||
| 91651-40616 | ||||
| 91651-F0625 | ||||
