KDN150R-CRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

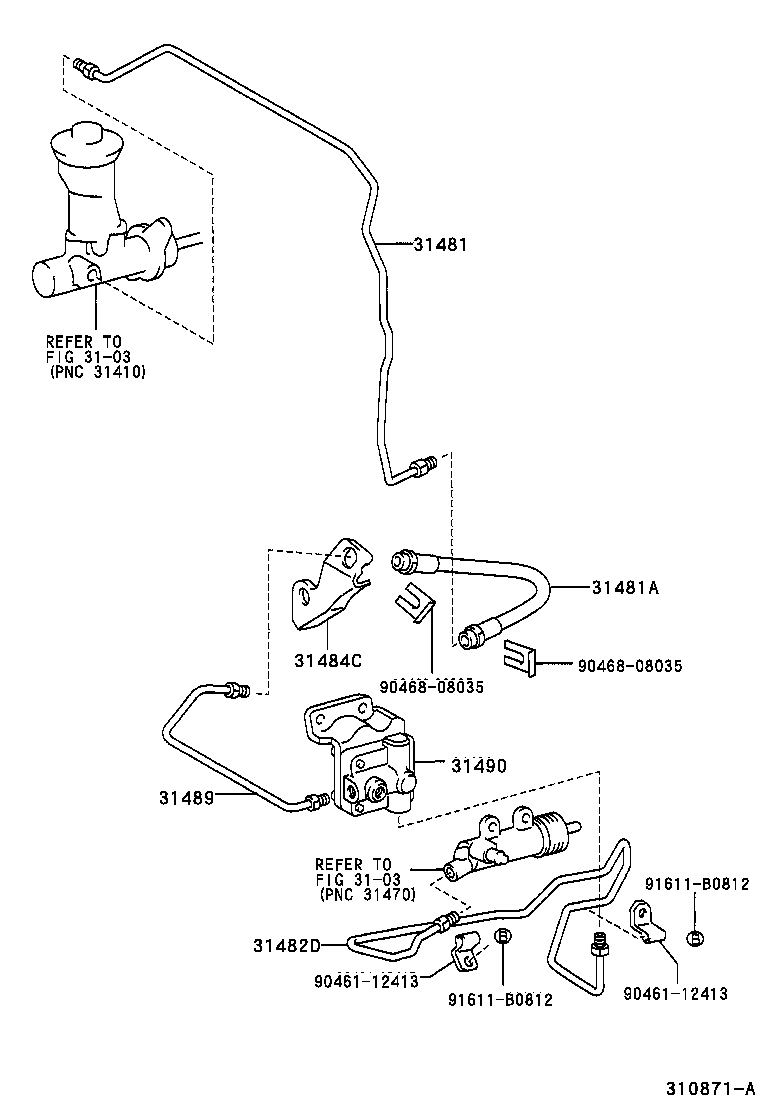

ILLUST NO. 2 OF 2(0108- )RHD

Click highlighted areas on diagram

diagram 3103 3103 31481 31481A 31482D 31484C 31489 31490 9046112413 9046112413 9046808035 9046808035 91611B0812 91611B0812
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35480

KDN145,150,165..RHD

 1
31481A - HOSE, CLUTCH, NO.1
90947-02953

LN145,150,165,170,RZN168,173

 1
90947-02953

KDN145,150,165,170

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-35430

KDN145,150,165,170

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310

LN145,150,165,170

 1
31484-35340

KDN145,150,165,170

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-35070

KDN145,150,165,170

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35080

KDN145,150,165,170

 1
Common parts
90461-12413
90468-08035
91611-B0812
Linked diagrams
3103
