KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

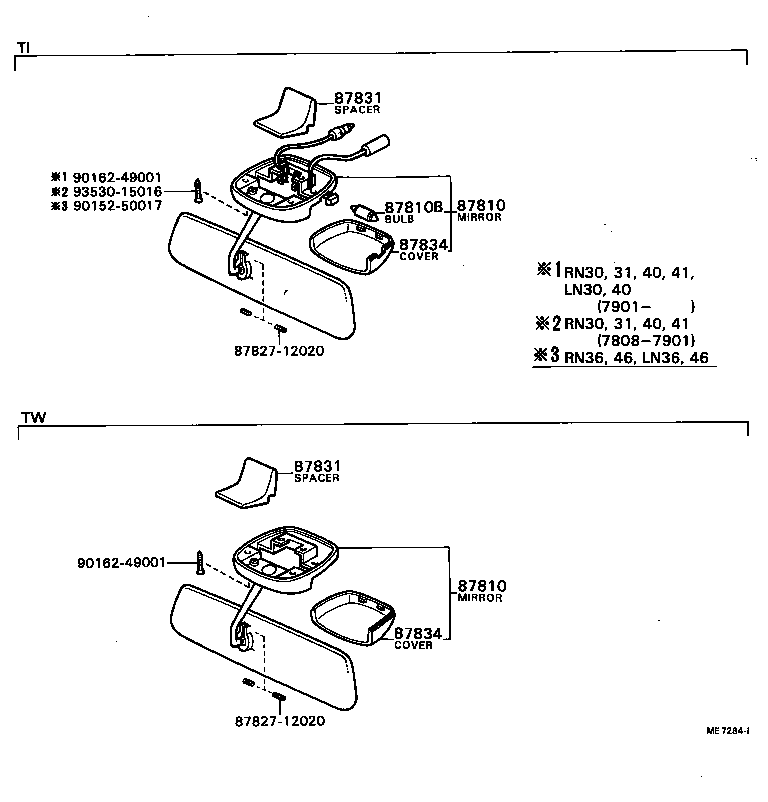

Click highlighted areas on diagram

diagram 87810 87810 87810B 8782712020 8782712020 87831 87831 87834 87834 9015250017 9016249001 9016249001 9353015016
Part # Description Qty Price
Common parts
87827-12020
90152-50017
90162-49001
93530-15016

(7808- )

Click highlighted areas on diagram

diagram 87910 87910 87910 87910 87910 87910 87911 87927 87927 87940 87940 87940 87940 87940 87940 87941 9017908123 9321965020 9323066016 9323066016 9323965016 9418040600 9418040800
Part # Description Qty Price
Common parts
90179-08123
93219-65020
93230-66016
93239-65016
94180-40600
94180-40800

(9708- )

Click highlighted areas on diagram

diagram 87810 87810 87810B 87834 87834 87901B 87901B 87906B 87906B 87910 87910 87940 87940 9015760010 9015760010 91511B0616 91511B0616
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-89138B2

KDN145,165..SCB

LT.BLUISH GRAY,TRIM1#

 1
87810-89140B0

KDN145,165..SCB

W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-89138B2

KDN145,165..SCB

LT.BLUISH GRAY,TRIM1#

 1
87810-89140B0

KDN145,165..SCB

W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-13050

KDN145,165..SCB

12V 5W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-89104

KDN145,165..SCB

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-89104

KDN145,165..SCB

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-35440

KDN145,150

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-35440

KDN145,150

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-35410

KDN145,150

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-35410

KDN145,150

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-35440

KDN145,150

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-35440

KDN145,150

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-35410

KDN145,150

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-35410

KDN145,150

 1
Common parts
90157-60010
91511-B0616
