KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )

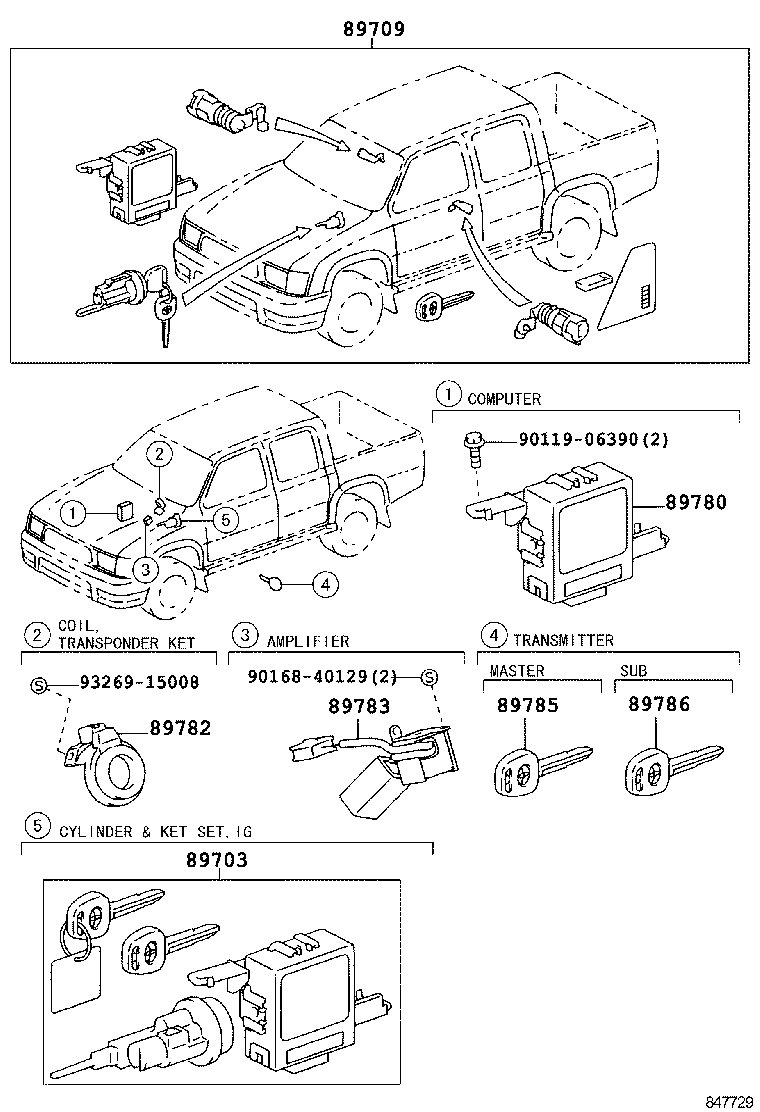

Click highlighted areas on diagram

diagram 89703 89709 89780 89782 89783 89785 89786 9011906390 9016840129 9326915008
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-35110

KDN145,150,165,170,190..LHD

 1
89709 - COMPUTER SET, TRANSPONDER KEY
89709-35220

KDN145,150,165,170..LHD..(SCB,XTR)..CBU

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-35070

KDN145,150,165,170,190..LHD

 1
89782 - COIL, TRANSPONDER KEY
89782-44010

KDN145,150,165,170,190

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-35010

KDN145,150,165,170,190

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-35060

KDN145,150,165,170,190

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-35080

KDN145,150,165,170,190

 1
Common parts
90119-06390
90168-40129
93269-15008
