KDN145L-TRMDYW (2001)
Toyota Hilux
Production
Aug 2001
-
Aug 2005
Engine
2KDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )KDN145,150,LN145,150

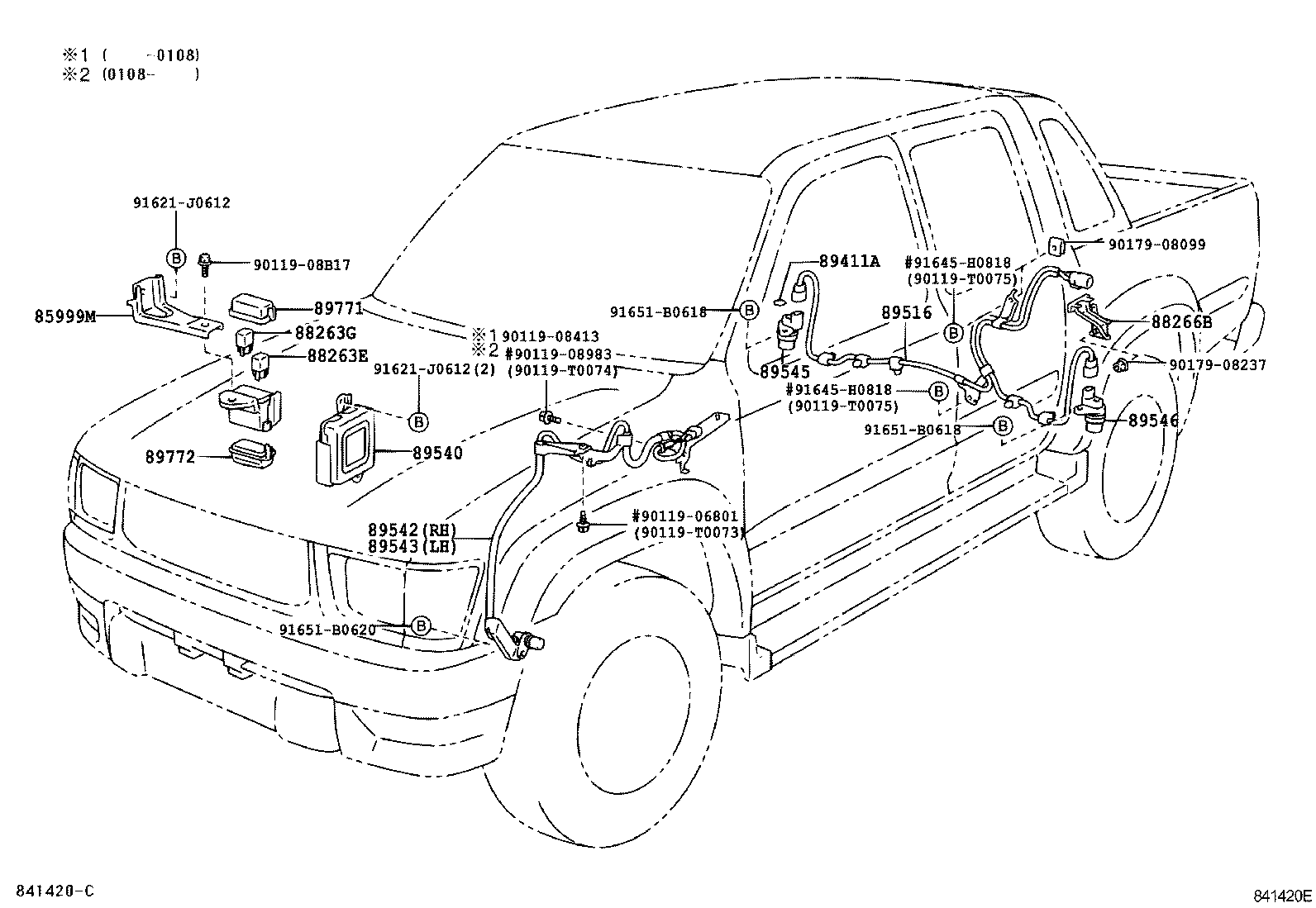

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-35110 |
KDN145,150,165,170,190..LHD |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
KDN145,150,165,170,190 |
1 | ||
| 88263G - RELAY, SKID CONTROL | ||||
| 88263-14110 |
KDN145,150,165,170,190 |
1 | ||
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-35600 |
KDN145,150,165,170,190 |
1 | ||
| 89411A - RING, O (FOR SPEED SENSOR) | ||||
| 96723-19021 |
KDN145,150,165,170,190 |
2 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-35050 |
KDN145,150 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-35140 |
KDN145,150,190 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-35080 |
KDN145,150 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-35080 |
KDN145,150 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-35020 |
KDN145,150,165,170,190 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-35020 |
KDN145,150,165,170,190 |
1 | ||
| 89771 - COVER, ABS RELAY BLOCK, UPPER | ||||
| 89771-12010 |
KDN145,150,165,170,190 |
1 | ||
| 89772 - COVER, ABS RELAY BLOCK, LOWER | ||||
| 89772-12010 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 90119-06801 | ||||
| 90119-08413 | ||||
| 90119-08983 | ||||
| 90119-08B17 | ||||
| 90119-T0073 | ||||
| 90119-T0074 | ||||
| 90119-T0075 | ||||
| 90179-08099 | ||||
| 90179-08237 | ||||
| 91621-J0612 | ||||
| 91645-H0818 | ||||
| 91651-B0618 | ||||
| 91651-B0620 | ||||
