KDN145L-TRMDYW (2001)
Toyota Hilux
(7808- )RN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08063 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8601 | ||||

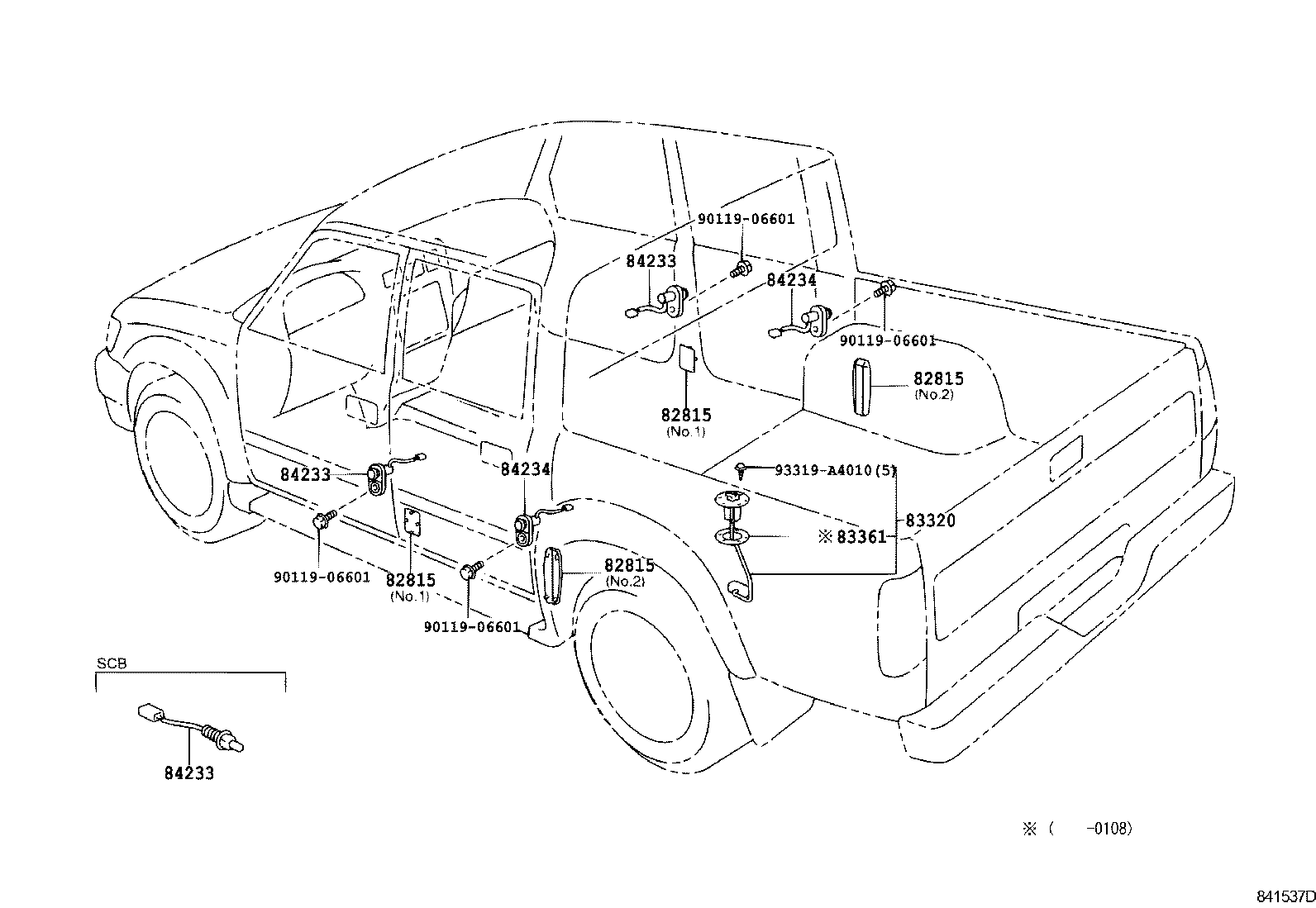

ILLUST NO. 5 OF 6(9708- )
DOOR & FLOOR SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80401 |
KDN145,150..(SCB,XTR)..DLX 69L |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20120 |
KDN145,150,165,170..SCB,XTR |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20120 |
KDN145,150,165,170..SCB,XTR |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20120 |
KDN145,150,165,170..SCB,XTR |
2 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 93319-A4010 | ||||
ILLUST NO. 2 OF 6(0108- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54360 |
2KDFTV..KDN145,150,165,170,190 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
KDN145,150,165,170,190 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
KDN145,150,165,170,190 15A,MINI FUSE,BLUE |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-35040 |
KDN165,170..LHD;KDN145..LHD..DLX;KDN150..LHD..CBU |
1 | ||
| 82602-35040 |
KDN145..LHD..SCB;KDN150,165,170..LHD..CBU |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
KDN145,150,165,170,190 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35070 |
KDN145,150,165,170,190 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82741-35100 |
KDN145,150,165,170,190..LHD |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-35010 |
KDN145,150,165,170,190 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
KDN145,150,165,170,190 |
1 | ||
| 85276A - RELAY, CLEANER CONTROL | ||||
| 85942-33010 |
KDN145..LHD..SCB;KDN150,165,170..LHD..(SCB,XTR)..CBU |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KDN145,150,165,170,190 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
KDN145,150,165,170,190 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KDN145,150,165,170,190 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
KDN165,170;KDN150..CBU;KDN145..DLX |
1 | ||
| 85926-30020 |
KDN145..SCB;KDN150,165,170..CBU |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-35120 |
KDN145..LHD..SCB;KDN150,165,170..LHD..(SCB,XTR)..CBU |
1 | ||
| 89701 - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-12010 |
KDN145,150,165,170,190 |
1 | ||
| 89701 - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-12010 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 91621-J0614 | ||||
| 91626-F0616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

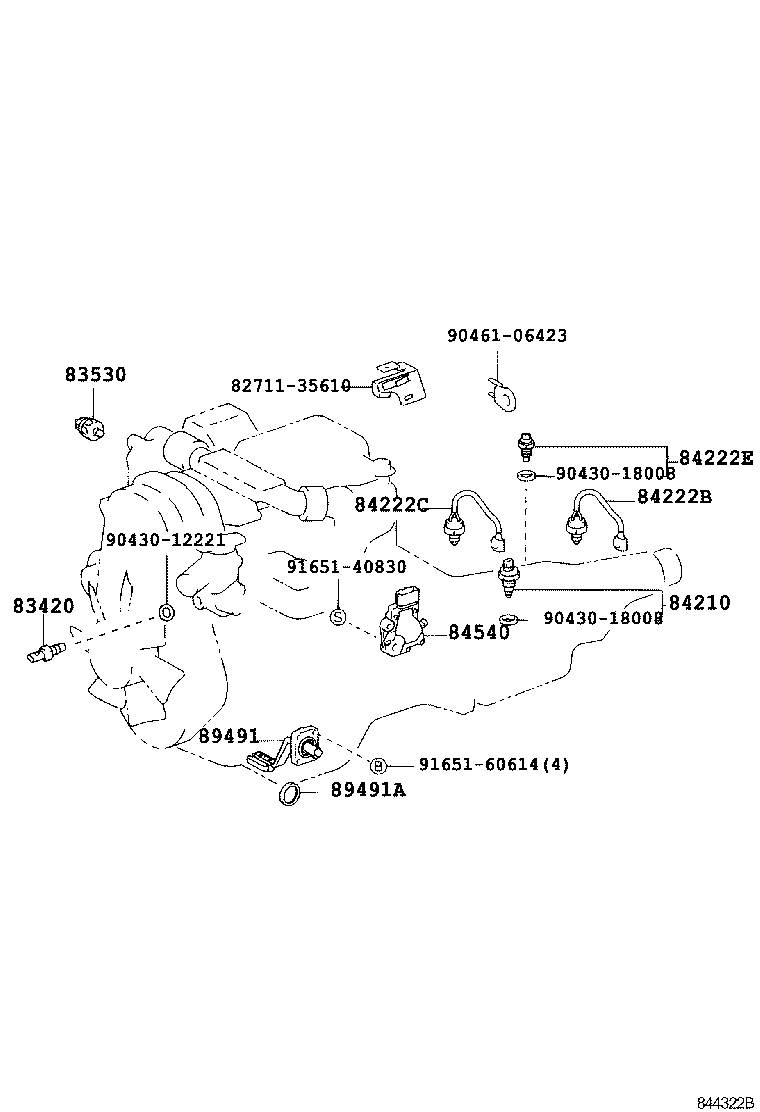

ILLUST NO. 1 OF 6(0108- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
KDN145,150,165,170,190 |
1 | ||
| 83420-26010 |
KDN145,150,165,170,190 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDN145,150,165,170,190 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KDN145,150,165,170 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-35050 |
KDN145,150 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 82711-35610 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90461-06423 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||
ILLUST NO. 6 OF 6(9708- )LHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
KDN145,150,165,170,190 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26140 |
KDN145,150,165,170,190 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-26070 |
KDN145,150,165,170,190 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35630 |
KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB |
1 | ||
| 84310-3D110 |
KDN145,150,165,170,190 W(*80) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDN145,150,165,170,190 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G010 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

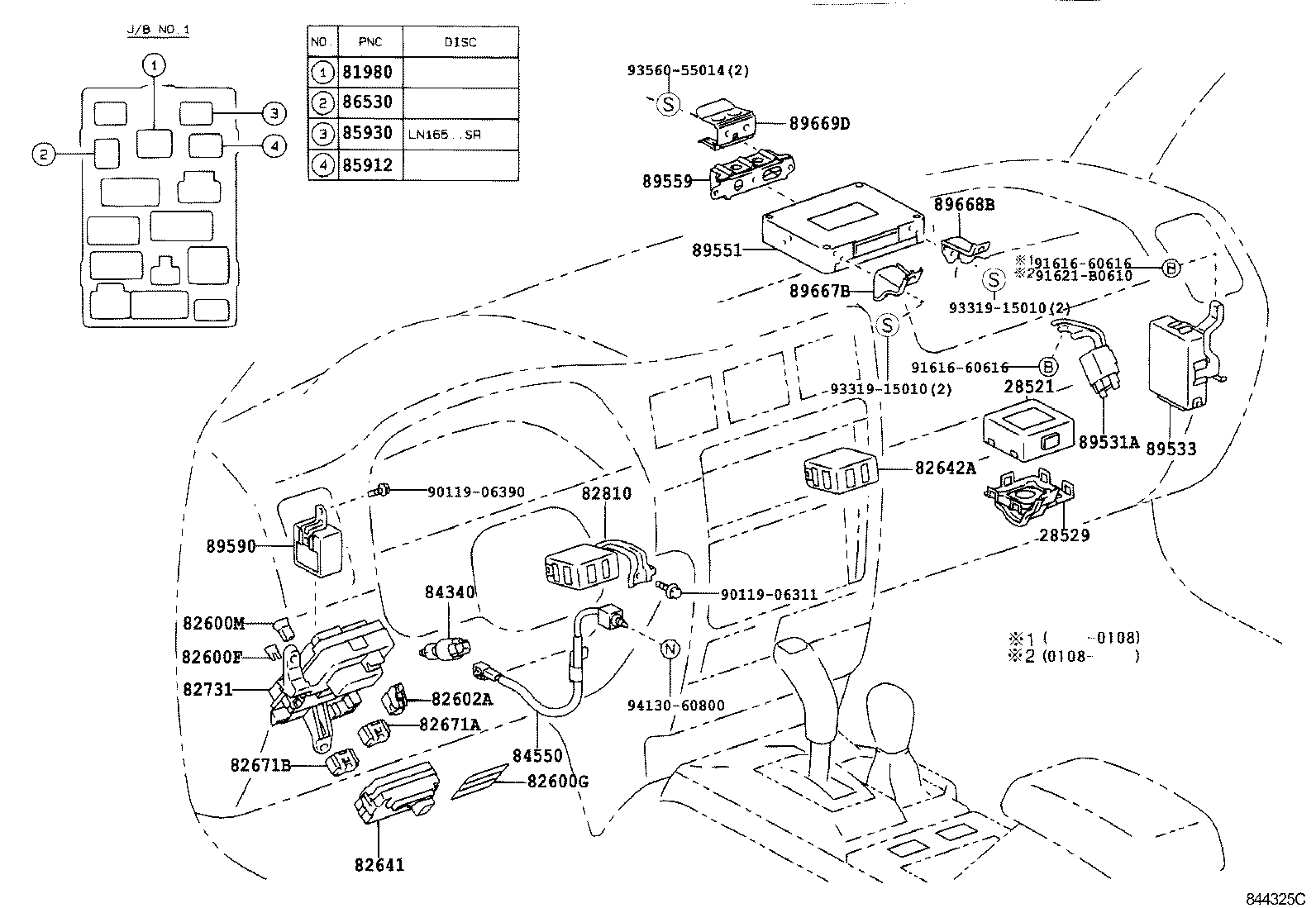

ILLUST NO. 4 OF 6(9708- )LHD
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
KDN145,150,165,170,190 |
1 | ||
| 81980-32010 |
KDN145,150,165,170,190 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
KDN145,150,165,170,190 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
KDN145,150,165,170,190 15A,MINI FUSE,BLUE |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-35120 |
KDN145,150,165,170,190 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
KDN145,150,165,170,190 30A,PINK |
1 | ||
| 82602A - BLOCK SUB-ASSY, RELAY | ||||
| 82602-35150 |
KDN145,150,165,170,190 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-35220 |
KDN145,150,165,170..LHD..DLX W(LIGHT REMIND WARNING) |
1 | ||
| 82641-35270 |
KDN165..SCB;KDN145,150,170..DLX;KDN165..LHD..DCB..DLX W(KEY REMIND WARNING & LIGHT REMIND WARNING) |
1 | ||
| 82641-35200 |
KDN145,150,165,170..LHD..DLX W(KEY REMIND WARNING & SEAT BELT WARNING) |
1 | ||
| 82641-35280 |
KDN145,150,165,170..DLX W(KEY REMIND WARNING & LIGHT REMIND WARNING & POWER DOOR LOCK) |
1 | ||
| 82641-35230 |
KDN145..LHD..DLX;KDN150,165,170..LHD W(KEY REMIND WARNING & POWER DOOR LOCK) |
1 | ||
| 82641-60040 |
KDN145,150,165,170..LHD..DLX W(POWER DOOR LOCK) |
1 | ||
| 82641-35210 |
KDN145,150,165,170..LHD..DLX W(KEY REMIND WARNING & SEAT BELT WARNING & POWER DOOR LOCK) |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-12050 |
KDN165,170..LHD;KDN145..LHD..DLX;KDN150..LHD..CBU |
1 | ||
| 82642-12050 |
KDN145..LHD..SCB;KDN150,165,170..LHD..CBU |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30360 |
KDN145,150,165,170,190..LHD |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30370 |
KDN145,150,165,170,190..LHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-35030 |
KDN145,150,165,170..LHD |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-35060 |
KDN145..LHD..SCB;KDN150,165,170..LHD..CBU |
1 | ||
| 82810-35060 |
KDN165,170..LHD;KDN145..LHD..DLX;KDN150..LHD..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-35030 |
KDN145,150,165,170,190 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-34010 |
KDN145,150,165,170,190..LHD |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
KDN145,150,165,170,190 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
KDN145,150,165,170,190 |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-35020 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||
| 91616-60616 | ||||
| 91621-B0610 | ||||
| 93319-15010 | ||||
| 93560-55014 | ||||
| 94130-60800 | ||||

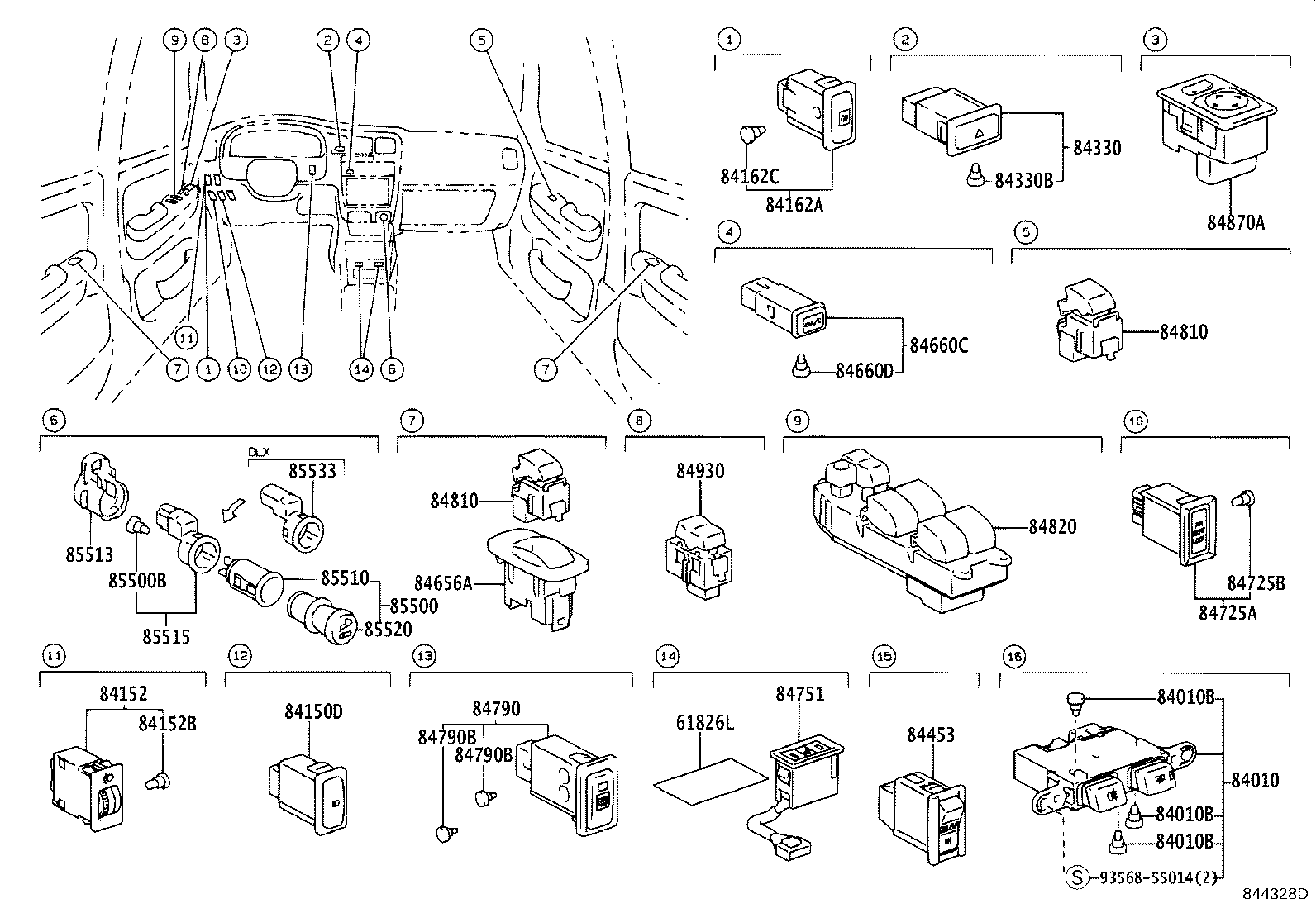

ILLUST NO. 3 OF 6(9708- )LHD
INSTRUMENT PANEL SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84010-35110 |
KDN145,150,165,170,190..LHD |
1 | ||
| 84010B - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-01078 |
KDN145,165..LHD..SCB 14V0.56W,W/GREEN CAP |
1 | ||
| 84010B - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-01078 |
KDN145,165..LHD..SCB 14V0.56W,W/GREEN CAP |
1 | ||
| 84010B - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-01078 |
KDN145,165..LHD..SCB 14V0.56W,W/GREEN CAP |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-89101 |
KDN145..LHD..SCB;KDN150,165,170..LHD..(SCB,XTR)..CBU |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-48010 |
KDN145..LHD..DLX;KDN150,165,170..LHD |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
KDN145..LHD..DLX;KDN150,165,170..LHD 14V 40MA, GREEN |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-35060 |
KDN145,150,165,170,190 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KDN145,150,165,170,190 14V 0.91W |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-35020 |
KDN145,150,165,170,190 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35030 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU 14V 0.065A |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10100 |
KDN145,150,165,170..LHD..(SCB,XTR) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
KDN145,150,165,170,190 |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
KDN145,150,165,170,190 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KDN145,150,165,170,190 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDN145,150,165,170,190 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDN145,150,165,170..DLX |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
