KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

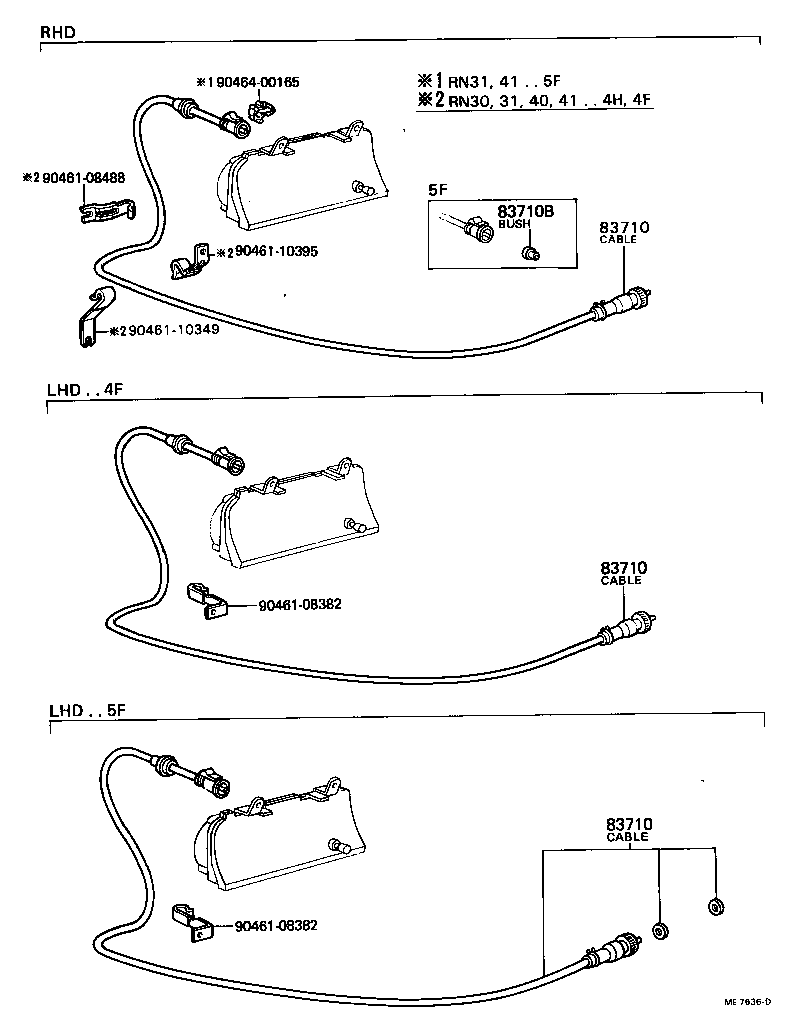

(7808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-08382
90461-08488
90461-10349
90461-10395
90464-00165

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

CLOCK & REVOLUTION DETECTOR

Part #	Description	Period	Qty	Price
83910 - CLOCK ASSY
83910-26020	KDN145,150,165,170,190	08/2001 - 12/2999	1

Part #

Description

Qty

Price

83910 - CLOCK ASSY

83910-26020

KDN145,150,165,170,190

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

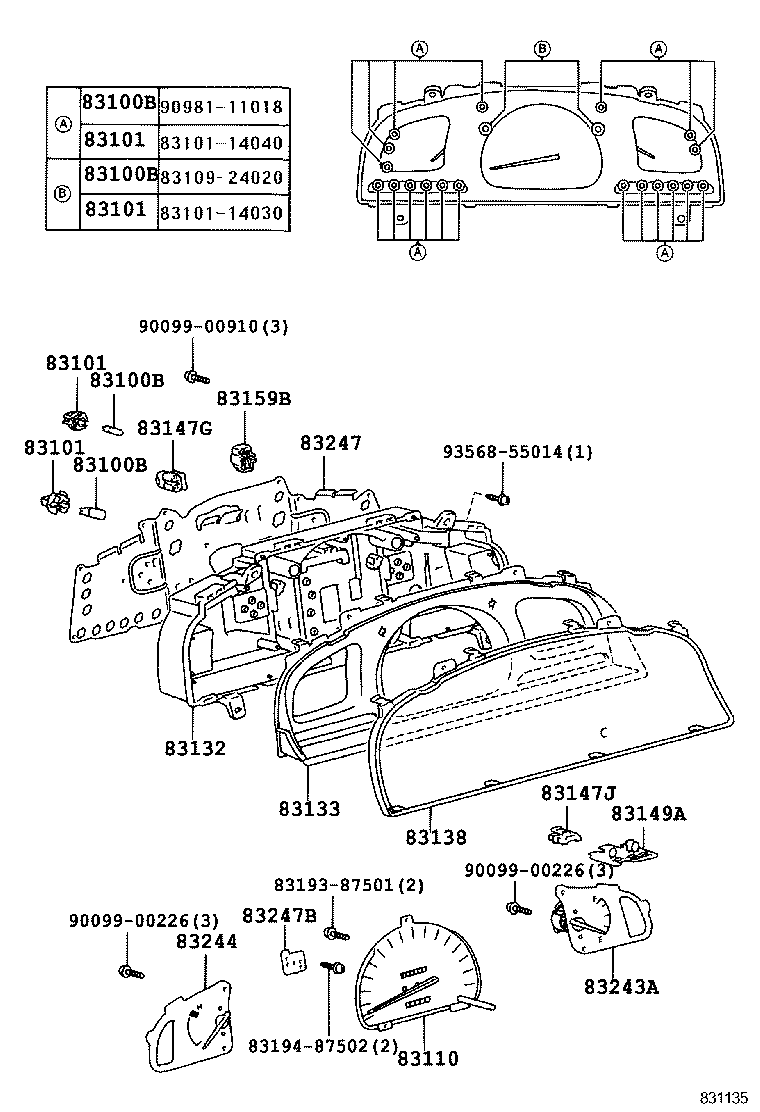

COMBINATION METER, W(TACHOMETER)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83110 - SPEEDOMETER ASSY
83220-35600	KDN170..CBU;KDN145,150,165..LHD..DLX	08/2001 - 12/2999	1
83132 - CASE, COMBINATION METER
83841-3D890	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83138 - GLASS, SPEEDOMETER
83852-3D890	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83159B - RELAY ASSY, METER
83159-22370	KDN145,150,165,170,190	08/2001 - 08/2005	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83882-3D750	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83883-3D750	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83247 - PLATE, METER CIRCUIT
83861-3D890	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
86650G - BUZZER ASSY
83248-20010	KDN170..CBU;KDN145,150,165..LHD..DLX	08/2001 - 12/2999	1
Common parts
83161-20380
83161-20800
83161-65020
83162-20140
90076-00005
90076-00018
93568-55014

ILLUST NO. 2 OF 3(9708- )KDN145,150,165,170,190

Click highlighted areas on diagram

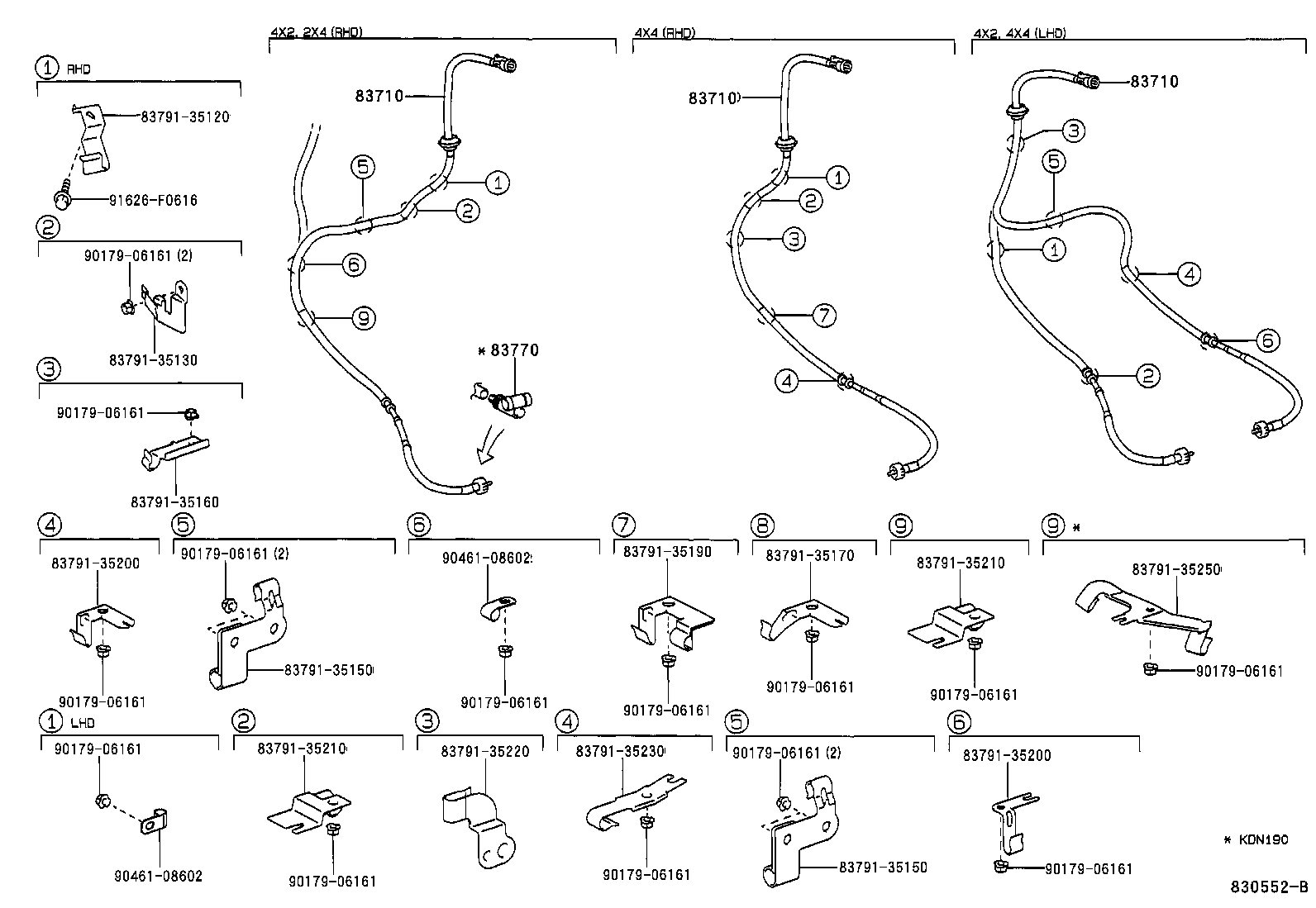

SPEEDOMETER DRIVE CABLE

Part #	Description	Period	Qty
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-35890	KDN145,150..LHD..DLX	08/2001 - 12/2999	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-35890	KDN145,150..LHD..DLX	08/2001 - 12/2999	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-35890	KDN145,150..LHD..DLX	08/2001 - 12/2999	1
Common parts
83791-35120
83791-35130
83791-35150
83791-35160
83791-35170
83791-35190
83791-35200
83791-35210
83791-35220
83791-35230
83791-35250
90179-06161
90461-08602
91626-F0616

ILLUST NO. 1 OF 3(0108- )

Click highlighted areas on diagram

COMBINATION METER, W/O(TACHOMETER)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83100B - BULB, COMBINATION METER, NO.1
83109-24020	KDN170..CBU;KDN145,150,165..DLX 12V3.4W W(GREEN CAP)	08/2001 - 08/2005	1
90981-11018	KDN170..CBU;KDN145,150,165..DLX 12V 1.2W W/O SOCKET	08/2001 - 08/2005	1
99132-12034	KDN170..CBU;KDN145,150,165..DLX 12V 3.4W	08/2001 - 08/2005	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	KDN170..CBU;KDN145,150,165..DLX TYPE A:REFER ILLUST.	08/2001 - 12/2999	1
83101-14030	KDN170..CBU;KDN145,150,165..DLX TYPE B:REFER ILLUST.	08/2001 - 12/2999	1
83110 - SPEEDOMETER ASSY
83220-35600	KDN170..CBU;KDN145,150,165..LHD..DLX	08/2001 - 12/2999	1
83132 - CASE, COMBINATION METER
83841-3D890	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83133 - PLATE, COMBINATION METER, NO.1
83811-35380	KDN170..CBU;KDN145,150,165..DLX	08/2001 - 08/2005	1
83138 - GLASS, SPEEDOMETER
83852-3D890	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83147G - CONNECTOR, COMBINATION METER
83147-28010	KDN170..CBU;KDN145,150,165..DLX	08/2001 - 12/2999	1
83159B - RELAY ASSY, METER
83159-22370	KDN145,150,165,170,190	08/2001 - 08/2005	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83882-3D750	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83883-3D750	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83247 - PLATE, METER CIRCUIT
83861-3D890	KDN170..CBU;KDN145,150,165..DLX W/O(TACHOMETER)	08/2001 - 08/2005	1
83247B - PLATE, METER CIRCUIT, NO.2
83862-3D890	KDN170..CBU;KDN145,150,165..DLX	08/2001 - 08/2005	1
Common parts
83193-87501
83194-87502
90099-00226
90099-00910
93568-55014

KDN145L-TRMDYW (2001)

(7808- )

ILLUST NO. 3 OF 3(9708- )

ILLUST NO. 1 OF 3(9708- )

ILLUST NO. 2 OF 3(9708- )KDN145,150,165,170,190

ILLUST NO. 1 OF 3(0108- )
