KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

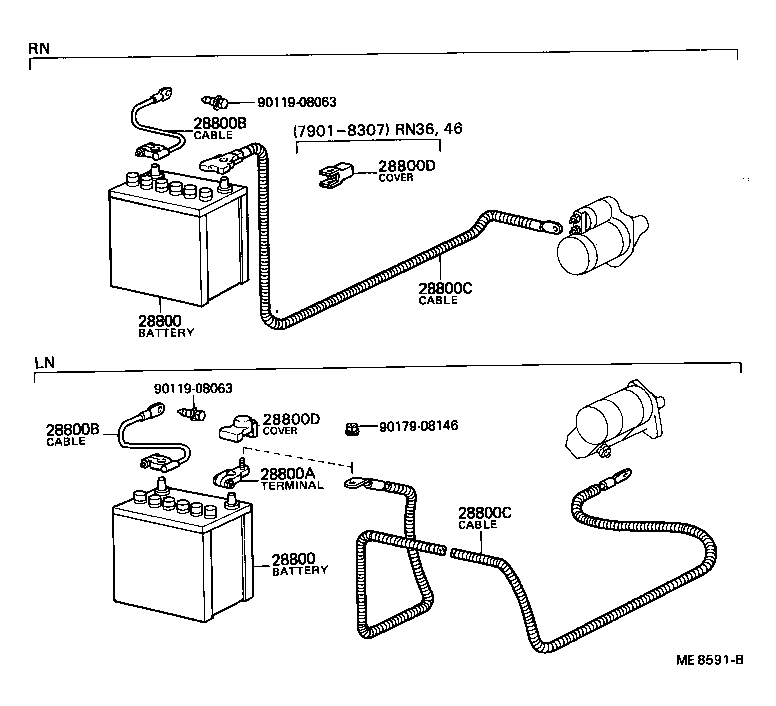

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800B 28800B 28800C 28800C 28800D 28800D 9011908063 9011908063 9017908146
Part # Description Qty Price
Common parts
90119-08063
90179-08146

(9708- )

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28897 28898
Part # Description Qty Price
28800 - BATTERY
28800-17121

2KDFTV..KDN145,150,165,170

80D26L,FURUKAWA

 1
28800-17111

2KDFTV..KDN145..DLX;2KDFTV..KDN150,165,170

80D26R,FURUKAWA

 1
28800-54020

2KDFTV..KDN145,150,165,170,190

80D26L,YUASA

 1
28800-54232

2KDFTV..KDN145..DLX;2KDFTV..KDN150,165,170

80D26R

 1
28800-64132

2KDFTV..KDN145,150,165,170,190

80D26L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

2KDFTV..KDN145,150,165,170,190

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

2KDFTV..KDN145,150,165,170,190

 1
28897 - PLATE, BATTERY CAUTION
28898-46010

2KDFTV..KDN145..LHD..SCB;2KDFTV..KDN165,170..LHD..SR..CBU;2KDFTV..KDN150,165..LHD..(SCB,XTR)..CBU

 2
28898-46010

2KDFTV..KDN145..LHD..SCB;2KDFTV..KDN150,165,170..LHD..CBU

 2
28898 - PLATE, BATTERY
28898-46020

2KDFTV..KDN165..LHD..DCB;2KDFTV..KDN145,150,170,190..LHD

 1
28898-46020

2KDFTV..KDN145..DLX;2KDFTV..KDN150,165,170

COLD SPEC

 2
