KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN145,LN145..SCB

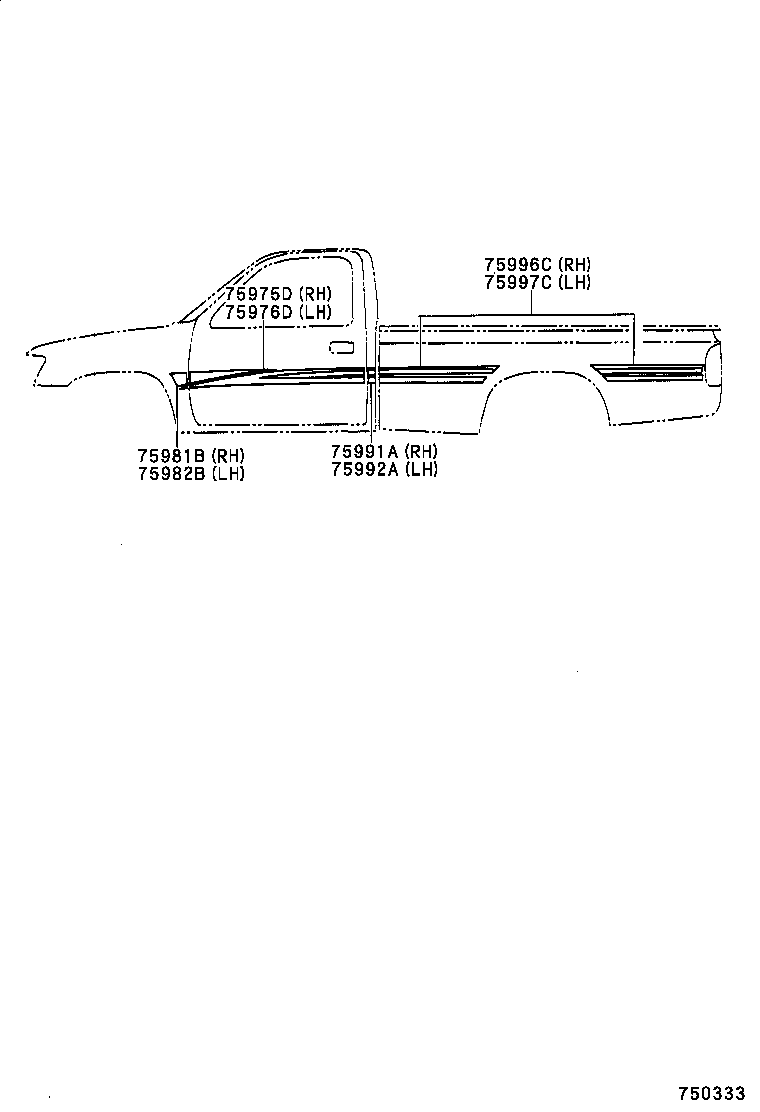

Click highlighted areas on diagram

diagram 75975D 75976D 75981B 75982B 75991A 75992A 75996C 75997C
Part # Description Qty Price
75975D - STRIPE, FRONT DOOR OUTSIDE, FRONT RH
75975-35470

KDN145,150..(SCB,XTR)..CBU

FOR BODY COLOR = MONO TONE

 1
75976D - STRIPE, FRONT DOOR OUTSIDE, FRONT LH
75976-35480

KDN145,150..(SCB,XTR)..CBU

FOR BODY COLOR = MONO TONE

 1
75981B - STRIPE, FENDER, RH
75981-35380

KDN145,150..CBU

FOR BODY COLOR = MONO TONE

 1
75982B - STRIPE, FENDER, LH
75982-35370

KDN145,150..CBU

FOR BODY COLOR = MONO TONE

 1
75991A - STRIPE, QUARTER, RH
75991-35700

KDN145..DLX..CBU

 1
75992A - STRIPE, QUARTER, LH
75992-35620

KDN145..DLX..CBU

 1
75996C - STRIPE, REAR BODY, RH
75996-3D290

KDN145..DLX..CBU

 1
75997C - STRIPE, REAR BODY, LH
75997-3D030

KDN145..DLX..CBU

 1
