KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

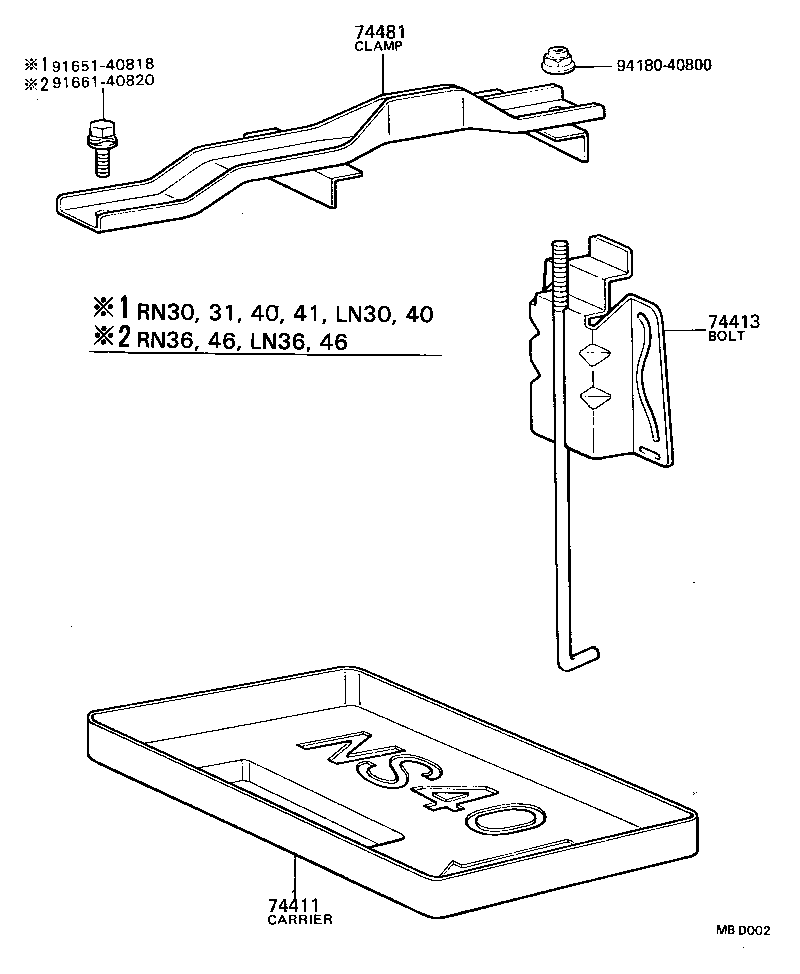

Click highlighted areas on diagram

diagram 74411 74413 74481 9165140818 9166140820 9418040800
Part # Description Qty Price
Common parts
91651-40818
91661-40820
94180-40800

(9708- )

Click highlighted areas on diagram

diagram 74403A 74403A 74406A 74413 74413 74413 74431 74431 74431 9011908974 9011908974 9011908974 9017908220 9017908220 9017908220
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-35020

KDN145..LHD..DLX;KDN150,165,170..LHD..(DCB,XTR)

COLD AREA SPEC

 1
74404-35150

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-35020

KDN145..LHD..DLX;KDN150,165,170..LHD..(DCB,XTR)

COLD AREA SPEC

 1
74404-35150

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74406A - CARRIER SUB-ASSY, BATTERY, UPPER LH
74404-35150

KDN145..DLX;KDN150,165,170

 1
74413 - BOLT, BATTERY CLAMP
74451-35050

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74451-35050

KDN145..DLX;KDN150,165,170

COLD SPEC

 2
74413 - BOLT, BATTERY CLAMP
74451-35050

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74451-35050

KDN145..DLX;KDN150,165,170

COLD SPEC

 2
74413 - BOLT, BATTERY CLAMP
74451-35050

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74451-35050

KDN145..DLX;KDN150,165,170

COLD SPEC

 2
74431 - TRAY, BATTERY
74431-14030

KDN145..DLX;KDN150,165,170

COLD SPEC

 2
74431-14030

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74431 - TRAY, BATTERY
74431-14030

KDN145..DLX;KDN150,165,170

COLD SPEC

 2
74431-14030

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
74431 - TRAY, BATTERY
74431-14030

KDN145..DLX;KDN150,165,170

COLD SPEC

 2
74431-14030

KDN165..LHD..DCB;KDN145,150,170,190..LHD

 1
Common parts
90119-08974
90179-08220
