KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

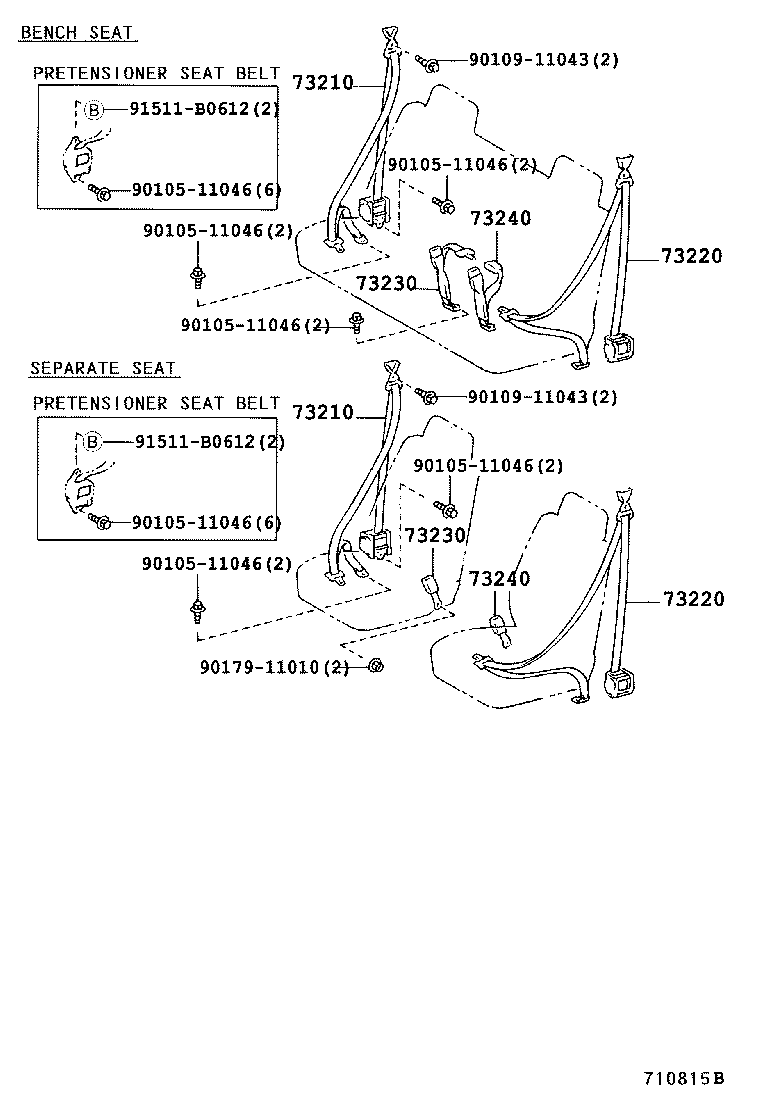

FRONT SEAT BELT

diagram 73210 73210 73220 73220 73230 73230 73240 73240 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 9010511046 9010911043 9010911043 9017911010 91511B0612 91511B0612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-35680B0

KDN145,165..SCB

W(SRS AIR BAG),BLUISH GRAY,TRIM1#

 1
73210-35650B0

KDN145,165..SCB

BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-35680B0

KDN145,165..SCB

W(SRS AIR BAG),BLUISH GRAY,TRIM1#

 1
73210-35650B0

KDN145,165..SCB

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-35560B0

KDN145,165..SCB

W(SRS AIR BAG),BLUISH GRAY,TRIM1#

 1
73220-35540B0

KDN145,165..SCB

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-35560B0

KDN145,165..SCB

W(SRS AIR BAG),BLUISH GRAY,TRIM1#

 1
73220-35540B0

KDN145,165..SCB

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-35700B0

KDN145,150,165,170..SCB,XTR

MD.MOON MIST,TRIM1#

 1
73230-35610B0

KDN145,165..LHD..SCB

BENCH SEAT TYPE,MD.MOON MIST,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-35700B0

KDN145,150,165,170..SCB,XTR

MD.MOON MIST,TRIM1#

 1
73230-35610B0

KDN145,165..LHD..SCB

BENCH SEAT TYPE,MD.MOON MIST,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-35270B0

KDN145,165..LHD..SCB

BENCH SEAT TYPE,MD.MOON MIST,TRIM1#

 1
73230-35700B0

KDN145,150,165,170..SCB,XTR

MD.MOON MIST,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-35270B0

KDN145,165..LHD..SCB

BENCH SEAT TYPE,MD.MOON MIST,TRIM1#

 1
73230-35700B0

KDN145,150,165,170..SCB,XTR

MD.MOON MIST,TRIM1#

 1
Common parts
90105-11046
90109-11043
90179-11010
91511-B0612
