KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

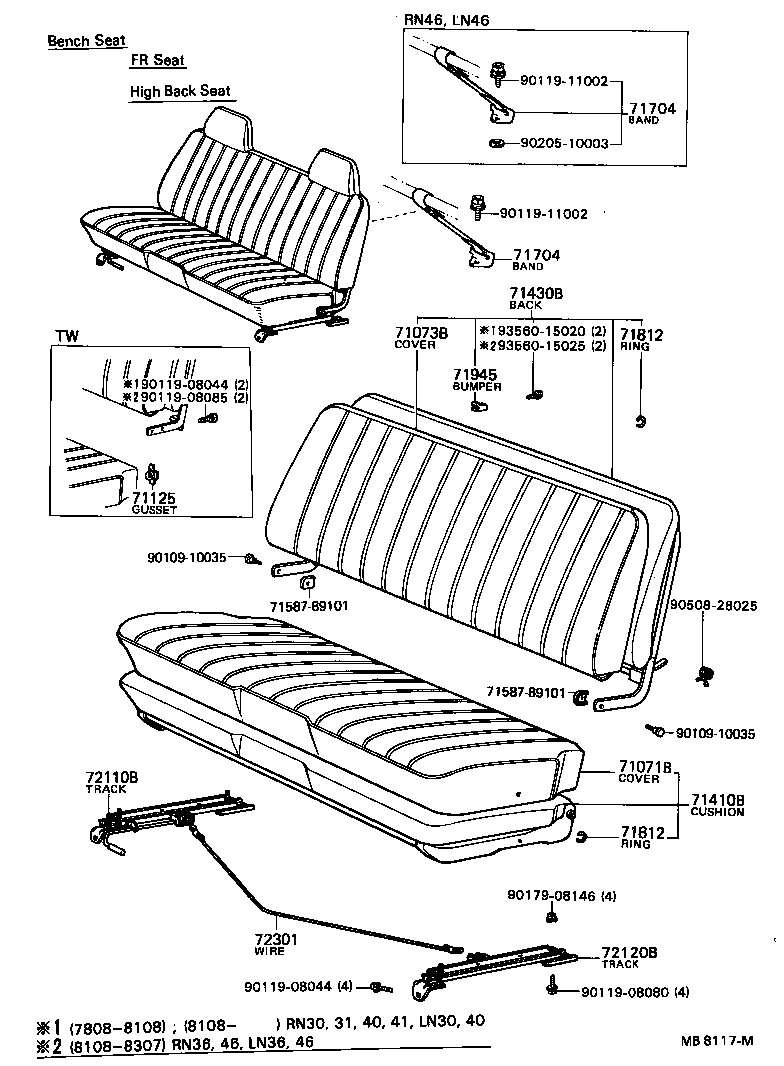

Click highlighted areas on diagram

diagram 71071B 71073B 71125 71410B 71430B 7158789101 7158789101 71704 71704 71812 71812 71945 72110B 72120B 72301 9010910035 9010910035 9011908044 9011908044 9011908080 9011908085 9011911002 9011911002 9017908146 9020510003 9050826025 9356015020 9356015025
Part # Description Qty Price
Common parts
71587-89101
90109-10035
90119-08044
90119-08080
90119-08085
90119-11002
90179-08146
90205-10003
90508-26025
93560-15020
93560-15025

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587B 71588 71610S 71620S 71630S 71640S 71831D 71832D 71910A 71931 71931 72750D 72770 72791 72797 9046818071 9046818071 9052001006 9165160614
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3G250B0

KDN145,165..SCB

W(FABRIC SEAT = DLX TYPE)-*104,MOONMIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-3G250B0

KDN145,165..SCB

W(FABRIC SEAT = DLX TYPE)-*104,MOONMIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3G330B0

KDN145,150,165,170..DLX

W(FABRIC SEAT = DLX TYPE)-*104,MOONMIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-3G330B0

KDN145,150,165,170..DLX

W(FABRIC SEAT = DLX TYPE)-*104,MOONMIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-35080

KDN145..DLX;KDN150,165,170

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-35080

KDN145..DLX;KDN150,165,170

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-35070

KDN145..DLX;KDN150,165,170

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-35070

KDN145..DLX;KDN150,165,170

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

KDN145,165..LHD..DLX

W(BENCH SEAT)

 1
71587-89103

KDN145,165..LHD..DLX

 2
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-60080

KDN145,150,165,170,190

 2
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-60030

KDN145,150,165,170,190

 2
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-35090

KDN145,150,165,170,190

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-35090

KDN145,150,165,170,190

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-35130

KDN145..DLX;KDN150,165,170

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-35130

KDN145..DLX;KDN150,165,170

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-35050

KDN145,150,165,170,190

 2
71832D - COVER, FRONT SEAT HINGE, LH
71832-35050

KDN145,150,165,170,190

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-35650B0

KDN145,165..LHD..DLX

MOONMIST,TRIM1#

 2
71910-35600B0

KDN145,150,165,170..DLX

W(FABRIC SEAT = DLX TYPE)-*104,MOONMIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

KDN145,165..LHD..DLX

W/O(LOCK),W(BENCH SEAT),BLUE GRAY,TRIM1#

 1
71931-12040P6

KDN145,150,165,170,190

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KDN145,165..LHD..DLX

W(LOCK),W(BENCH SEAT),BLUE GRAY,TRIM1#

 1
71930-13030B2

KDN145,150,165,170,190

W(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040P6

KDN145,165..LHD..DLX

W/O(LOCK),W(BENCH SEAT),BLUE GRAY,TRIM1#

 1
71931-12040P6

KDN145,150,165,170,190

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71930-13030B2

KDN145,165..LHD..DLX

W(LOCK),W(BENCH SEAT),BLUE GRAY,TRIM1#

 1
71930-13030B2

KDN145,150,165,170,190

W(LOCK),BLUE GRAY,TRIM1#

 2
Common parts
90468-18071
90520-01006
91651-60614

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71147 71147 71147 71147 71537A 71537A 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72129 72129 72129 72129 72137 72137C 72138 72138E 72210E 72211 72211 72501D 72501E 72525A 72526A 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 9016840011 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9324954006 9324954006 9324954008 9324954008
Part # Description Qty Price
71147 - SILENCER, SEAT SPRING
71147-35010

KDN145,165..SCB

 2
71147 - SILENCER, SEAT SPRING
71147-35010

KDN145,165..SCB

 2
71147 - SILENCER, SEAT SPRING
71147-35010

KDN145,165..SCB

 2
71147 - SILENCER, SEAT SPRING
71147-35010

KDN145,165..SCB

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-35100B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-35120B0

KDN145..DLX;KDN150,165,170

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-35050B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-35060B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35040B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-35050B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35040B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-35050B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-35150

KDN145,165..SCB

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-35180

KDN145,165..SCB

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-35110

KDN145,165..SCB

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-35130

KDN145,165..SCB

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-44010

KDN145,165..SCB

INNER

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-44010

KDN145,165..SCB

INNER

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-44010

KDN145,165..SCB

INNER

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-10010

KDN145,150,165,170,190

OUTER

 2
72125-44010

KDN145,165..SCB

INNER

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-44030

KDN145,165..SCB

INNER

 2
72129-12010

KDN145,150,165,170,190

OUTER

 4
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-35010

KDN145,150,165,170,190

RH

 1
72212-35010

KDN145,150,165,170,190

LH

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-35010

KDN145,150,165,170,190

RH

 1
72212-35010

KDN145,150,165,170,190

LH

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-35010

KDN145,150,165,170,190

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-35010

KDN145,150,165,170,190

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-35030B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-35020B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10825
90119-T0108
90168-40011
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 71071B 71073B 71311 71311 71311E 71379A 71389 71410B 71430B 71511B 71551B 71561B 71561B 71567 71587 71587 71587 71610B 71630B 9008010143 9046818071 9046818071
Part # Description Qty Price
71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71071-3D870B0

KDN145..LHD..SCB

MOONMIST,TRIM1#

 1
71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE)
71073-3G250B0

KDN145..LHD..SCB

MOONMIST,TRIM1#

 1
71311 - PIN, FRONT SEAT HINGE
71311-35020

KDN145,165..LHD..SCB

 2
71311 - PIN, FRONT SEAT HINGE
71311-35020

KDN145,165..LHD..SCB

 2
71311E - BUSH(FOR REAR SEAT HINGE PIN)
71311-89105

KDN145,165..LHD..SCB

 2
71379A - STOPPER, FRONT SEAT VERTICAL HANDLE
71379-35010

KDN145,165..LHD..SCB

 2
71389 - SPACER, CENTER SEAT HINGE
71389-35010

KDN145,165..LHD..SCB

 2
71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
71511-35060

KDN145..LHD..DLX

 1
71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE)
71551-35090

KDN145,165..LHD..DLX

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

KDN145,165..LHD..DLX

W(BENCH SEAT)

 1
71587-89103

KDN145,165..LHD..DLX

 2
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

KDN145,165..LHD..DLX

W(BENCH SEAT)

 1
71587-89103

KDN145,165..LHD..DLX

 2
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-35040

KDN145,165..LHD..DLX

W(BENCH SEAT)

 1
71587-89103

KDN145,165..LHD..DLX

 2
71587-35050

KDN145,150,165,170,190

W(SEPARATE SEAT)

 2
71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
71610-35070

KDN145..LHD..DLX

 1
71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE)
71630-35230

KDN145,165..LHD..SCB

 1
Common parts
90080-10143
90468-18071

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 72110A 72120 72137 72138 72301 9011908830 9011908830 9011908830 9011908830 9011908830 9011910825 9011910825 9011910825 9011910825
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-35110

KDN145,165..LHD..SCB

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-35120

KDN145,165..LHD..SCB

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-35040

KDN145,165..LHD..DLX

 1
Common parts
90119-08830
90119-10825
