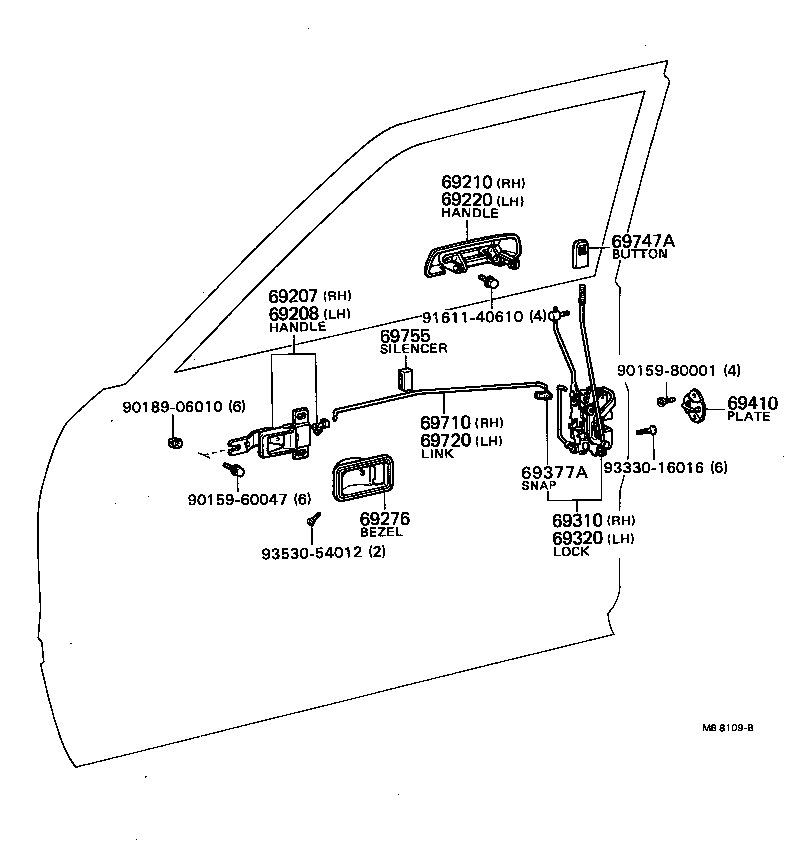

KDN145L-TRMDYW (2001)
Toyota Hilux
(7808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60047 | ||||
| 90159-80001 | ||||
| 90189-06010 | ||||
| 91611-40610 | ||||
| 93330-16016 | ||||
| 93530-54012 | ||||
(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-35040 |
KDN145,150,165,170,190 |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-35040 |
KDN145,150,165,170,190 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-10070B1 |
KDN145,150,165,170,190 MD.MOON MIST,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-10070B1 |
KDN145,150,165,170,190 MD.MOON MIST,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-35140 |
KDN150,165;KDN145,170,190..LHD PLATED,CHROME PLATED PACKAGE |
1 | ||
| 69210-35130 |
KDN145,150,165,170,190 NO PAINT REQ. |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
KDN145,150,165,170,190 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-35130 |
KDN145,150,165,170,190 BLACK |
1 | ||
| 69220-35140 |
KDN150,165;KDN145,170,190..LHD *CR,CHROME PLATED PACKAGE |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
KDN145,150,165,170,190 RH |
1 | ||
| 69293-12040 |
KDN145,150,165,170,190 LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-35390 |
KDN145,150,165,170..(SCB,XTR)..DLX |
1 | ||
| 69310-35450 |
KDN145,150,165,170..LHD..(SCB,XTR) W(POWER WINDOW) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-35390 |
KDN145,150,165,170..(SCB,XTR)..DLX |
1 | ||
| 69310-35450 |
KDN145,150,165,170..LHD..(SCB,XTR) W(POWER WINDOW) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-35390 |
KDN145,150,165,170..(SCB,XTR)..DLX |
1 | ||
| 69320-35430 |
KDN145,150,165,170..LHD..(SCB,XTR) W(POWER WINDOW) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-35390 |
KDN145,150,165,170..(SCB,XTR)..DLX |
1 | ||
| 69320-35430 |
KDN145,150,165,170..LHD..(SCB,XTR) W(POWER WINDOW) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
KDN145,150,165,170,190 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-35060 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-35060 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-35030 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH | ||||
| 69726-35050 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B1 |
KDN145,150,165,170,190 MD.MOON MIST,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
KDN145,150,165,170,190 |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
KDN145,150,165,170,190 YELLOW |
1 | ||
| 69759-24010 |
KDN145,150,165,170,190 NATURAL |
1 | ||
| 69759-24020 |
KDN145,150,165,170,190 BLUE |
1 | ||
| 69759-20050 |
KDN145,150,165,170,190 BROWN |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
KDN145,150,165,170,190 YELLOW |
1 | ||
| 69759-24010 |
KDN145,150,165,170,190 NATURAL |
1 | ||
| 69759-24020 |
KDN145,150,165,170,190 BLUE |
1 | ||
| 69759-20050 |
KDN145,150,165,170,190 BROWN |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
KDN145,150,165,170,190 YELLOW |
1 | ||
| 69759-24010 |
KDN145,150,165,170,190 NATURAL |
1 | ||
| 69759-24020 |
KDN145,150,165,170,190 BLUE |
1 | ||
| 69759-20050 |
KDN145,150,165,170,190 BROWN |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
KDN145,150,165,170,190 YELLOW |
1 | ||
| 69759-24010 |
KDN145,150,165,170,190 NATURAL |
1 | ||
| 69759-24020 |
KDN145,150,165,170,190 BLUE |
1 | ||
| 69759-20050 |
KDN145,150,165,170,190 BROWN |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20060 |
KDN145,150,165,170..SCB,XTR LH |
1 | ||
| 69759-20070 |
KDN145,150,165,170..SCB,XTR RH |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50020 | ||||
| 91531-60608 | ||||
| 91651-40612 | ||||
