KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

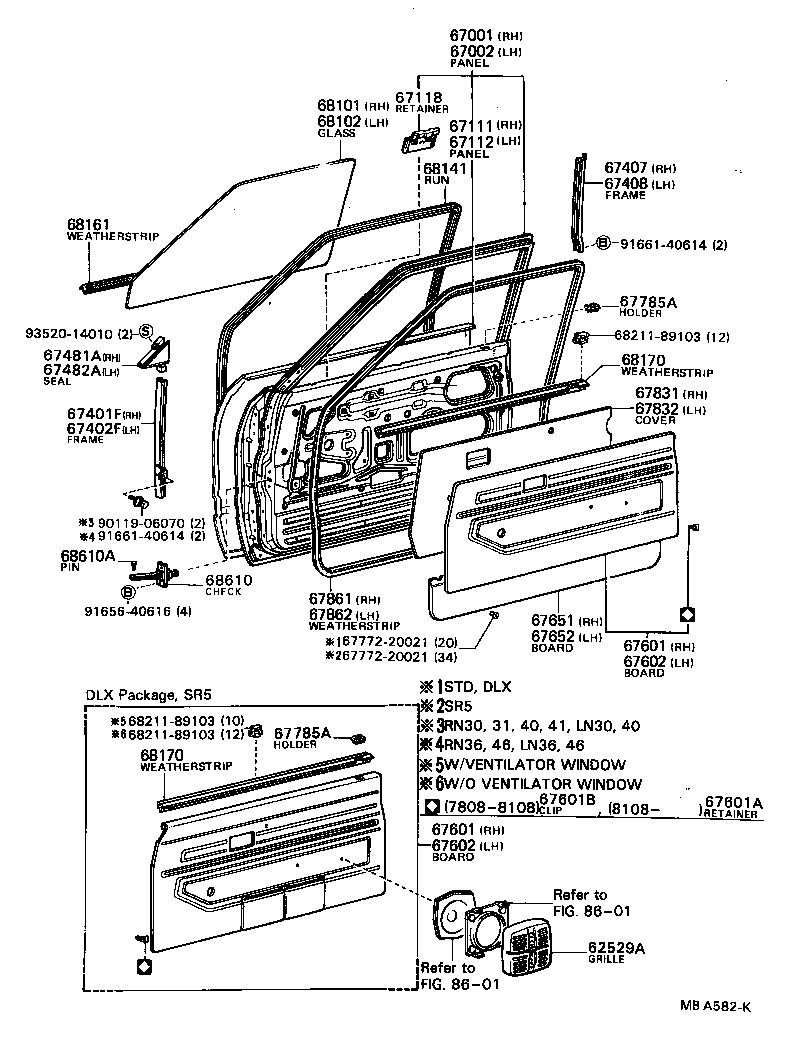

diagram 62529A 67001 67002 67111 67112 67118 67401F 67402F 67407 67408 67481A 67482A 67601 67601 67601A 67601B 67602 67602 67651 67652 6777220021 6777220021 67785A 67785A 67831 67832 67861 67862 68101 68102 68141 68161 68170 68170 6821189103 6821189103 6821189103 68610 68610A 8601 8601 9011906070 9165640616 9166140614 9166140614 9352014010
Part # Description Qty Price
Common parts
67772-20021
68211-89103
90119-06070
91656-40616
91661-40614
93520-14010
Linked diagrams
8601

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

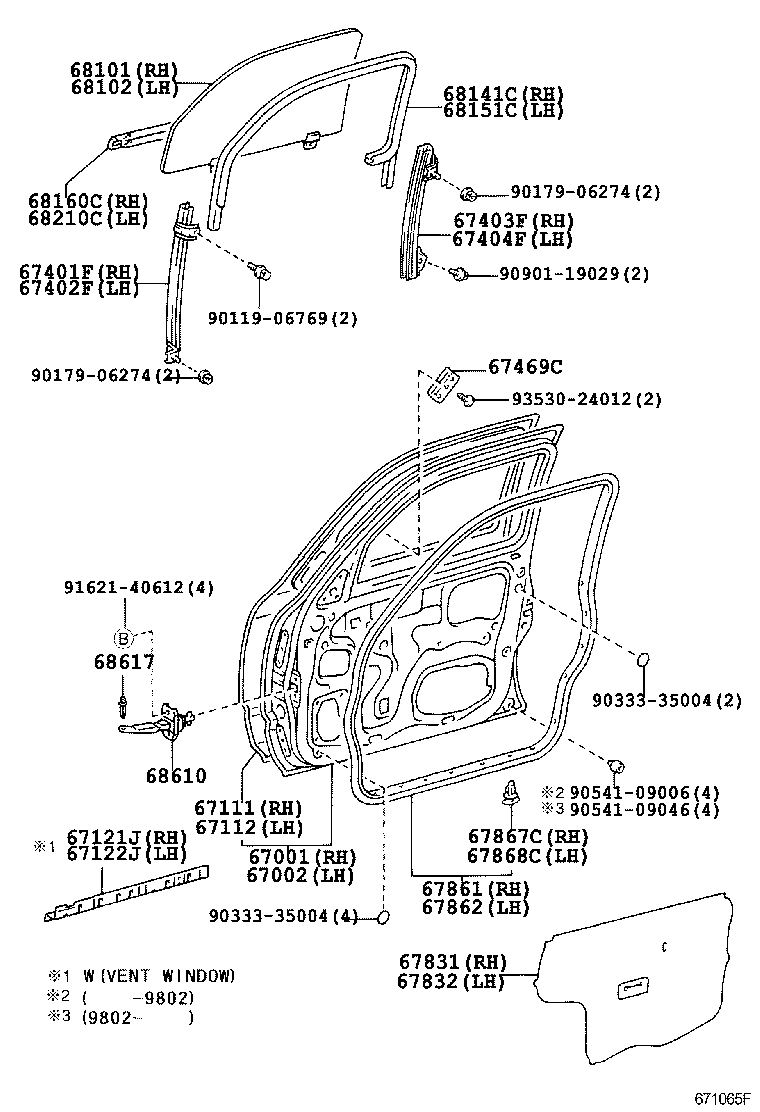

DOOR PANEL

diagram 67001 67002 67111 67112 67121J 67122J 67401F 67402F 67403F 67404F 67469C 67831 67832 67861 67862 67867C 67868C 68101 68102 68141C 68151C 68160C 68210C 68610 68617 9011906769 9017906274 9017906274 9033335004 9033335004 9054109006 9054109046 9090119029 9162140612 9353024012
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-35530

KDN145,150,165,170..SCB,XTR

W(POWER DOOR LOCK OR POWER WINDOW)

 1
67001-35550

KDN165..RHD..SCB;KDN145,150,170..(SCB,XTR)..DLX

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-35580

KDN165..RHD..SCB;KDN145,150,170..(SCB,XTR)..DLX

 1
67002-35560

KDN145,150,165,170..SCB,XTR

W(POWER DOOR LOCK OR POWER WINDOW)

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-35150

KDN145,150,165,170..SCB,XTR

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-35150

KDN145,150,165,170..SCB,XTR

 1
67121J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH
67121-35030

KDN145,150,165,170,190

 1
67122J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH
67122-35030

KDN145,150,165,170,190

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-35050

KDN145,150,165,170..SCB,XTR

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-35060

KDN145,150,165,170..SCB,XTR

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-35081

KDN145,150,165,170..SCB,XTR

 1
67403-35080

KDN145,150,165,170..SCB,XTR

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-35081

KDN145,150,165,170..SCB,XTR

 1
67404-35080

KDN145,150,165,170..SCB,XTR

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-35100

KDN165..RHD..SCB;KDN145,150,170..(SCB,XTR)..DLX

 1
67831-35110

KDN145,150,165,170..SCB,XTR

W(FRONT DOOR SPEAKER & POWER WINDOW)

 1
67831-35120

KDN145..SCB;KDN150,170..CBU;KDN165..RHD..SCB

W(POWER WINDOW)

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-35070

KDN145..SCB;KDN150,170..CBU;KDN165..RHD..SCB

W(POWER WINDOW)

 1
67832-35060

KDN145,150,165,170..SCB,XTR

W(FRONT DOOR SPEAKER & POWER WINDOW)

 1
67831-35100

KDN165..RHD..SCB;KDN145,150,170..(SCB,XTR)..DLX

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-35070

KDN145,150,165,170..SCB,XTR

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-35060

KDN145,150,165,170..SCB,XTR

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-89103

KDN145,150,165,170..SCB,XTR

 36
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-89101

KDN145,150,165,170..SCB,XTR

 36
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-35130

KDN145,150,165,170..SCB,XTR

*TT,T=3.5,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-35130

KDN145,150,165,170..SCB,XTR

*TT,T=3.5,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-35050

KDN145,150,165,170..SCB,XTR

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-35050

KDN145,150,165,170..SCB,XTR

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-35041

KDN145,150,165,170..SCB,XTR

 1
68161-35040

KDN145,150,165,170..SCB,XTR

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-35041

KDN145,150,165,170..SCB,XTR

 1
68162-35040

KDN145,150,165,170..SCB,XTR

 1
68610 - CHECK ASSY, FRONT DOOR
68610-35050

KDN145,150,165,170,190

 2
68617 - PIN, FRONT DOOR CHECK
68617-20011

KDN145,150,165,170,190

 2
Common parts
90119-06769
90179-06274
90333-35004
90541-09006
90541-09046
90901-19029
91621-40612
93530-24012

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

TRIM CODE

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

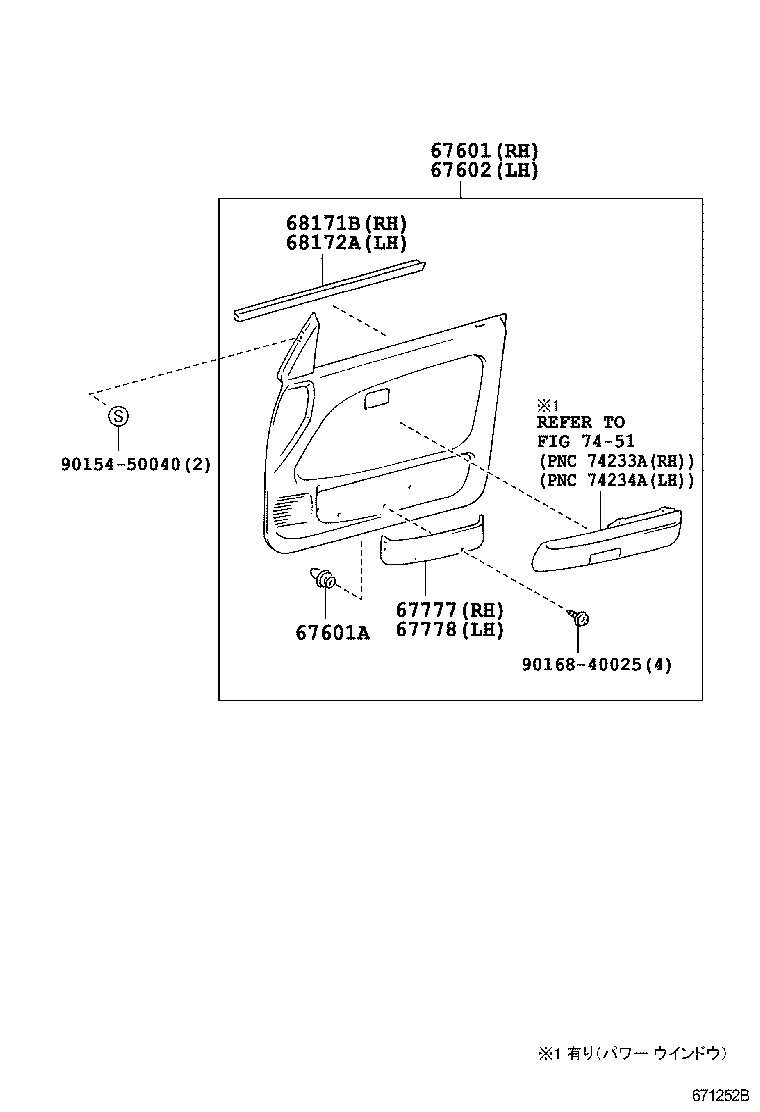

DOOR TRIM

diagram 67601 67601A 67602 67777 67778 68171B 68172A 7451 9015450040 9016840025
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-35680B6

KDN145,150,165,170..(SCB,XTR)..DLX

W(DOOR TRIM POCKET & POWER WINDOW),MD.MOON MIST,TRIM1#

 1
67650-35640B5

KDN145,165..LHD..SCB

MD.MOON MIST,TRIM1#

 1
67610-3D510B0

KDN145,165..LHD..SCB

W(POWER WINDOW),MD.MOON MIST,TRIM1#

 1
67650-35660B9

KDN145,150,165,170..(SCB,XTR)..DLX

W(DOOR TRIM POCKET),MD.MOON MIST,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-10161

KDN145,150,165,170,190

NATURAL

 2
67771-16120

KDN145,150,165,170..SCB,XTR

GRAY

 12
67921-95501E0

KDN145,150,165,170..SCB,XTR

YELLOW,YELLOW

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67050-35220B6

KDN145,150,165,170..(SCB,XTR)..DLX

W(DOOR TRIM POCKET & POWER WINDOW),MD.MOON MIST,TRIM1#

 1
67050-35180B7

KDN145,165..LHD..SCB

MD.MOON MIST,TRIM1#

 1
67620-3D420B0

KDN145,165..LHD..SCB

W(POWER WINDOW),MD.MOON MIST,TRIM1#

 1
67050-35200B9

KDN145,150,165,170..(SCB,XTR)..DLX

W(DOOR TRIM POCKET),MD.MOON MIST,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-35020B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-35010B0

KDN145,150,165,170,190

MD.MOON MIST,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-35061

KDN145,150,165,170..SCB,XTR

 1
68171-35060

KDN145,150,165,170..SCB,XTR

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68171-35060

KDN145,150,165,170..SCB,XTR

 1
68171-35061

KDN145,150,165,170..SCB,XTR

 1
Common parts
90154-50040
90168-40025
Linked diagrams
7451
