KDN145L-TRMDYW (2001)
Toyota Hilux
(9708- )SCB

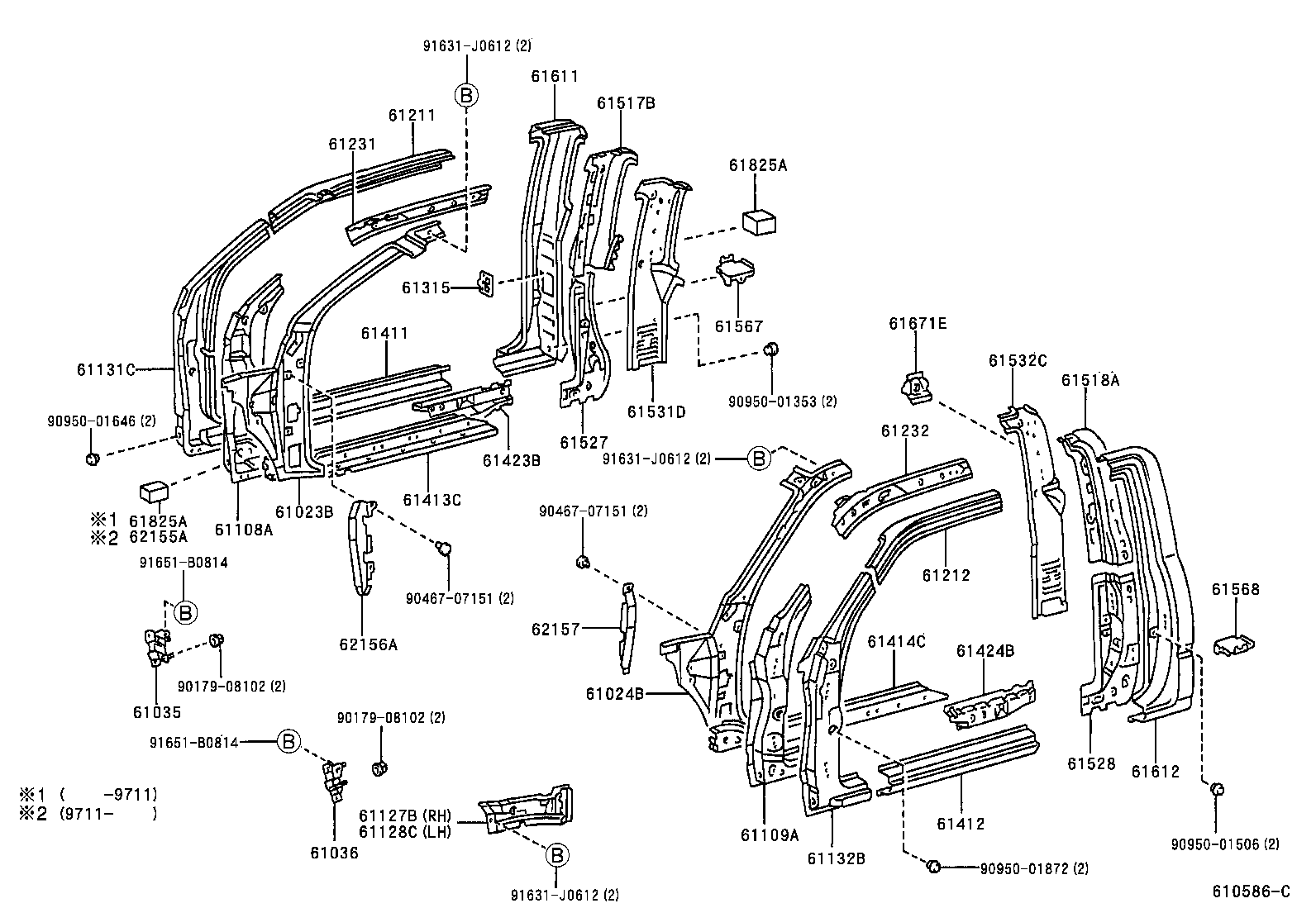

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-35160 |
KDN145,150,165,170,190..LHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-35120 |
KDN145..LHD..SCB;KDN145,150,165,170..LHD..(DCB,XTR)..CBU |
1 | ||
| 61024-35160 |
KDN145..LHD..SCB;KDN145,150,165,170..LHD..(DCB,XTR)..CBU W(ANTENNA) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-35010 |
KDN145,150,165,170,190..LHD |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-35030 |
KDN145,150,165,170,190 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-35030 |
KDN145,150,165,170,190 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-35030 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-35030 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-35030 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-35030 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-35160 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-35150 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
KDN145,150,165,170,190 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-35070 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-35070 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-35030 |
KDN145,150,165,170,190 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-35030 |
KDN145,150,165,170,190 |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-35020 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH | ||||
| 61424-35020 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61517B - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61517-35010 |
KDN145,165..SCB |
1 | ||
| 61518A - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-35010 |
KDN145,165..SCB |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-35010 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-35010 |
KDN145,150,165,170..SCB,XTR |
1 | ||
| 61531D - PANEL, CAB REAR PILLAR, INNER RH | ||||
| 61531-35030 |
KDN145,165..LHD..SCB |
1 | ||
| 61531-35010 |
KDN145,165..LHD..SCB W(SEPARATE SEAT) |
1 | ||
| 61532C - PANEL, CAB REAR PILLAR, INSIDE LH | ||||
| 61532-35010 |
KDN145,165..LHD..SCB W(SEPARATE SEAT) |
1 | ||
| 61532-35030 |
KDN145,165..LHD..SCB |
1 | ||
| 61567 - PLATE, QUARTER PANEL END, RH | ||||
| 61567-35020 |
KDN145,165..SCB |
1 | ||
| 61568 - PLATE, QUARTER PANEL END, LH | ||||
| 61568-35020 |
KDN145,165..SCB |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-35090 |
KDN145,165..SCB |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-35080 |
KDN145,165..SCB |
1 | ||
| 61671E - REINFORCEMENT, SEAT BELT ANCHOR, UPPER | ||||
| 61671-35020 |
KDN145,165..SCB |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 62151-20170 |
KDN145,165..SCB |
4 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 62151-20170 |
KDN145,165..SCB |
4 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-89101 |
KDN145,150,165,170,190 |
2 | ||
| 62156A - INSULATOR, COWL SIDE, RH | ||||
| 62156-35020 |
KDN145,150,165,170,190 |
1 | ||
| 62157 - INSULATOR, COWL SIDE, LH | ||||
| 62157-35020 |
KDN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 90179-08102 | ||||
| 90467-07151 | ||||
| 90950-01353 | ||||
| 90950-01506 | ||||
| 90950-01646 | ||||
| 90950-01872 | ||||
| 91631-J0612 | ||||
| 91651-B0814 | ||||
