KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 58205A 58280 58286 58286 58286 58286 58286 58287 58287 58287 58287 9033335001 9033335001 9033335001 9033335001 9033335001 9033335001 9033335001 9033335001 9033335001 9053055014 9095001056 9095001056 9095001056 9095001056 9095001056 9095001056 9095001060 9095001353 9095001353 9095001353 9351054008 9353055014 9356055014 9356056020 9356056020 9356056020
Part # Description Qty Price
Common parts
90333-35001
90530-55014
90950-01056
90950-01060
90950-01353
93510-54008
93530-55014
93560-55014
93560-56020

(9708- )SCB

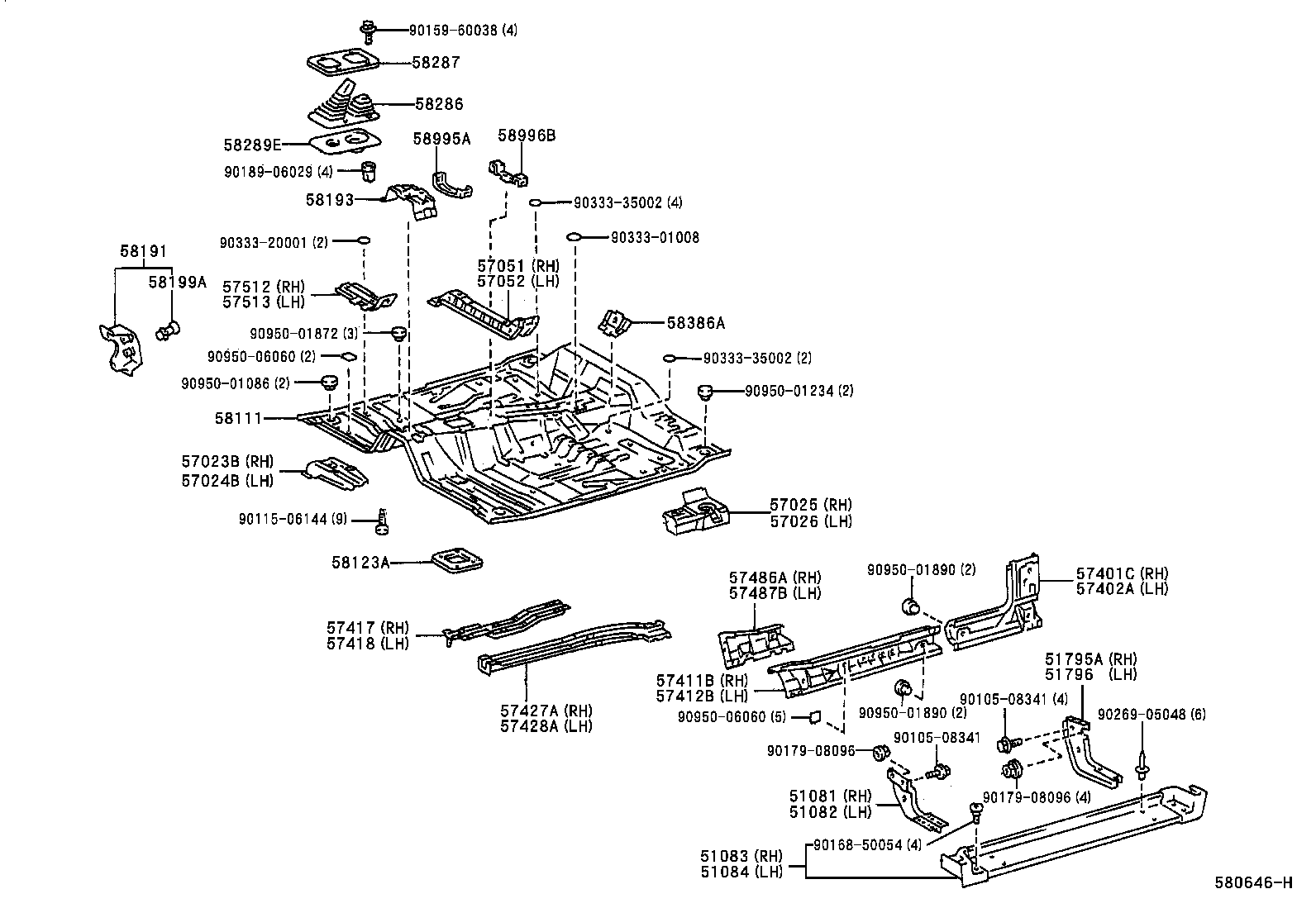

Click highlighted areas on diagram

diagram 51081 51082 51083 51084 51795A 51796 57023B 57024B 57025 57026 57051 57052 57401C 57402A 57411B 57412B 57417 57418 57427A 57428A 57486A 57487B 57512 57513 58111 58123A 58191 58193 58199A 58286 58287 58289E 58386A 58995A 58996B 9010508341 9010508341 9011506144 9015960038 9016850054 9017908096 9017908096 9018906029 9026905048 9033301008 9033320001 9033335002 9033335002 9095001086 9095001234 9095001872 9095001890 9095001890 9095006060 9095006060
Part # Description Qty Price
57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57023-35050

KDN145,150,165,170,190

 1
57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57024-35050

KDN145,150,165,170,190

 1
57025 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57025-35060

KDN145,165..SCB

 1
57026 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57026-35080

KDN145,165..SCB

 1
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-35041

KDN145,165..LHD..DLX

W(SEPARATE SEAT)

 1
57051-35020

KDN145,165..LHD..DLX

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-35020

KDN145,165..LHD..DLX

 1
57052-35041

KDN145,165..LHD..DLX

W(SEPARATE SEAT)

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-35010

KDN145,165..SCB

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-35010

KDN145,165..SCB

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57411-35050

KDN145,150,165,170,190

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57412-35050

KDN145,150,165,170,190

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-35010

KDN145,165..SCB

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-35010

KDN145,165..SCB

 1
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-35020

KDN145,150,165,170,190

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-35020

KDN145,150,165,170,190

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-35021

KDN145,165,190

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-35021

KDN145,165,190

 1
58111 - PAN, FRONT FLOOR
58111-35410

KDN145..SCB

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-35052

KDN145,150,165,170

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-35040

KDN145,150,165,170,190

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-35180

KDN145,150

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-35060

KDN145,150

 1
58289E - BOOT, SHIFT LEVER, NO.2
58289-35120

KDN145,150

 1
58386A - GUSSET, LOWER BACK PANEL, NO.2
58386-35010

KDN145,165..SCB

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-35030

KDN145,150,165,170,190

 1
58996B - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-35010

KDN145,150,165,170,190

 1
Common parts
90105-08341
90115-06144
90159-60038
90168-50054
90179-08096
90189-06029
90269-05048
90333-01008
90333-20001
90333-35002
90950-01086
90950-01234
90950-01872
90950-01890
90950-06060
