KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

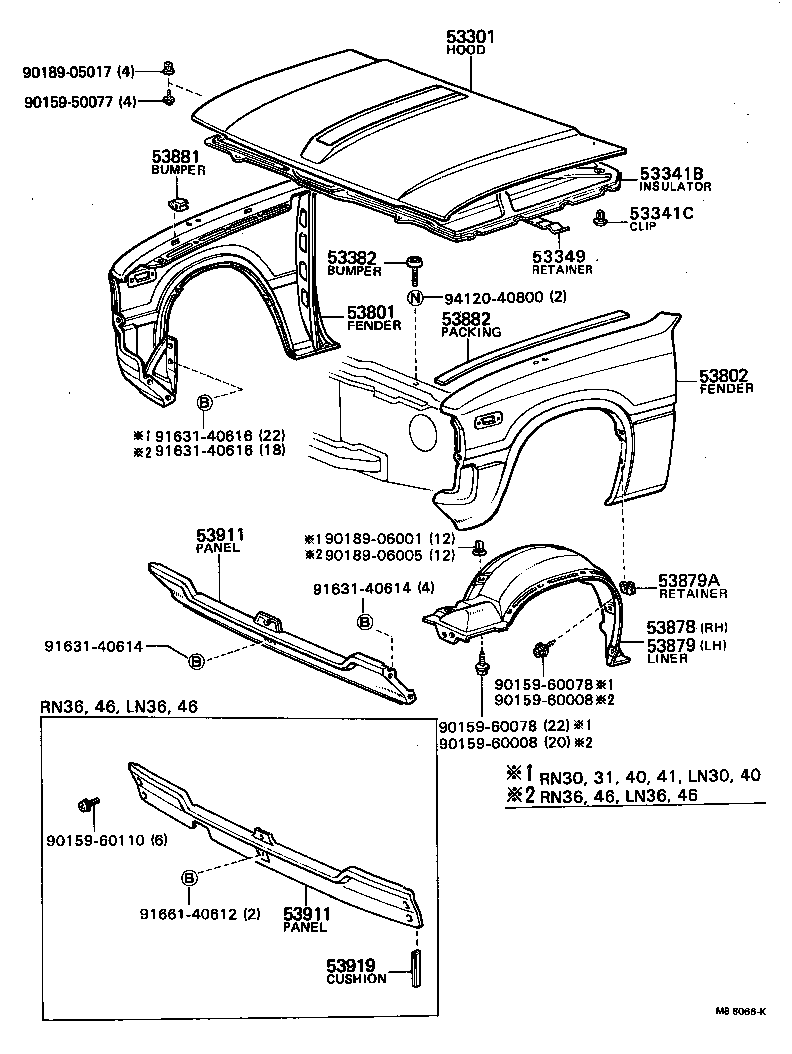

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53349 53382 53801 53802 53878 53879 53879A 53881 53882 53911 53911 53919 9015950077 9015960008 9015960008 9015960078 9015960078 9015960110 9018905017 9018906001 9018906005 9163140614 9163140614 9163140616 9163140616 9166140612 9412040800
Part # Description Qty Price
Common parts
90159-50077
90159-60008
90159-60078
90159-60110
90189-05017
90189-06001
90189-06005
91631-40614
91631-40616
91661-40612
94120-40800

(0108- )

Click highlighted areas on diagram

diagram 52512B 52513B 5252 53301 53301B 53341B 53341C 53381 53381A 53384A 53736F 53737H 53737K 53801 53802 53813B 53814B 53847A 53848A 53849A 53849A 53853 53875A 53876A 53911 53931C 53935B 7539535040 76621B 76621B 76622B 76622B 76641B 76642 9011906225 9011906374 9011906779 9015960476 9015960478 9015960478 9017906127 9017906127 9018306027 9018904099 9018906220 9018906220 9018906220 9018906220 9026904059 9046708185 9046709166 9046709166 9046709195 904671001722 9090467036 9090467037 91631B0616 93540A4014
Part # Description Qty Price
52512B - FILLER, FRONT BUMPER, RH
52512-35070

KDN145,150,165,170,190

 1
52513B - FILLER, FRONT BUMPER, LH
52513-35070

KDN145,150,165,170,190

 1
53301 - HOOD SUB-ASSY
53301-35100

KDN145,150,165,170,190

 1
53301B - CUSHION, HOOD BUMPER
90541-15004

KDN145,150,165,170,190

 2
53341B - INSULATOR, HOOD
53341-35100

KDN165..DLX;KDN145,150,170

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09118

KDN145,150,165,170,190

 10
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-35040

KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU

 1
53381-35041

KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

KDN145..SCB;KDN165..CBU;KDN165..SCB..IV3;KDN145,150,170,190..(DCB,XTR)..CBU

 8
53384A - BUMPER, FENDER TO HOOD
53384-35010

KDN145,150,165,170,190

 2
53736F - SEAL, FRONT FENDER APRON, RH
53736-35020

KDN145,150,165,170,190..LHD

 1
53737K - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08011

KDN145,150,165,170,190

 4
53801 - FENDER SUB-ASSY, FRONT RH
53801-35370

KDN145,150

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-35480

KDN145..SCB;KDN145,150..(DCB,XTR)..CBU

W(SIDE TURN SIGNAL LAMP)

 1
53802-35490

KDN145,150..LHD

W(ANTENNA & SIDE TURN SIGNAL LAMP)

 1
53813B - EXTENSION, FRONT FENDER, RH
53813-35040

KDN145,150,165,170,190

 1
53814B - EXTENSION, FRONT FENDER, LH
53814-35040

KDN145,150,165,170,190

 1
53849A - CAP, FRONT WHEEL OPENING
53849-35010

KDN145,150,165,170,190

 2
53849A - CAP, FRONT WHEEL OPENING
53849-35010

KDN145,150,165,170,190

 2
53875A - LINER, FRONT FENDER, RH
53875-35070

KDN145,150

 1
53876A - LINER, FRONT FENDER, LH
53876-35060

KDN145,150

 1
53911 - PANEL, FRONT VALANCE
53911-35360

KDN145,150

 1
53931C - PANEL, FRONT END
53931-35010

KDN145,150,165,170,190

 1
53935B - PROTECTOR, FRONT END PANEL
53936-35010

KDN145,150,165,170,190

LH

 1
53935-35010

KDN145,150,165,170,190

RH

 1
76621B - MUDGUARD, FRONT BODY, RH
76621-35090

KDN145..LHD..CBU

 1
76621B - MUDGUARD, FRONT BODY, RH
76621-35090

KDN145..LHD..CBU

 1
76622B - MUDGUARD, FRONT BODY, LH
76622-35090

KDN145..LHD..CBU

 1
76622B - MUDGUARD, FRONT BODY, LH
76622-35090

KDN145..LHD..CBU

 1
Common parts
75395-35040
90119-06225
90119-06374
90119-06779
90159-60476
90159-60478
90179-06127
90183-06027
90189-04099
90189-06220
90269-04059
90467-08185
90467-09166
90467-09195
90467-1001722
90904-67036
90904-67037
91631-B0616
93540-A4014
Linked diagrams
5252
