KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN145,LN145..SCB

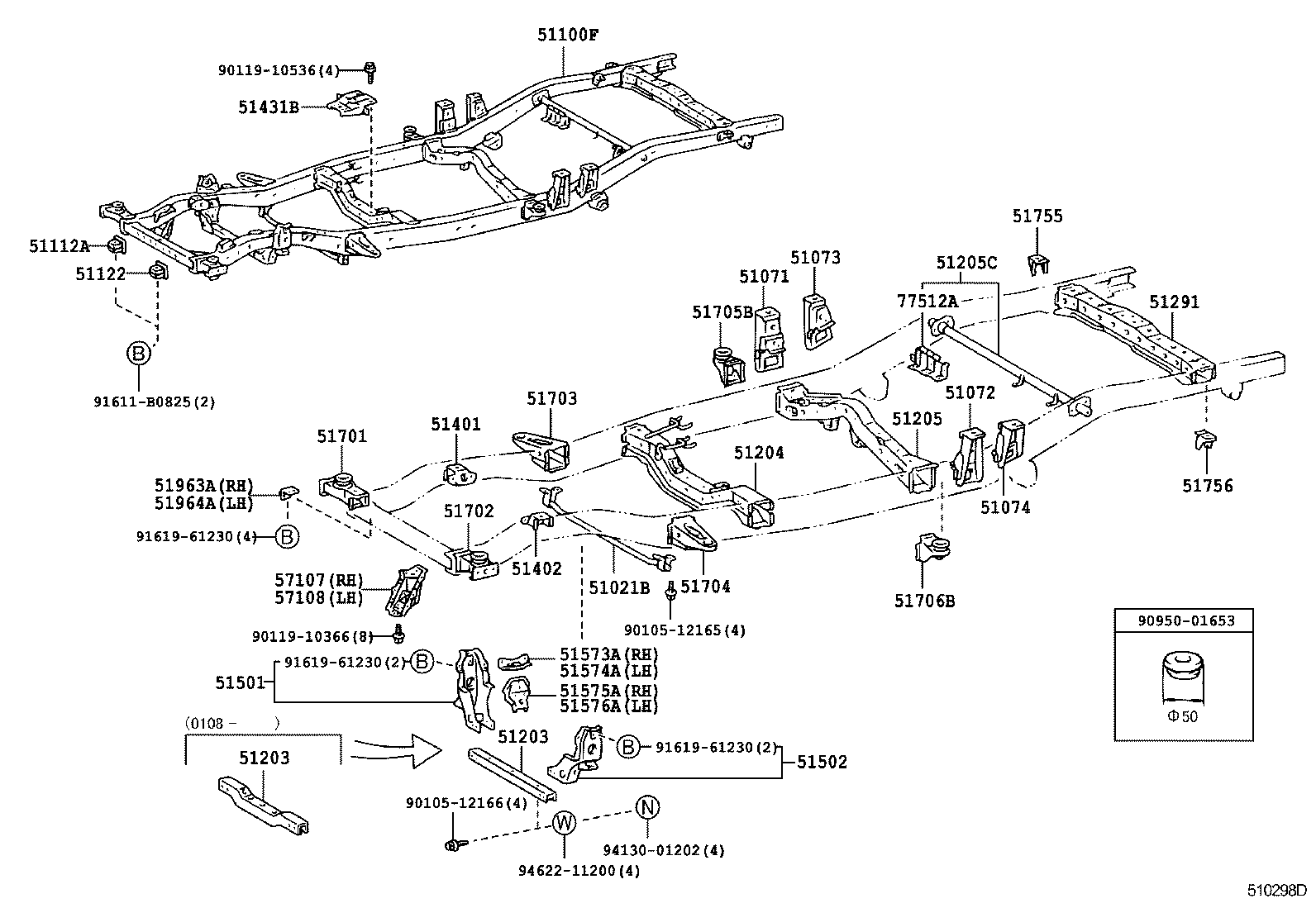

Click highlighted areas on diagram

diagram 51021B 51071 51072 51073 51074 51100F 51112A 51122 51203 51203 51204 51205 51205C 51291 51401 51402 51431B 51501 51502 51573A 51574A 51575A 51576A 51701 51702 51703 51704 51705B 51706B 51755 51756 51963A 51964A 57107 57108 77512A 9010512165 9010512166 9011910366 9011910536 9095001653 91611B0825 9161961230 9161961230 9161961230 9413001202 9462211200
Part # Description Qty Price
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-35010

KDN145,150

 1
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51741-35090

KDN145,165..SCB

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51741-35090

KDN145,165..SCB

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51742-35120

KDN145,150,165,170..SCB,XTR

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51743-35120

KDN145,150,165,170..SCB,XTR

 1
51100F - FRAME SUB-ASSY
51001-3M190

KDN145..LHD..SCB

 1
51112A - EXTENSION, SIDE RAIL, RH
51112-35070

KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB

W(*80,DRIVER SIDE & PASSENGER SIDE)

 1
51112-35080

KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB

 1
51122 - EXTENSION, SIDE RAIL, LH
51112-35080

KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB

 1
51112-35070

KDN165..SCB;KDN145,150,170;KDN165..LHD..DCB

W(*80,DRIVER SIDE & PASSENGER SIDE)

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35451

KDN145,150

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35451

KDN145,150

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-35340

KDN145,150..LHD

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35800

KDN145

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35250

KDN145,150

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-35200

KDN145,150,165,170,190

 1
51209-35180

KDN145,150,165,170,190

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35350

KDN145,150

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-35300

KDN145,150

 1
51431B - BRACKET, ENGINE REAR MOUNTING
51431-35240

KDN145,150

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35110

KDN145,150

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35110

KDN145,150

 1
51502-35110

KDN145,150

 1
51573A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 RH
51573-35030

KDN145,150

 1
51574A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 LH
51573-35030

KDN145,150

 1
51575A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH
51575-35060

KDN145,150

 1
51576A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH
51575-35060

KDN145,150

 1
51575-35060

KDN145,150

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35160

KDN145,150

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35120

KDN145,150

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35120

KDN145,150..SCB,XTR

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-35120

KDN145,150..SCB,XTR

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-35130

KDN145,165..SCB

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51705-35130

KDN145,165..SCB

 1
51755 - BRACKET, BODY SUPPORT, NO.3 RH
51755-35010

KDN145,150,165,170,190

 1
51756 - BRACKET, BODY SUPPORT, NO.3 LH
51755-35010

KDN145,150,165,170,190

 1
51963A - HOOK, TRANSPORT, FRONT RH
51963-35070

KDN145,150,165,170,190

 1
51964A - HOOK, TRANSPORT, FRONT LH
51964-35050

KDN145,150,165,170,190

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-35060

KDN145,150

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-35060

KDN145,150

 1
77512A - BRACKET, FUEL TANK, REAR
77512-35090

KDN145,150,165,170,190

 1
Common parts
90105-12165
90105-12166
90119-10366
90119-10536
90950-01653
91611-B0825
91619-61230
94130-01202
94622-11200
