KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210 48210C 48211 48211 48211 48211 48212 48212 48212 48212 48213 48213 48213 48213 48214 48214 48214 48215 48215 48216 48220 48220 48220 48220 48227 48241 48241 48241 48241 48242 48242 48242 48242 48246 48246 48246 48246 48247 48247 48247 48247 48256 48256 48256 48256 9099990211 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9511100613 9511100814 9511100815 9511100816 9511100816 9511100816 9511100817 9511100818 9511100818
Part # Description Qty Price
Common parts
90999-90211
94110-40800
94110-41000
95111-00613
95111-00814
95111-00815
95111-00816
95111-00817
95111-00818

ILLUST NO. 1 OF 2(9708- )KDN145,150,LN145,150

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48341 48414B 48415B 48416 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530B 48530C 48530C 48540 9011908686 9011908A30 9017914039 9020114005 9020114005 9020115012 9161261025 9161261025 91641H0820 9413001432 9413001432
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35130

KDN145..SCB

 2
04484 - PIN KIT, REAR SPRING
04484-35070

KDN145..SCB

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35230

KDN145,150

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14040

KDN145

L=155

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35230

KDN145,150

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18013

KDN145..SCB

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18013

KDN145..SCB

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

KDN145..SCB

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

KDN145..SCB

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

KDN145..SCB

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

KDN145..SCB

 4
48341 - BUMPER, REAR SPRING
48341-35080

KDN145,150..SCB,XTR

 2
48414B - BRACKET, SPRING, NO.3 RH
48404-35050

KDN145

 1
48415B - BRACKET, SPRING, NO.3 LH
48407-35050

KDN145

 1
48416 - BRACKET, SPRING, NO.4
48416-35120

KDN145,150

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35030

KDN145,150

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-35030

KDN145,150..SCB,XTR

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80637

KDN145,150..SCB,XTR

MARK 48531-3D070

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

KDN145,150

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

KDN145,150

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

KDN145,150

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

KDN145,150

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

KDN145,150

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

KDN145,150

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

KDN145,150

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

KDN145,150

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80637

KDN145,150..SCB,XTR

MARK 48531-3D070

 1
Common parts
90119-08686
90119-08A30
90179-14039
90201-14005
90201-15012
91612-61025
91641-H0820
94130-01432

ILLUST NO. 2 OF 2(9708- )KDN145,LN145

Click highlighted areas on diagram

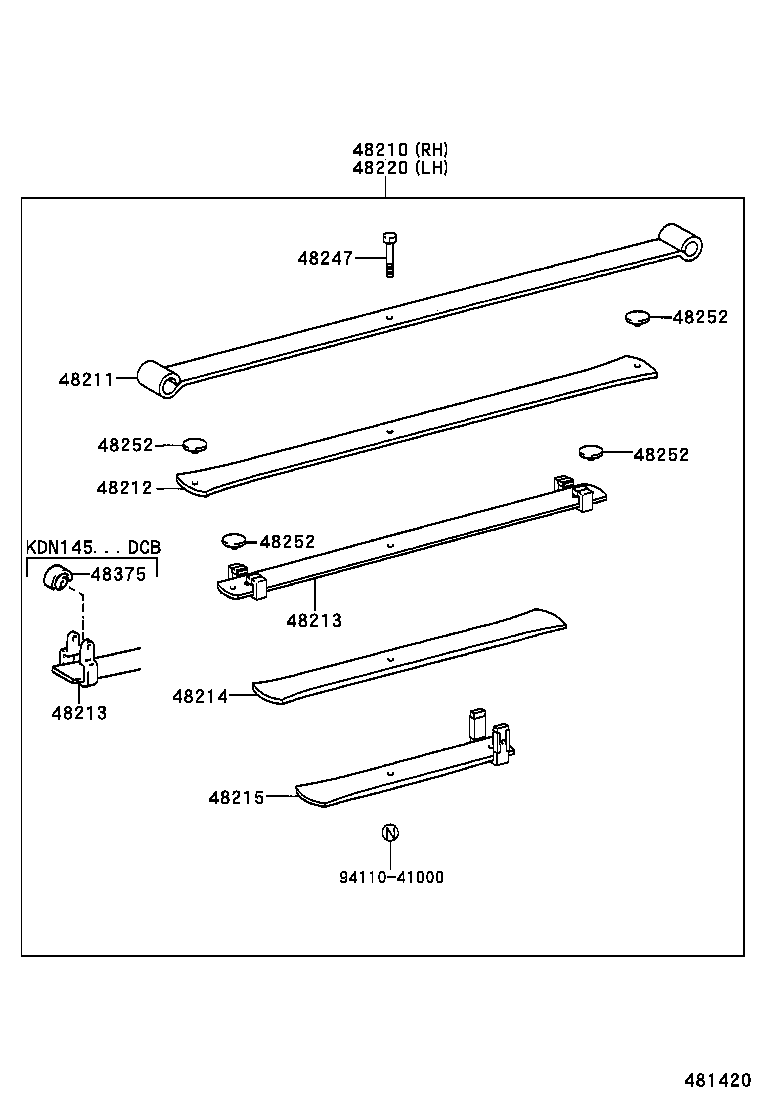

5-LEAF

diagram 48210 48211 48212 48213 48213 48214 48215 48220 48247 48252 48252 48252 48252 48375 9411041000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-3D020

KDN145..SCB

5-LEAF

 1
48211 - LEAF, REAR SPRING, NO.1
48211-3D020

KDN145..SCB

 2
48212 - LEAF, REAR SPRING, NO.2
48212-3D020

KDN145..SCB

 2
48213 - LEAF, REAR SPRING, NO.3
48202-3D020

KDN145..SCB

 2
48213 - LEAF, REAR SPRING, NO.3
48202-3D020

KDN145..SCB

 2
48214 - LEAF, REAR SPRING, NO.4
48214-3D020

KDN145..SCB

 2
48215 - LEAF, REAR SPRING, NO.5
48203-3D020

KDN145..SCB

 2
48220 - SPRING ASSY, REAR LH
48210-3D020

KDN145..SCB

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-35070

KDN145..SCB

 2
48252 - SILENCER, REAR SPRING
48252-35630

KDN145,150..SCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-35630

KDN145,150..SCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-35630

KDN145,150..SCB,XTR

 8
48252 - SILENCER, REAR SPRING
48252-35630

KDN145,150..SCB,XTR

 8
Common parts
94110-41000
