KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN145,150,LN145,150

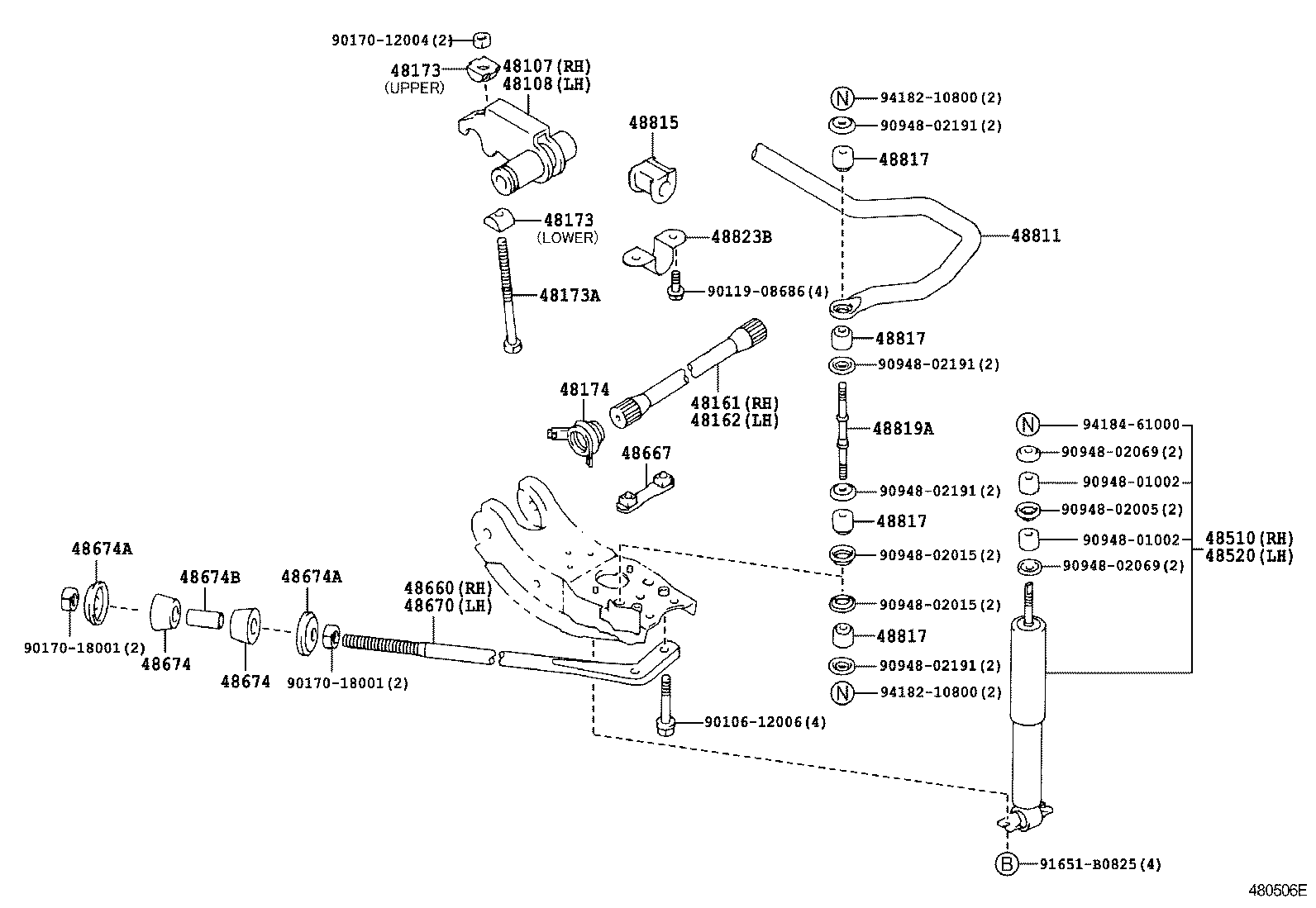

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48173 48173 48173A 48174 48510 48520 48660 48667 48670 48674 48674 48674A 48674A 48674B 48811 48815 48817 48817 48817 48817 48819A 48823B 9010612006 9011908686 9017012004 9017018001 9017018001 9094801002 9094801002 9094802005 9094802015 9094802015 9094802069 9094802069 9094802191 9094802191 9094802191 9094802191 91651B0825 9418210800 9418210800 9418461000
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-35060

KDN145,150

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-35060

KDN145,150

 1
48161 - SPRING, TORSION BAR, RH
48161-35300

KDN145

 1
48162 - SPRING, TORSION BAR, LH
48162-35300

KDN145

 1
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35030

KDN145,150

LOWER

 2
48173-35010

KDN145,150

UPPER

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35030

KDN145,150

LOWER

 2
48173-35010

KDN145,150

UPPER

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12104

KDN145,150

 2
48174 - COVER, TORSION BAR DUST
48174-35031

KDN145,150

 2
48174-35030

KDN145,150

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80063

KDN145,150

MARK 48511-35691

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80063

KDN145,150

MARK 48511-35691

 1
48660 - BAR ASSY, STRUT, RH
48661-35030

KDN145,150

 1
48667 - RETAINER, STRUT BAR
48667-35030

KDN145,150

 2
48670 - BAR ASSY, STRUT, LH
48671-35030

KDN145,150

 1
48674 - CUSHION, STRUT BAR
48674-30040

KDN145,150

 4
48674 - CUSHION, STRUT BAR
48674-30040

KDN145,150

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

KDN145,150

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02030

KDN145,150

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18002

KDN145,150

 2
48811 - BAR, STABILIZER, FRONT
48811-35440

KDN145,150

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-14160

KDN145,150,165,170,190

 2
48817 - CUSHION, FRONT STABILIZER
48817-30010

KDN145,150

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

KDN145,150

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

KDN145,150

 8
48817 - CUSHION, FRONT STABILIZER
48817-30010

KDN145,150

 8
48819A - BOLT, FRONT STABILIZER
48819-35020

KDN145,150

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-35050

KDN145,150

 2
Common parts
90106-12006
90119-08686
90170-12004
90170-18001
90948-01002
90948-02005
90948-02015
90948-02069
90948-02191
91651-B0825
94182-10800
94184-61000
